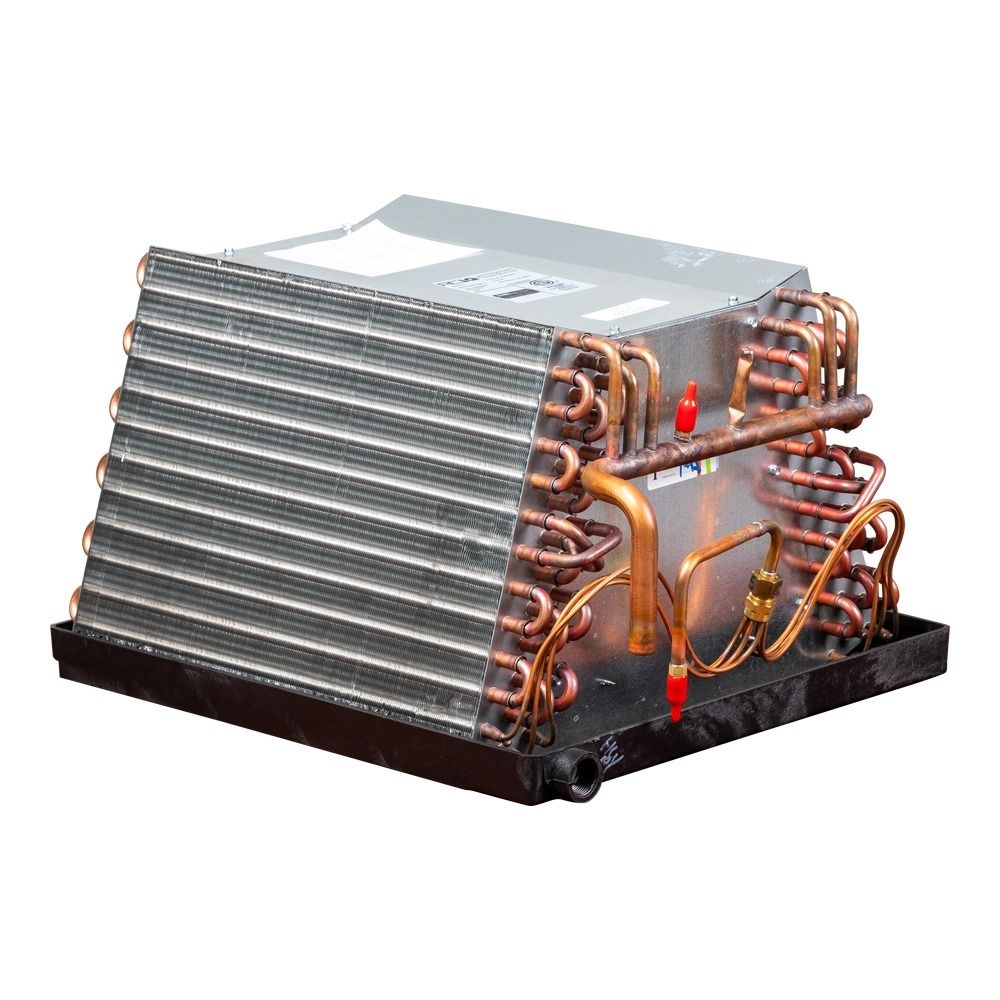

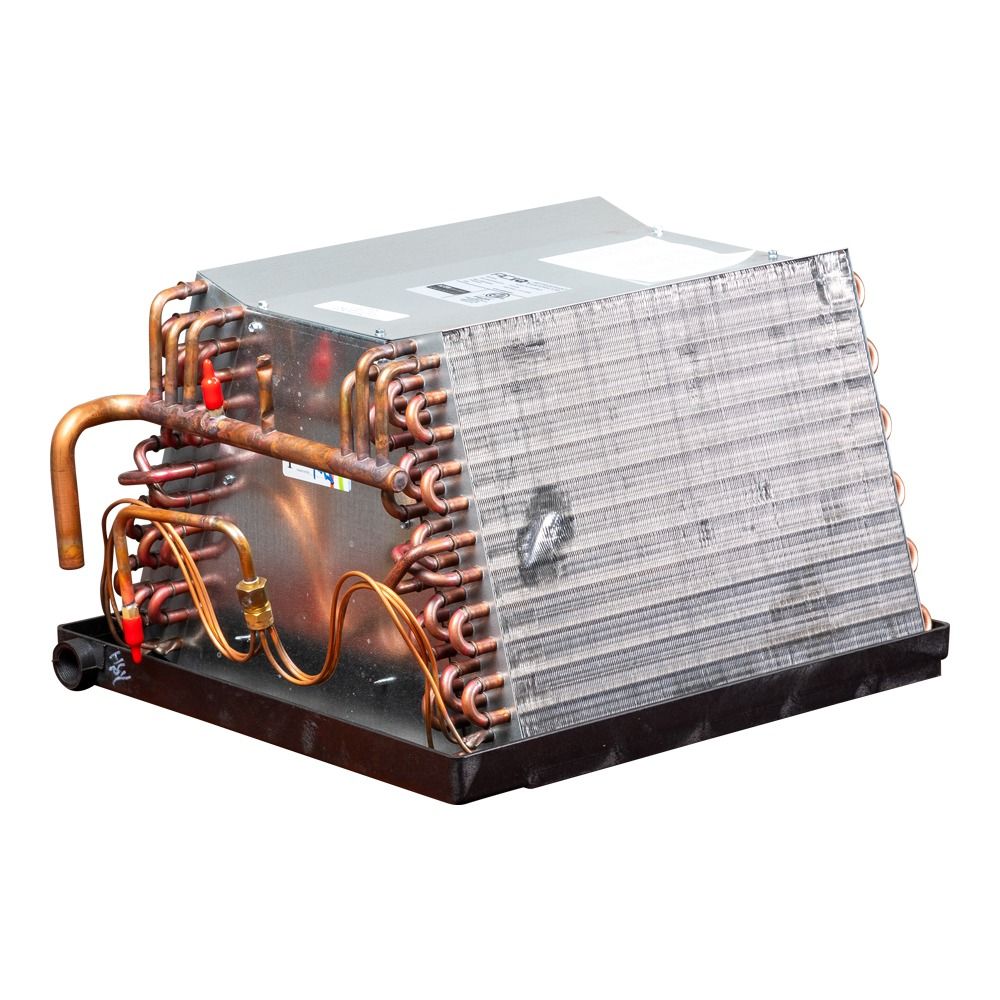

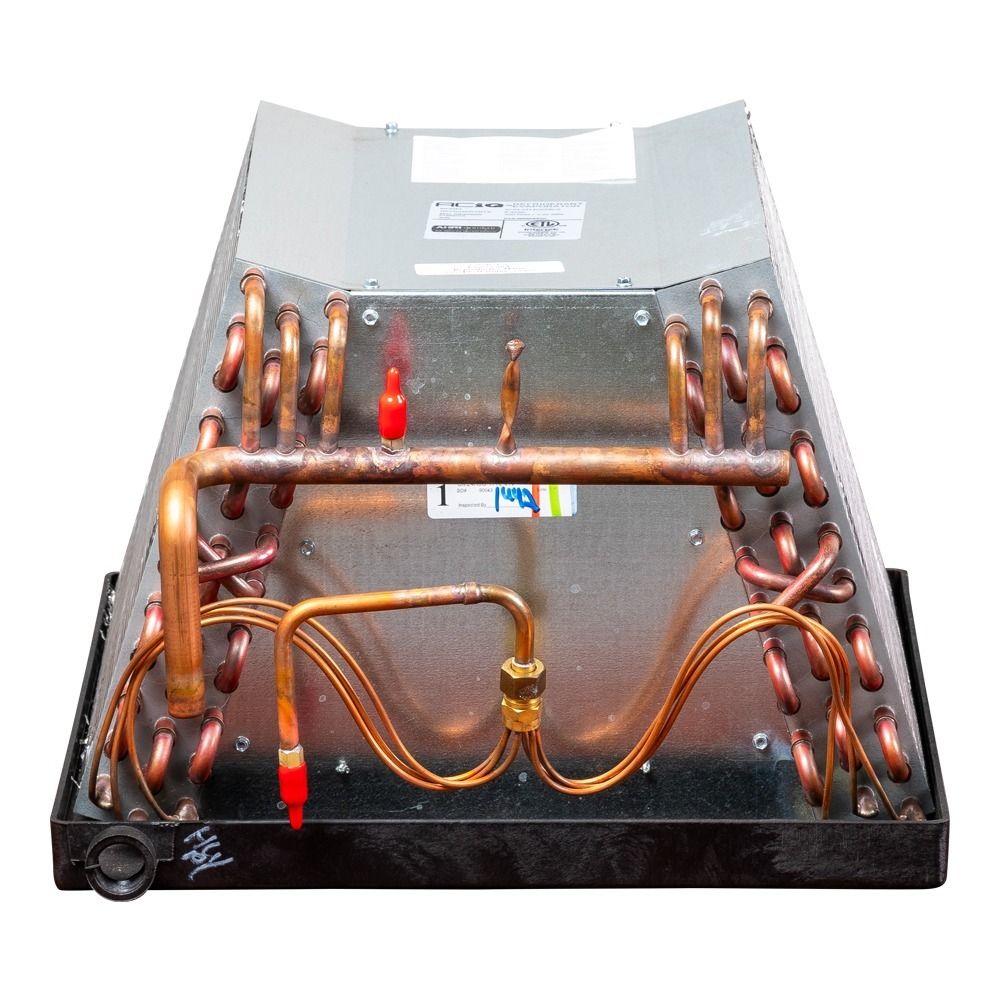

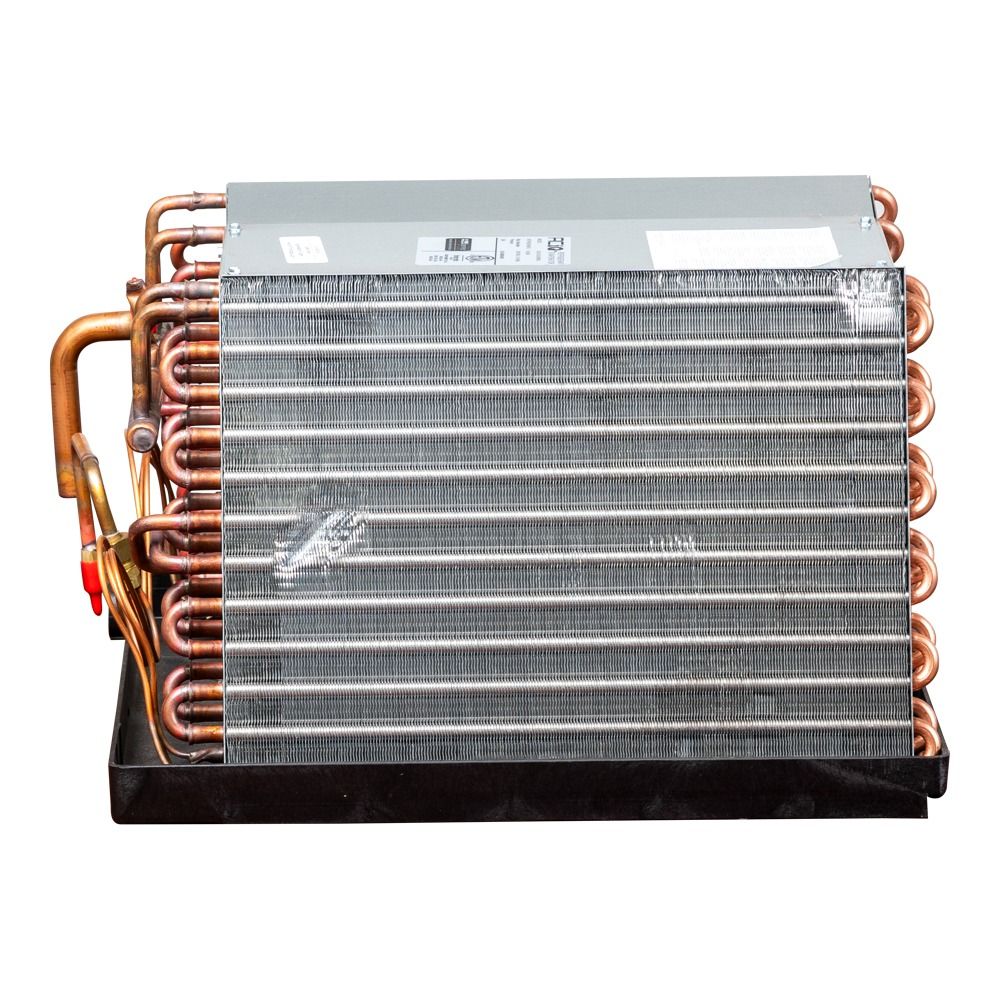

ACiQ 5 Ton Uncased Downflow Mobile Home Coil with TXV | Copper - R32

OVERVIEW

The ACiQ-MH59AU4VYEC coil is designed to be a perfect fit for many mobile and manufactured home HVAC split system applications. Designed with sweat fit/braze fittings and a sturdy, compact design, this downflow evaporator coil allows for a quick and easy installation process with compatible equipment.

QUICK FACTS

• 5 ton downflow evaporator coil
• Designed for mobile and manufactured home use only
• Compatible with both AC-only and heat pump condensers
• Sturdy and compact design
• Rifled copper tubing, enhanced aluminum fins
• Left-hand refrigerant and plumbing connections
• Heavy duty polypropylene drain pans
• AHRI certifiable with all brands of A/C and heat pump systems
• ETL listed for use with both R32 refrigerant
• Downflow plate kit included

5 TON

The ACiQ-MH59AU4VYEC evaporator coil is rated to be compatible with condensers with up to 5 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser.

Note: Do not use heavy duty plastic drain pans on oil furnaces or other applications where outlet temperatures may exceed 290℉ +/-5℉. Specify metal drain pans for these applications.

ACiQ RDS Kit Features

• Kit includes all components needed for RDS installation
• Sensor wire length of 8 feet, and mitigation board power wire length 3 feet
• Flexible installation location, ideal for installs on existing equipment
• System designed to last the useful life of the evaporator coil
• Optional relay for controlling additional components
