Description
Experience ZLINE Attainable Luxury with industry-leading kitchen and bath products that provide an elevated luxury experience, all designed in Lake Tahoe, USA. The ZLINE E690 is a 400 CFM fully integrated range hood insert which provides quiet and efficient performance. Designed to fit seamlessly into your cabinetry, the E690's induction blower will effortlessly remove grease and smoke from your kitchen. This range hood comes equipped with a multi-speed push button control and dishwasher safe aluminum mesh filters. The E690 is easy to operate with 4 speed options and dual LED lights to beautifully illuminate your stove. The high-performance ventilation system provides powerful filtration without disturbing the ambiance of your dinner party. With its classic 430 grade black stainless steel, this range hood contains rust, temperature, and corrosion-resistant properties to ensure a durable vent hood that will last for years to come.
Key features

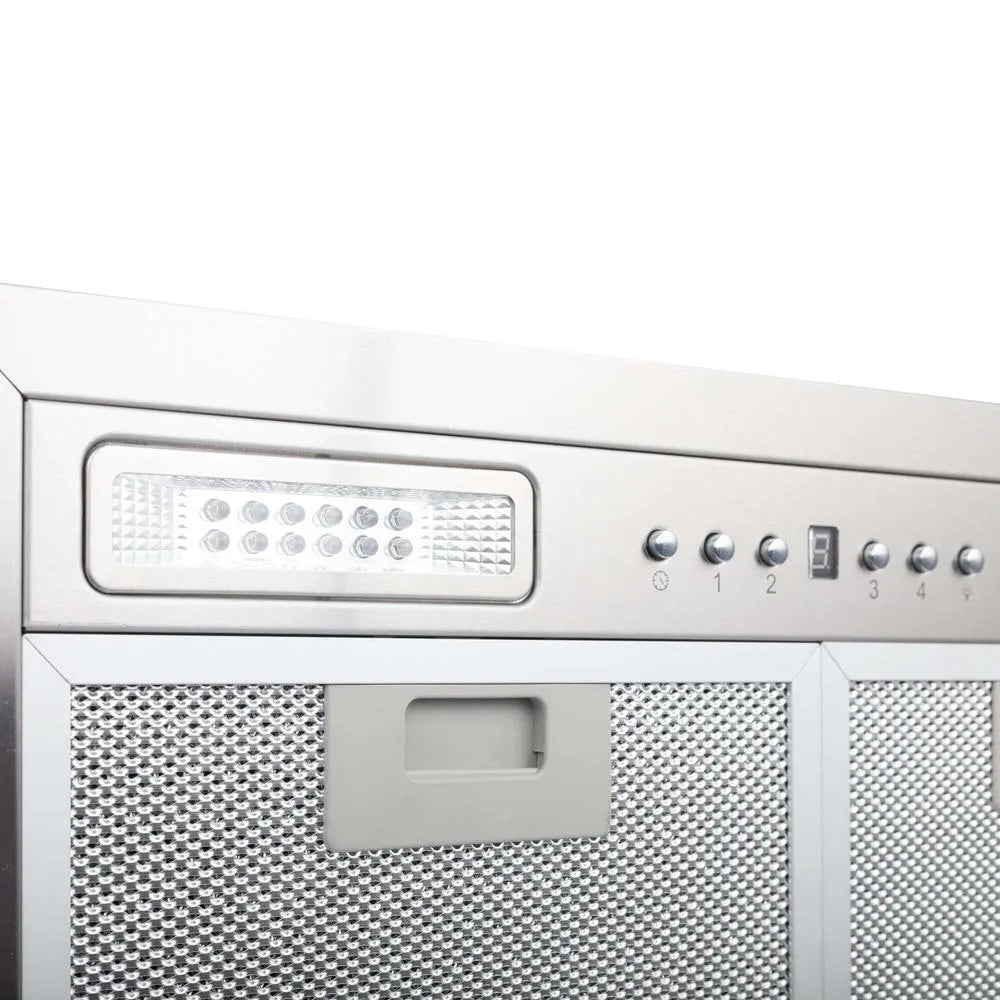

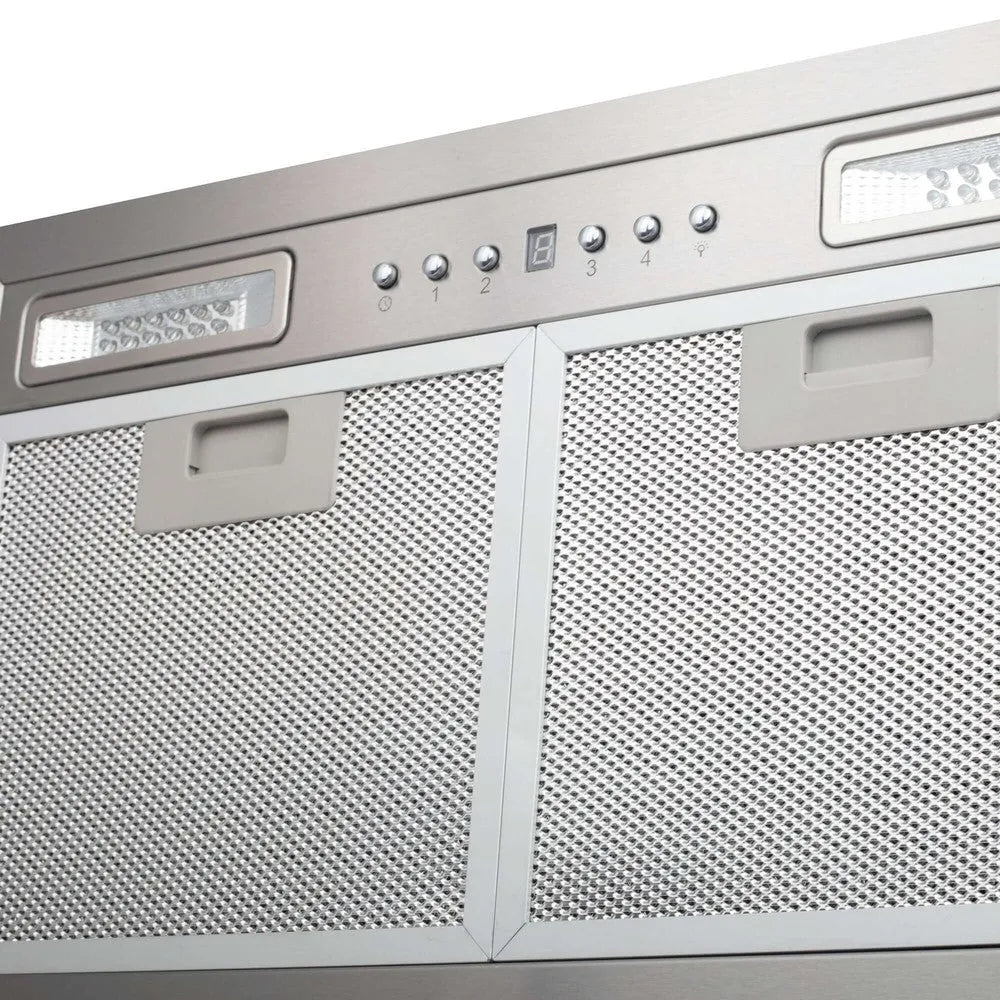

- Easy-to-use push button controls let you easily control fan speed and lighting
- 4-Speed fan control (120/240/320/400 CFM) to choose the appropriate air flow for your cooking situation
- 400 CFM air flow (highest speed setting) efficiently exhausts large amounts of air away from your cooking area
- Fixed vent with ductwork that easily connects to the top of the range hood for external venting
- Dishwasher-safe stainless steel baffle filters
- LED lighting illuminates the cooktop beneath the hood
- Designed to fit standard (circular) ductwork for simple installation
- 3 year parts warranty, life-time motor warranty
- Brushed 430 stainless steel adds that sharp, elegant look to your kitchen
Specifications
| Brand | ZLINE |
|---|---|
| Model / MPN | E690 |
| UPC | 812316033555 |
| Type | Insert Range Hood |
| Width | 20.5 inches |
| Dimensions | 20.5 in. W x 11.75 in. D x 11.75 in. H |
| Finish | Brushed 430 Stainless Steel |
| Airflow by Speed | 120/240/320/400 CFM |
| Motor | High Performance 400 CFM/4-Speed Motor |
| Filters | Aluminum Mesh Baffle Filters |
| Mount Type | Insert |
| Number of Lights | 2 |
| Number of Speeds | 4 |
| Control Type | Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff) |
| Button Panel | Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff) |
| Weight | 20 lb |
| Decibels | 51/55/58/61 dB |
| Duct Size | 6 in. |
| Voltage | 110 V |
| Amps | 3.5 A |
| Certifications | ETL Listed |
| Warranty | 3 year parts, life-time motor warranty |
Documents: User Manual · Product Spec Sheet
Authorized ZLINE dealer. Ships from ZLINE's U.S. warehouses to the contiguous 48 states. Inspect the range hood at delivery and note any damage on the delivery receipt before signing.
Professional installation is recommended. Ducting, venting and electrical work should follow the installation manual and local code.
