Description

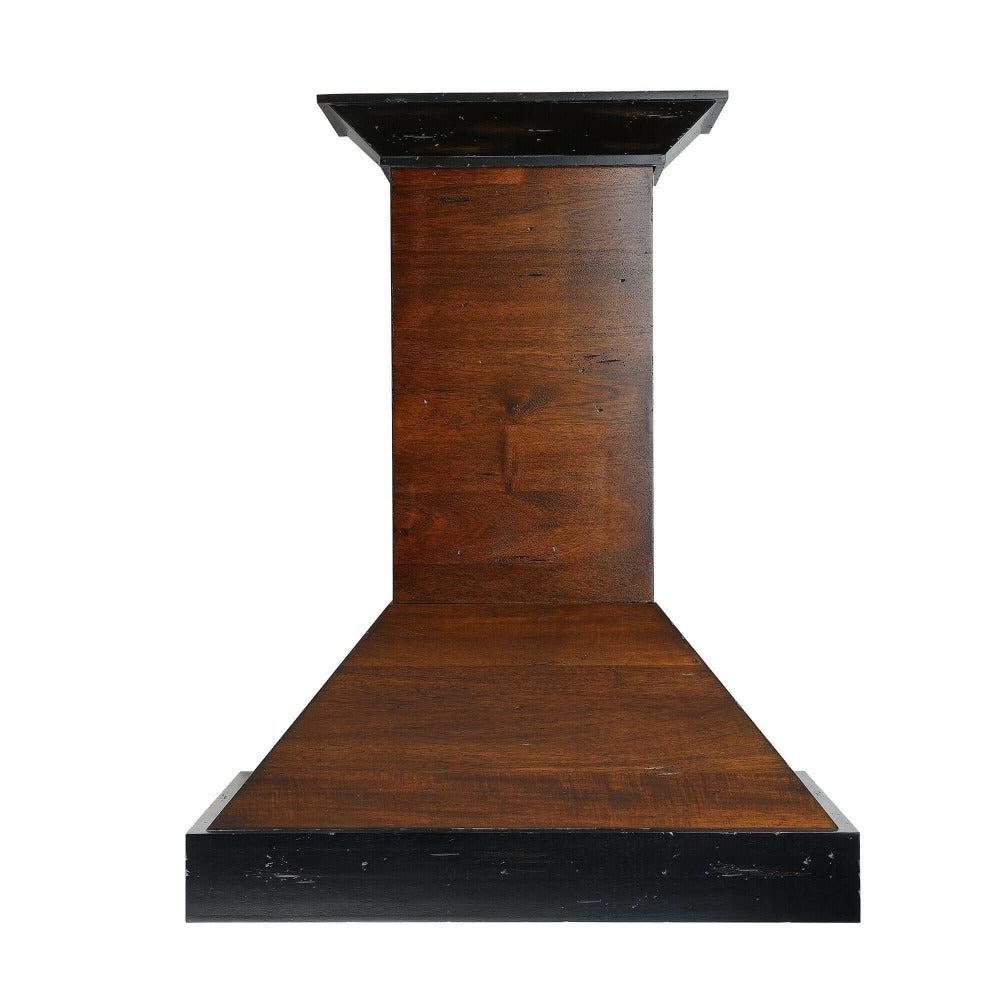

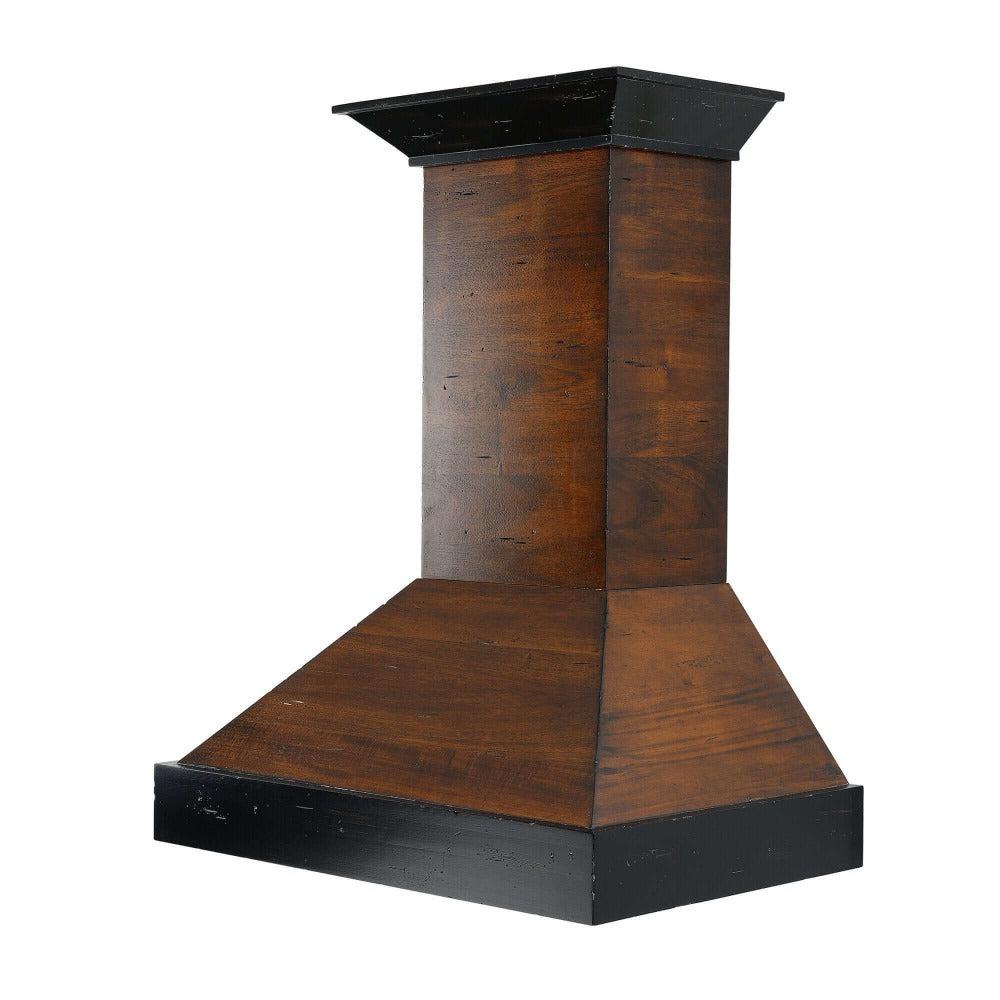

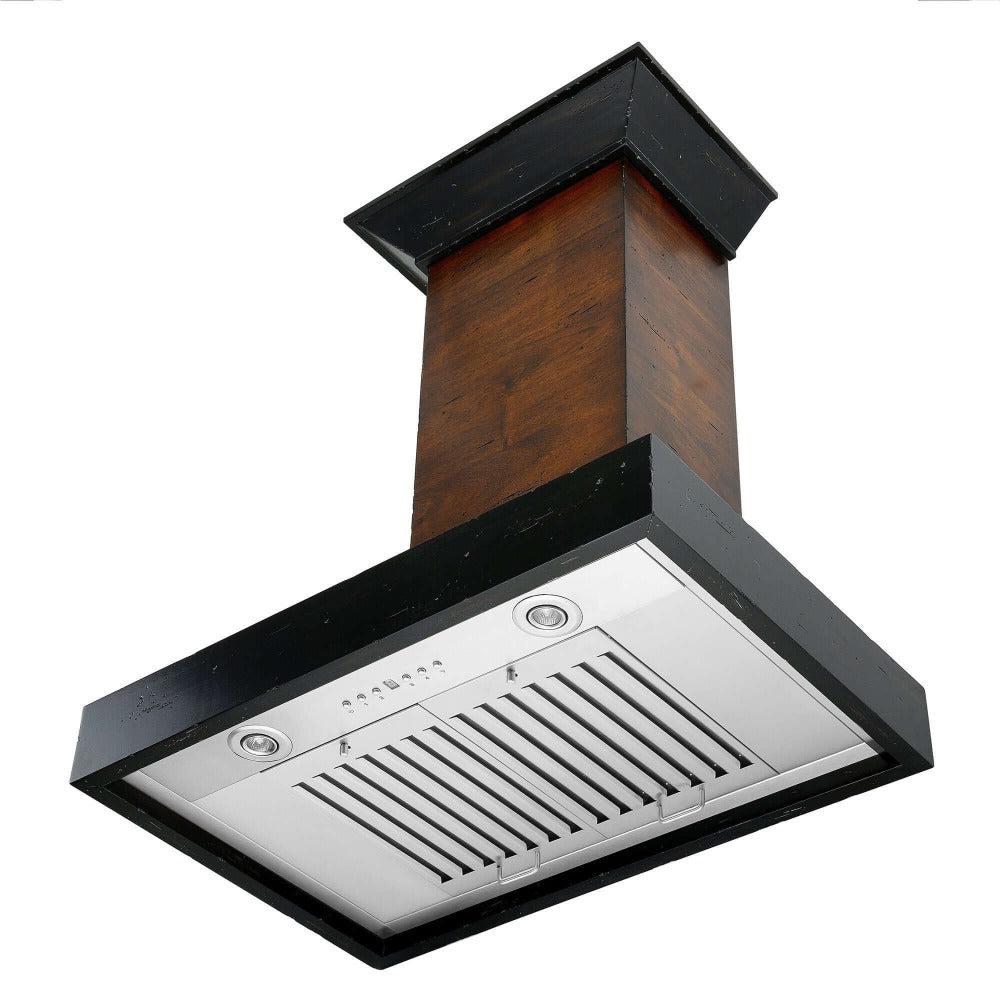

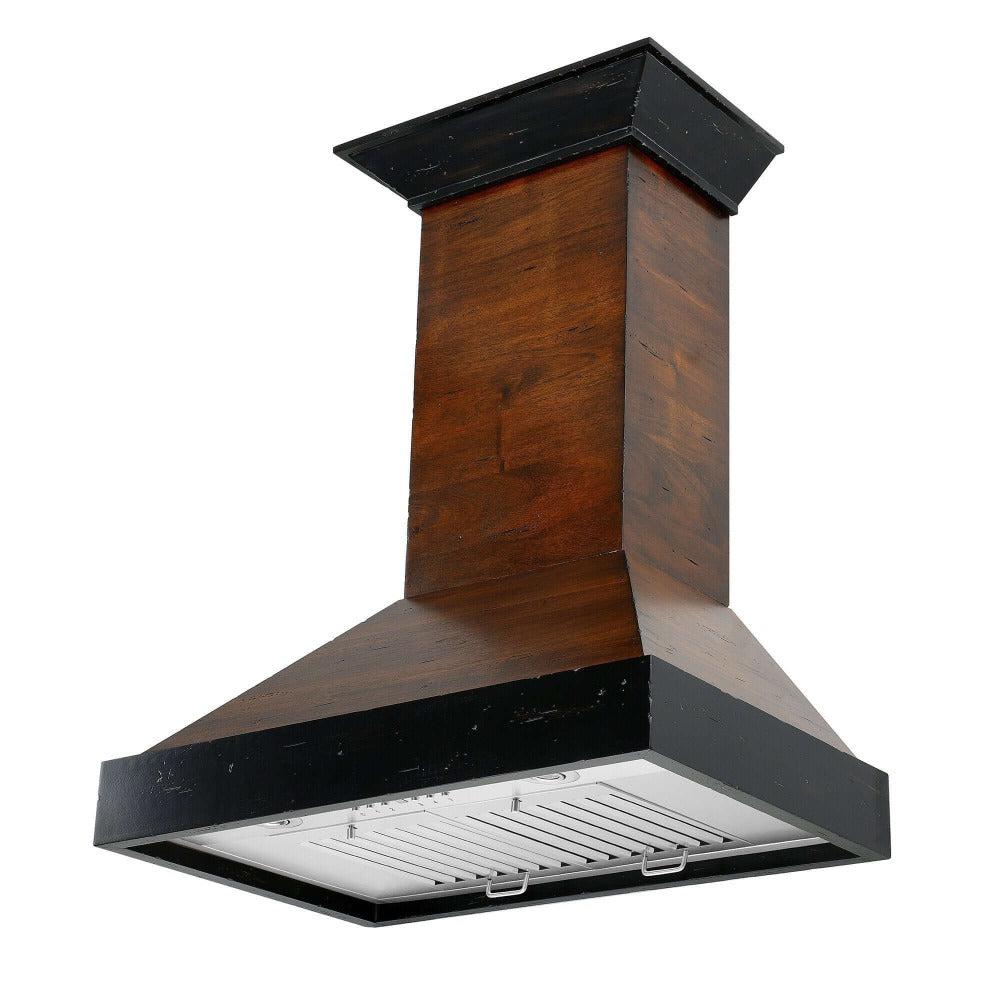

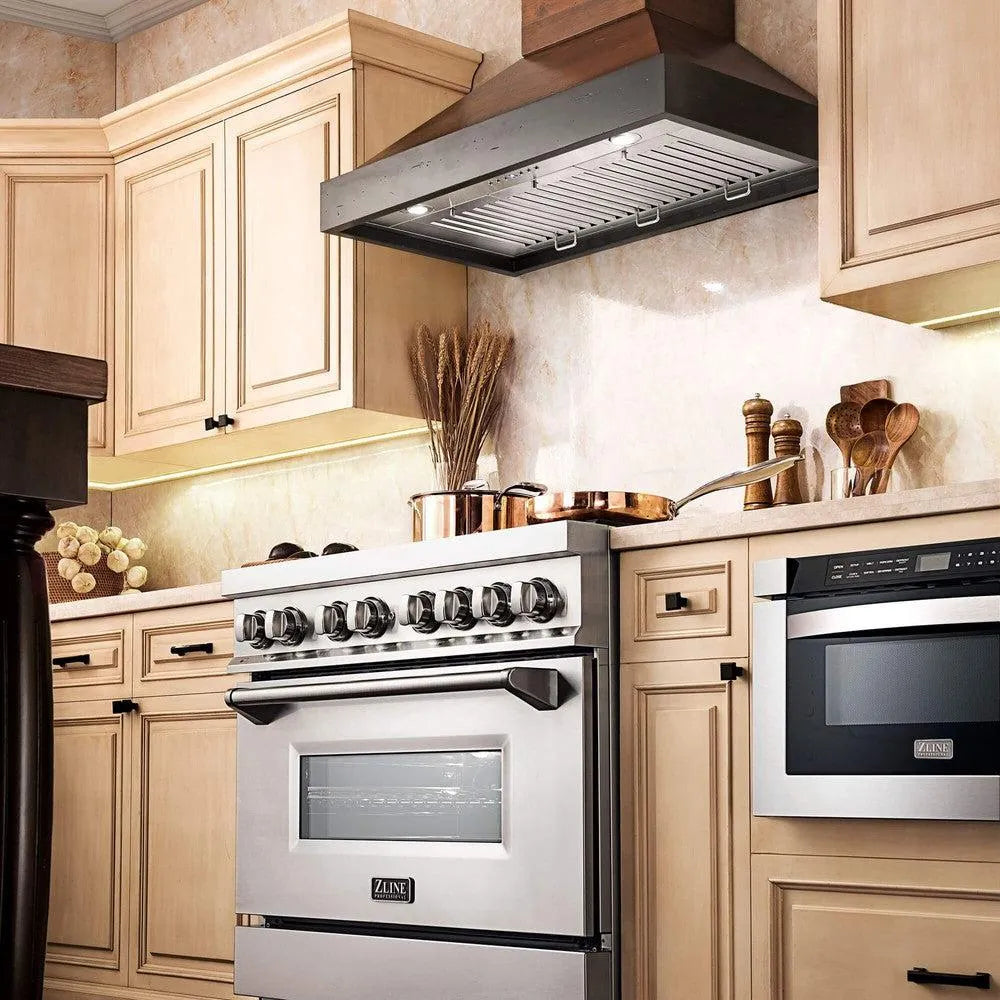

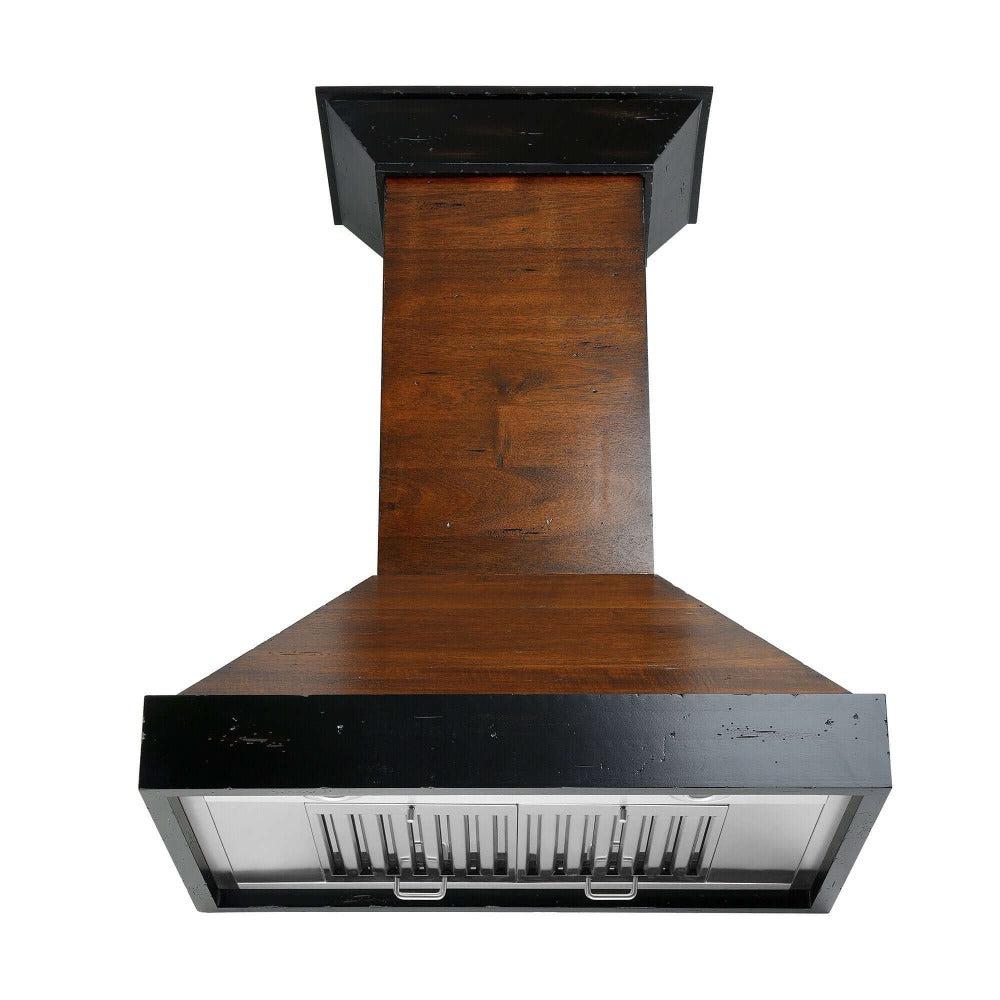

The ZLINE KBAR-30 is a 30 in. Designer Series Wooden Wall Mount Range Hood with a modern design and built-to-last quality that would make it a great addition to any home or kitchen remodel. The walnut hand-finished wood with a black antigua band exterior is made from solid pine with a stainless-steel inner frame. This convertible vent range hood comes with a high-performance, 400 CFM, 4-speed motor (120/240/320/400 CFM) that will provide all the power you need to quietly and efficiently ventilate your stove while cooking. Modern features, including built-in LED lighting and dishwasher-safe stainless steel baffle filters for easy clean-up, will make using this vent hood a simple, enjoyable experience for years to come. This wall mount range hood has a convertible vent, so you can have a luxury range hood whether you need a ducted or ductless option. ZLINE Range Hoods are ETL Listed and have one of the easiest installations in the industry.
Specifications
| Brand | ZLINE |
|---|---|
| Series | Convertible Vent |
| Model / MPN | KBAR-30 |
| UPC | 817299021094 |
| Type | Wall Mount Range Hood |
| Width | 30 inches |
| Dimensions | 30 in. W x 18 in. D x 13.25 in. H |
| Chimney Dimensions | 12.5" W x 9.25" D x 23.5" H |
| Finish | Wood/Walnut |
| Hardware Finish | Solid Wood Exterior with Stainless Steel Insert, Walnut-toned Body & Chimney, Antigua (Black) Front Band |
| Airflow by Speed | 120/240/320/400 CFM |
| Motor | High Performance 400 CFM/4-Speed Motor |
| Filters | Stainless Steel Baffle Filters (Dishwasher-safe) |
| Mount Type | Wall Mount |
| Number of Lights | 2 |
| Number of Speeds | 4 |
| Control Type | Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff) |
| Button Panel | Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff) |
| Weight | 55 lb |
| Decibels | 51/55/58/61 dB |
| Duct Size | 6 in. |
| Voltage | 110 V |
| Amps | 3.5 A |
| Certifications | ETL Listed, CEC Listed |
| Warranty | 3 year parts, life-time motor warranty |
Documents: User Manual · Product Spec Sheet
Authorized ZLINE dealer. Ships from ZLINE's U.S. warehouses to the contiguous 48 states. Inspect the range hood at delivery and note any damage on the delivery receipt before signing.
Professional installation is recommended. Ducting, venting and electrical work should follow the installation manual and local code.
