Description

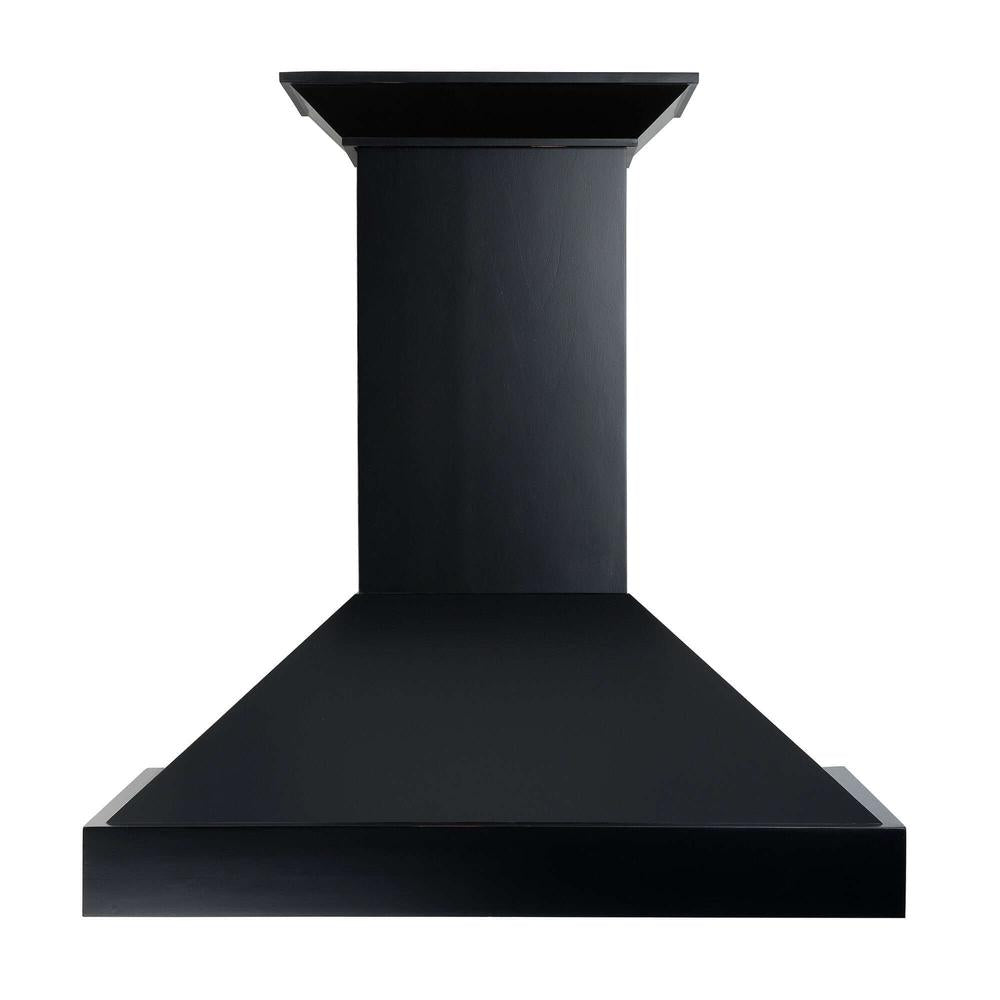

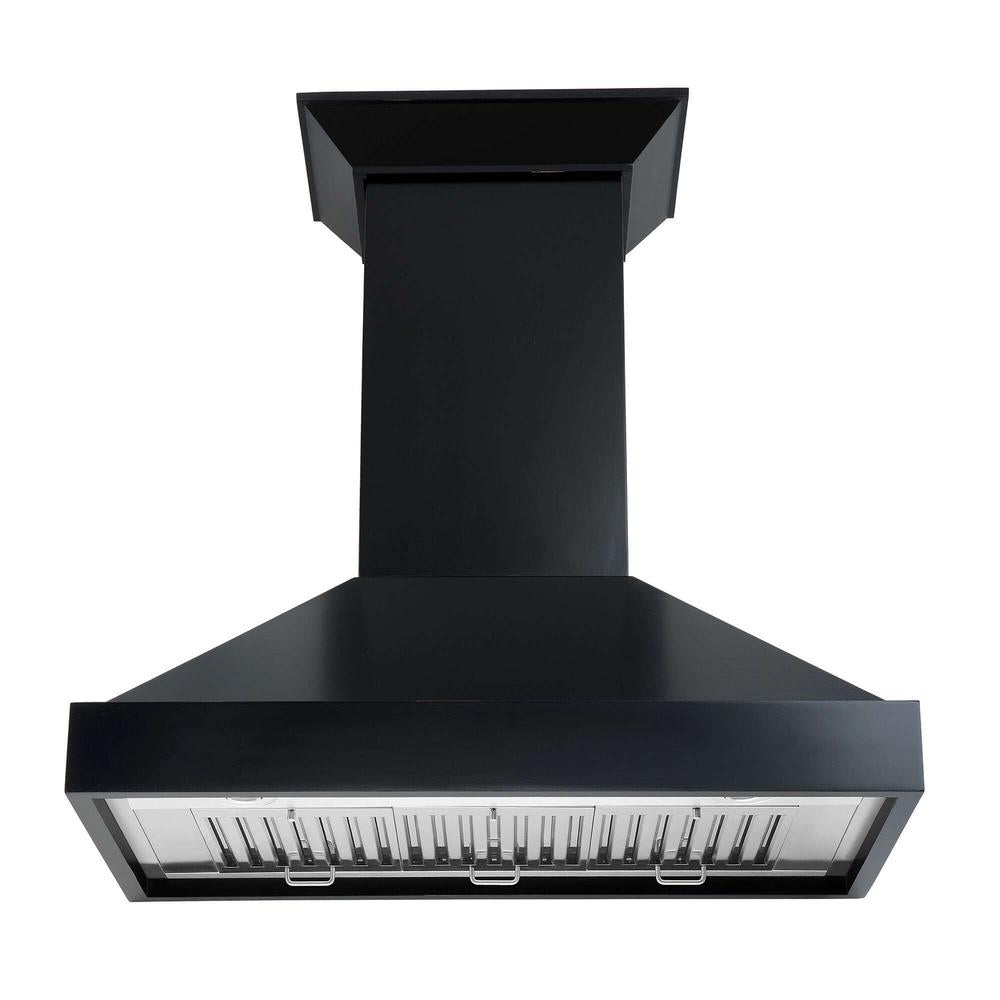

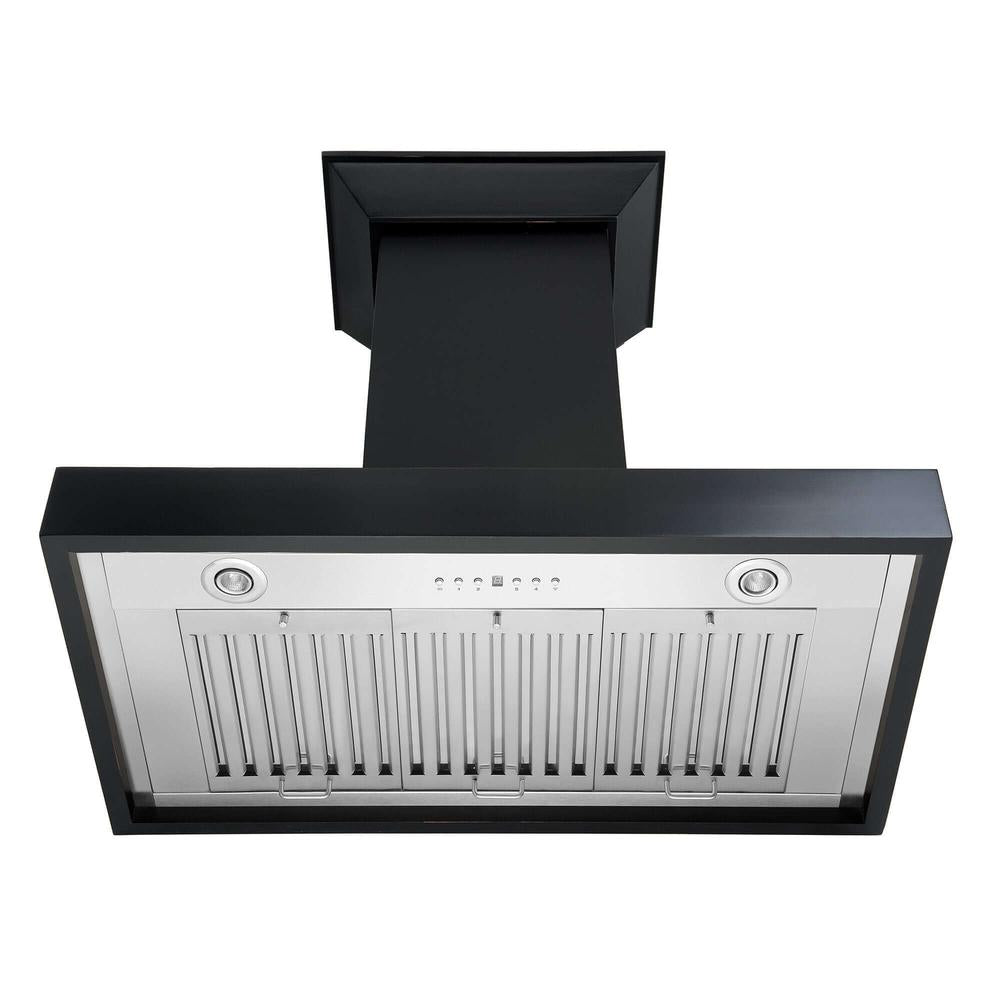

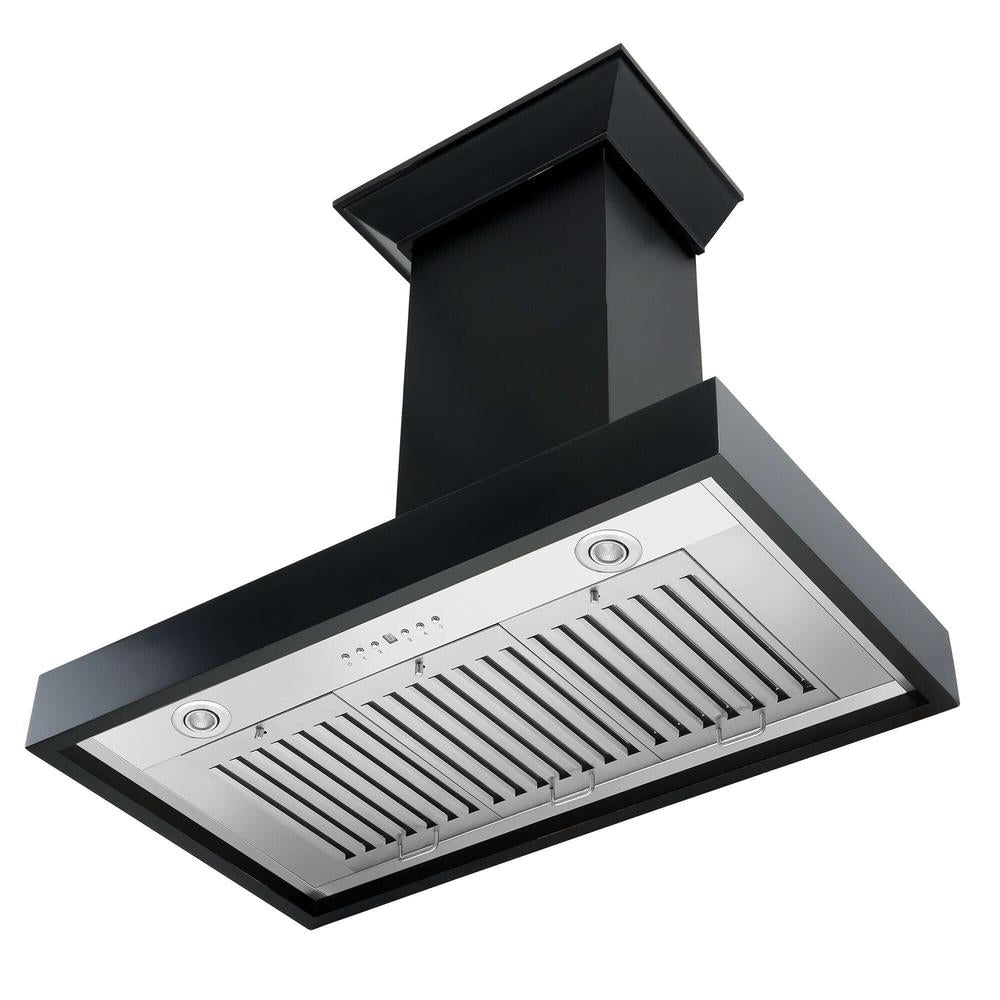

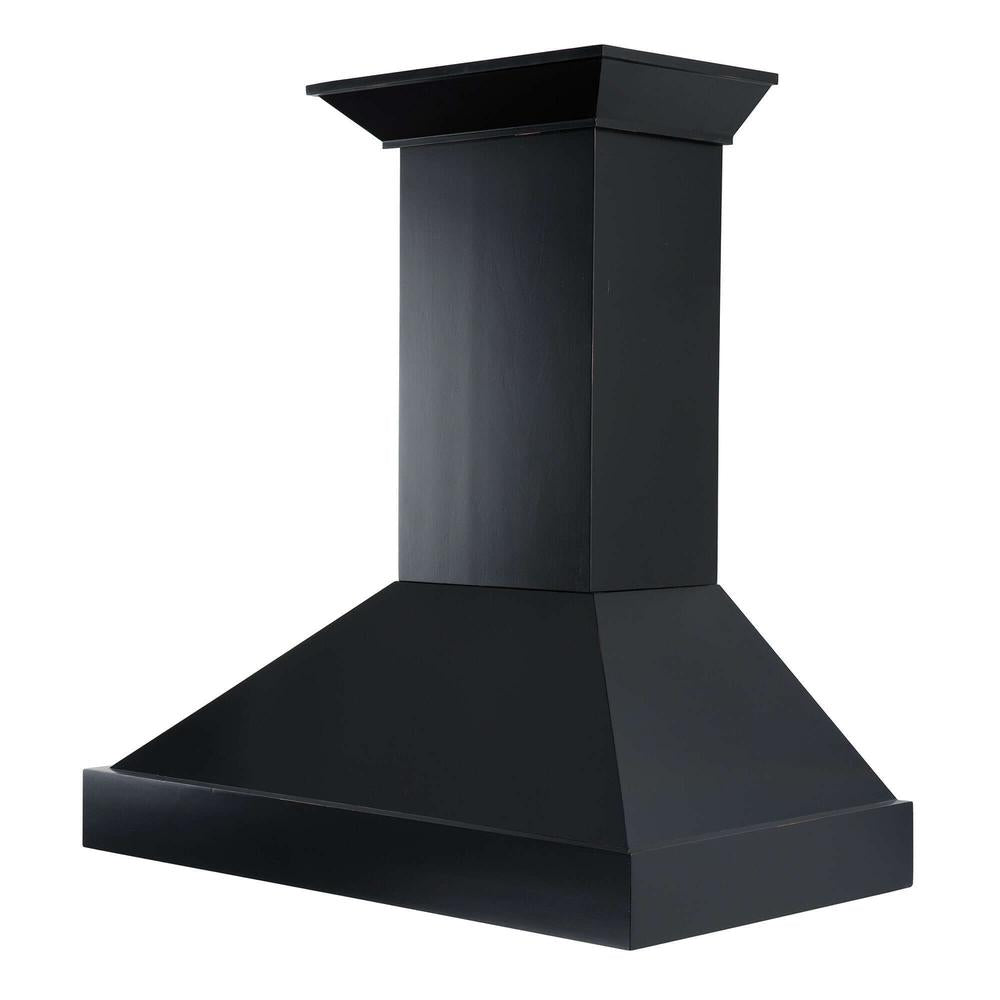

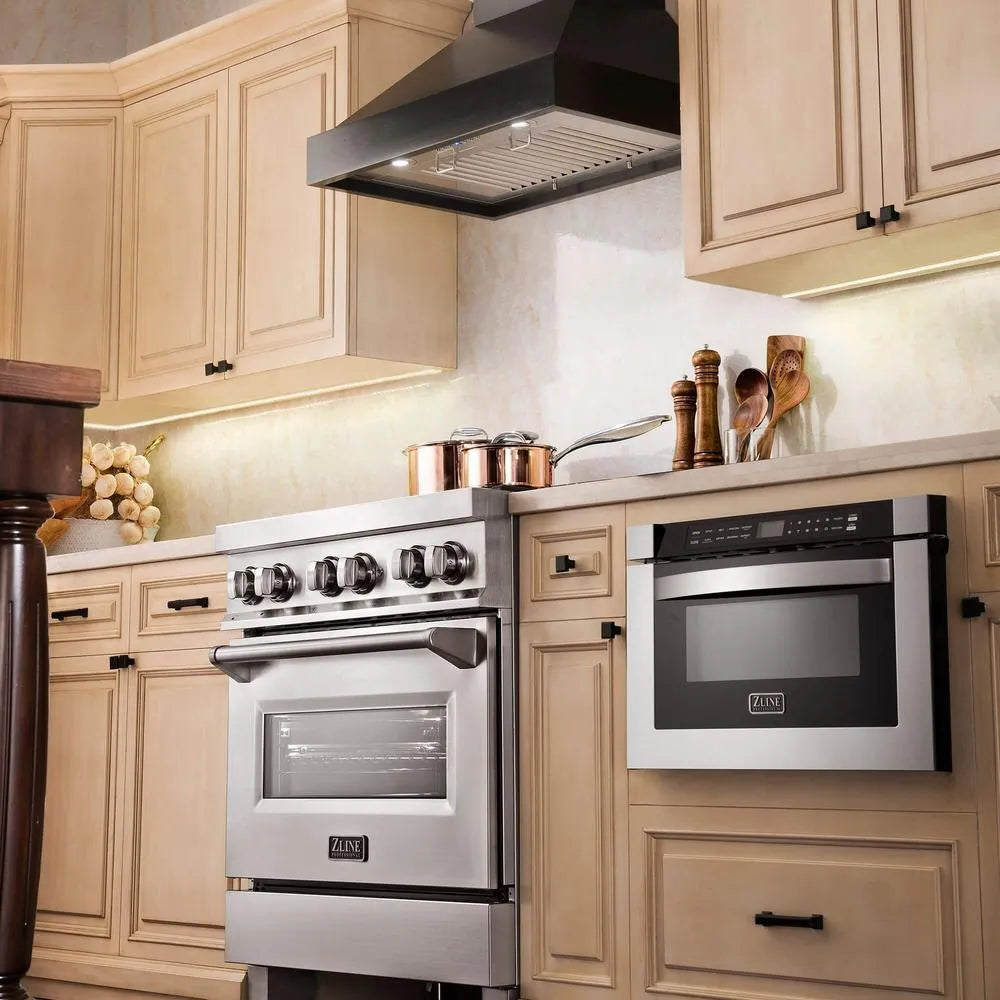

The ZLINE KBCC-30 is a 30 in. Designer Series Wooden Wall Mount Range Hood with a modern design and built-to-last quality that would make it a great addition to any home or kitchen remodel. The black hand-finished wood is made from solid pine with a stainless-steel inner frame. This convertible vent range hood comes with a high-performance, 400 CFM, 4-speed motor (120/240/320/400 CFM) that will provide all the power you need to quietly and efficiently ventilate your stove while cooking. Modern features, including built-in LED lighting and dishwasher-safe stainless steel baffle filters for easy clean-up, will make using this vent hood a simple, enjoyable experience for years to come. This wall mount range hood has a convertible vent, so you can have a luxury range hood whether you need a ducted or ductless option. ZLINE Range Hoods are ETL Listed and have one of the easiest installations in the industry. ZLINE stands by all products with its manufacturer parts warranty.
Key features
- Convertible Range Hood: This unit can be externally vented or recirculated (ductless) with charcoal filters (not included, model number CF1) to reduce harmful odors
- Easy-to-use push button controls let you easily control fan speed and lighting
- 4-Speed Fan Control (120/240/320/400 CFM) lets you choose the appropriate air flow for your cooking situation
- 400 CFM Air Flow (highest speed setting) efficiently moves large amounts of air away from your cooking area
- Ductwork easily connects to the top of the range hood for external venting
- Dishwasher-safe stainless steel baffle filters
- LED lighting illuminates the cooktop beneath the hood
- Designed to fit standard (circular) ductwork for simple installation
- 3 year parts warranty, life-time motor warranty
- Black Painted Solid Birch Wood Exterior || Brushed 430 Stainless Steel Insert
Specifications
| Brand | ZLINE |
|---|---|
| Series | Convertible Vent |
| Model / MPN | KBCC-30 |
| UPC | 817299024583 |
| Type | Wall Mount Range Hood |
| Width | 30 inches |
| Dimensions | 30 in. W x 18 in. D x 13.25 in. H |
| Chimney Dimensions | 12.5" W x 9.25" D x 23.5" H |
| Finish | Solid Wood Exterior with Stainless Steel Insert, Walnut-toned Body & Chimney, Antigua (Black) Front Band |
| Airflow by Speed | 120/240/320/400 CFM |
| Motor | High Performance 400 CFM/4-Speed Motor |
| Filters | Stainless Steel Baffle Filters (Dishwasher-safe) |
| Mount Type | Wall Mount |
| Number of Lights | 2 |
| Number of Speeds | 4 |
| Control Type | Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff) |
| Button Panel | Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff) |
| Weight | 55 lb |
| Decibels | 51/55/58/61 dB |
| Duct Size | 6 in. |
| Voltage | 110 V |
| Amps | 3.5 A |
| Certifications | ETL Listed, CEC Listed |
| Warranty | 3 year parts, life-time motor warranty |
Documents: User Manual · Product Spec Sheet
Authorized ZLINE dealer. Ships from ZLINE's U.S. warehouses to the contiguous 48 states. Inspect the range hood at delivery and note any damage on the delivery receipt before signing.
Professional installation is recommended. Ducting, venting and electrical work should follow the installation manual and local code.
