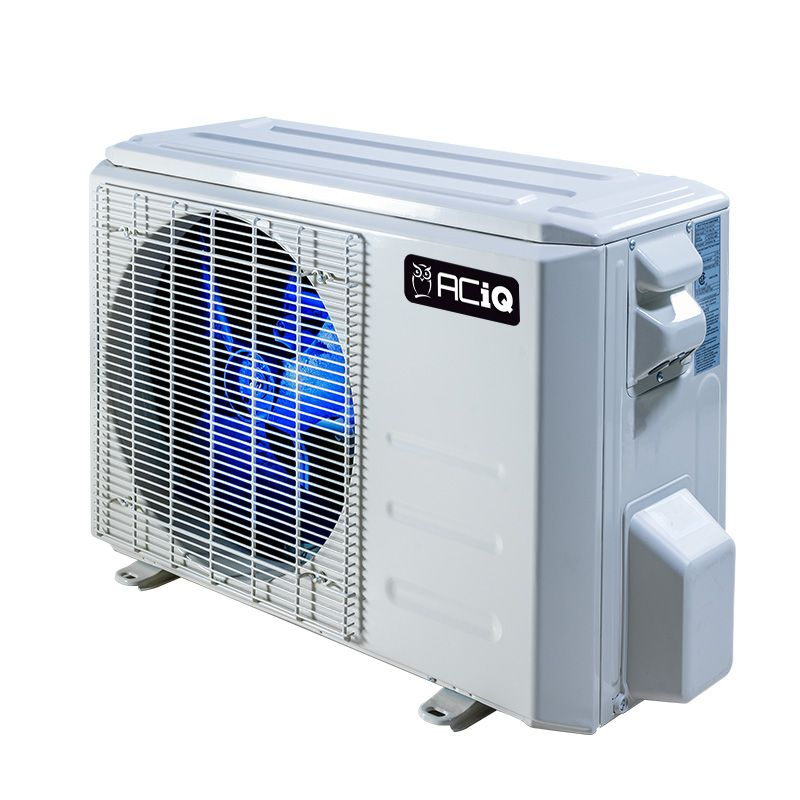

ACiQ 2.25 Ton 25 SEER2 Multi Zone Condenser | Inverter - R454B

Overview

ACiQ is the smart solution to adaptive heating and cooling in almost any space and climate - all at an affordable cost. With the ES-27Z-M4C, you can have up to 4 air handlers run off a single condenser, saving space outside and keeping you perfectly comfortable in your home.

Quick Facts

• 27,000 BTU, 25 SEER2 multi zone heat pump condenser
• Designed to function with up to 4 attached air handlers
• Efficient cooling from -13°F to 122°F outdoor temperatures
• Efficient heating from -13°F to 75°F outdoor temperatures
• Gold Fin full-protection coating on condenser coil
• Quiet operation at even the highest workloads

Product Description

The 27,000 BTU, ES-27Z-M4C is designed to easily support up to 4 air handlers at up to 1.25 times the condenser BTU rating, or 33,750 BTU across all air handlers. This adaptive, inverter condenser is constantly self-adjusting to provide the precise amount of heating or cooling needed to maintain your desired temperature in each room or zone.

You can set different temperatures room by room, even turn off heating and cooling in unused areas. This, combined with a high efficiency rating of 25 SEER2, means you are buying a system designed to intelligently save you money both up front and over the lifetime of the unit.

Important Note: Although the condenser is pre-charged, this model does not have quick connect line set connectors and is not a self-install unit. You will need a professional to add more refrigerant and vacuum the lines as needed. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included. For all multi zone ACiQ condensers, a minimum of two air handlers is needed for the unit to function.

Technical Specifications

Cooling Capacity	27,000 BTU
Heating Capacity	27,000 BTU
Tonnage	2.25 Ton
SEER2 Rating	25
HSPF2 Rating	9.5
Refrigerant	R454B
Refrigerant Charge	98.4 oz
Compressor Type	Rotary
Electric Heat	Heat Pump
Operating Temperature Range	-13°F to 122°F
Noise Level	61 dB(A)
Maximum CFM	2131
Line Set Connections	1/4" liquid (4), 3/8" suction (3), 1/2" suction (1)
Electrical Requirements	208/230V, 1Ph, 60Hz
Breaker Size	23-25A
Dimensions (WxDxH)	37.24" x 16.14" x 31.89"
Weight	149.69 lbs
Zone Compatibility	Multi Zone (up to 4 indoor units)
AHRI Certificate Number	216032379
Energy Star Certified	Yes

Warranty

• 12 year compressor limited warranty (with registration)
• 7 year parts limited warranty (with registration)
• Professional installation required
• View Full Warranty Details

Compatible Systems

This condenser supports up to 4 ACiQ indoor units with total capacity up to 33,750 BTU. Compatible with:

• ACiQ Wall Mounted Air Handlers
• ACiQ Ceiling Cassette Units
• ACiQ Slim Duct Units

Certifications

Energy Star Certified | AHRI Certified | EPA Refrigerant Compliant

Manuals & Downloads

• Installation and Owner's Manual
• Product Submittal Data
• Warranty Information
• AHRI Certificate - Non-Ducted Indoor Units
