OVERVIEW

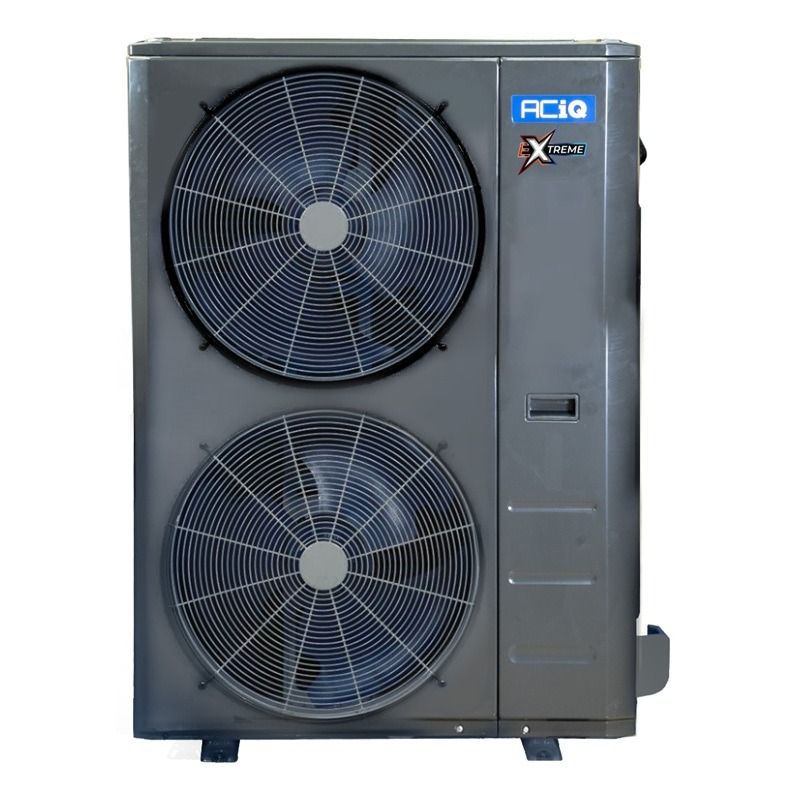

Inverter - The ACiQ-60-HPD 5 ton Extreme series central inverter heat pump utilizes inverter technology to convert AC power to DC, allowing the compressor inside your condenser to speed up and slow down. This allows the system to self-adjust BTU output based on demand. As the weather changes, so will your system output.
Learning Condenser - Equipped with advanced sensors, this condenser monitors indoor and outdoor air temperature, duct pressure, refrigerant temperature, and overall performance. During the initial startup, it enters a learning mode that optimizes future operations for maximum efficiency by collecting and storing data.
Adaptive Sizing - With its self-adjusting inverter design, the ACiQ-60-HPD can be sized based on your heating needs. Standard heat pumps may cause discomfort during summer when sized for heat, but this unit automatically adjusts to function like a smaller unit, ensuring ideal cooling performance without excess humidity.
Extreme Heat Technology - "Extreme Heat" means extended temperature range heating all the way down to -22°F. Traditional heat pumps cannot produce significant heat below about 30°F outside temperature. Below that threshold, they rely on expensive backup electric heat. The ACiQ-60-HPD uses the inverter to vary the refrigerant flow, allowing for maximum heat extraction during extreme cold temperatures. The backup electric heat supplements the heat pump, and only takes over below -22°F. The heat pump gives 100% at 0°F, and still gives 80% at -22°F, saving you up to 75% on cold weather heating bills.
QUICK FACTS
- Variable BTU output based on demand: 12,000-54,000 BTU for cooling, 12,000-56,000 for heating
- R454B refrigerant
- Inverter heat pump system for ducted applications
- Efficient cooling from -22°F to 122°F outdoor temperatures
- Efficient heating from -22°F to 75°F outdoor temperatures
- Durable gold fin condenser coil coating for longevity
- Quiet operation, even under high workloads
5 Ton, 16 SEER2
Boasting an efficiency rating of 16 SEER2, the ACiQ-60-HPD provides versatile comfort across a range of climates by providing reliable comfort with a variable output that eliminates short cycling for lasting efficiency. Use our sizing calculator (found HERE) to determine the demand for your home.
| ACiQ 5 Ton 16 SEER2 High Efficiency Heat Pump Condenser - R454B Inverter | |
|---|---|
| SKU | ACIQ-60-HPD |
| Refrigerant Charge | 183.42 oz. |
| Weight | 275.130000 |
| Manufacturer | ACiQ |
| Replaces | ACiQ-60-HPB |
| Product Features | Inverter, Low Ambient Heating, Two Stage Condenser, Variable Speed Condenser |
| HSPF2 | 9.0 |
| Cooling BTU | 55,000 BTU |
| Heating BTU | 56,000 BTU |
| Maximum CFM | 2648.6 |
| Decibel Level (dBA) | 65 |
| Electric Heat | Heat Pump |
| Refrigerant | R454B |
| SEER2 | 16 |
| Condenser Stages | Variable Speed |
| Compressor Type | Rotary |
| Liquid Valve Size | 3/8" |
| Suction Valve Size | 3/4" |
| Electrical | 208/230V, 1 Phase, 60 Hz |
| Electric Phase Filter | Single Phase |
| Max Breaker Size | 40 Amps |
| Min. Breaker Size | 40 Amps |
| Tonnage | 5 Ton |
| Min/Max Outdoor Temp for Heating | -22°F - 75°F |
| Min/Max Outdoor Temp for Cooling | -22°F - 122°F |
| Zone Compatibility | Single Zone |
| Ambient Temperature Range | -22°F - 122°F |
| Height | 52.48" |
| Width | 37.48" |
| Depth | 16.34" |
| Warranty | 12 Years Compressor and 7 Years Parts with Online Registration |
| Resources |
|
| Safety Information | PROPOSITION 65 WARNING |
