Product overview

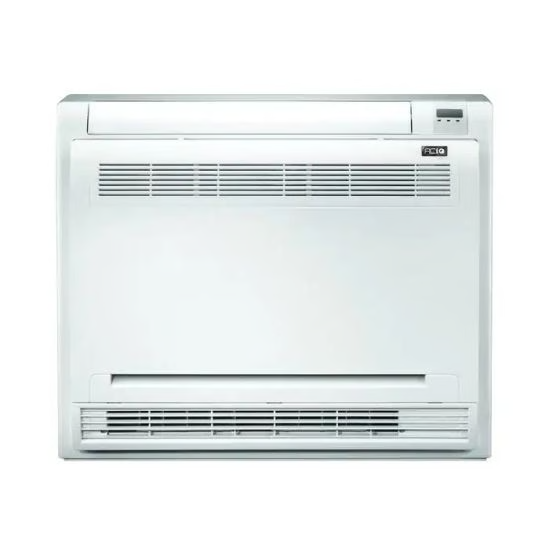

ACiQ 9,000 BTU Floor or Ceiling Mounted Mini Split Air Handler with Heat Pump, R454B Refrigerant, Multi-Zone Compatible - ACIQ-09FM-HH-MD
Summary
The ACiQ Floor Mounted air handler is ideal for sun porches and attic rooms where space to mount a standard high wall unit is not available. This heat console type air handler surface mounts low on the wall, near or on the floor, with dimensions that are wider, taller and slightly shallower than high wall units. Perfect for spaces below windows or attic remodels with knee-walls where vertical high walls may not be available.
Optimized for heating, these units take in return air at the top edge and deliver it at the bottom, eliminating stratification due to heat rise. In cooling mode, the airflow direction reverses for better air mixing in the room.
Important
All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone.
What's Included
- Indoor Unit ACIQ-09FM-HH-MD (9,000 BTU Floor/Ceiling Mounted Air Handler)
- Wireless Remote Control
- Installation Manual
- Owner's Manual
- Manufacturer Warranty
Key Features
- 9,000 BTU of Heating or Cooling Capacity
- Dry and Fan modes available
- Ideal for small rooms in most climates
- Remote control thermostat included
- Optimized airflow for both heating and cooling
- Energy Star certified
- R454B refrigerant
- Multi-zone compatible
Technical Specifications
| SKU | ACIQ-09FM-HH-MD |
| Weight | 41.45 lbs |
| Cooling BTU | 9,000 BTU |
| Heating BTU | 9,000 BTU |
| Maximum CFM | 441.4 |
| Decibel Level | As low as 22 dBA |
| Refrigerant | R454B |
| Line Sizes | 1/4" liquid, 3/8" suction |
| Electrical | 208/230V 1 Phase 60Hz |
| Dimensions (WxDxH) | 31.26" x 7.87" x 24.45" |
| Warranty | 12 year compressor, 7 year parts with registration |
Warranty
- 12 year compressor limited warranty (with registration)
- 7 year parts limited warranty (must be installed by a licensed HVAC technician)
Manuals & Downloads
- Submittal
- Installation Manual
- Owner's Manual
- Remote Manual
- Service Manual
- Warranty Information
Safety Information: PROPOSITION 65 WARNING
Performance Features
- Optimized airflow for heating and cooling
- Multiple operation modes (Cool, Heat, Dry, Fan)
- Energy efficient inverter technology
- Quiet operation (as low as 22 dBA)
- Auto-restart function
- Timer function
- Self-diagnosis system
- Goldfin coating for durability
