Description

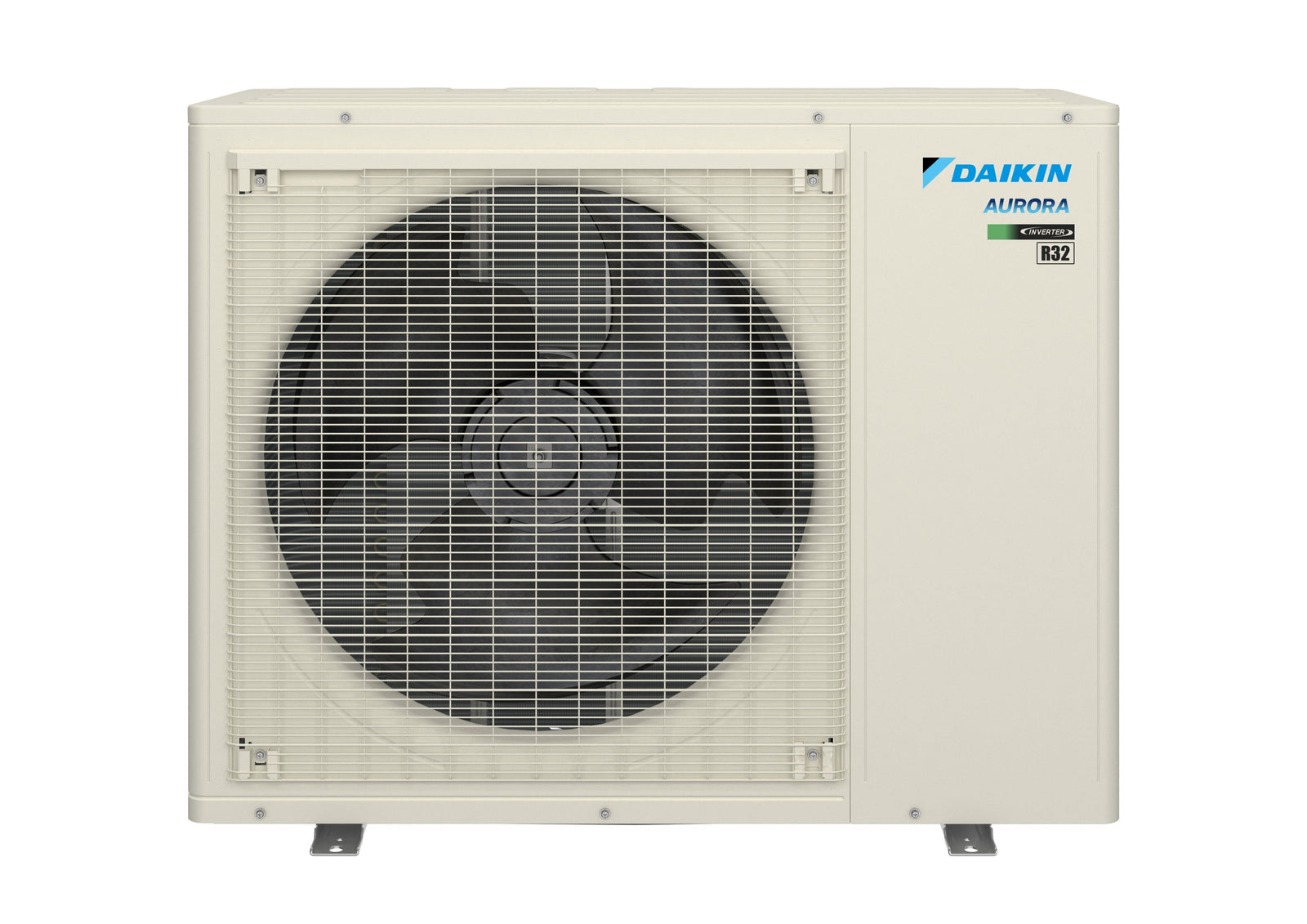

Daikin 40,000 BTU MXT Multi-Zone Mini Split Hyper Heat Pump Condenser - R32 | 230V
The 40,000 BTU Daikin Hyper Heat 20 SEER2 Multi-Zone Mini Split Heat Pump System is a high-efficiency, Multi-zone solution designed to provide year-round comfort. Perfect for residential and light commercial applications. This system can cool or heat up to 5 zone simultaneously, allowing independent climate control in 5 separate spaces. With advanced inverter technology, a sleek wall-mounted design, and eco-friendly R-32 refrigerant, this system ensures superior energy savings and personalized comfort. This system is also backed by a 7 year parts limited parts warranty.
Key Features:
- Multi-Zone comfort: One outdoor unit connects up to five separate fan coils individually controlled
- Variable Speed Inverter Compressor
- Cooling Range 14° - 115° F
- Continuous heating operation as low as -13F° (-25°C)
- Quick and easy installation
- Precision temperature control for individual rooms
- Space-saving design
- Quiet operation
- Intelligent Defrost Mode
Ideal Applications:
- Homes, offices, and commercial spaces needing multi-room heating and cooling.
- Areas without ductwork where a traditional HVAC system is impractical.
- Bedrooms, living rooms, kitchens, or other spaces requiring independent climate control.
- Replacing inefficient window units, portable air conditioners, or outdated heating systems.
What It Includes:
- 40,000 BTU Hyper Condenser
- Air Handlers ( Mix and match of your choice)
- Mounting Bracket Kit
- Lineset Installation KIt
Condenser Specifications:
| sku | 5MXT40AVJU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Multi-Split Heat Pump |
| system family | Multi-Split |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| product family | 5MXT_AVJU9 |
| series name | Multi Split Heat Pump Outdoor |
| short description | Multi Split Heat Pump Outdoor Series Outdoor Multi-Split Heat Pump |
| product description | 3.3-Ton , R-32 ,5 port aurora multi od 40k |
| cooling btu | 40,000 |
| heating btu | 40,000 |
| seer2 | 20 |
| decibel level (dba) | 55 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 1/4 in |
| suction line | 3/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 40 A |
| min. breaker size | 37.9 A |
| tonnage | 3.5 |
| btu/tonnage | 40,000 BTU/3.5 Ton |
| min/max outdoor temp for heating | -13 °F to 75.2 °F |
| min/max outdoor temp for cooling | 14 °F to 114.8 °F |
| zone compatibility | Multi Zone |
| height | 34-1/4 in |
| width | 43-5/16 in |
| depth | 18-1/8 in |
| weight | 219 lb |
Manuals & Documents
Outdoor Unit Installation Manual
