Product overview

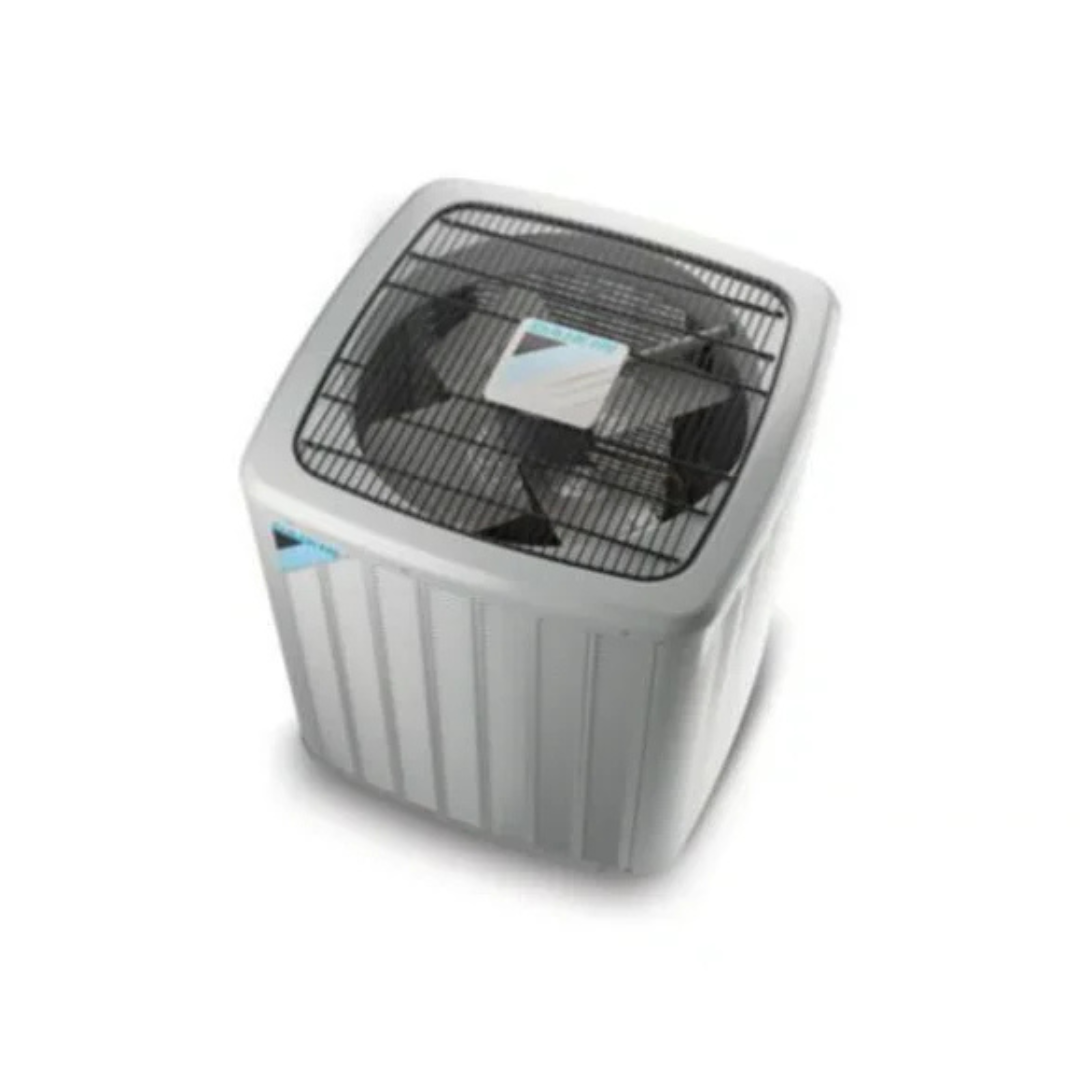

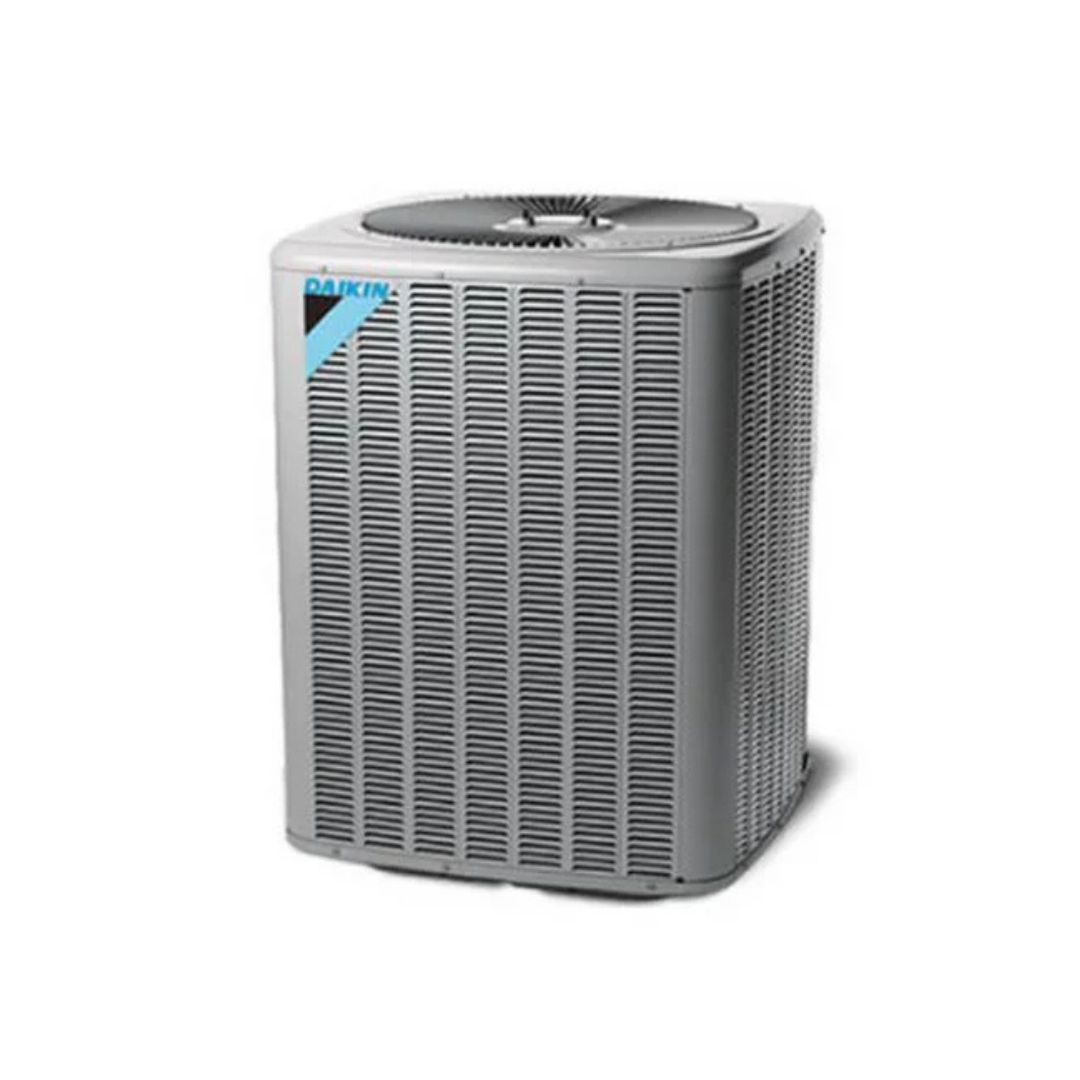

Daikin 7.5 Ton 11.4 EER / 16.4 IEER Commercial Heat Pump Condenser - 3 Phase - R32 - 230V
The Daikin DH6TE09030 commercial split heat pump is a type of HVAC system designed to provide both heating and cooling for larger buildings such as offices, retail spaces, restaurants, and other commercial facilities. It does so with an indoor unit that distributes conditioned air throughout the building. These are connected by refrigerant lines and electrical wiring, allowing the system to efficiently transfer heat between the indoors and outdoors. In cooling mode, it removes heat from the indoor space; in heating mode, it reverses the process to bring warmth inside. Split heat pump systems are highly adaptable, making them suitable for a wide range of commercial building sizes and layouts, and are valued for their energy efficiency and year-round climate control capabilities.
Features:
- 7.5 ton, 14.3 SEER2 commercial split heat pump
- 208/230v, 3 phase electrical
- R32 chlorine-free refrigerant
- Single state compressor
- Energy-efficient scroll compressor
- Single panel access to controls
- Heavy-gauge galvanized-steel cabinet
- AHRI certified; ETL listed
Durability:
Daikin split condensers are known for their exceptional durability and long service life, making them a reliable choice for commercial HVAC applications. Engineered with high-quality and advanced manufacturing processes, Daikin units are built to withstand demanding conditions, including extreme temperatures and heavy daily use. Their condenser coils are often treated with anti-corrosion coatings, which help resist wear from weather exposure, pollution, and salt air—extending the life of the unit even in harsh environments. With rigorous testing and a focus on energy efficiency and performance, Daikin split condensers offer dependable operation and minimal downtime, making them a smart investment for businesses that require consistent climate control.
Warranty:
The Daikin DH6TE09030 comes with a 5 year parts warranty with online registration.
Specifications:
| Feature | Spec |
|---|---|
| SKU | DH6TE09030 |
| Refrigerant Charge | Pre-Charged For: 15' |
| Weight (in lbs) | 355.000000 |
| Brand/Manufacturer | Daikin |
| Replaces | DZ14XA0903 |
| Cooling BTU | 93,000 BTU |
| Heating BTU | 82,000 BTU |
| Decibel Level (dBA) | 84 Decibels |
| Refrigerant | R32 |
| EER | 11 |
| IEER | 14.1 |
| Condenser Stages | Two Stage |
| Compressor Type | Scroll |
| Liquid Valve Size | 5/8" |
| Suction Valve Size | 1 3/8" |
| Electrical | 208/230v 3 Phase 60 Hz |
| Phase | Three Phase |
| Max Breaker Size | 60 Amps |
| Min. Breaker Size | 39.2 Amps |
| Tonnage | 7.5 Ton |
| Height | 41.5" |
| Width | 35.5" |
| Depth | 35.5" |
| Warranty | 5 Years with Online Registration |
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
Ask AI
Ask AI about this product
Ask our AI product assistant about sizing, compatibility, electrical needs, accessories, shipping, warranty, and install planning.
At a glance
Tech specs
| Condenser capacity | 90,000 |
|---|---|
| Power | 230 Volt |
| Brand | Daikin |
