Product overview
GREE 18,000 BTU 18 SEER R32 Single-Zone Mini Split Heat Pump
This GREE single-zone heat pump system pairs the GWH18AYDXD-D6DNA1A/O outdoor unit with the GWH18AYDXD-D6DNA5A/I indoor unit for one-room heating and cooling.
The model information provided for this system identifies it as a 18 SEER R32 heat pump configuration running on 220V power.
At a Glance:
| Brand | GREE |
| System Type | Single-zone ductless mini split heat pump |
| Outdoor Model | GWH18AYDXD-D6DNA1A/O |
| Indoor Model | GWH18AYDXD-D6DNA5A/I |
| Nominal Capacity | 18,000 BTU |
| Efficiency | 18 SEER |
| Voltage | 220V |
| Refrigerant | R32 |
Specifications:
| Specification | Unit | Value |
|---|---|---|
| System | ||
| Series Name | Zeno | |
| Electrical | ||
| Rated Voltage | V | 208/230 |
| Rated Frequency | Hz | 60 |
| Phases | 1 | |
| Power Supply Mode | Outdoor | |
| Power Cable Cross-sectional Area | mm2 | 1.3 |
| Recommended Power Cable | Core | 3 |
| Min/Max Voltage | V | 185/253 |
| Performance | ||
| Cooling Capacity | Btu/h | 18000 |
| Min. Cooling Capacity | Btu/h | 3753 |
| Max. Cooling Capacity | Btu/h | 19790 |
| Heating Capacity | Btu/h | 18000 |
| Min. Heating Capacity | Btu/h | 4100 |
| Max. Heating Capacity | Btu/h | 19107 |
| COP | (Btu/h)/W | 12 |
| SEER | 18 | |
| Indoor Unit | ||
| Air Flow Volume (SS) | CFM | 589 |
| Air Flow Volume (SL) | CFM | 282 |
| Dehumidifying Volume | Pint/h | 4 |
| Controller Model | YAY1FF | |
| Sound Pressure Level - Cooling (SS) | dB(A) | 51 |
| Sound Power Level - Cooling (SL) | dB(A) | 43 |
| Dimensions (W x H x D) | mm | 1000 x 333 x 249 |
| Net Weight | lb | 29.8 |
| Outdoor Unit | ||
| Compressor Trademark | GREE | |
| Compressor Model | QXF-A120zF170A | |
| Compressor Type | Rotary | |
| Condenser Form | Aluminum Fin-copper Tube | |
| Condenser Pipe Diameter | mm | 7.94 |
| Condenser Rows-fin Gap | mm | 1-1.2 |
| Condenser Coil Length (L x D x W) | mm | 761.5 x 19.05 x 528 |
| Moisture Protection | IPX4 | |
| Sound Pressure Level (H) | dB(A) | 58 |
| Dimensions (W x H x D) | mm | 802 x 555 x 350 |
| Gross Weight | lb | 68.4 |
| Refrigerant & Piping | ||
| Refrigerant | R32 | |
| Refrigerant Charge | oz | 29.3 |
| Connection Pipe Length | m | 7.5 |
| Liquid Pipe Outer Diameter | inch | 1/4" |
| Gas Pipe Outer Diameter | inch | 1/2" |
| Max Distance Height | m | 10 |
| Max Distance Length | m | 25 |
What Is Included?

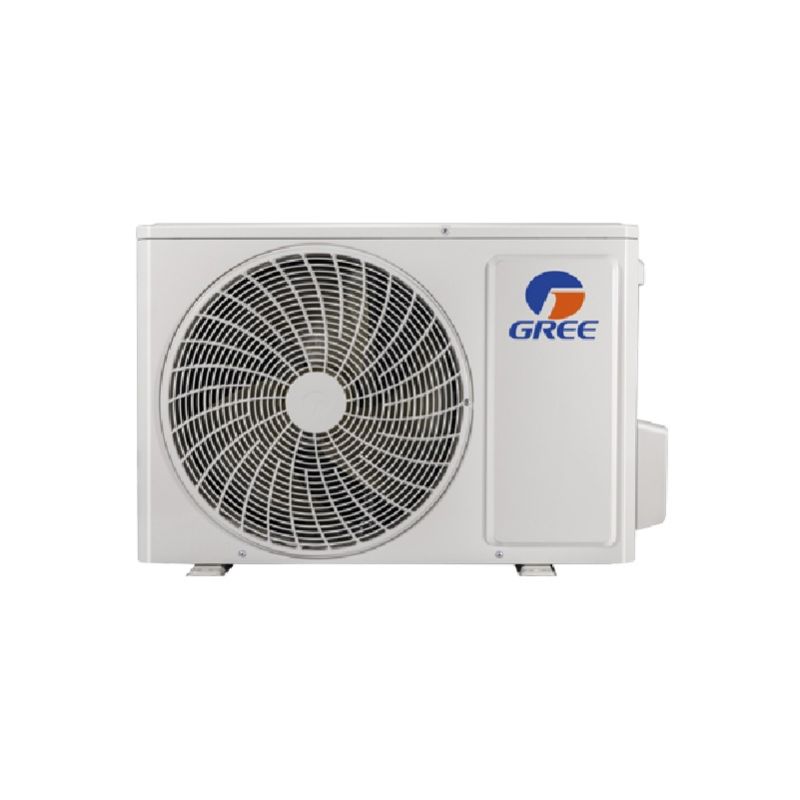

- 1 GREE GWH18AYDXD-D6DNA1A/O outdoor heat pump unit
- 1 GREE GWH18AYDXD-D6DNA5A/I indoor unit
- Selected line-set length, if chosen
Before You Order:
- Have your installer confirm room load, electrical requirements, equipment placement, line-set route, and local code requirements.
- Line-set, drain, electrical, pad, bracket, disconnect, and condensate accessories may vary by installation.
- This equipment should be installed and commissioned by a qualified HVAC professional.
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
