Product overview

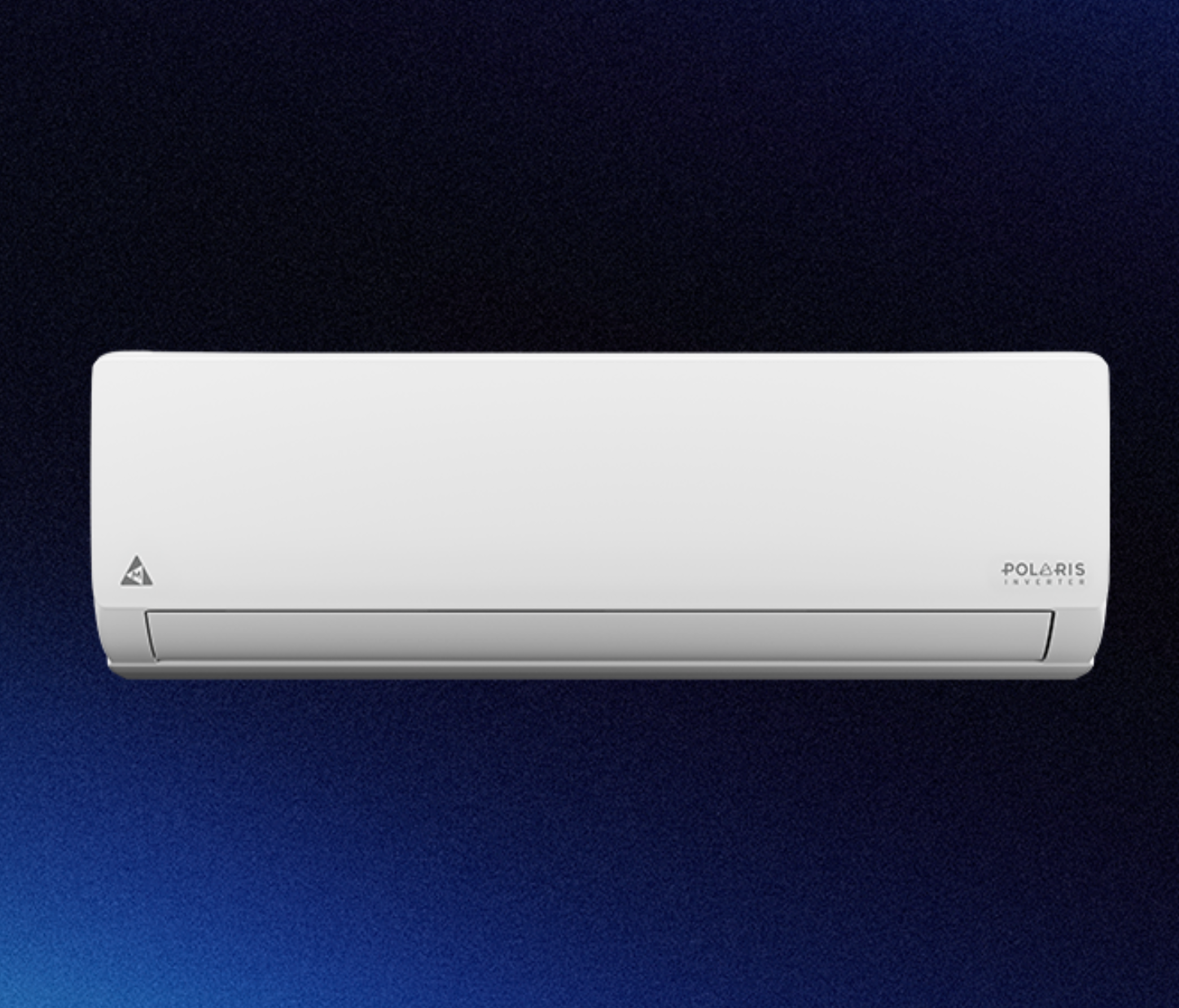

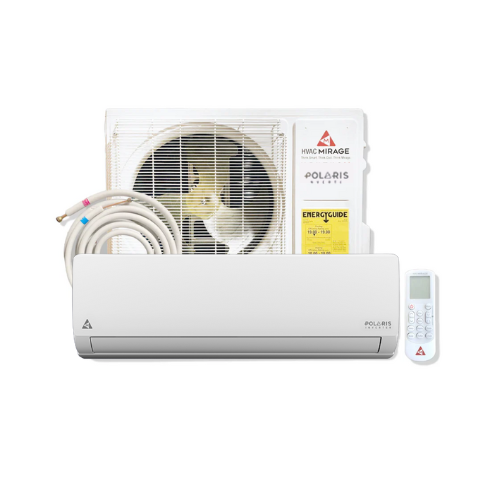

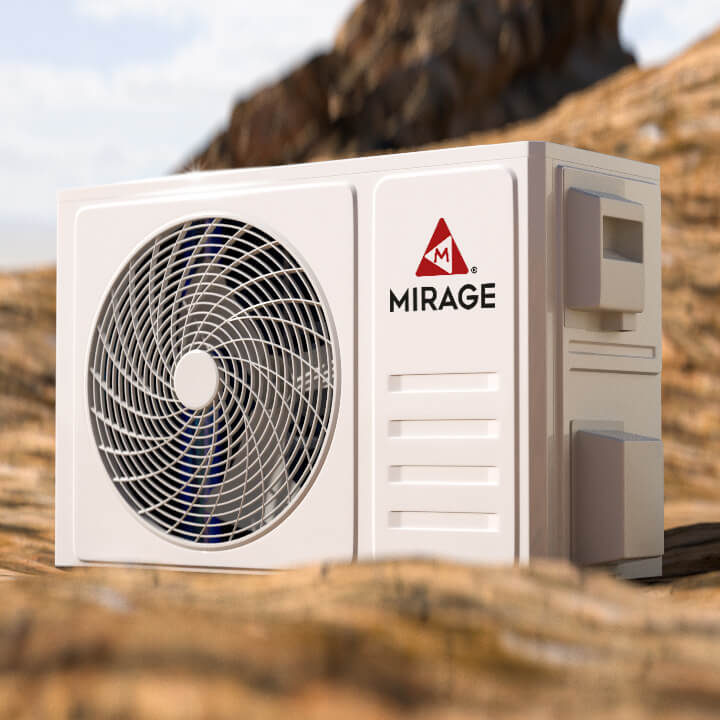

The newly designed Mirage Polaris 12,000 BTU ductless mini split air conditioner has improved efficiency ratings up to 21 SEER2 and is competitively priced. It provides maximum comfort and is capable of cooling and heating up to 550 square feet without requiring any ductwork. This system also comes with a 16 ft. install kit that includes a 16ft copper line set. The wall mounted air handler operates quietly for your comfort at 28-48 dB, while the outdoor unit only produces 53-59 dB.
- 16 ft. install kit included. Contains 16ft line set, copper tubing
- 14,000 BTU Heat Pump
- Temperature range: 61°F – 86°
- 9 different swing movement settings
- R-454B environmentally friendly refrigerant
- Sleep mode, louver position memory, gold fin anti-corrosion and auto restart functions
- 2-year compressor, 6-year parts warranty when registered and when installed by a licensed professional
- Installation by a licensed professional is required
- Includes Remote
Looking for a Do-It-Yourself unit? DIY 12,000 BTU Mini Splits
| Model Number | IPWH120C / OPWH120C | ||
| Power Supply (Indoor) | 115V~/60Hz/1P | ||
| Rated Cooling (95°F/35°C) | Rated cooling capacity (95°F) | BTU/h | 12,000 |
| EER² (95°F) | BTU/W.h | 11 | |
| SEER² | BTU/W.h | 21 | |
| Rated Heating | Rated Heating capacity (47°F) | BTU/h | 12,600 |
| HSPF ² Rating (Region IV) | BTU/W.h | 9.5 | |
| COP ² (47°F/8.3C) | W/W | 3.41 | |
| Rated Input Consumption | Cooling | W | 1,050 |
| Heating | W | 1,030 | |
| Rated Current | Cooling | A | 9.5 |
| Heating | A | 9.3 | |
| Max Allowed Pressure | PSI | 750 | |
| Max Fuse | A | 30 | |
| Moisture Removal | Liters/h | 1.6 | |
| Indoor Noise Level at Cooling | Turbo/High/Med/Low/Mute | 42/40/35/30/28 | |
| Outdoor Noise Level | dB(A) | 55 | |
| Connecting Wiring | Size x Core number | 4×16AWG |
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
Ask AI
Ask AI about this product
Ask our AI product assistant about sizing, compatibility, electrical needs, accessories, shipping, warranty, and install planning.
At a glance
Tech specs
| Condenser capacity | 12,000 |
|---|---|
| Indoor unit(s) | 12K |
| Coverage area | 600 Sq Ft. |
| Zones / rooms | 1 Zone |
| Efficiency | 20 SEER2 |
| Power | 115 Volt |
| Line set | Custom |
| Mount type | Wall |
| Installation | Professional Installation |
| Brand | Mirage |
Sizing in doubt? Our HVAC experts confirm capacity for your rooms before you order — free. Ask us about utility rebates for high-efficiency heat pumps in your area.
