Product overview
Mitsubishi GX-Series 36K BTU Single-Zone Ductless Mini Split Heat Pump
High-efficiency Mitsubishi comfort for one dedicated space. This GX-Series ductless mini split pairs the MUZ-GX36NL outdoor heat pump with the MSZ-GX36NL wall-mounted indoor unit for powerful heating and cooling without adding ductwork.
With 33,800 BTU of rated cooling, 35,200 BTU of rated heating, and 18.5 SEER2 efficiency, this system is a strong fit for very large spaces, open floor plans, finished basements, and high-load rooms where comfort, efficiency, and individual room control all matter.
Not sure if 36K is the right size? Confirm your room load, insulation, sun exposure, and installation plan before ordering so the system is matched correctly to the space.
At a Glance:
| Best For | One-zone heating and cooling with a high-efficiency wall-mounted indoor unit |
| System Models | MUZ-GX36NL outdoor unit + MSZ-GX36NL indoor unit |
| Capacity | 33,800 BTU cooling / 35,200 BTU heating |
| Efficiency | 18.5 SEER2 / 8.4 EER2 / 8.5 HSPF2 |
| Low-Temperature Heating Capacity | 20,600 BTU at 5F |
| Voltage | 208/230V, 1 phase |
| Refrigerant | R-454B |
| Controls | Handheld remote included / WiFi built in |
| Installation Type | Professional HVAC installation recommended |
Why Choose This Mitsubishi GX System?
- Higher-efficiency single-zone comfort: GX is a strong fit when you want Mitsubishi performance with efficiency ratings above the entry-level tier.
- Dedicated room control: Heat and cool one room or area without tying that space to a central duct system.
- Efficient inverter performance: Mitsubishi inverter technology adjusts output as conditions change, helping maintain steadier comfort than basic on/off systems.
- Cold-weather support: Rated heating capacity at 5F is 20,600 BTU for this matched system.
- Built-in WiFi: The GX wall-mounted indoor unit is listed in the catalog with handheld remote and WiFi built in.
- Modern R-454B refrigerant: Built for Mitsubishi's current R-454B equipment generation.
- Warranty confidence: Mitsubishi lists extended warranty coverage when eligible equipment is properly registered, subject to warranty terms and installation requirements.

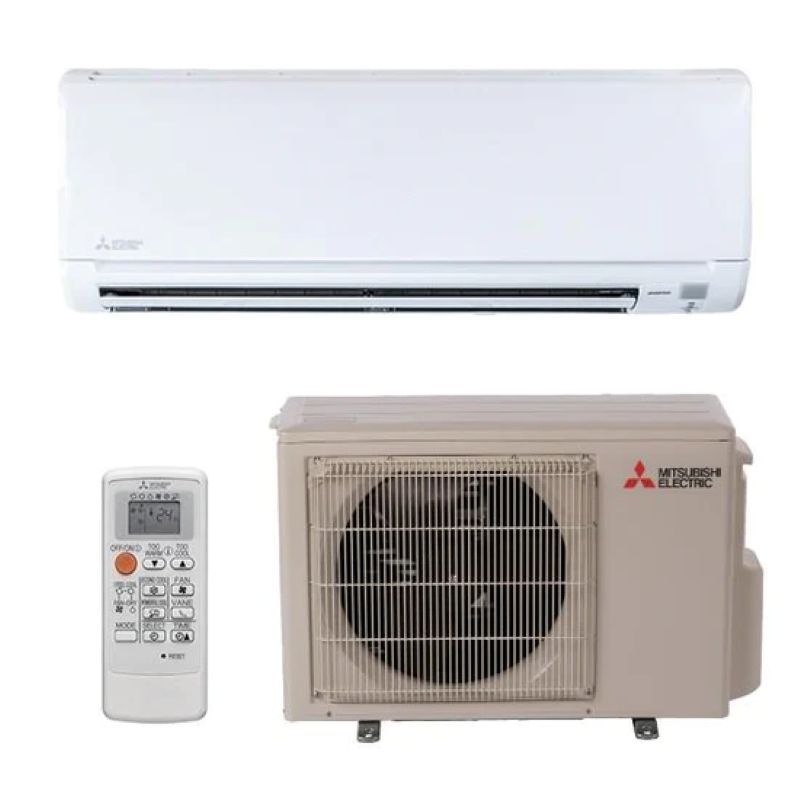

What Is Included?

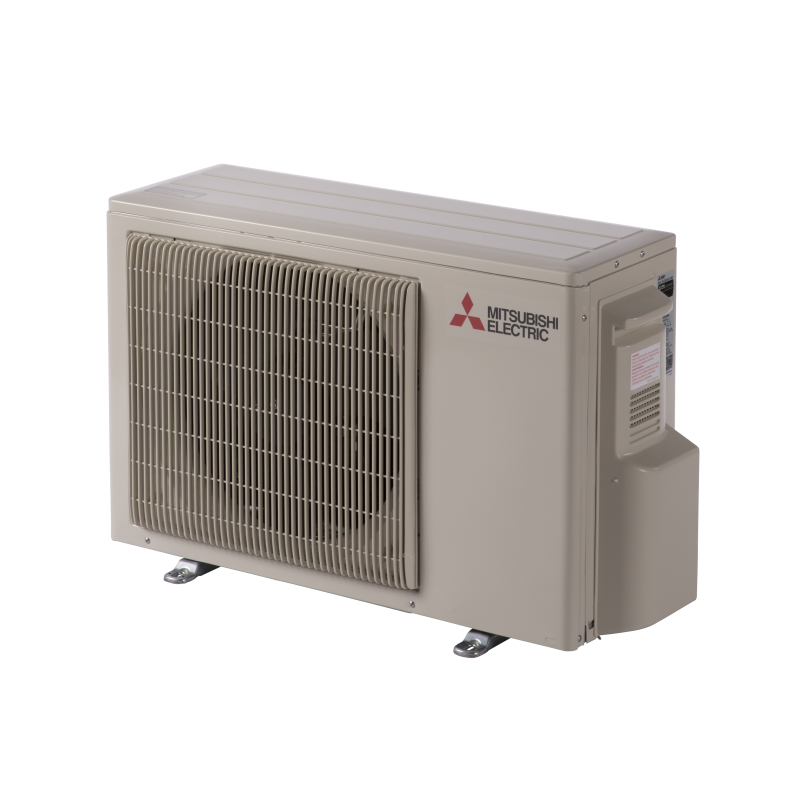

- 1 Mitsubishi MUZ-GX36NL outdoor heat pump condenser
- 1 Mitsubishi MSZ-GX36NL wall-mounted indoor air handler
- Handheld remote control capability for the indoor unit
Before You Order:
- Have your installer confirm the room load and that a 36K system is appropriate for the space.
- Confirm line-set length, indoor and outdoor placement, condensate routing, electrical requirements, and local code requirements before purchase.
- This is not a DIY quick-connect system. Refrigerant piping, evacuation, electrical work, startup, and commissioning should be handled by a qualified HVAC professional.
- Line sets, wall brackets, disconnects, pads, electrical materials, and installation accessories may be sold separately unless specifically included.
Frequently Asked Questions:
What makes this different from WX or HX?
GX is the high-efficiency standard heat pump wall-mounted tier in this catalog. WX is the entry-level tier, while HX is a 20 SEER2 mid-tier option.
Does this system heat and cool?
Yes. This is a heat pump system designed for both air conditioning and heating.
Is WiFi included?
The Team Air catalog notes that MSZ-GX wall-mounted indoor units come with handheld remote and WiFi built in.
Is this a DIY system?
No. This Mitsubishi system should be installed by a qualified HVAC professional.
Does it use R-454B refrigerant?
Yes. The MUZ-GX36NL / MSZ-GX36NL system is part of Mitsubishi's R-454B equipment lineup.
Specifications:
| BRAND NAME | Mitsubishi |
| SERIES | GX-Series |
| SYSTEM TYPE | Ductless mini split heat pump |
| OUTDOOR MODEL | MUZ-GX36NL |
| INDOOR MODEL | MSZ-GX36NL |
| ZONE CAPACITY | 1 zone |
| COOLING CAPACITY | 33,800 BTU |
| HEATING CAPACITY | 35,200 BTU |
| HEATING CAPACITY AT 5F | 20,600 BTU |
| AHRI CERTIFICATE NUMBER | 215862739 |
| SEER2 | 18.5 |
| EER2 | 8.4 |
| HSPF2 | 8.5 |
| REFRIGERANT TYPE | R-454B |
| POWER SUPPLY | 208/230V, 1 phase |
| MAX OVERCURRENT PROTECTION | 40 A |
| LINE SET SIZE | 1/4 in liquid / 5/8 in gas |
| OUTDOOR DIMENSIONS | 33 in W x 35 in H x 13 in D |
| INDOOR DIMENSIONS | 43-5/16 in W x 12-13/16 in H x 10-1/8 in D |
| REGISTERED WARRANTY | 10-year parts and compressor limited warranty when registered within 90 days; terms apply |
| NON-REGISTERED WARRANTY | 5-year parts / 7-year compressor limited warranty; terms apply |
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
