Description
The new MRCOOL 36K BTU Hyper Heat Central Ducted Heat Pump Split System is a great choice for heating and cooling around 1,500sqft and can handle extreme winter and summer temperatures! Boasting a DC Inverter and state-of-the-art variable speed technology, this unit offers exceptional efficiency, leading to significant savings on utility expenses without compromising performance. With an impressive SEER2 rating of up to 16 and an HSPF2-4 rating of up to 9.5, its enhanced heating capacity ensures indoor comfort even when outdoor temperatures range from -22°F to 122°F.
Installation is simple for professional HVAC technicians using the MRCOOL® No-Vac® Quick Connect® Line Set. This exclusive line set eliminates the need for vacuuming or flare welding and is kink-resistant, accelerating the connection process and reducing installation costs. Moreover, the eco-friendly R-410A refrigerant ensures no environmental harm. Constructed from high-quality materials like painted galvanized steel, this durable unit can withstand damage from severe weather, animals, or yard equipment, guaranteeing reliable performance for years. In the unlikely event of any issues, the unit is supported by a 10-year warranty covering the compressor, parts, and labor. Additionally, the labor warranty is automatically activated upon installation, eliminating the need for a time-consuming registration process.

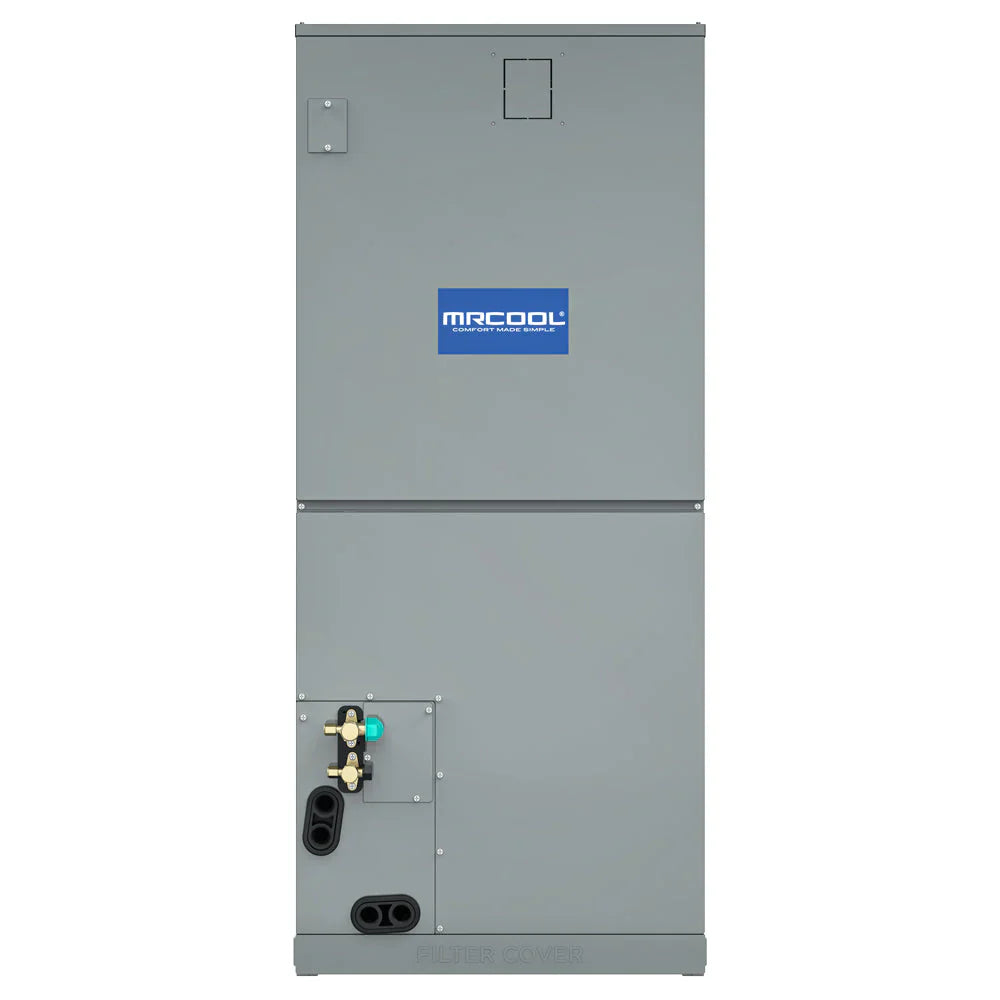

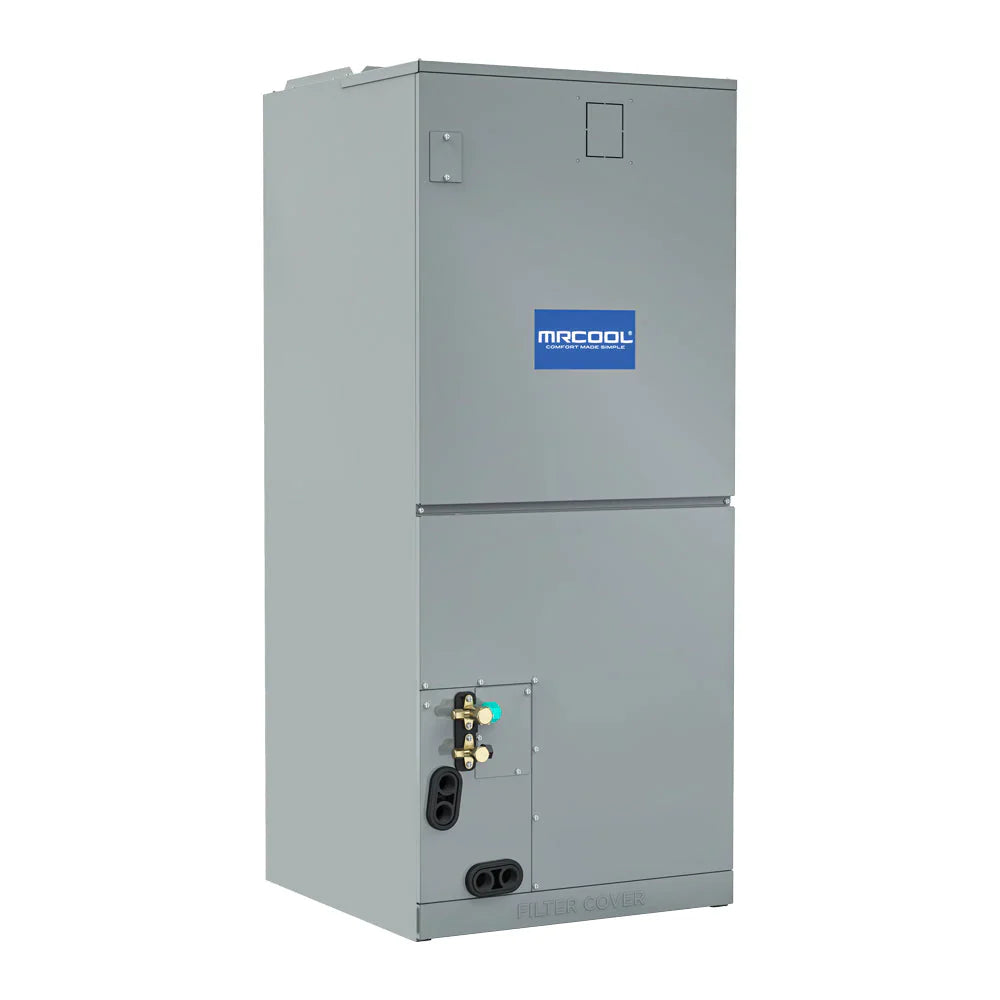

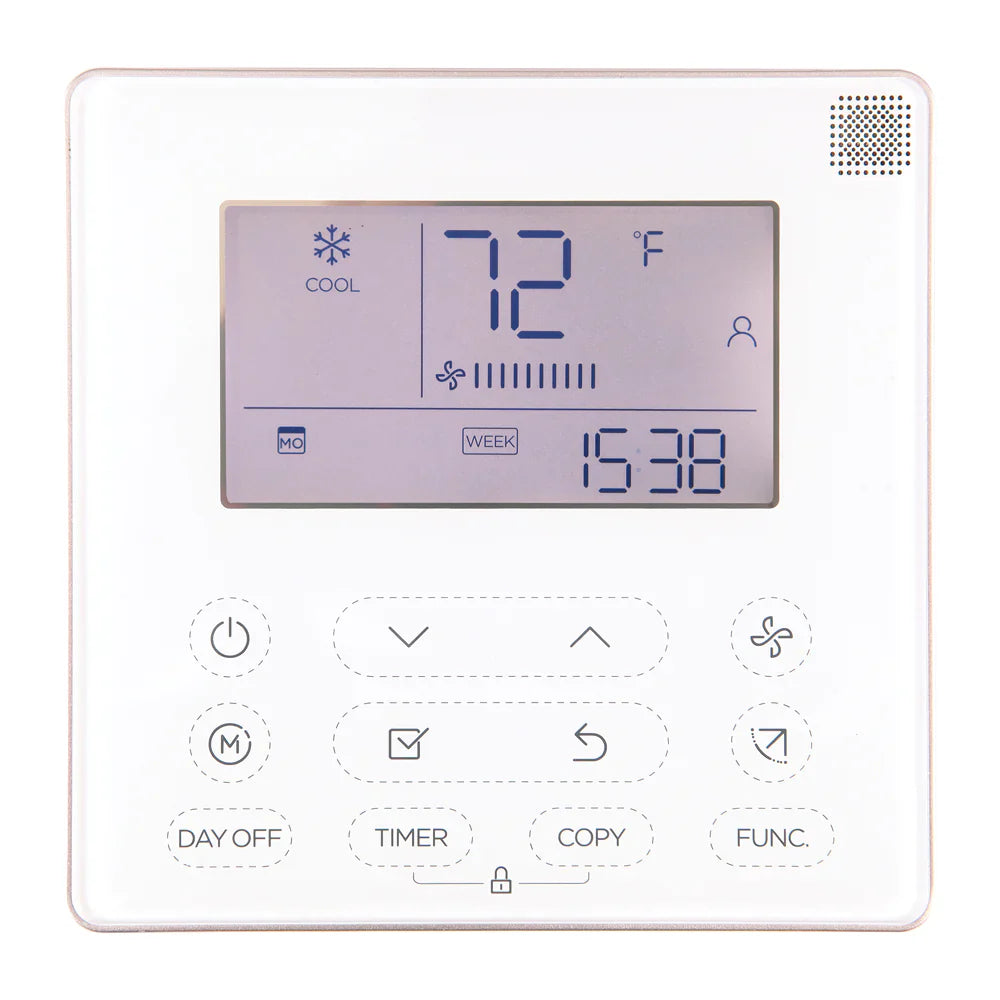

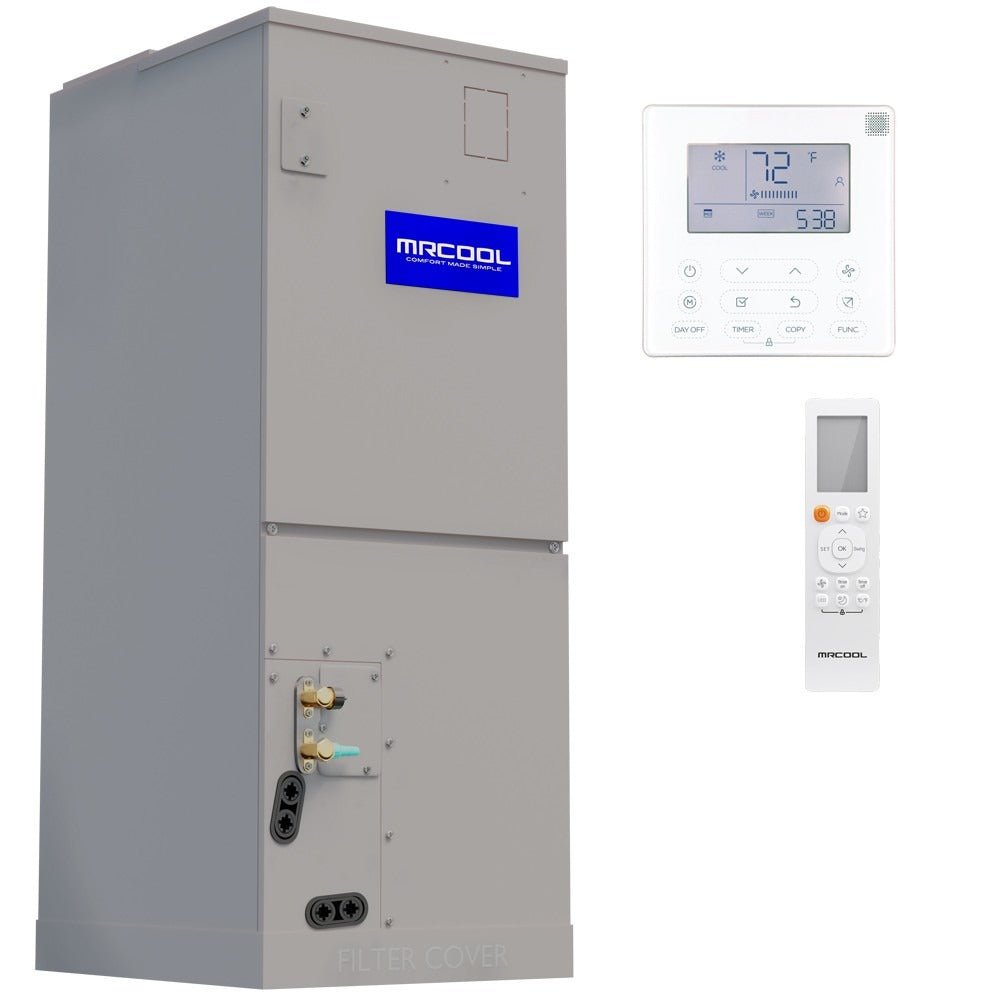

The air handler for the 36K MRCOOL Hyper Heat Central Ducted System has a side-discharge design, slide-out blower, self-diagnostics panel, and removable filters to make maintenance simple and easy. If required, an optional heat kit can be acquired separately. The unit also includes a wired thermostat and wireless remote.
The multi-position air handler, which can accommodate upflow, downflow, horizontal left and horizontal right ductwork needs, combined with the highly efficient condenser is a pairing that will ensure ultimate comfort and reduce your bills as soon as it’s installed.
The self-diagnostics of this system will allow you to identify error codes on the air handler or the thermostat. This variable speed unit will keep your bills low and your home’s air clean with filters. Choose this MRCOOL 36,000 BTU Hyper Heat Central Ducted DC Inverter Heat Pump System for comfort exactly how you deserve it.
Condenser Specifications:
| SEER2 | 16 |
| EER2 | 10 |
| HSPF2 |
hspf2-4/2-5: 9.5/8
|
| CFM | 4500 |
| COOLING CAPACITY | 36000 |
| HEATING CAPACITY | 40000 |
| VOLTAGE | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER | 50 |
| MIN CIRCUIT AMPACITY | 41 |
| REFRIGERANT TYPE | R410A |
| REFRIGERANT VOLUME | 165.79oz |
| DECIBEL RATING | 64 |
| INVERTER | DC |
| MAX LINESET LENGTH | 213.25 ft |
| LIQUID LINE SIZE | 3/8in |
| SUCTION LINE SIZE | 3/4in |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | Yes |
| AHRI CERTIFIED | Yes |
| BASE WARRANTY |
10yrs Parts and Labor
|
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH | 16.34in |
| NET HEIGHT | 52.48in |
| NET WIDTH | 37.48in |
| NET WEIGHT | 227.07lbs |
| GROSS DEPTH | 19.49in |
| GROSS HEIGHT | 57.48in |
| GROSS WIDTH | 43.11in |
| GROSS WEIGHT | 255.73lbs |
Air Handler Specifications:
| CFM |
1188.24/1082.35/970.59/864.71
|
| COOLING CAPACITY | 36000 |
| HEATING CAPACITY | 40000 |
| VOLTAGE | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER | 15 |
| MIN CIRCUIT AMPACITY | 5 |
| REFRIGERANT TYPE | R410A |
| DECIBEL RATING | 43 |
| DECIBEL RATING LOW | 41 |
| DECIBEL RATING HIGH | 45 |
| NUMBER OF SPEEDS | 4 |
| INVERTER | DC |
| MAX LINESET LENGTH | 213.25 ft |
| LIQUID LINE SIZE | 3/8in |
| SUCTION LINE SIZE | 3/4in |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | Yes |
| AUXILIARY HEATER SIZES |
5kW, 8kW, 10kW, 15kW
|
| AHRI CERTIFIED | Yes |
| BASE WARRANTY |
10yrs Parts and Labor
|
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH | 21.02in |
| NET HEIGHT | 49.02in |
| NET WIDTH | 21.02in |
| NET WEIGHT | 129.63lbs |
| GROSS DEPTH | 24.41in |
| GROSS HEIGHT | 52.56in |
| GROSS WIDTH | 26.57in |
| GROSS WEIGHT | 154.10lbs |
