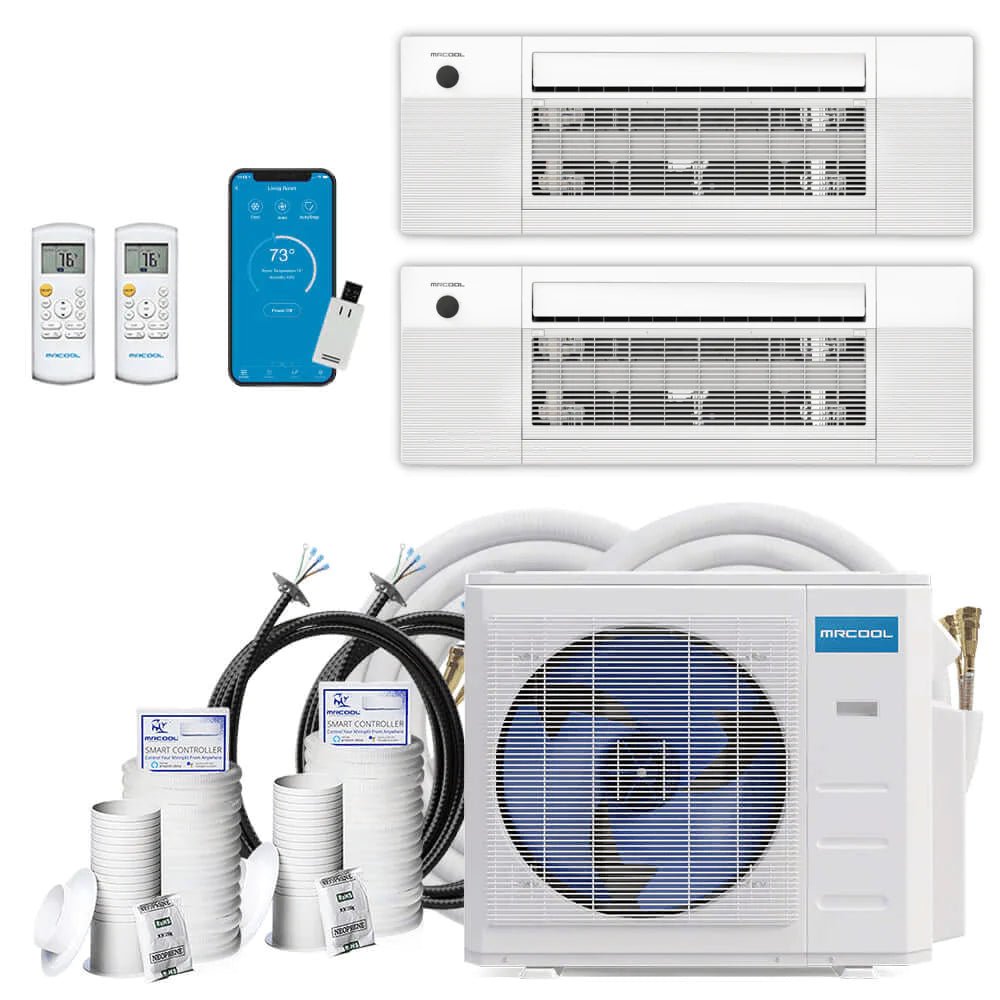

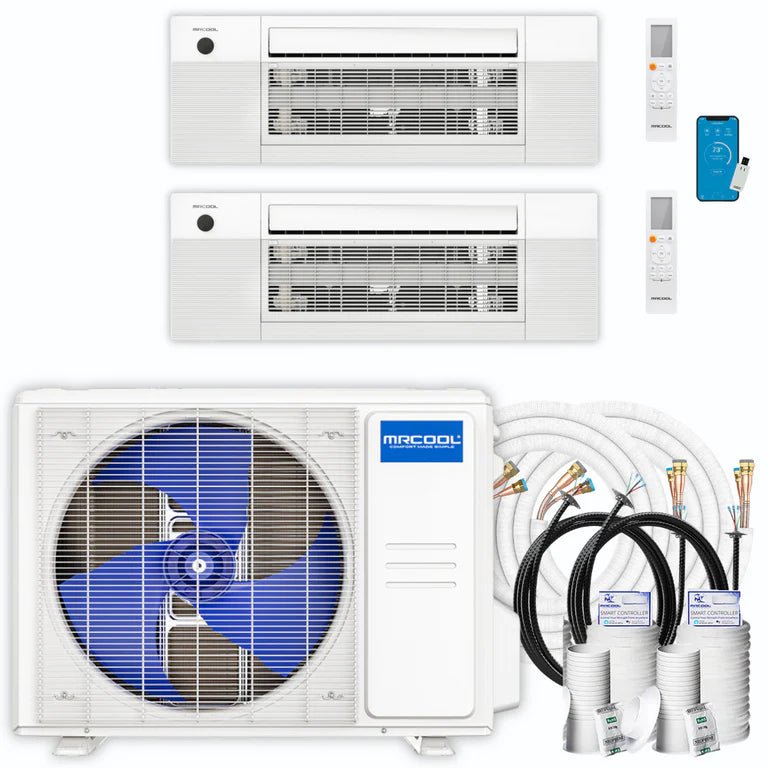

MRCOOL DIY 4th Gen 2-Zone 27,000 BTU 22 SEER (12K + 18K) Ductless Mini Split AC and Heat Pump with Ceiling Cassettes

MRCOOL DIY Multi Zone 4th Gen 27K BTU Dual Zone Ductless Mini Split with Ceiling Cassettes 12K + 18K - A Heating and AC System You Can Install By Yourself!

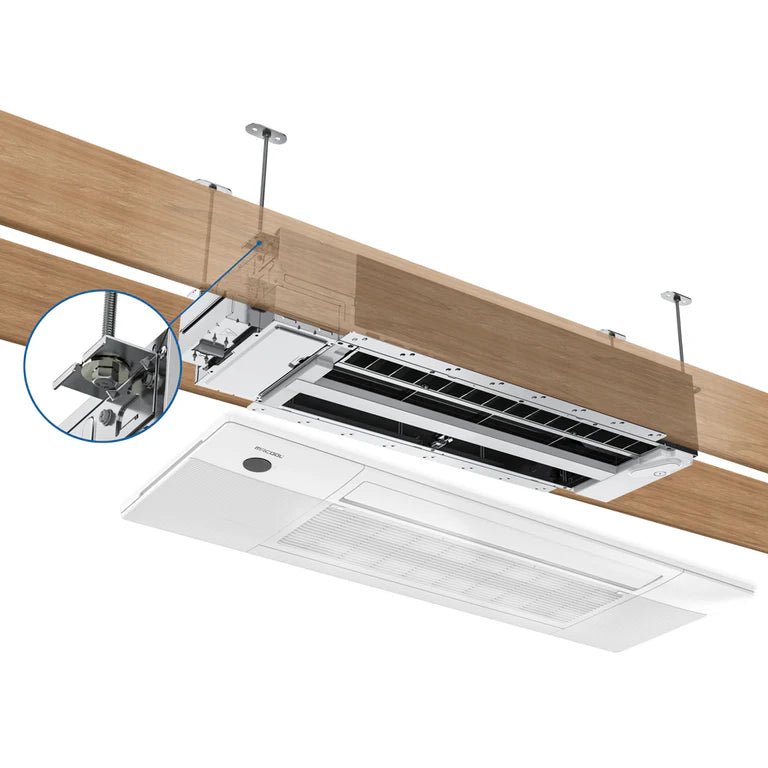

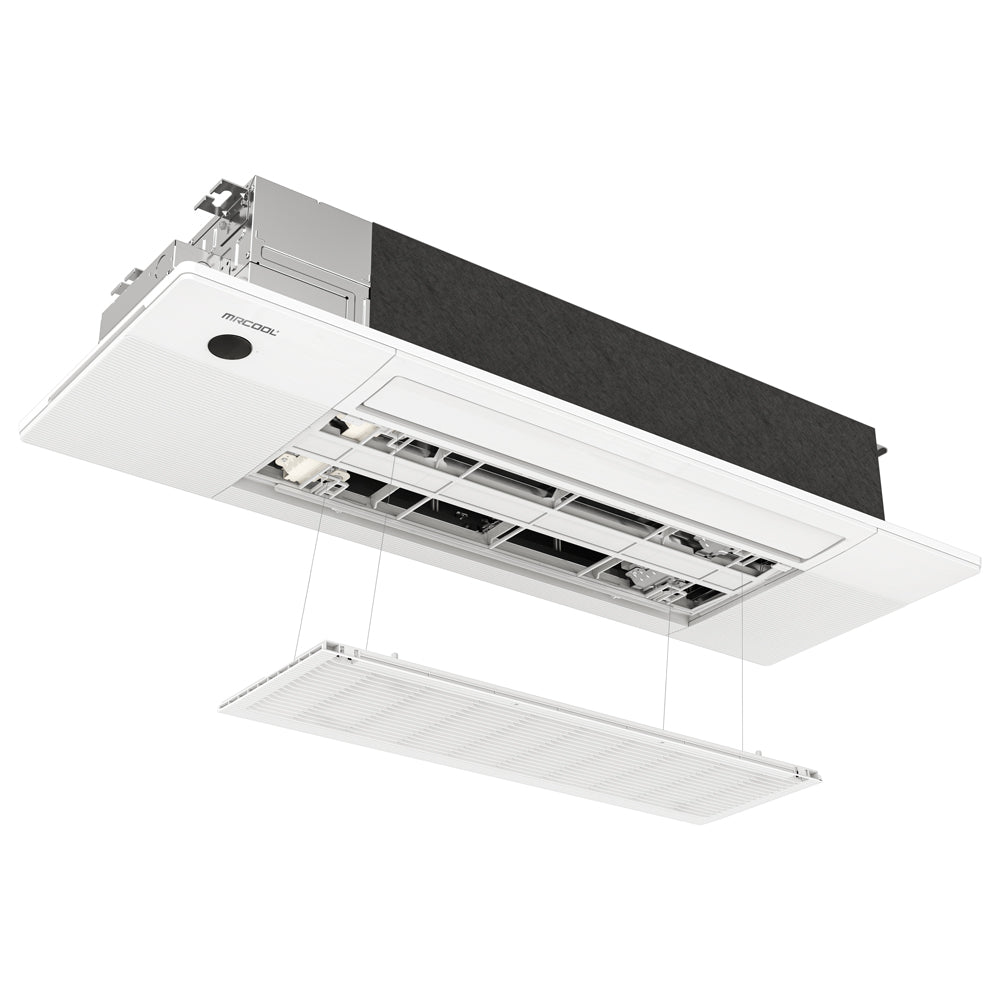

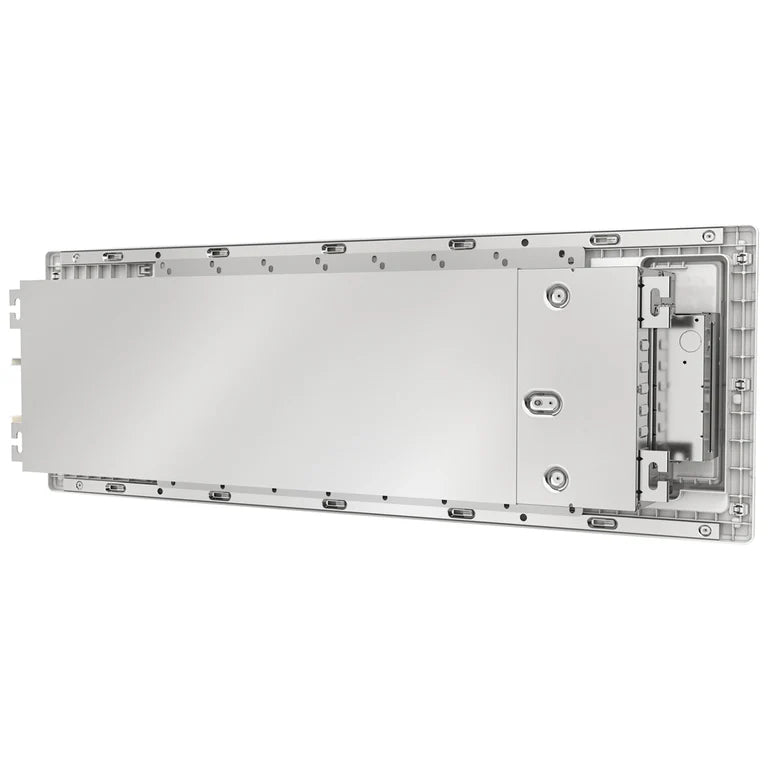

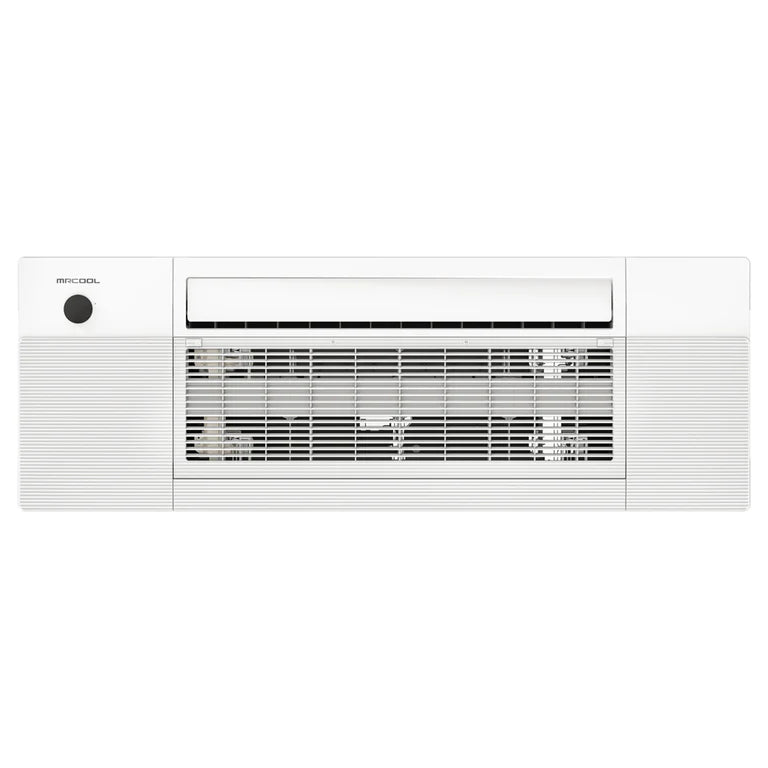

MRCOOL DIY Series Ceiling Cassettes provide efficient heating and cooling while remaining out of sight and discreet, making them a perfect fit for any space. The cassette features an easy, low profile installation and can be recessed between all types of joists on 16 inch center including pre-manufactured I-joists. This makes it a perfect option for both new construction or retrofits. It doesn’t have strict installation requirements like other ceiling cassettes, so you’re able to install it in the location that suits you best, without using ductwork or wall space. The cassette works with the MrCool® DIY® Quick Connect® line set and the No-Vac® Coupler to increase the length of the line set. Not only does the unit offer quiet operation and multiple operating modes, but it also features the Elevation function that lowers the filter panel for easy air filter maintenance. Purchases of the MrCool® DIY® Series 12K and 18K BTU Ceiling Cassettes are protected by a limited lifetime warranty in addition to a 7-year compressor warranty and 5-year parts warranty.

Heat or cool two rooms in style with the brand new 4th gen ceiling cassette air handlers on the MRCOOL DIY 4th Gen Multi-Zone 27,000 BTU 22 SEER 2 Zone Ductless Heat Pump Split System - 12K + 18K. This DIY Series multi-zone product features easy installation that requires no special tools or training. You'll save thousands of dollars on installation and you can get the amazing air comfort of your dreams due to the condenser’s 27,000 BTU capacity. The two indoor air handlers are 12,000 btu and 18,000 btu which use the condenser's power to heat and cool up to approximately 500 and 750 square feet respectively. A heat pump by design, this ductless HVAC solution can run in reverse and pull in heat from the outdoors when in a heating mode. It comes with a 7 Year Compressor (Plus an optional lifetime compressor warranty) and a 5 Year Parts Manufacturer Warranty!

MRCOOL DIY 4th Gen Multizone 27,000 BTU systems can support up to three indoor units. Not enough? The DIY MULTI 36,000 BTU system can support up to FOUR indoor units.

Feel free to mix ceiling cassette air handlers and wall mounted air handlers together in a system by visiting Building Your Own Custom Mini Split System.

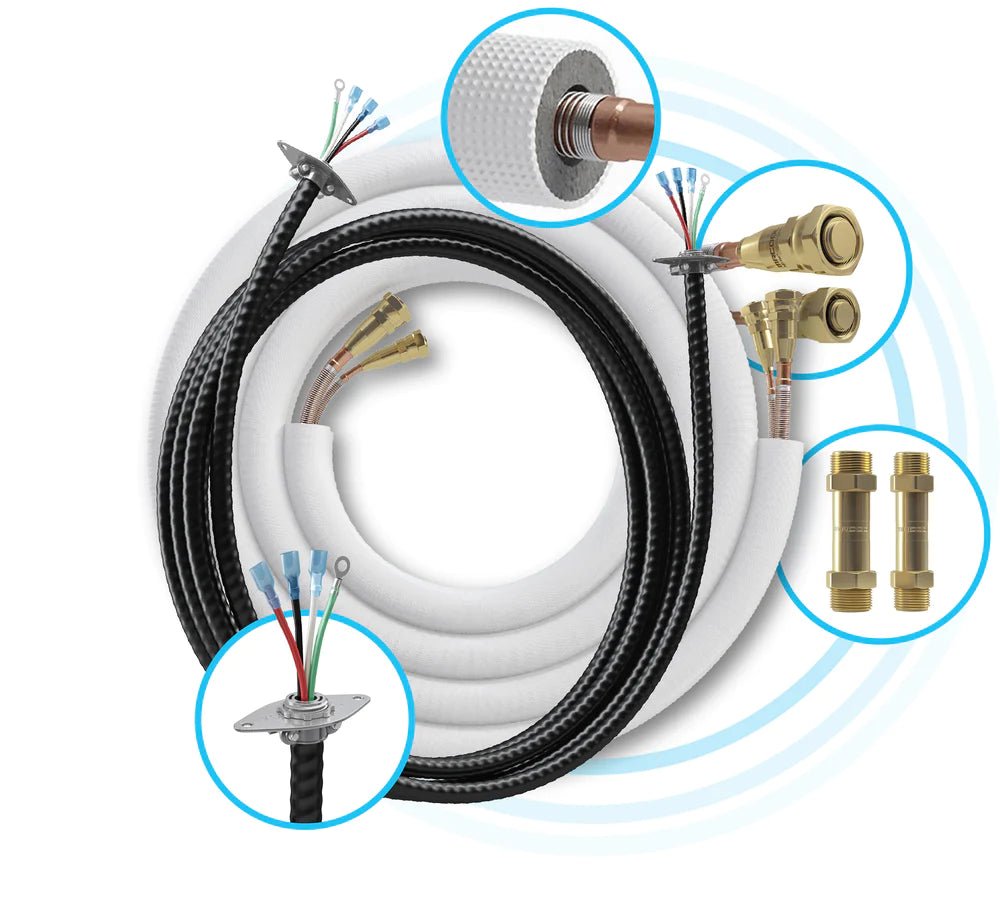

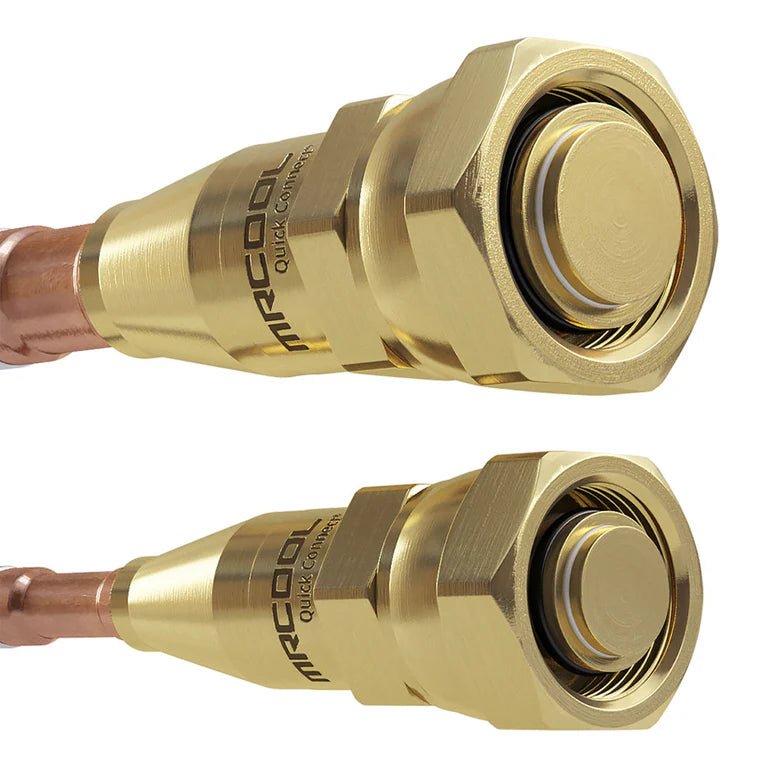

The MRCOOL DIY 4th Gen 2-Zone 27,000 BTU 22 SEER (12K + 18K) Ductless Mini Split System with Ceiling Cassette units are super easy to install and require no special training or expensive specialty tools. The DIY system includes Quick Connect lines that are pre-charged with eco-friendly R-410A refrigerant. Due to the Quick Connect line set, you don’t have to hire an HVAC technician to complete the install. We also have simple video instructions on how to install a DIY Multi-Zone unit yourself!

The MRCOOL DIY Multi-Zone 27,000 BTU 22 SEER 2 Zone Ductless Heat Pump Split System - 12K + 18K can cool through the Summer, heat through the Winter, and dehumidify through the wet seasons. Plus, you can quickly check the temperature of each room in your home from the easy to read digital display or from the MRCOOL Smart Controller mobile app. The display on the front of each indoor air handler unit can also display troubleshooting codes and alerts, so you are always aware of any issues with your system. Operate each unit wirelessly with either the included remote or with the MRCOOL Smart Controller app for Apple or Android devices. You also have the ability to control your mini-split unit with Amazon Alexa or Google Home.

The two MRCOOL DIY Multi-Zone air handlers included in this set provide directional control of the heated or cooled air. This distributes the air evenly so everyone in the room can stay comfortable. If you are in a situation that requires forced cooling, you can set your MRCOOL DIY System to manual with the button located on the right side of the unit under the front panel. In this emergency operation mode, you can test the cooling operation of your unit after installation or to complete a maintenance task.

In auto mode, each unit provides air for your home at your desired comfort level. Set your desired temperature, and the HVAC unit will determine how much heat or air conditioning is needed. You can also set this system to a drying function, which will continue to control the space’s air temperature while dehumidifying.

Use the sleep mode at night to save money on your utilities bills and use less energy. Sleep mode operates in an 8 hour window once turned on.

The MRCOOL DIY Multi-Zone 27,000 BTU 22 SEER Dual-Zone Ductless Heat Pump Split Air Conditioner System - 12K + 18K comes with many options, so you can customize your system based on your needs. Limit your energy usage and save money on your utility bill by using the system’s timer function. If your system begins to run low on refrigerant, an alert will appear on the easy-to-read display on the front of each air handler, letting you know there may be a leak. If you desire to keep a room quiet and minimize lighted alerts, you can mute each indoor unit. By muting the system, the buzzer for alerts will not sound and the LED lit display will turn off. Should the unfortunate event of a power outage occur, the MrCool system will automatically shut off and then back on with the same settings once power returns.

Easily maintain your MRCOOL DIY Multi-Zone 27,000 BTU 22 SEER Dual-Zone Ductless Heat Pump Split Air Conditioner Unit with alerts and reminders. Any troubleshooting codes will appear on the front display and the user manual contains an index for common codes. Air filter cleaning alerts are automatic, and you can easily keep the minimal indoor units clean with a dry or damp cloth.

Features:

• Easy DIY® Installation
• "Pre-charged DIY®
• Quick Connect Line Set"
• Simple to Use
• Multi-room Comfort
• Energy Efficient DC Inverter
• 100% Sealed System
• Gold Fin® Condenser
• Eco Safe R-410A Refrigerant
• Smartphone App Controls
• Lifetime Technical Support
• Low Ambient Cooling

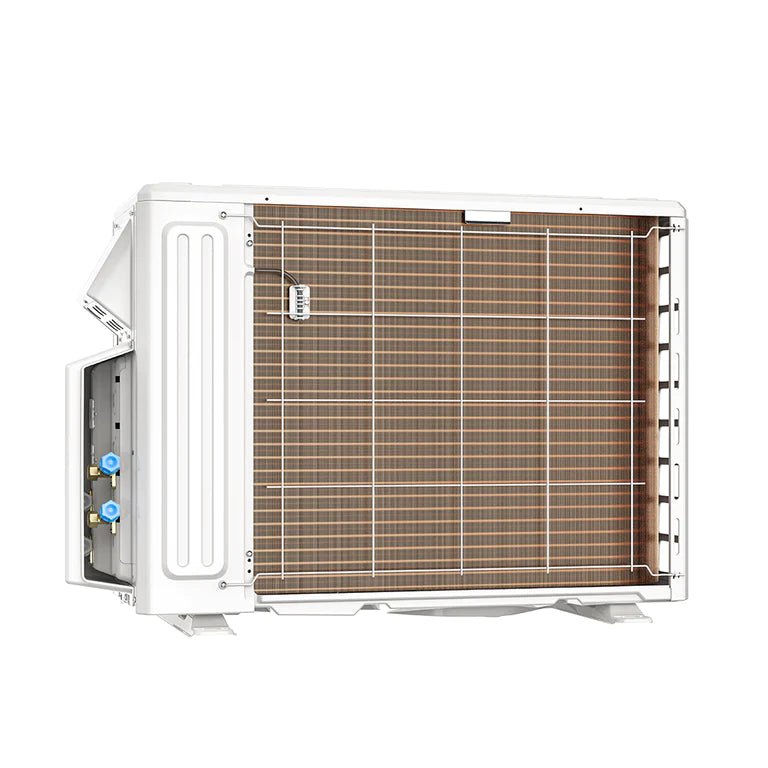

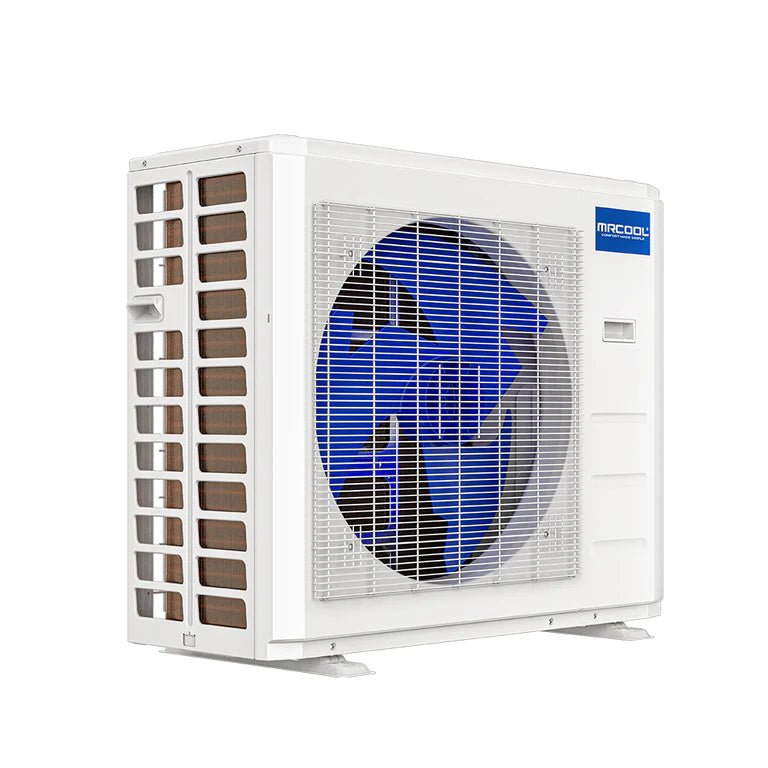

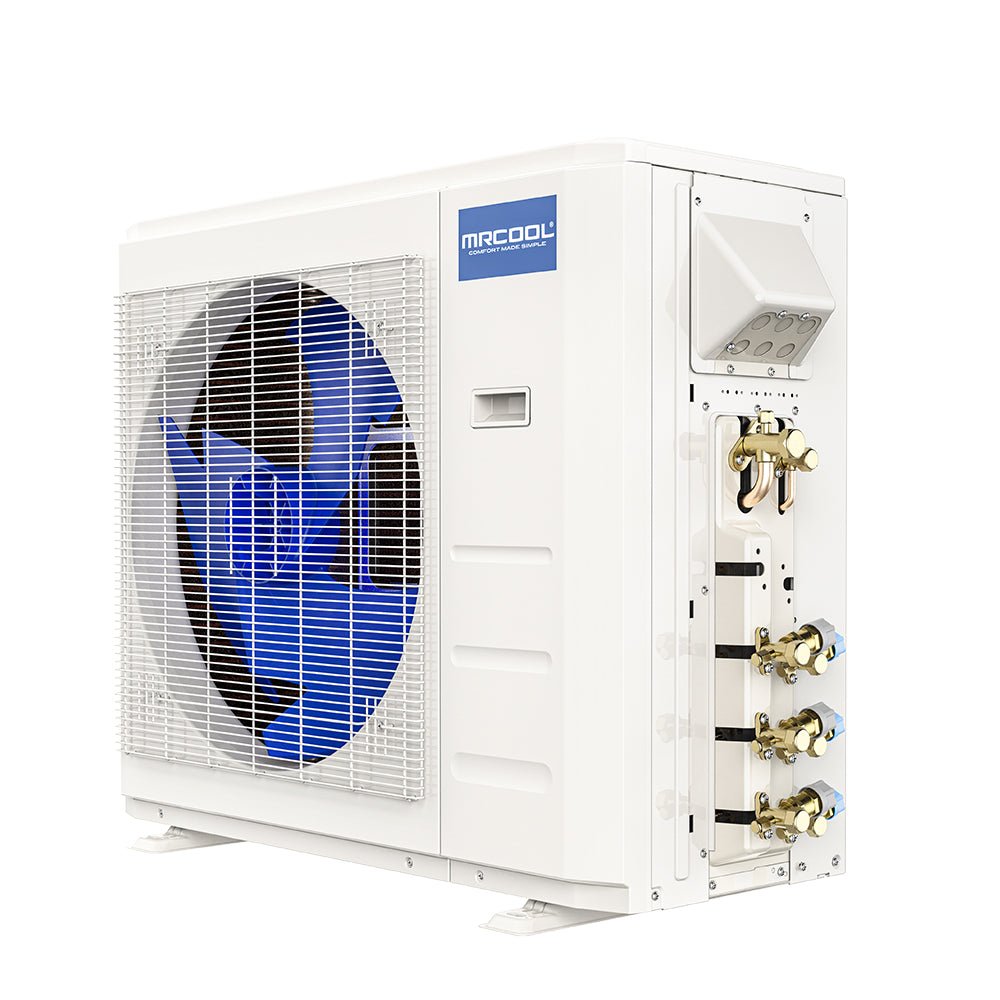

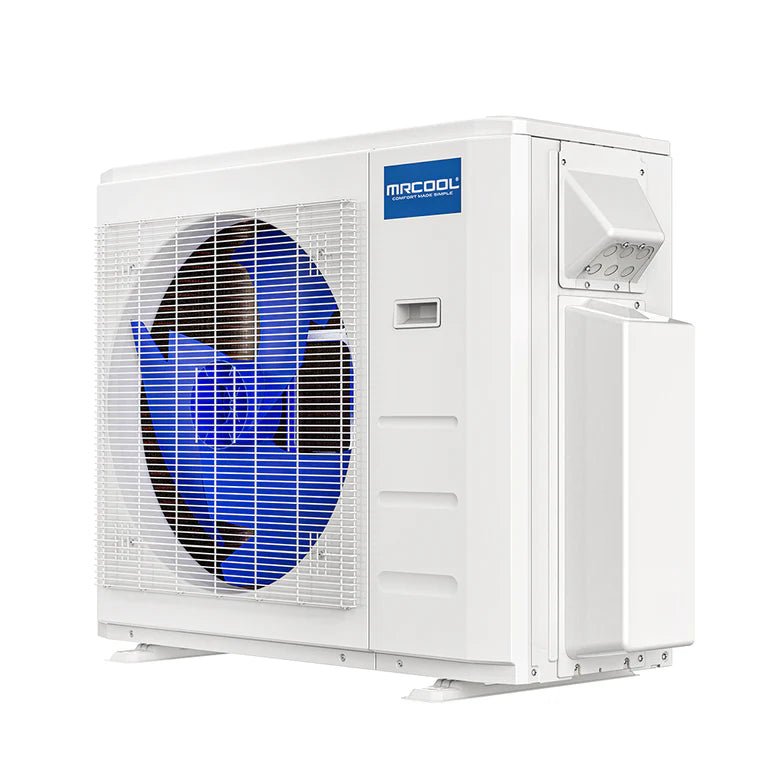

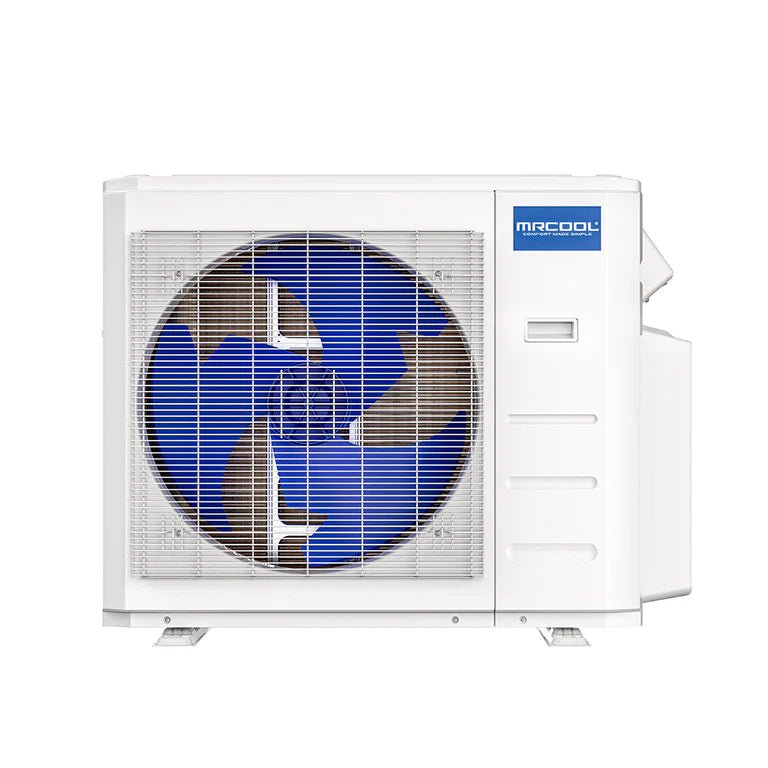

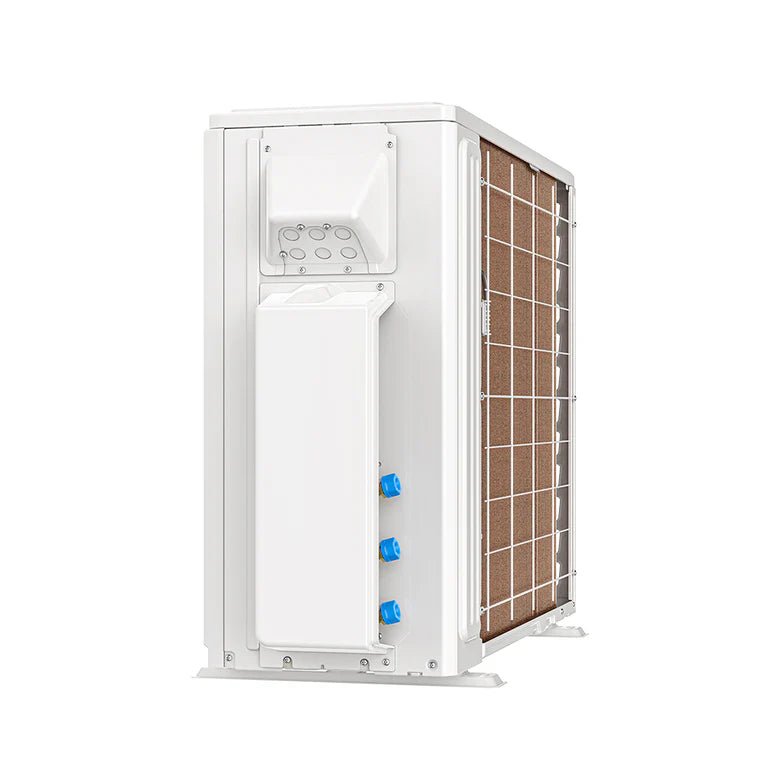

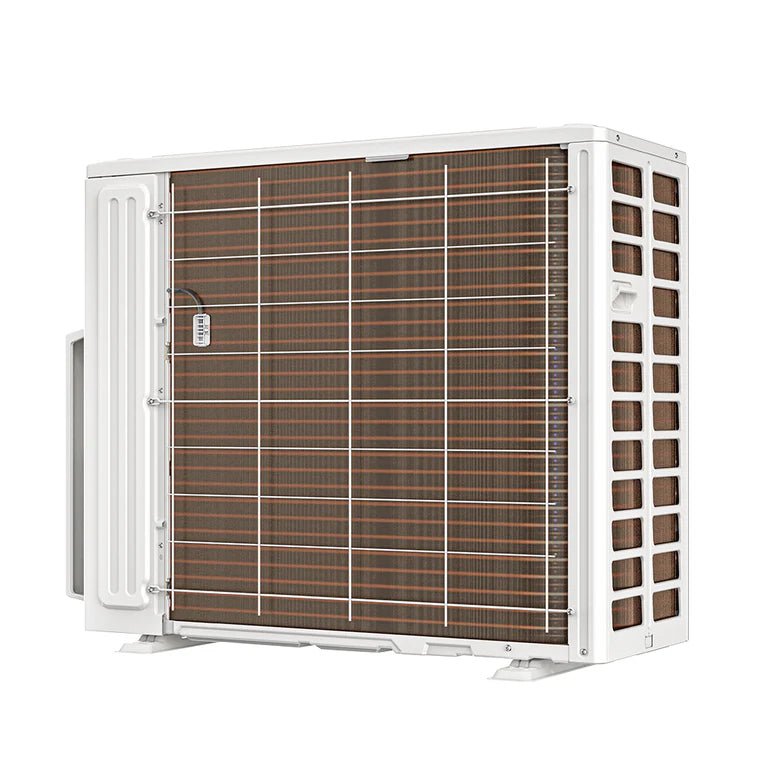

Condenser Specifications:

BRAND NAME	MRCOOL
SERIES	DIY Multi-Zone 4th Gen
MODEL	DIY-MULTI2-27HP230C
GTIN
UPC
UNIT TYPE	Mini Split
SHORT DESCRIPTION	MrCool DIY 4th Gen Multi-Zone 2-Zone Condenser
LONG DESCRIPTION	The 4th Generation MrCool DIY 27K BTU 2-Zone Ductless Heat Pump Condenser is the latest in heat pump technology. This 2-zone condenser, when paired with select MrCool air handlers, is capable of producing an impressive 22 SEER efficiency rating. It also has the ability to heat even when temperatures drop to -13°F. It features robust construction which includes a Gold Fin Condenser coating so it is sure to withstand exposure to the elements. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. As a MrCool DIY product, this heat pump is designed specifically to be used with MrCool’s patented Pre-Charged Quick Connect Line Sets. These line sets come pre-charged with the precise amount of R-410A refrigerant. They are also equipped with quick connectors, so the line set can be connected to the condenser by the homeowner using only wrenches. This means the installation process can be performed without retaining the services of a certified technician. Let the 4th Generation MrCool DIY 27K BTU 2-Zone Ductless Heat Pump Condenser be the solution to your home’s heating and cooling needs.
BULLET 1	Up to 22 SEER
BULLET 2	Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
BULLET 3	Energy Efficient DC Inverter
BULLET 4	R-410A environmentally friendly refrigerant
BULLET 5	Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
SEER	22
EER	12.5
HSPF	hspf4/hspf5 : 10.6/8.6
CFM	1764.71
COOLING CAPACITY	27000 BTU
HEATING CAPACITY	27000 BTU
VOLTAGE	208-230 V
PHASE	1
CYCLE	60 Hz
MAX FUSE BREAKER	25 A
MIN CIRCUIT AMPACITY	18 A
COLOR	White
COLOR FAMILY	White
ZONE CAPACITY	2
REFRIGERANT TYPE	R-410A
REFRIGERANT VOLUME	65.26 oz
DECIBEL RATING	59 dBA
INVERTER	Yes
MIN AMBIENT COOL	5F ~ 122F
MIN AMBIENT HEAT	-13F ~ 75.2F
MAX LINESET LENGTH	98.42 ft TOTAL
LIQUID LINE SIZE	1/4in
SUCTION LINE SIZE	3/8in
COMPRESSOR MOTOR TYPE	Twin - Rotary
CONDENSER FAN MOTOR RPM	750/600/500
WIFI COMPATIBILITY	Yes
APP COMPATIBILITY	Yes
WORKS WITH IOS	Yes
WORKS WITH ANDROID	Yes
REGISTERED WARRANTY	Limited Lifetime Compressor
BASE WARRANTY	5-year Parts/7-year Compressor
BASE PARTS WARRANTY	5-year Parts
REGISTERED COMPRESSOR WARRANTY	Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY	7-year Compressor
CONTAINS ELECTRONICS	Yes
CONTAINS CHEMICALS	Yes
CONTAINS AEROSOL	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
NET DEPTH	13.46 in
NET HEIGHT	26.50 in
NET WIDTH	35.04 in
NET WEIGHT	100.53 lbs
GROSS DEPTH	17.64 in
GROSS HEIGHT	29.33 in
GROSS WIDTH	40.94 in
GROSS WEIGHT	111.11 lbs
