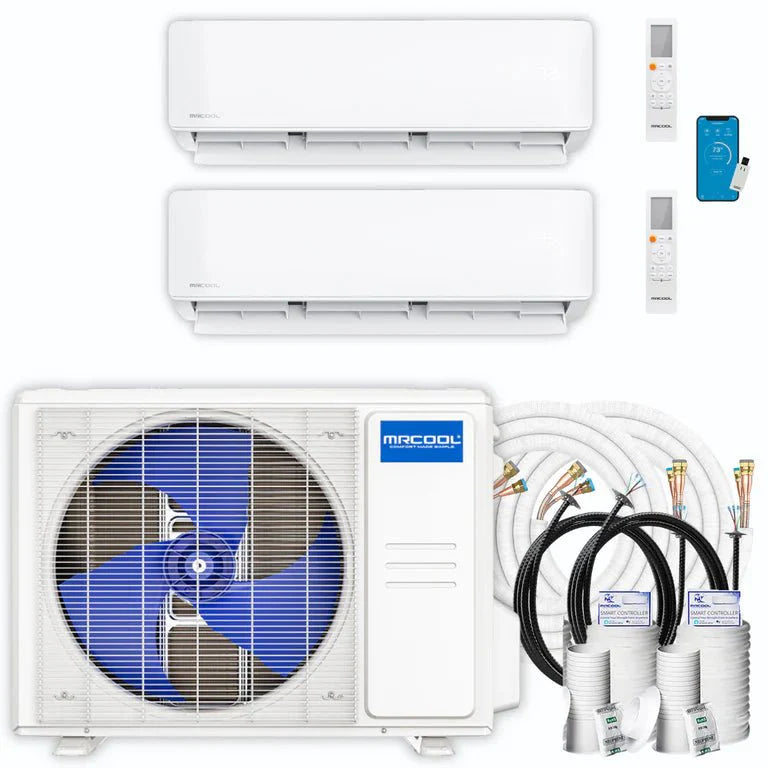

MRCOOL DIY 5th Gen Multi-Zone 36K BTU Two Zone Ductless Mini Split - A Heating and AC System You Can Install By Yourself!
Heat or cool two zones with the MRCOOL DIY Multi-Zone 36,000 BTU 23 SEER 2 Zone Ductless Heat Pump Split System - 9K + 18K. This DIY Series multi-zone product features easy installation that requires no special tools or training. You'll save thousands of dollars on installation and you can get the amazing air comfort of your dreams due to the condenser’s 36,000 BTU capacity. The indoor air handlers are one 9,000 btu (400 square feet) and one 12,000 btu (600 square feet). A heat pump by design, this ductless HVAC solution can run in reverse and pull in heat from the outdoors when in a heating mode. It comes with a 7 Year Compressor (Plus a limited lifetime compressor warranty), 5 Year Parts Manufacturer Warranty!
Easily maintain your MRCOOL DIY Multi-Zone 36,000 BTU 23 SEER Two-Zone Ductless Heat Pump Split Air Conditioner Unit with alerts and reminders. Any troubleshooting codes will appear on the front display and the user manual contains an index for common codes. Air filter cleaning alerts are automatic, and you can easily keep the minimal indoor units clean with a dry or damp cloth.
Features:
- Easy DIY® Installation
- "Pre-charged DIY®
- Quick Connect Line Set"
- Simple to Use
- Multi-room Comfort
- Energy Efficient DC Inverter
- 100% Sealed System
- Gold Fin® Condenser
- Eco Safe R-454B Refrigerant
- Smartphone App Controls
- Lifetime Technical Support
- Follow Me® Feature
- Low Ambient Cooling
Installation & Guides:
Specifications:
| BRAND NAME | MRCOOL |
| SERIES |
DIY 5th gen Multi-Zone Mini-splits
|
| MODEL |
DIY-MULTI5-36HP230D-O
|
| GTIN | 840255587464 |
| UPC | 840255587464 |
| SHORT DESCRIPTION |
MRCOOL® 36k DIY 5th Generation 5 Zone Multi-Zone Mini-Split Condenser 230v
|
| LONG DESCRIPTION |
The brand new 5th Generation MRCOOL® DIY® 36k BTU Multi-Zone Ductless Mini-Split Condenser is the right choice if you need immediate, effective comfort that won’t break the bank! This system, which can be installed without the assistance of an HVAC professional, is one of the most efficient and innovative HVAC options on the market. With this condenser, you’ll be able to heat and cool up to 5 different spaces equaling around 1,500 square feet, meaning you can potentially heat and cool an entire home with just one mini-split system! Our DIY® Mini-Splits are able to forgo the evacuation and charging process because our patented Quick Connect® line sets are pre-charged with R-454B refrigerant, a more efficient and eco-friendly refrigerant than R-410A, which we have previously used. These line sets are sold separately. This unit achieves a SEER2 of 23 and an HSPF2-4 of 9.9. These fittings make installation an incredibly safe and simple process, allowing you to save a lot of time and money. There are a variety of features to explore once the system is up and running. One of them is the ability to integrate your system with the SmartHVAC app, allowing you to control your comfort with the touch of a button. You can even go a step further and link your Amazon Alexa or Google home for touchless operation. With the app, you can set each zone’s temperature, set schedules for each unit, monitor your system’s energy usage, and more. There are even more features to explore that will help you customize your comfort to be exactly what you want. We’ve got your back in the unlikely event that your system malfunctions. Your system will come with a 5 year parts warranty and a 7 year compressor warranty, and if you enroll in the MRCOOL® Care Program, you’ll be able to enjoy the Limited Lifetime Replacement warranty! For the best comfort you’ve ever felt and a sense of accomplishment as icing on the cake, choose the MRCOOL® DIY®!
|
| FEATURE LIST |
Intertek listed 5031495
Easy DIY installation Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit. Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort. The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box. |
| SEER2 | 23 |
| EER2 | 12 |
| HSPF2-4 | 9.9 |
| HSPF2-5 | 7.5 |
| TONNAGE | 3 |
| COOLING CAPACITY (BTU) | 34000 |
| HEATING CAPACITY (BTU) | 36000 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 35 |
| MIN CIRCUIT AMPACITY (A) | 30.5 |
| COLOR | White |
| ZONE CAPACITY | 5 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 104.75 |
| DECIBEL RATING (DBA) | 64 |
| INVERTER | DC |
| LINE SET LENGTH | 25 |
| MAX LINESET LENGTH (FT) | 221.4 |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE |
(3/8 X4) (1/2 X1)
|
| COMPRESSOR MOTOR TYPE | Rotary |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | No |
| FAN ONLY OPTION | Yes |
| QUIET MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| UL LISTED | Yes |
| ETL LISTED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY |
Extended Limited Lifetime*
|
| BASE PARTS WARRANTY | 5 |
| BASE COMPRESSOR WARRANTY | 7 |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 16.14 |
| NET HEIGHT (IN) | 31.89 |
| NET WIDTH (IN) | 37.24 |
| NET WEIGHT (LBS) | 169.24 |
| GROSS DEPTH (IN) | 19.69 |
| GROSS HEIGHT (IN) | 34.84 |
| GROSS WIDTH (IN) | 42.91 |
| GROSS WEIGHT (LBS) | 181.88 |
