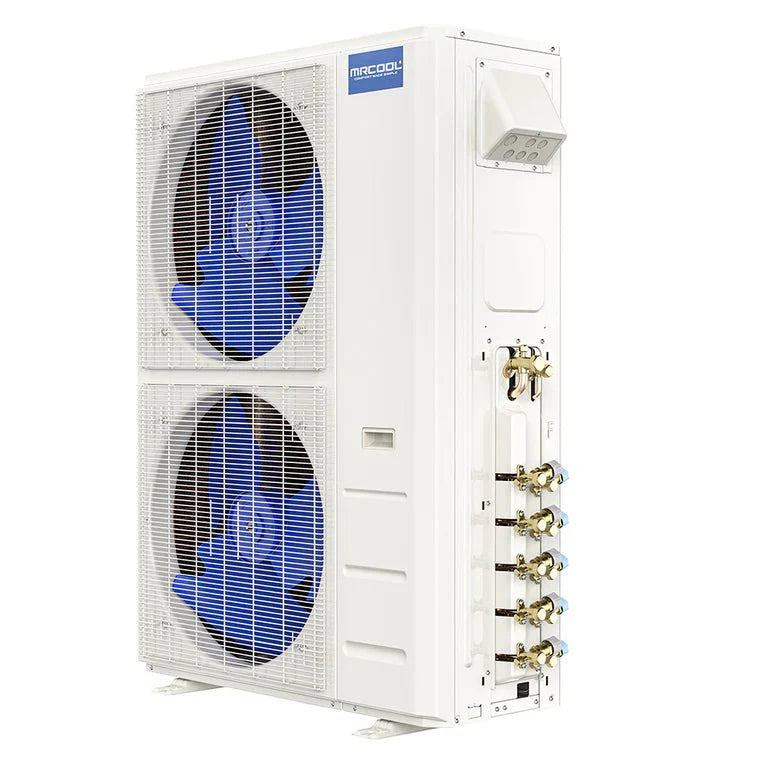

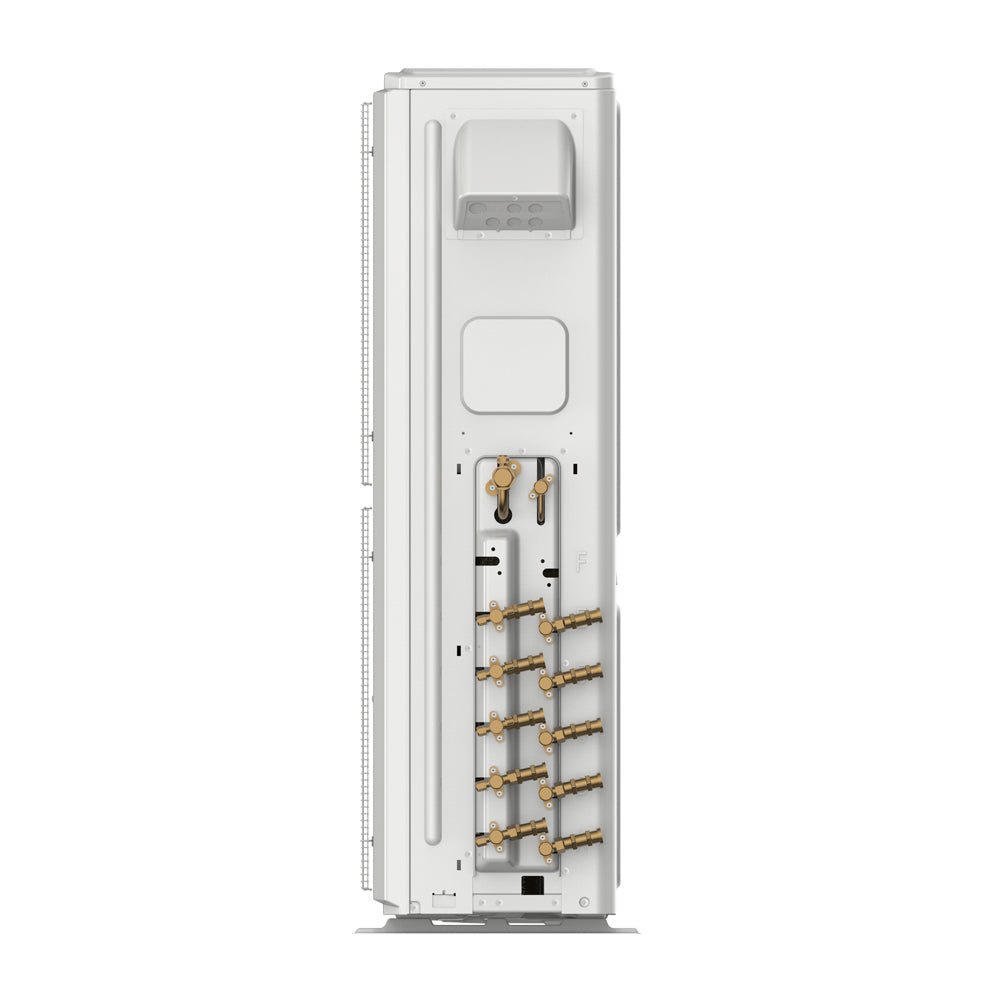

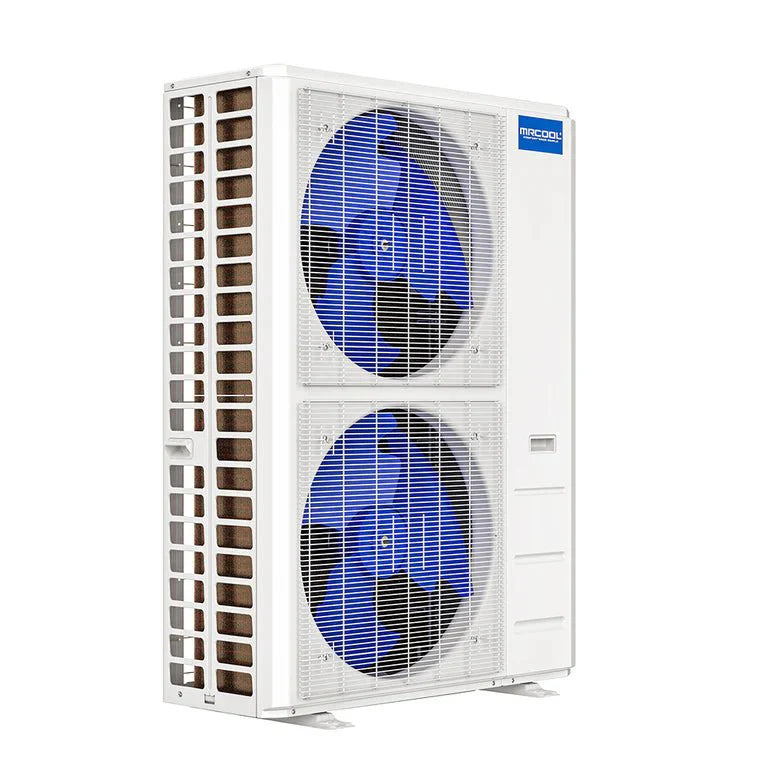

MRCOOL DIY Multi-Zone 5th Generation 48K BTU Two Zone Ductless Mini Split – A Heating and AC System You Can Install By Yourself!

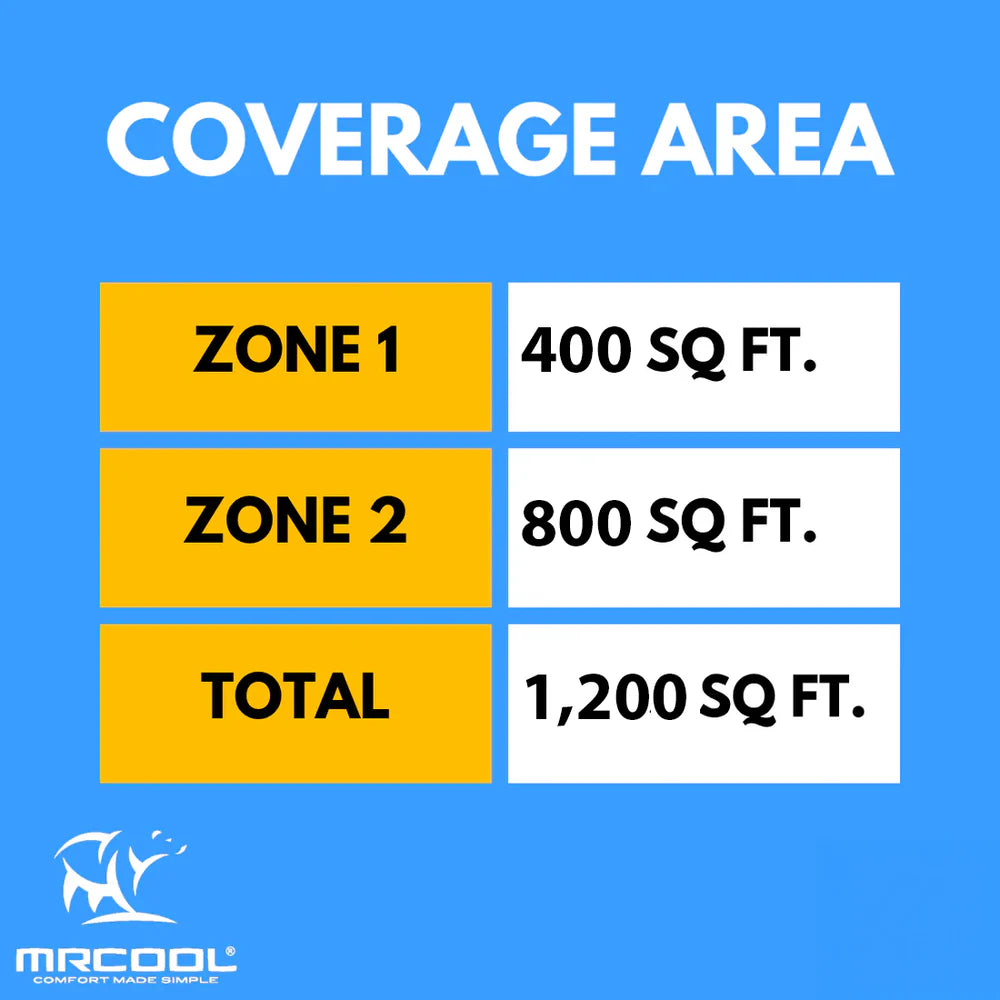

Heat or cool two areas with the MRCOOL DIY Multi-Zone 48,000 BTU 22 SEER2 2 Zone Ductless Heat Pump Split System – 9K + 18K. This 5th Gen DIY system is built for fast, straightforward installation that doesn’t require specialized tools or professional help, saving you thousands on labor costs. It includes one 9,000 BTU air handler (perfect for rooms up to 350 sq ft) and one 18,000 BTU air handler (ideal for spaces up to 800 sq ft). The heat pump design allows this system to operate efficiently year-round. Backed by a 7-year compressor warranty (plus limited lifetime coverage) and a 5-year parts warranty.
MRCOOL DIY 5th Gen Multizone 48,000 BTU systems can support up to FIVE indoor units.
The MRCOOL DIY Multi-Zone 48,000 BTU 22 SEER2 2 Zone Ductless Heat Pump Split System – 9K + 18K comes with pre-charged Quick Connect line sets containing eco-friendly R-454B refrigerant. These allow for DIY installation without needing an HVAC technician. Follow the step-by-step video guide or use the included instructions to set it up yourself.

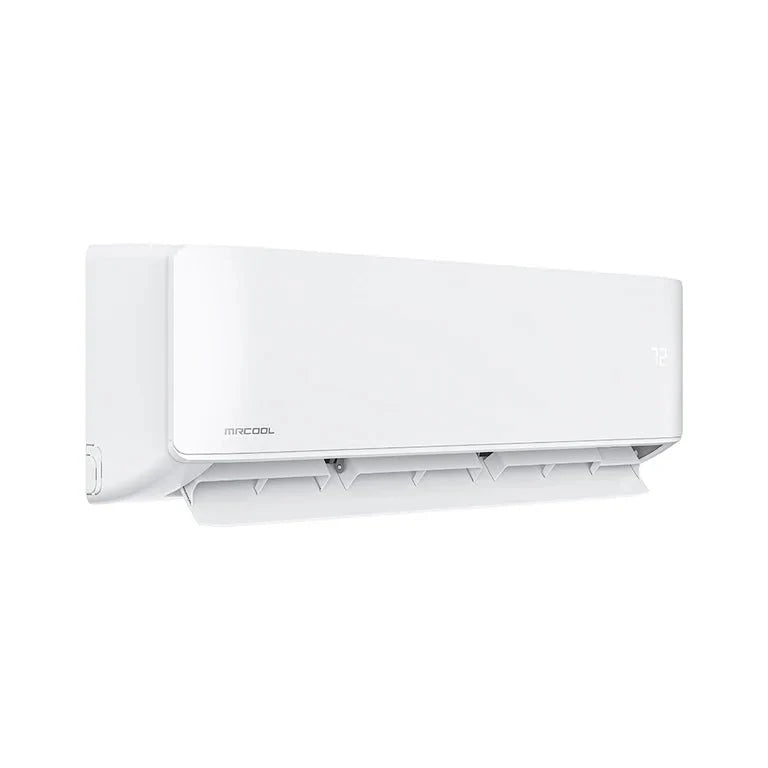

This unit cools in the summer, heats in the winter, and dehumidifies during the wet seasons. Each indoor unit features a digital display for room temperature and diagnostic codes, while the MRCOOL Smart Controller app allows full control from your smartphone. The system is also compatible with Amazon Alexa and Google Home for voice commands.

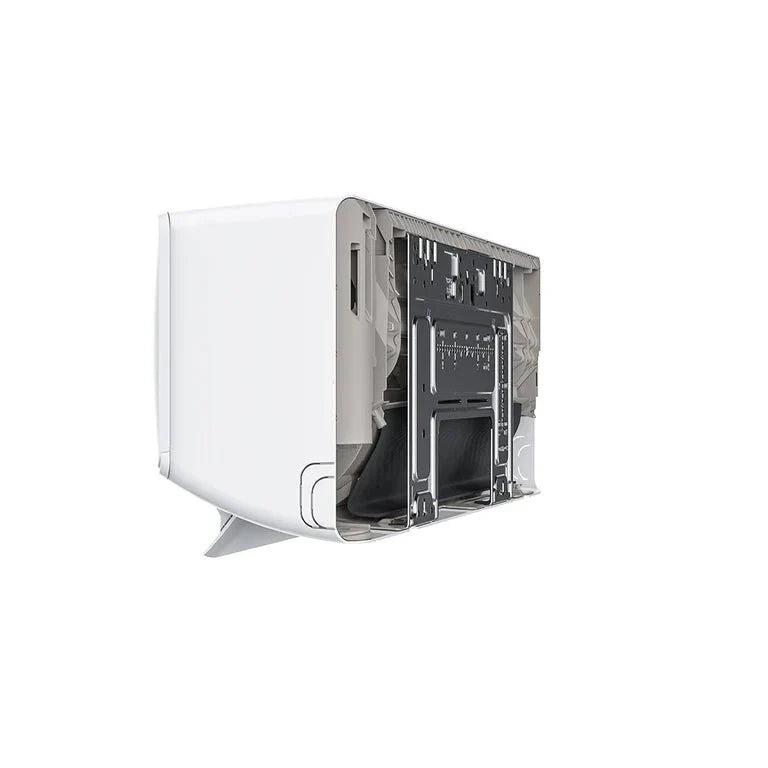

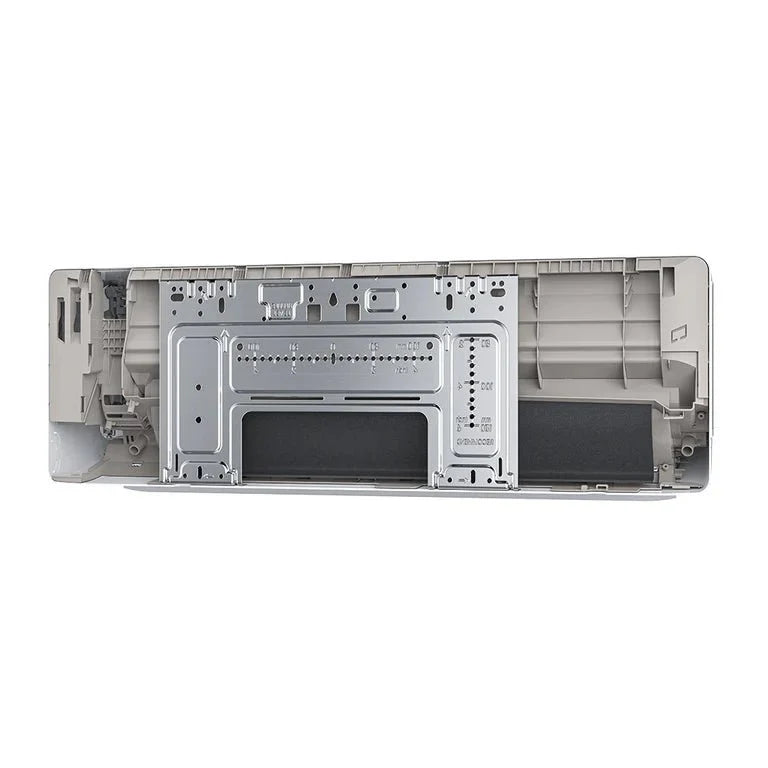

The included air handlers provide customizable airflow to evenly distribute heating or cooling across each space. You can also activate manual operation with the emergency button under the front panel to test or troubleshoot. In auto mode, the system automatically adjusts based on your desired temperature, and it includes a dedicated drying function for moisture control.
Sleep Mode helps you conserve energy and stay comfortable overnight, adjusting temperature over an 8-hour window.
The MRCOOL DIY Multi-Zone 48,000 BTU 22 SEER2 2 Zone Ductless Heat Pump Split System – 9K + 18K includes features that make life easier — such as a programmable timer, refrigerant leak alerts, and mute settings that turn off system sounds and LED displays. In case of a power outage, the unit will restart with your previous settings.
Maintenance is simple, with filter cleaning alerts and an easy-to-use troubleshooting code system. Indoor units can be wiped clean with a damp or dry cloth to keep them performing their best.
Features:
-
Easy DIY® Installation
-
Pre-charged DIY® Quick Connect Line Set
-
Simple to Use
-
Multi-room Comfort
-
Energy Efficient DC Inverter
-
100% Sealed System
-
Gold Fin® Condenser
-
Eco Safe R-454B Refrigerant
-
Smartphone App Controls
-
Lifetime Technical Support
-
Follow Me® Feature
-
Low Ambient Cooling
| BRAND NAME | MRCOOL |
| SERIES |
DIY 5th gen Multi-Zone Mini-splits
|
| MODEL |
DIY-MULTI6-48HP230D-O
|
| GTIN | 840255587471 |
| UPC | 840255587471 |
| SHORT DESCRIPTION |

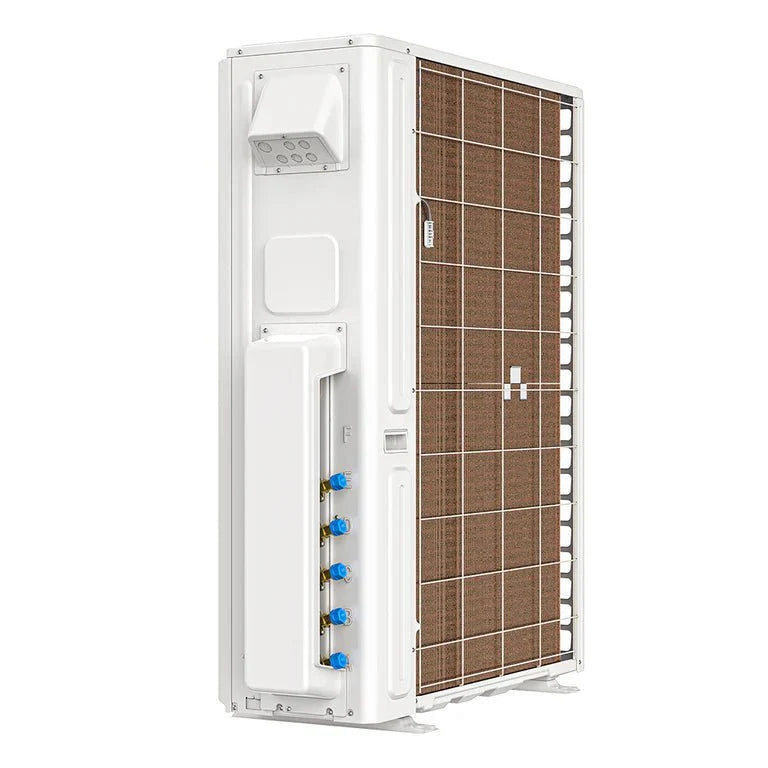

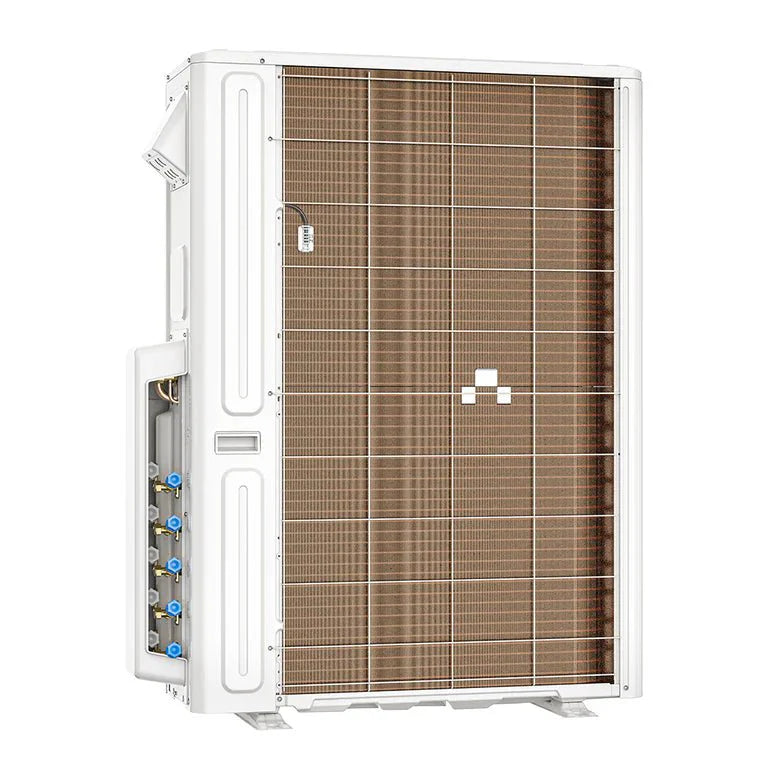

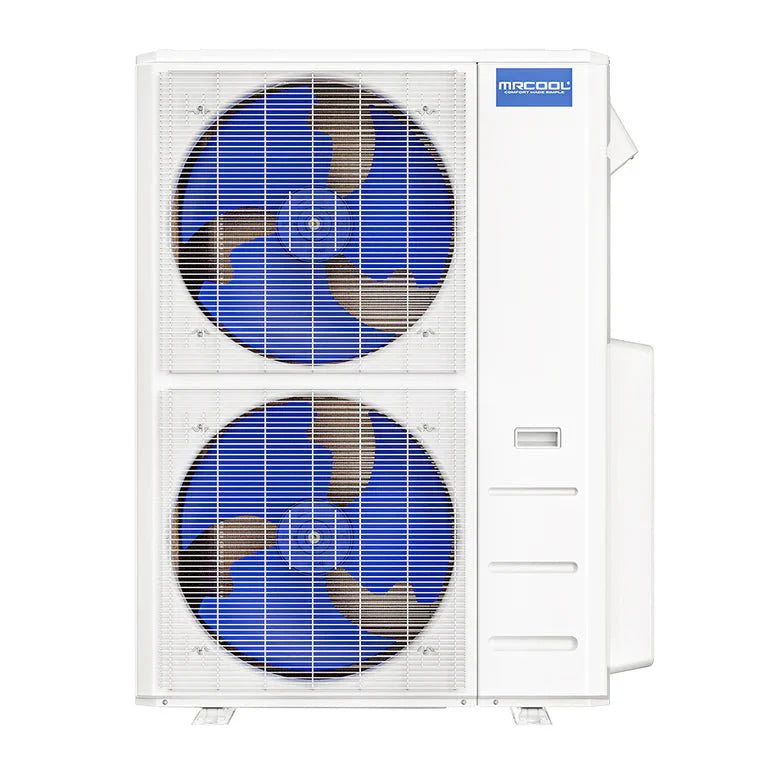

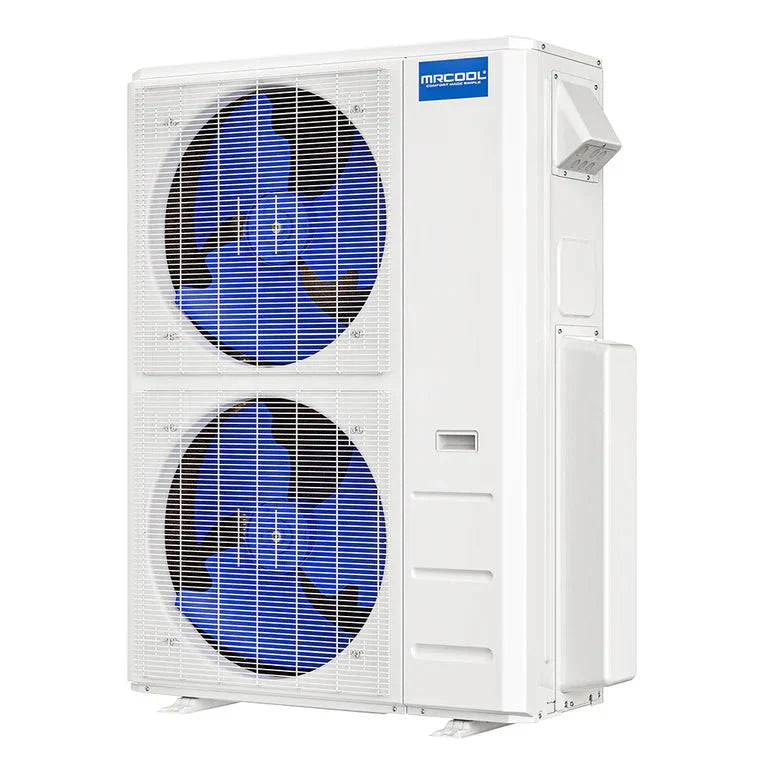

MRCOOL® 48k DIY 5th Generation 6 Zone Multi-Zone Mini-Split Condenser 230v
|
| LONG DESCRIPTION |
We’re excited to introduce our new 5th Generation MRCOOL® DIY® 48k BTU Multi-Zone Ductless Mini-Split Condenser, because it’s better than its predecessor in nearly every way. You won’t need the services of an HVAC professional when you’re setting this unit up, because you can do it yourself, which saves lots of time and money! This condenser enables you to heat and cool up to 6 separate spaces equalling up to 2,000 sq. ft., meaning you’d be able to cover an entire home in the completely efficient comfort of a single DIY® system. You can install this system on your own because our innovative, patented pre-charged Quick Connect® line sets allow you to skip the lengthy and complicated process of evacuating and charging the system. These line sets are filled with R-454B refrigerant, a much more ecological and proficient upgrade from the previous refrigerant used in the last generation. This switch helps the system achieve impressive efficiency levels, like 21.8 SEER2 and an HSPF2-4 of 10. These line sets are sold separately. Once you install your system, you’ll be able to explore the variety of ways you can customize your comfort. For ultimate control, you can integrate system operations with the SmartHVAC app, available for Apple and Android phones, allowing you the ability to set schedules, manage modes of operation, monitor your systems all with the touch of a button. The app even enables you to set up integration with Amazon Alexa and Google Home, meaning you won’t have to move a finger to make your home more comfortable than ever. We pride ourselves on having one of the best warranties in the industry on this unit! Once you install your condenser, you’re entitled to a 5 year parts warranty, a 7 year compressor warranty, and, if you subscribe to the MRCOOL® Care Program, a Limited Lifetime Replacement warranty. The MRCOOL® DIY® is the right choice if you want fast, efficient comfort that won’t let you down!
|
| FEATURE LIST |
Intertek listed 5031495
Easy DIY installation Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit. Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort. The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box. |
| SEER2 | 21.8 |
| EER2 | 12 |
| HSPF2-4 | 10 |
| HSPF2-5 | 7.8 |
| TONNAGE | 4 |
| COOLING CAPACITY (BTU) | 43000 |
| HEATING CAPACITY (BTU) | 48000 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 45 |
| MIN CIRCUIT AMPACITY (A) | 40 |
| COLOR | White |
| ZONE CAPACITY | 6 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 148.15 |
| DECIBEL RATING (DBA) | 64 |
| INVERTER | DC |
| LINE SET LENGTH | 25 |
| MAX LINESET LENGTH (FT) | 221.4 |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE |
(3/8 X4) (1/2 X2)
|
| COMPRESSOR MOTOR TYPE | Rotary |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | No |
| FAN ONLY OPTION | Yes |
| QUIET MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| UL LISTED | Yes |
| ETL LISTED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY |
Extended Limited Lifetime*
|
| BASE PARTS WARRANTY | 5 |
| BASE COMPRESSOR WARRANTY | 7 |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 16.34 |
| NET HEIGHT (IN) | 52.48 |
| NET WIDTH (IN) | 37.48 |
| NET WEIGHT (LBS) | 223.77 |
| GROSS DEPTH (IN) | 19.49 |
| GROSS HEIGHT (IN) | 58.27 |
| GROSS WIDTH (IN) | 43.11 |
| GROSS WEIGHT (LBS) | 256.39 |
