MRCOOL DIY Multi-Zone 5th Generation 48K BTU Two Zone Ductless Mini Split – A Heating and AC System You Can Install By Yourself!
Heat or cool two mid-to-large rooms with the MRCOOL DIY Multi-Zone 48,000 BTU 22 SEER2 2 Zone Ductless Heat Pump Split System – 18K + 18K. This 5th Gen DIY Series system is designed for easy installation with no special tools or HVAC training required. You’ll save thousands on labor while enjoying powerful comfort in two spaces. This setup includes two 18,000 BTU air handlers, each capable of efficiently heating or cooling up to 750 square feet. As a heat pump, the system can reverse to provide warmth in the winter, and it's backed by a 7-year compressor warranty (plus an optional limited lifetime compressor warranty) and a 5-year parts warranty!
MRCOOL DIY 5th Gen Multizone 48,000 BTU systems can support up to FIVE indoor units.
The MRCOOL DIY Multi-Zone 48,000 BTU 22 SEER2 2 Zone Ductless Heat Pump Split System – 18K + 18K makes installation simple. The system uses pre-charged Quick Connect lines with R-454B refrigerant, which is EPA-compliant and environmentally safer than previous generations. No vacuum or refrigerant charging is necessary—just connect and go. Easy-to-follow instructions and video guides are available to help you every step of the way.
This system handles all seasons with ease: cooling in summer, heating in winter, and dehumidifying during humid months. Each air handler displays temperature and diagnostics on an LED panel, and the system can be controlled via remote or the MRCOOL Smart Controller app, available for iOS and Android. It also works with Amazon Alexa and Google Home for voice-activated control.

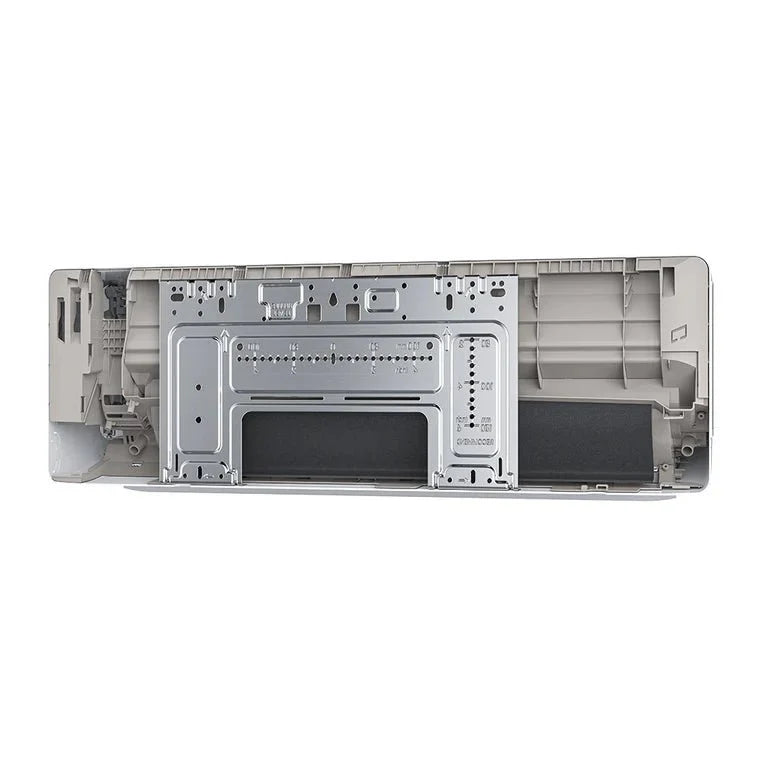

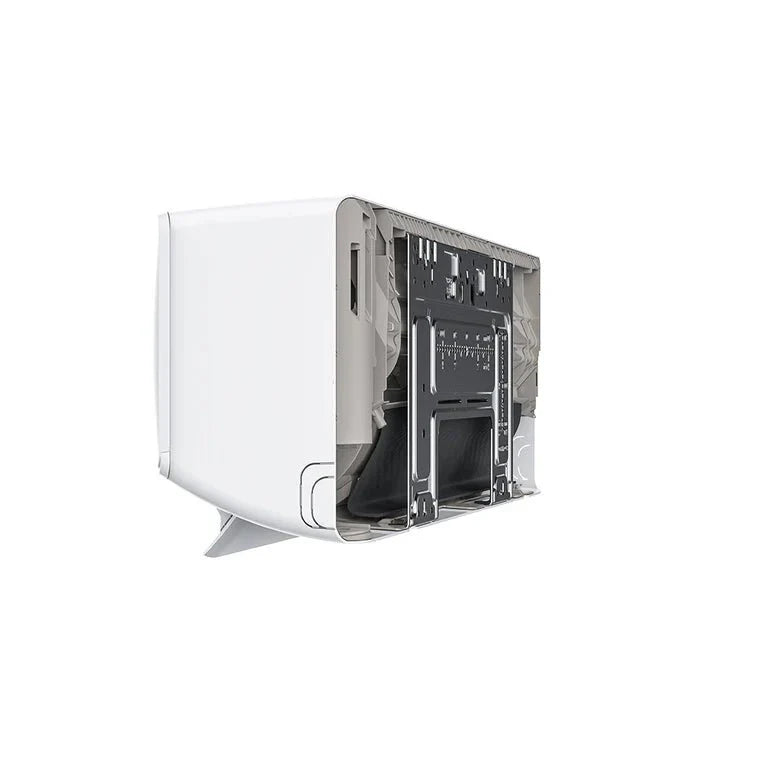

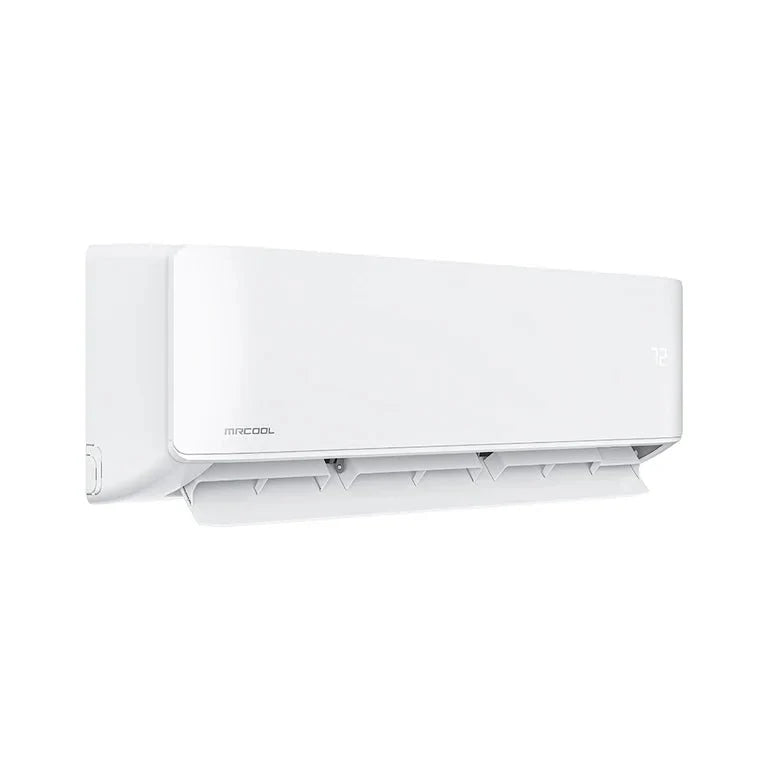

The directional airflow from each 18K air handler ensures even comfort throughout the room. Manual operation is available behind the front panel in case of emergency or maintenance.
In auto mode, the system adjusts based on your preferred temperature. The dry mode offers dehumidification while keeping the space comfortable.
Sleep mode allows for energy-saving overnight operation by gradually adjusting the temperature across an 8-hour cycle.
The MRCOOL DIY Multi-Zone 48,000 BTU 22 SEER2 Two-Zone Ductless Heat Pump Split Air Conditioner System – 18K + 18K offers flexibility, energy efficiency, and user-friendly controls. Use the programmable timer to reduce power usage. Low refrigerant alerts and diagnostic codes appear clearly on the air handler’s display. Muting features allow you to turn off audible alerts and LED displays for quieter spaces. In the event of a power outage, the system automatically resumes previous settings upon restart.
Maintenance is easy with built-in reminders and simple-to-clean indoor units. A quick wipe and periodic filter checks keep your system running at its best.
Features:
-
Easy DIY® Installation
-
Pre-charged DIY® Quick Connect Line Set
-
Uses Eco-Friendly R-454B Refrigerant (EPA 2025 Compliant)
-
Multi-room Comfort
-
Energy Efficient DC Inverter
-
100% Sealed System
-
Gold Fin® Condenser
-
Smartphone App Controls
-
Lifetime Technical Support
-
Follow Me® Feature
-
Low Ambient Cooling
| BRAND NAME | MRCOOL |
| SERIES |
DIY 5th gen Multi-Zone Mini-splits
|
| MODEL |
DIY-MULTI6-48HP230D-O
|
| GTIN | 840255587471 |
| UPC | 840255587471 |
| SHORT DESCRIPTION |

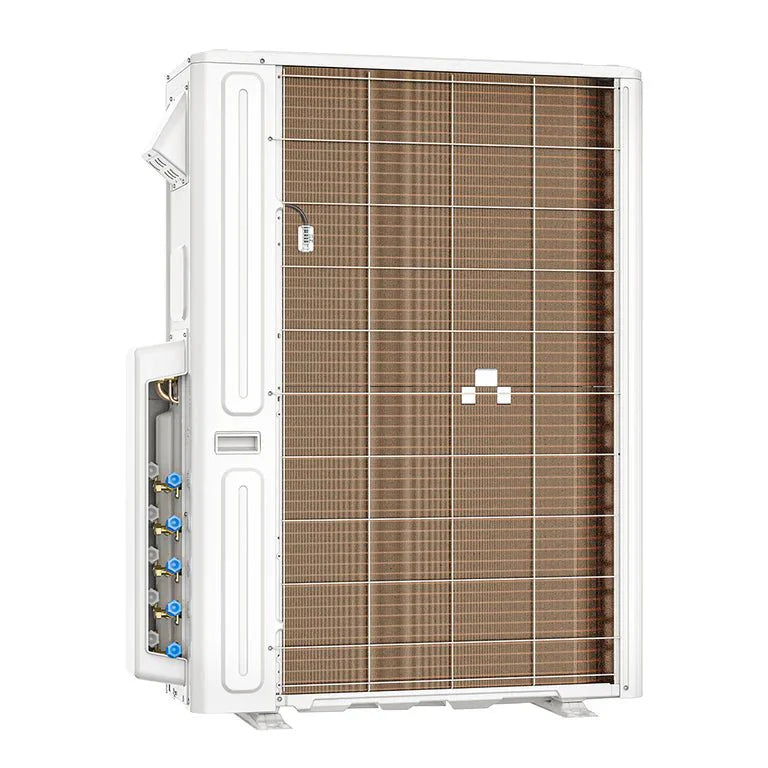

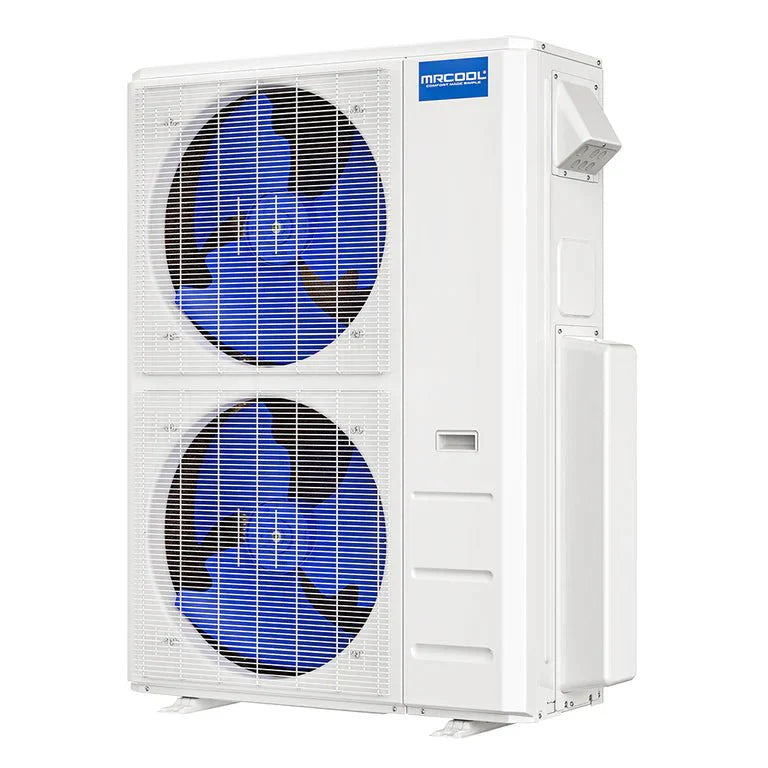

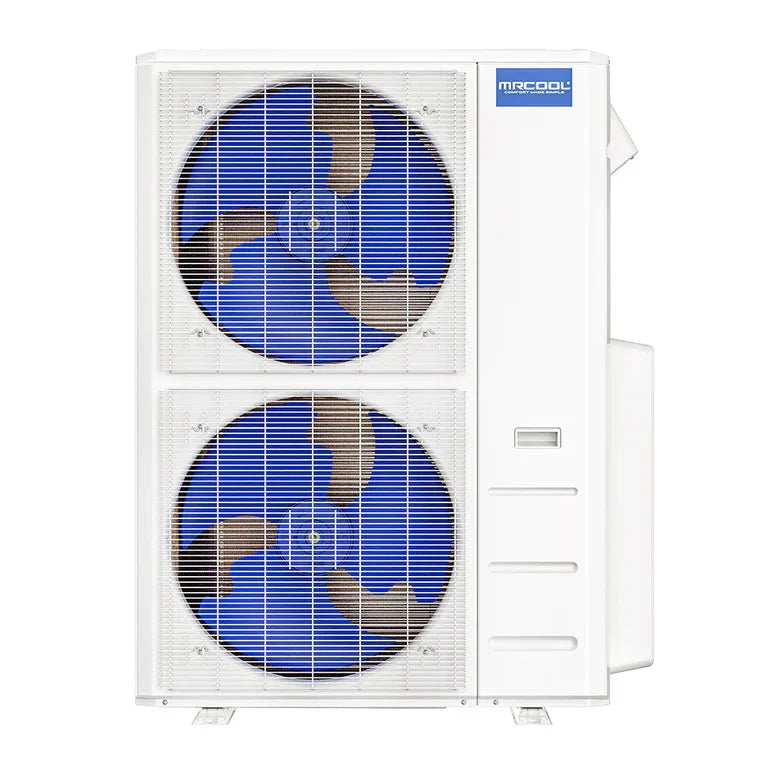

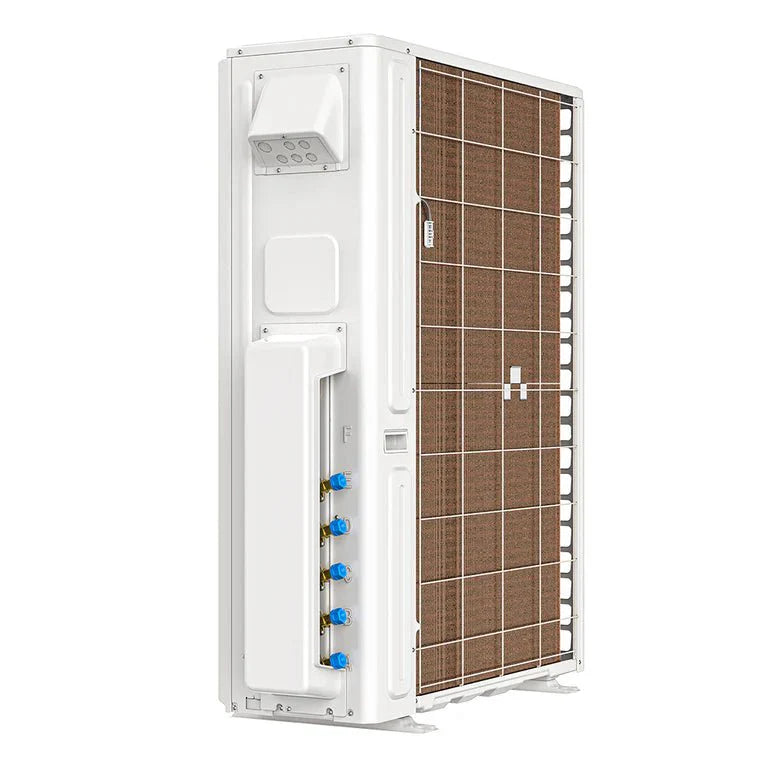

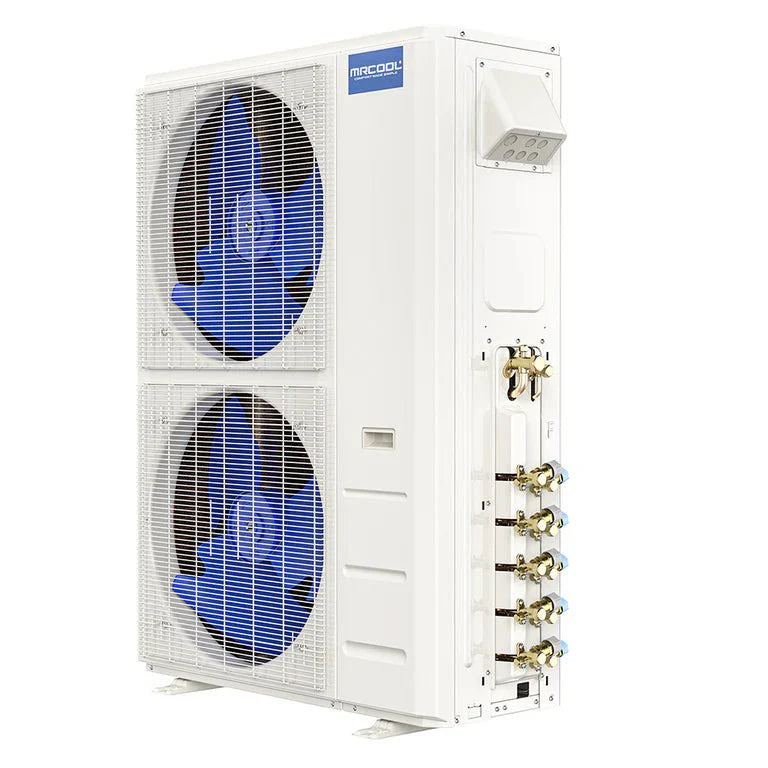

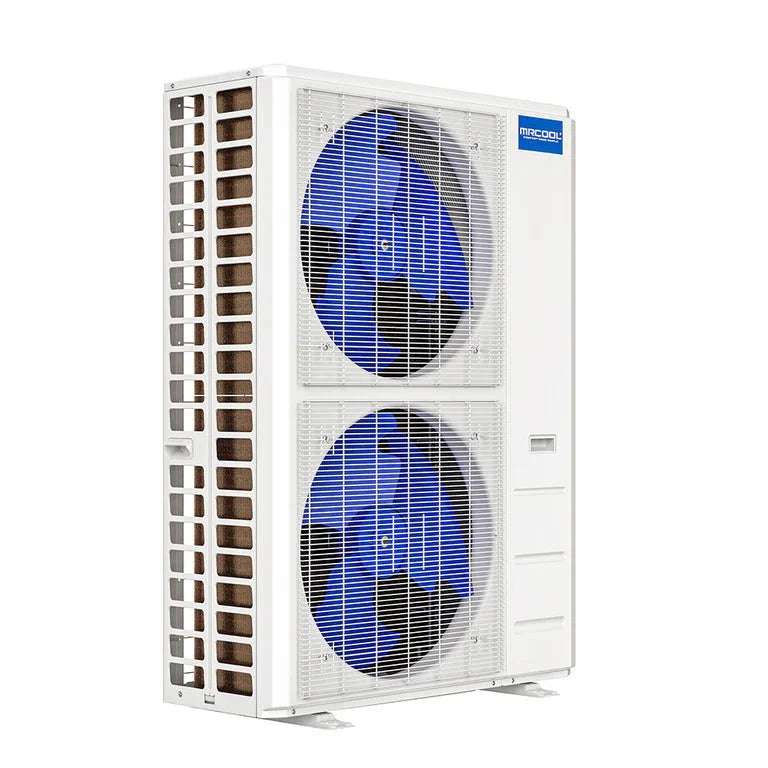

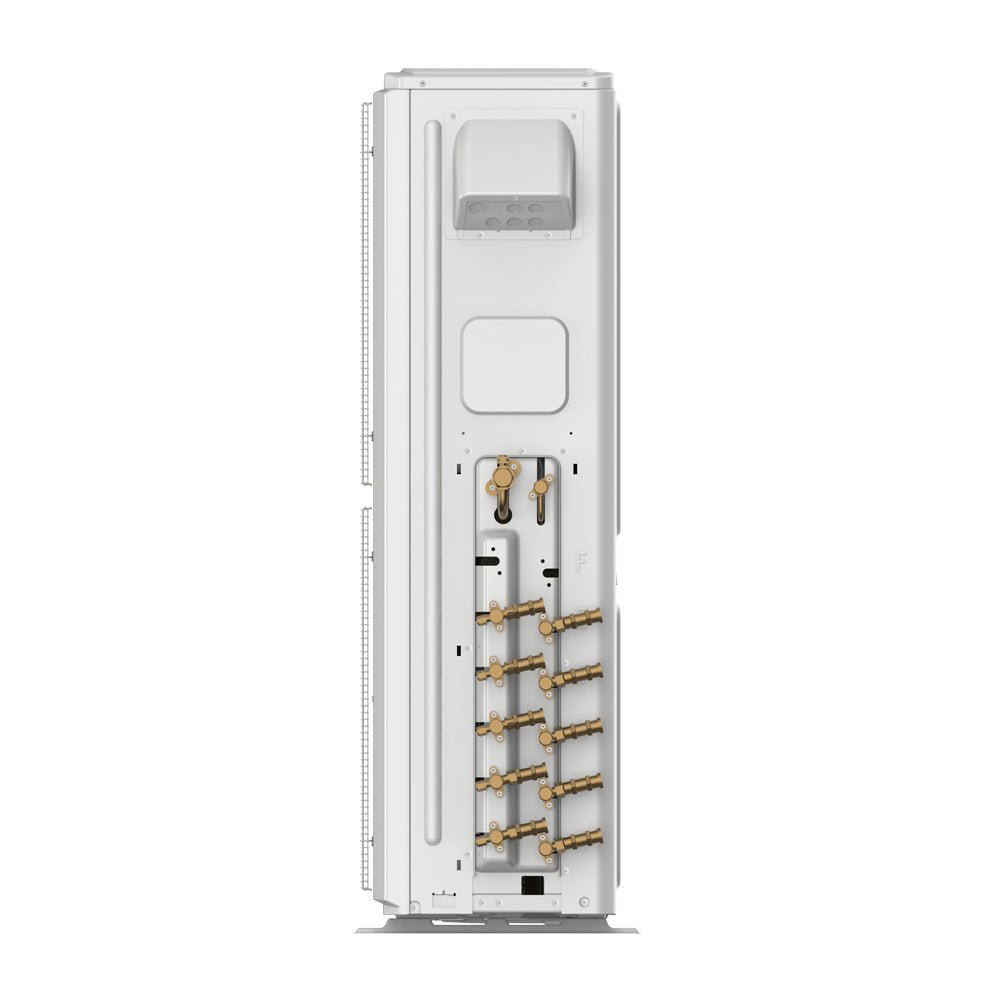

MRCOOL® 48k DIY 5th Generation 6 Zone Multi-Zone Mini-Split Condenser 230v
|
| LONG DESCRIPTION |
We’re excited to introduce our new 5th Generation MRCOOL® DIY® 48k BTU Multi-Zone Ductless Mini-Split Condenser, because it’s better than its predecessor in nearly every way. You won’t need the services of an HVAC professional when you’re setting this unit up, because you can do it yourself, which saves lots of time and money! This condenser enables you to heat and cool up to 6 separate spaces equalling up to 2,000 sq. ft., meaning you’d be able to cover an entire home in the completely efficient comfort of a single DIY® system. You can install this system on your own because our innovative, patented pre-charged Quick Connect® line sets allow you to skip the lengthy and complicated process of evacuating and charging the system. These line sets are filled with R-454B refrigerant, a much more ecological and proficient upgrade from the previous refrigerant used in the last generation. This switch helps the system achieve impressive efficiency levels, like 21.8 SEER2 and an HSPF2-4 of 10. These line sets are sold separately. Once you install your system, you’ll be able to explore the variety of ways you can customize your comfort. For ultimate control, you can integrate system operations with the SmartHVAC app, available for Apple and Android phones, allowing you the ability to set schedules, manage modes of operation, monitor your systems all with the touch of a button. The app even enables you to set up integration with Amazon Alexa and Google Home, meaning you won’t have to move a finger to make your home more comfortable than ever. We pride ourselves on having one of the best warranties in the industry on this unit! Once you install your condenser, you’re entitled to a 5 year parts warranty, a 7 year compressor warranty, and, if you subscribe to the MRCOOL® Care Program, a Limited Lifetime Replacement warranty. The MRCOOL® DIY® is the right choice if you want fast, efficient comfort that won’t let you down!
|
| FEATURE LIST |
Intertek listed 5031495
Easy DIY installation Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit. Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort. The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box. |
| SEER2 | 21.8 |
| EER2 | 12 |
| HSPF2-4 | 10 |
| HSPF2-5 | 7.8 |
| TONNAGE | 4 |
| COOLING CAPACITY (BTU) | 43000 |
| HEATING CAPACITY (BTU) | 48000 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 45 |
| MIN CIRCUIT AMPACITY (A) | 40 |
| COLOR | White |
| ZONE CAPACITY | 6 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 148.15 |
| DECIBEL RATING (DBA) | 64 |
| INVERTER | DC |
| LINE SET LENGTH | 25 |
| MAX LINESET LENGTH (FT) | 221.4 |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE |
(3/8 X4) (1/2 X2)
|
| COMPRESSOR MOTOR TYPE | Rotary |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | No |
| FAN ONLY OPTION | Yes |
| QUIET MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| UL LISTED | Yes |
| ETL LISTED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY |
Extended Limited Lifetime*
|
| BASE PARTS WARRANTY | 5 |
| BASE COMPRESSOR WARRANTY | 7 |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 16.34 |
| NET HEIGHT (IN) | 52.48 |
| NET WIDTH (IN) | 37.48 |
| NET WEIGHT (LBS) | 223.77 |
| GROSS DEPTH (IN) | 19.49 |
| GROSS HEIGHT (IN) | 58.27 |
| GROSS WIDTH (IN) | 43.11 |
| GROSS WEIGHT (LBS) | 256.39 |
