MRCOOL DIY Multi-Zone 5th Generation 48K BTU Two Zone Ductless Mini Split – A Heating and AC System You Can Install By Yourself!

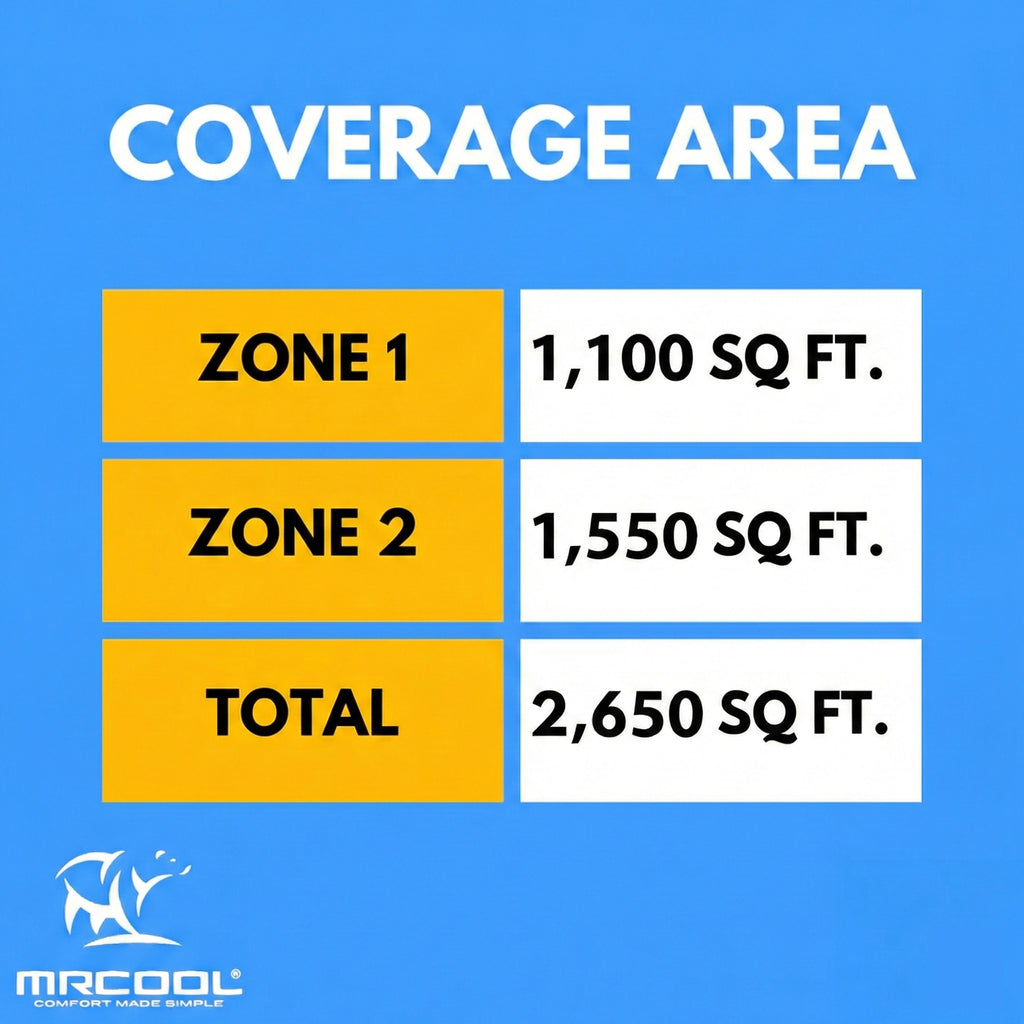

Heat or cool two large spaces with the MRCOOL DIY Multi-Zone 48,000 BTU 22 SEER2 2 Zone Ductless Heat Pump Split System – 24K + 36K. This DIY Series multi-zone product offers powerful comfort and easy installation with no special tools or training required. Save thousands on installation and enjoy year-round heating and cooling with a system designed for larger rooms. This setup includes one 24,000 BTU air handler (up to 1,000 square feet) and one 36,000 BTU air handler (up to 1,500 square feet). As a heat pump, the system can reverse to provide heat in winter, and it’s backed by a 7-year compressor warranty (with an optional limited lifetime compressor warranty) and a 5-year parts warranty!
MRCOOL DIY 5th Gen Multizone 48,000 BTU systems can support up to FIVE indoor units.
The MRCOOL DIY Multi-Zone 48,000 BTU 22 SEER2 2 Zone Ductless Heat Pump Split System – 24K + 36K is made for easy, efficient installation. It includes pre-charged Quick Connect line sets filled with R-454B refrigerant, a next-generation, low-GWP refrigerant that meets 2025 EPA standards. No need to hire an HVAC technician—just follow the included instructions or our step-by-step install video.
This MRCOOL DIY Multi-Zone 48,000 BTU 22 SEER2 2 Zone Ductless Heat Pump System – 24K + 36K is ready for all seasons: cool in the summer, heat in the winter, and dehumidify during humid months. Monitor and adjust comfort settings via the digital display or the MRCOOL Smart Controller app. Each indoor air handler also displays diagnostic codes to keep you informed. Use the included remotes or control the system from your smartphone. Compatible with Amazon Alexa and Google Home for voice control.
Each air handler delivers directional airflow to maintain a balanced, comfortable environment. For forced cooling or maintenance testing, use the manual control under the front panel.
In auto mode, the system self-adjusts to reach your desired temperature. Set it to drying mode for dehumidification while maintaining air comfort.
Use sleep mode to save money and energy at night by running a low-power cycle for 8 hours.
The MRCOOL DIY Multi-Zone 48,000 BTU 22 SEER2 Two-Zone Ductless Heat Pump Split Air Conditioner System – 24K + 36K gives you flexible comfort and control. Set timers to reduce energy use. If the refrigerant runs low, the system will alert you. You can also mute each indoor unit to silence beeps and turn off the LED display. In the event of a power outage, the system automatically restores your last settings when power returns.
Keep your MRCOOL DIY Multi-Zone 48,000 BTU 22 SEER2 Two-Zone Ductless Heat Pump Split System running smoothly with maintenance alerts and filter cleaning reminders. Troubleshooting codes appear on the display, and a quick wipe with a cloth keeps units looking clean.
Features:
-
Easy DIY® Installation
-
Pre-charged DIY® Quick Connect Line Set
-
Uses Eco-Friendly R-454B Refrigerant (EPA 2025 Compliant)
-
Multi-room Comfort
-
Energy Efficient DC Inverter
-
100% Sealed System
-
Gold Fin® Condenser
-
Smartphone App Controls
-
Lifetime Technical Support
-
Follow Me® Feature
-
Low Ambient Cooling
| BRAND NAME | MRCOOL |
| SERIES |
DIY 5th gen Multi-Zone Mini-splits
|
| MODEL |
DIY-MULTI6-48HP230D-O
|
| GTIN | 840255587471 |
| UPC | 840255587471 |
| SHORT DESCRIPTION |
MRCOOL® 48k DIY 5th Generation 6 Zone Multi-Zone Mini-Split Condenser 230v
|
| LONG DESCRIPTION |
We’re excited to introduce our new 5th Generation MRCOOL® DIY® 48k BTU Multi-Zone Ductless Mini-Split Condenser, because it’s better than its predecessor in nearly every way. You won’t need the services of an HVAC professional when you’re setting this unit up, because you can do it yourself, which saves lots of time and money! This condenser enables you to heat and cool up to 6 separate spaces equalling up to 2,000 sq. ft., meaning you’d be able to cover an entire home in the completely efficient comfort of a single DIY® system. You can install this system on your own because our innovative, patented pre-charged Quick Connect® line sets allow you to skip the lengthy and complicated process of evacuating and charging the system. These line sets are filled with R-454B refrigerant, a much more ecological and proficient upgrade from the previous refrigerant used in the last generation. This switch helps the system achieve impressive efficiency levels, like 21.8 SEER2 and an HSPF2-4 of 10. These line sets are sold separately. Once you install your system, you’ll be able to explore the variety of ways you can customize your comfort. For ultimate control, you can integrate system operations with the SmartHVAC app, available for Apple and Android phones, allowing you the ability to set schedules, manage modes of operation, monitor your systems all with the touch of a button. The app even enables you to set up integration with Amazon Alexa and Google Home, meaning you won’t have to move a finger to make your home more comfortable than ever. We pride ourselves on having one of the best warranties in the industry on this unit! Once you install your condenser, you’re entitled to a 5 year parts warranty, a 7 year compressor warranty, and, if you subscribe to the MRCOOL® Care Program, a Limited Lifetime Replacement warranty. The MRCOOL® DIY® is the right choice if you want fast, efficient comfort that won’t let you down!
|
| FEATURE LIST |
Intertek listed 5031495
Easy DIY installation Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit. Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort. The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box. |
| SEER2 | 21.8 |
| EER2 | 12 |
| HSPF2-4 | 10 |
| HSPF2-5 | 7.8 |
| TONNAGE | 4 |
| COOLING CAPACITY (BTU) | 43000 |
| HEATING CAPACITY (BTU) | 48000 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 45 |
| MIN CIRCUIT AMPACITY (A) | 40 |
| COLOR | White |
| ZONE CAPACITY | 6 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 148.15 |
| DECIBEL RATING (DBA) | 64 |
| INVERTER | DC |
| LINE SET LENGTH | 25 |
| MAX LINESET LENGTH (FT) | 221.4 |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE |
(3/8 X4) (1/2 X2)
|
| COMPRESSOR MOTOR TYPE | Rotary |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | No |
| FAN ONLY OPTION | Yes |
| QUIET MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| UL LISTED | Yes |
| ETL LISTED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY |
Extended Limited Lifetime*
|
| BASE PARTS WARRANTY | 5 |
| BASE COMPRESSOR WARRANTY | 7 |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 16.34 |
| NET HEIGHT (IN) | 52.48 |
| NET WIDTH (IN) | 37.48 |
| NET WEIGHT (LBS) | 223.77 |
| GROSS DEPTH (IN) | 19.49 |
| GROSS HEIGHT (IN) | 58.27 |
| GROSS WIDTH (IN) | 43.11 |
| GROSS WEIGHT (LBS) | 256.39 |
