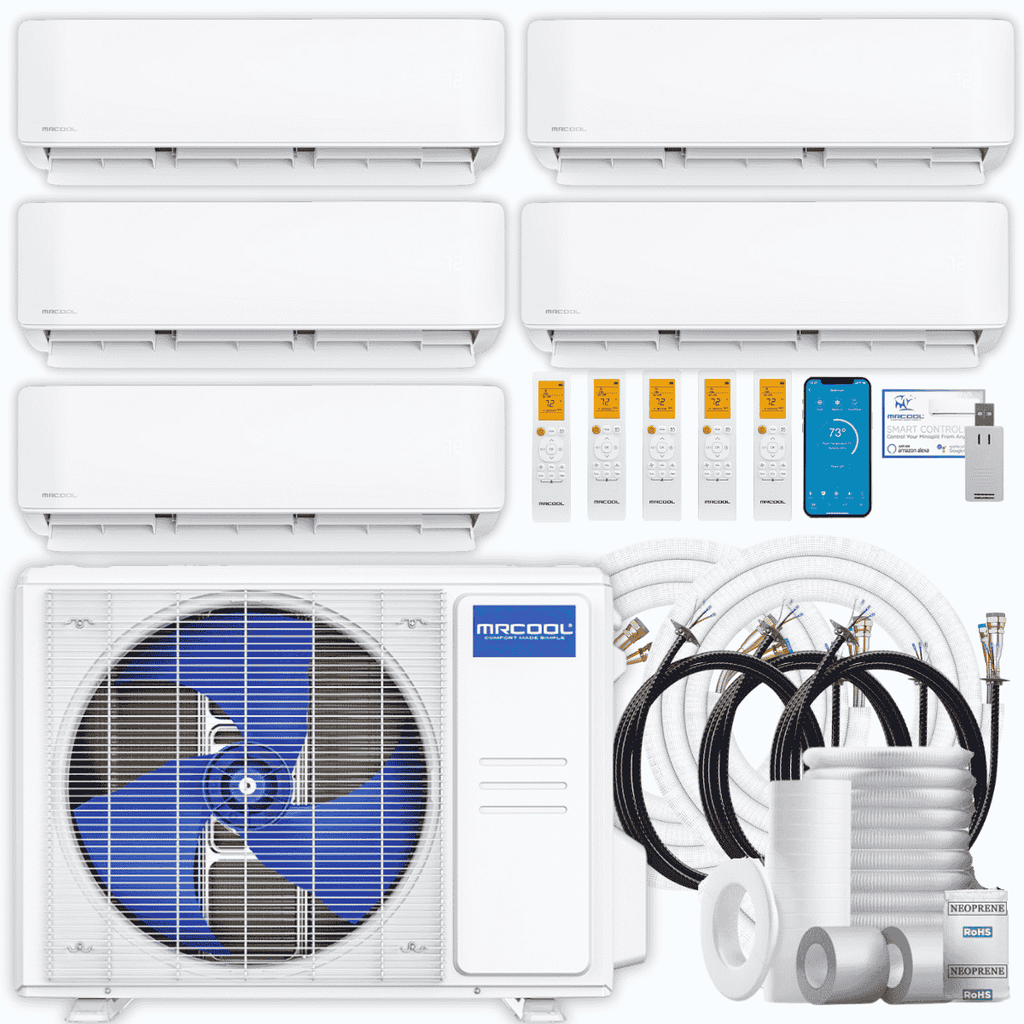

MRCOOL DIY Multi-Zone 5th Gen 36K BTU Five Zone Ductless Mini Split with Wall Mounted Air Handlers (6K + 6K + 6K + 6K + 6K)
The MRCOOL DIY 5th Gen Multi-Zone 36,000 BTU 23 SEER2 5 Zone Ductless Mini Split System is ideal for homeowners who want to efficiently cool and heat five separate rooms without the cost of professional installation. Its DIY-friendly design eliminates the need for special tools, training, or expensive labor. Powered by a 36K BTU condenser, this system is backed by a 7 Year Compressor Warranty (with optional lifetime coverage) and a 5 Year Parts Warranty.
MRCOOL DIY® Series Wall Mount Air Handler units are designed to make heating and cooling your home simple and efficient. These sleek indoor units are installed high on the wall, saving you space and delivering powerful performance. Each wall mount features a built-in temperature sensor in the remote control, ensuring the system adjusts based on the actual room temperature where you are. They’re quiet, compact, and come with a removable, washable air filter for easy maintenance. These units are easy to control via the SmartHVAC app, Alexa, or Google Assistant, and installation is made simple thanks to the MrCool® DIY® Quick Connect® line set.
Features:
-
Easy DIY® Installation
-
Pre-charged DIY® Quick Connect Line Set
-
Simple to Use
-
Multi-room Comfort
-
Energy Efficient DC Inverter
-
100% Sealed System
-
Gold Fin® Condenser
-
Eco Safe R-454B Refrigerant
-
Smartphone App Controls
-
Lifetime Technical Support
-
Low Ambient Cooling
Brochure & Guides:
Specifications:
| BRAND NAME | MRCOOL |
| SERIES |
DIY 5th gen Multi-Zone Mini-splits
|
| MODEL |
DIY-MULTI5-36HP230D-O
|
| GTIN | 840255587464 |
| UPC | 840255587464 |
| SHORT DESCRIPTION |
MRCOOL® 36k DIY 5th Generation 5 Zone Multi-Zone Mini-Split Condenser 230v
|
| LONG DESCRIPTION |
The brand new 5th Generation MRCOOL® DIY® 36k BTU Multi-Zone Ductless Mini-Split Condenser is the right choice if you need immediate, effective comfort that won’t break the bank! This system, which can be installed without the assistance of an HVAC professional, is one of the most efficient and innovative HVAC options on the market. With this condenser, you’ll be able to heat and cool up to 5 different spaces equaling around 1,500 square feet, meaning you can potentially heat and cool an entire home with just one mini-split system! Our DIY® Mini-Splits are able to forgo the evacuation and charging process because our patented Quick Connect® line sets are pre-charged with R-454B refrigerant, a more efficient and eco-friendly refrigerant than R-410A, which we have previously used. These line sets are sold separately. This unit achieves a SEER2 of 23 and an HSPF2-4 of 9.9. These fittings make installation an incredibly safe and simple process, allowing you to save a lot of time and money. There are a variety of features to explore once the system is up and running. One of them is the ability to integrate your system with the SmartHVAC app, allowing you to control your comfort with the touch of a button. You can even go a step further and link your Amazon Alexa or Google home for touchless operation. With the app, you can set each zone’s temperature, set schedules for each unit, monitor your system’s energy usage, and more. There are even more features to explore that will help you customize your comfort to be exactly what you want. We’ve got your back in the unlikely event that your system malfunctions. Your system will come with a 5 year parts warranty and a 7 year compressor warranty, and if you enroll in the MRCOOL® Care Program, you’ll be able to enjoy the Limited Lifetime Replacement warranty! For the best comfort you’ve ever felt and a sense of accomplishment as icing on the cake, choose the MRCOOL® DIY®!
|
| FEATURE LIST |
Intertek listed 5031495
Easy DIY installation Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit. Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort. The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box. |
| SEER2 | 23 |
| EER2 | 12 |
| HSPF2-4 | 9.9 |
| HSPF2-5 | 7.5 |
| TONNAGE | 3 |
| COOLING CAPACITY (BTU) | 34000 |
| HEATING CAPACITY (BTU) | 36000 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 35 |
| MIN CIRCUIT AMPACITY (A) | 30.5 |
| COLOR | White |
| ZONE CAPACITY | 5 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 104.75 |
| DECIBEL RATING (DBA) | 64 |
| INVERTER | DC |
| LINE SET LENGTH | 25 |
| MAX LINESET LENGTH (FT) | 221.4 |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE |
(3/8 X4) (1/2 X1)
|
| COMPRESSOR MOTOR TYPE | Rotary |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | No |
| FAN ONLY OPTION | Yes |
| QUIET MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| UL LISTED | Yes |
| ETL LISTED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY |
Extended Limited Lifetime*
|
| BASE PARTS WARRANTY | 5 |
| BASE COMPRESSOR WARRANTY | 7 |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 16.14 |
| NET HEIGHT (IN) | 31.89 |
| NET WIDTH (IN) | 37.24 |
| NET WEIGHT (LBS) | 169.24 |
| GROSS DEPTH (IN) | 19.69 |
| GROSS HEIGHT (IN) | 34.84 |
| GROSS WIDTH (IN) | 42.91 |
| GROSS WEIGHT (LBS) | 181.88 |
