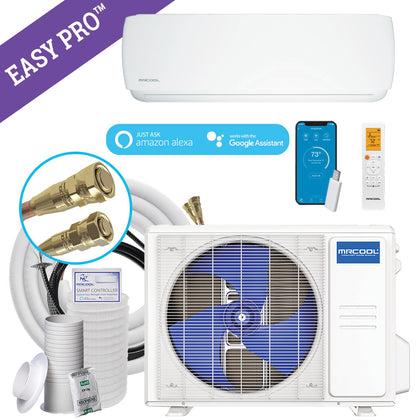

MRCOOL DIY 5th Gen Easy Pro 12K 12,000 BTU 19.5 SEER2 Ductless Mini Split Air Conditioner and Heat Pump - 115V

Save 31%
MRCOOLSKU: EZPRO-12-HP-11516D-O
2 reviews

Price:
Sale price$2,324.18 Regular price$3,389.73

MRCOOL DIY Easy Pro 5th Gen 12K 12,000 BTU 20 SEER Ductless Mini Split Air Conditioner and Heat Pump - 115V

The newly released 5th Generation of the MRCOOL Easy Pro® DIY 12K BTU Ductless Mini-Split Heat Pump System is easy to install and is capable of effectively heating and cooling a space of 550 square feet, this easy-to-install unit also includes the convenient 16 foot pre-charged line set, with Fast Connection® fittings.

The features are numerous with this system such as the Follow Me® feature can make sure that the temperature you want is designated to wherever you are in the space, as well as the anti-mildew feature that provides the cleanest air for you and your family to breathe. Maintaining the system is as easy as the installation, as the air filters only require rinsing and replacing, and the LED display provides useful troubleshooting codes for you to solve any issue that arises on your own.

This system can be operated with your Apple or Android device via the SmartHVAC app, the included remote control, or your Amazon Alexa or Google Assistant. Feel confident in your purchase with the 1-year compressor warranty and 2-year parts warranty. This is an easy-to-install system that can provide exceptional heating and cooling for your home or office.

MRCOOL DIY 5th Gen Easy Pro 12K 115V Brochure

MRCOOL DIY 5th Gen Easy Pro 12K 115V Install Manual



Condenser Specifications:

BRAND NAME MRCOOL
SERIES EasyPro 5th Gen
MODEL EZPRO-12-HP-C-11516D-O
GTIN 840255586733
UPC 840255586733
UNIT TYPE Mini-Split
EQUIPMENT TYPE Condenser
SHORT DESCRIPTION EasyPro 5th Generation 12k BTU 115V Condenser
SEER2 19.5
EER2 9
HSPF2-4 9.3
HSPF2-5 7
TONNAGE 1
COOLING CAPACITY (BTU) 12000
HEATING CAPACITY (BTU) 12000
VOLTAGE (V) 115
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 20
MIN CIRCUIT AMPACITY (A) 19.5
COLOR White
ZONE CAPACITY 1
REFRIGERANT TYPE R-454B
REFRIGERANT VOLUME (OZ) 21.52
DECIBEL RATING HIGH (DBA) 54
INVERTER DC
MIN AMBIENT COOL (F) 5
LINESET INCLUDED Yes
LINE SET LENGTH 16ft
MAX LINESET LENGTH (FT) 82
LIQUID LINE SIZE 1/4
SUCTION LINE SIZE 3/8
COMPRESSOR MOTOR TYPE Rotary
WORKS WITH IOS Yes
WORKS WITH ANDROID Yes
UL LISTED Yes
CSA LISTED Yes
ETL LISTED Yes
AHRI CERTIFIED Yes
REGISTERED WARRANTY Extended Limited Lifetime*
BASE PARTS WARRANTY 1 Year
BASE COMPRESSOR WARRANTY 2 Years
CONTAINS CHEMICALS Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
NET DEPTH (IN) 10.63
NET HEIGHT (IN) 19.49
NET WIDTH (IN) 28.35
NET WEIGHT (LBS) 54.89
GROSS DEPTH (IN) 10.63
GROSS HEIGHT (IN) 21.26
GROSS WIDTH (IN) 32.87
GROSS WEIGHT (LBS) 67.24



Air Handler Specifications:

BRAND NAME MRCOOL
SERIES EasyPro 5th Gen
MODEL EZPRO-12-HP-WMAH-115D-O
GTIN 840255586771
UPC 840255586771
UNIT TYPE Mini-Split
EQUIPMENT TYPE Air Handler
SHORT DESCRIPTION EasyPro 5th Generation 12k BTU 115V Air Handler
CFM 353.2 / 294.3 / 235.4 / 176.6 / 129.5
TONNAGE 1
COOLING CAPACITY (BTU) 12000
HEATING CAPACITY (BTU) 12000
VOLTAGE (V) 115
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 15
MIN CIRCUIT AMPACITY (A) 3
MOUNT TYPE Wall
COLOR White
MAX COVERAGE AREA 550 sqft
DECIBEL RATING (DBA) 35
DECIBEL RATING LOW (DBA) 17.5
DECIBEL RATING HIGH (DBA) 44.5
NUMBER OF SPEEDS 5
LIQUID LINE SIZE 1/4
SUCTION LINE SIZE 3/8
BLOWER MOTOR SPEEDS 3
BLOWER MOTOR RPM 850/750/450
FILTER TYPE Reusable
FAN ONLY OPTION Yes
SLEEP MODE Yes
AUTO COOL Yes
WIFI COMPATIBILITY Yes
APP COMPATIBILITY Yes
WORKS WITH IOS Yes
WORKS WITH ANDROID Yes
REMOTE CONTROL INCLUDED Yes
UL LISTED Yes
CSA LISTED Yes
ETL LISTED Yes
AHRI CERTIFIED Yes
REGISTERED WARRANTY Extended Limited Lifetime*
BASE PARTS WARRANTY 1 Year
BASE COMPRESSOR WARRANTY 2 Years
HAS BATTERIES Yes
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
NET DEPTH (IN) 7.87
NET HEIGHT (IN) 11.61
NET WIDTH (IN) 31.57
NET WEIGHT (LBS) 24.91
GROSS DEPTH (IN) 17.95
GROSS HEIGHT (IN) 14.17
GROSS WIDTH (IN) 36.02
GROSS WEIGHT (LBS) 35.71
