Product overview
MRCOOL DIY Hybrid Central Split System 2-Zone 36,000 BTU 23 SEER2 (24K Ducted + 6K Wall Mount Air Handler)
This MRCOOL DIY Hybrid Central Split System is built for projects where one solution needs to do two jobs: deliver concealed, ducted comfort to a larger central area while adding independent ductless control to a separate room or zone. It pairs a 36K MRCOOL DIY multi-zone condenser with a 24K Hybridâ„¢ Split System Ducted DIY Air Handler and a 6K wall mounted air handler.
The result is a flexible hybrid mini split system that can replace or supplement traditional central HVAC without giving up room-by-room comfort. Use the ducted air handler for a main living area, suite, or grouped room layout, then use the wall mounted air handler for a bedroom, office, addition, bonus room, or any space that benefits from its own temperature control.
Why this system works
- Hybrid comfort: combines central-style ducted air distribution with a dedicated ductless wall unit.
- DIY-friendly installation: compatible with MRCOOL DIY Quick Connect line sets to simplify installation and reduce labor complexity.
- Two-zone control: condition the ducted area and wall-mounted zone independently for better comfort and efficiency.
- Cleaner finished look: the ducted air handler can serve larger areas through ductwork while the wall unit handles the separate zone directly.
- Heat pump performance: provides both cooling and heating from one inverter-driven system.
- Smart control ready: compatible with MRCOOL smart controls for convenient app-based operation.

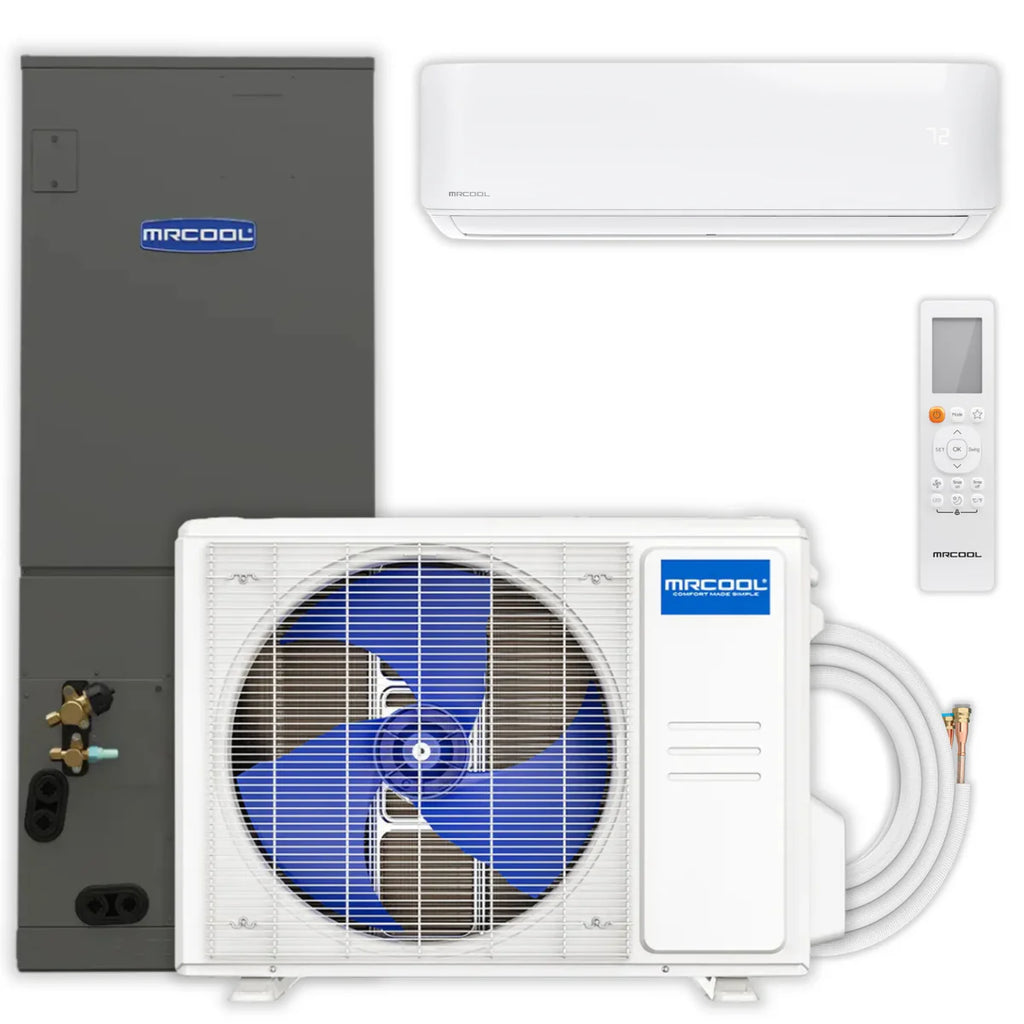

Included equipment

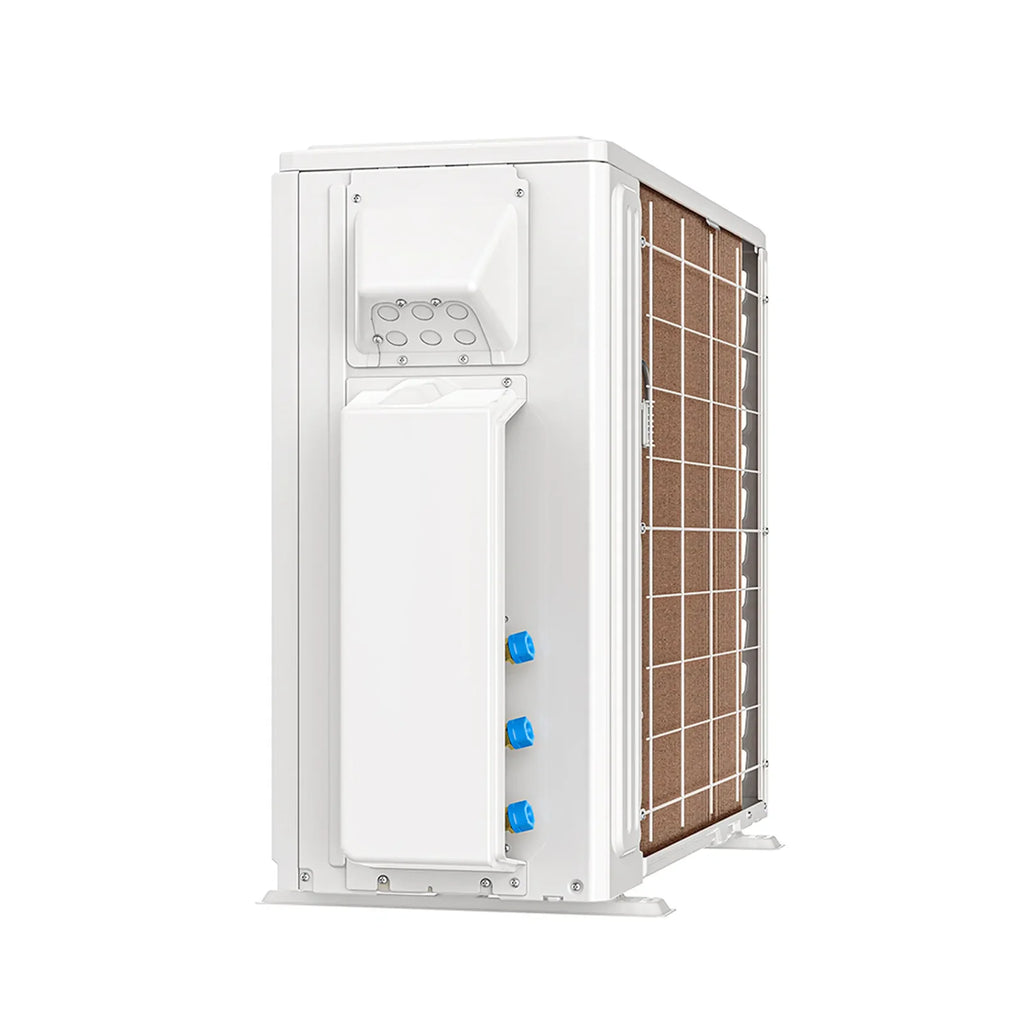

| Outdoor condenser | 36K MRCOOL DIY Multi-Zone Condenser | DIY-MULTI5-36HP230D-O |

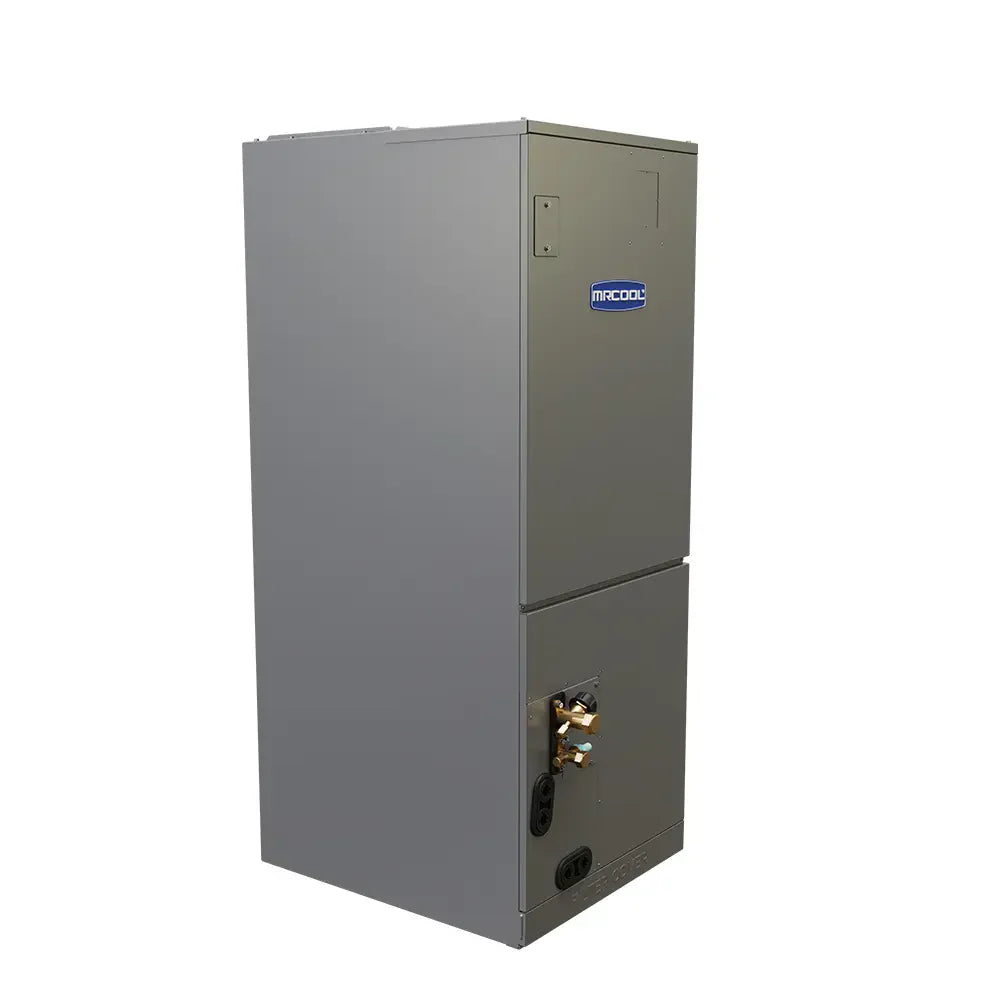

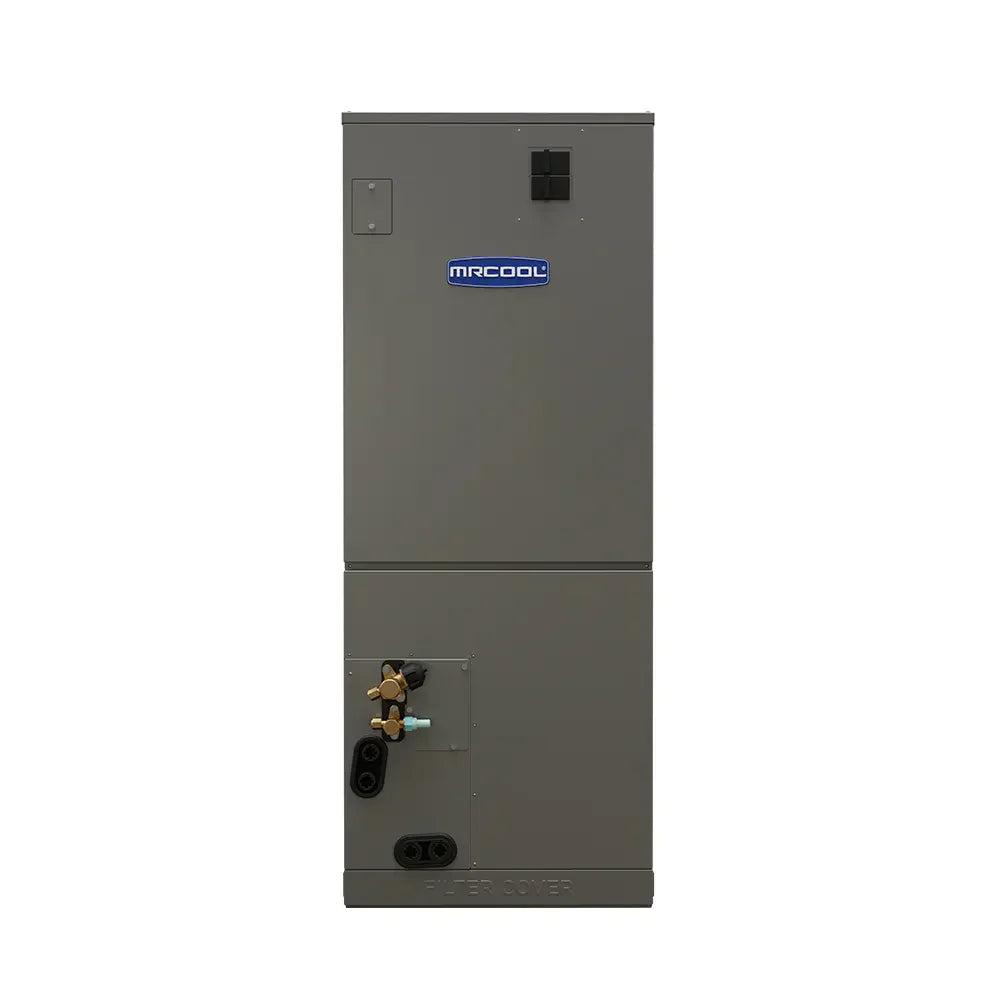

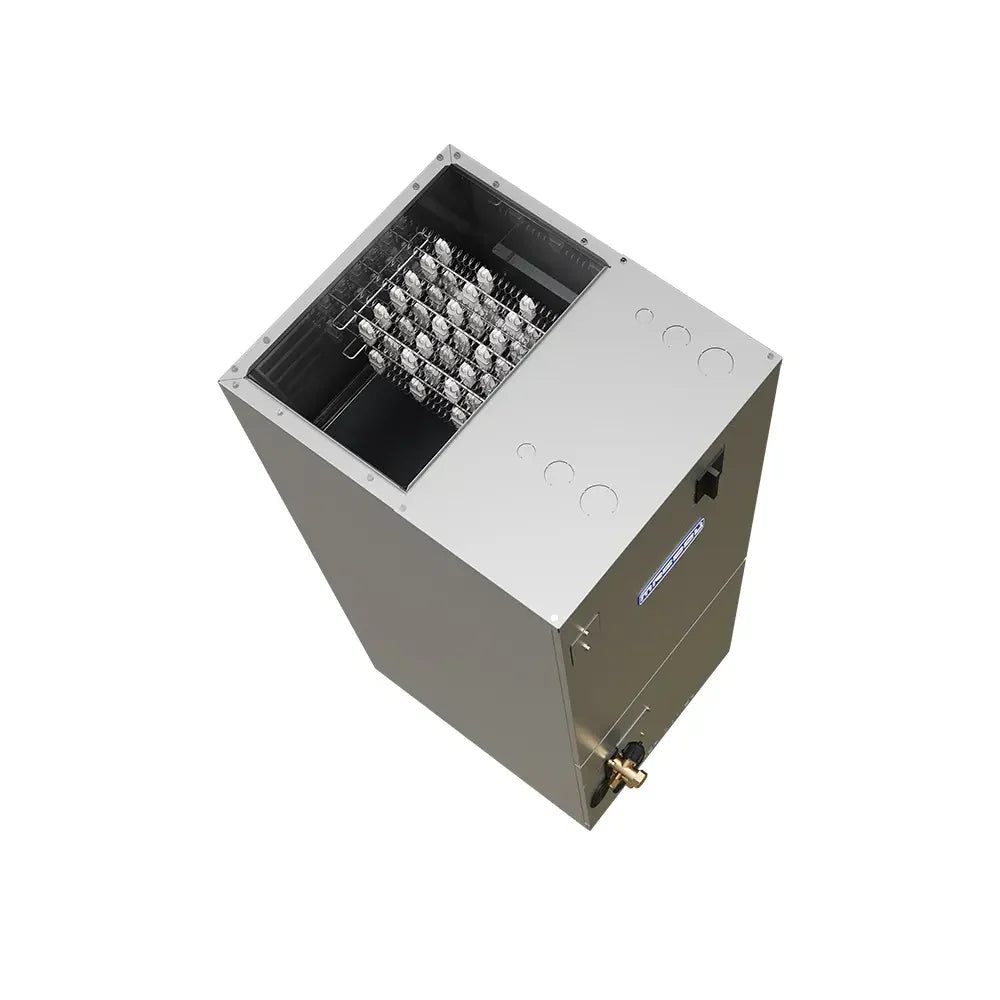

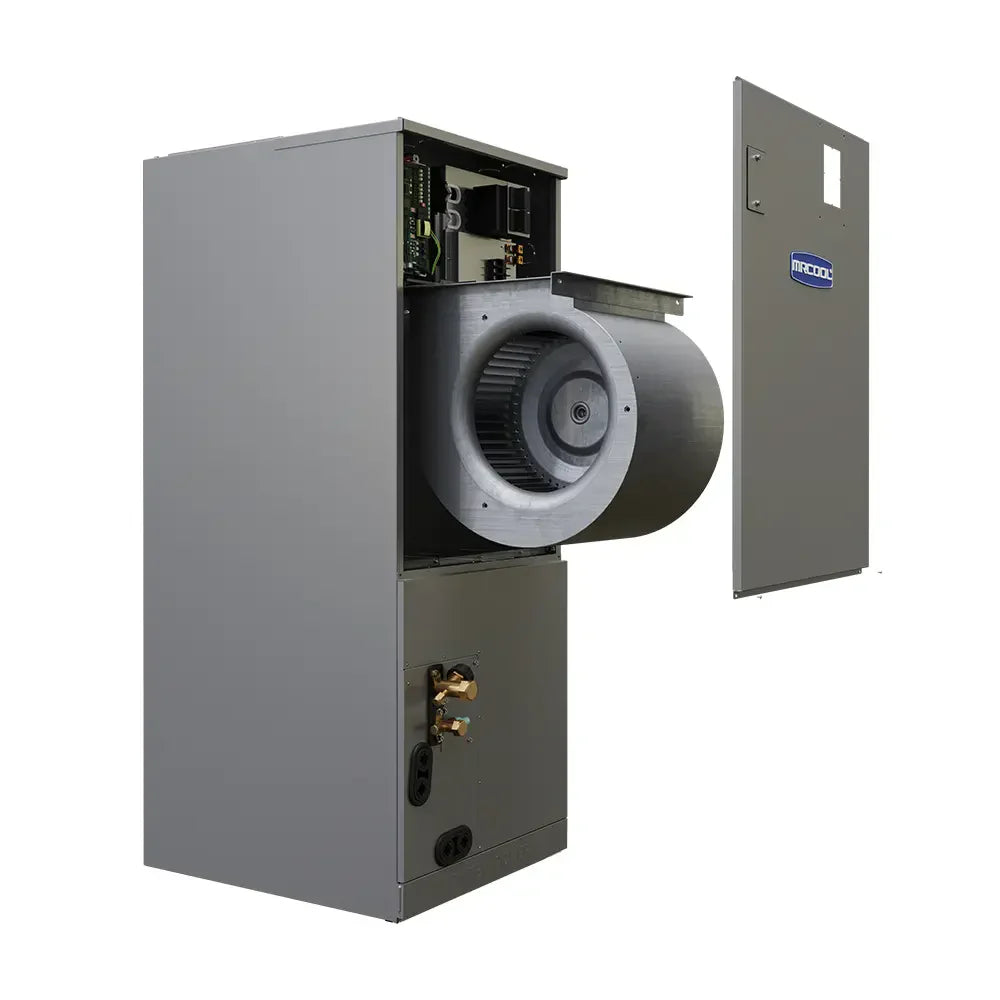

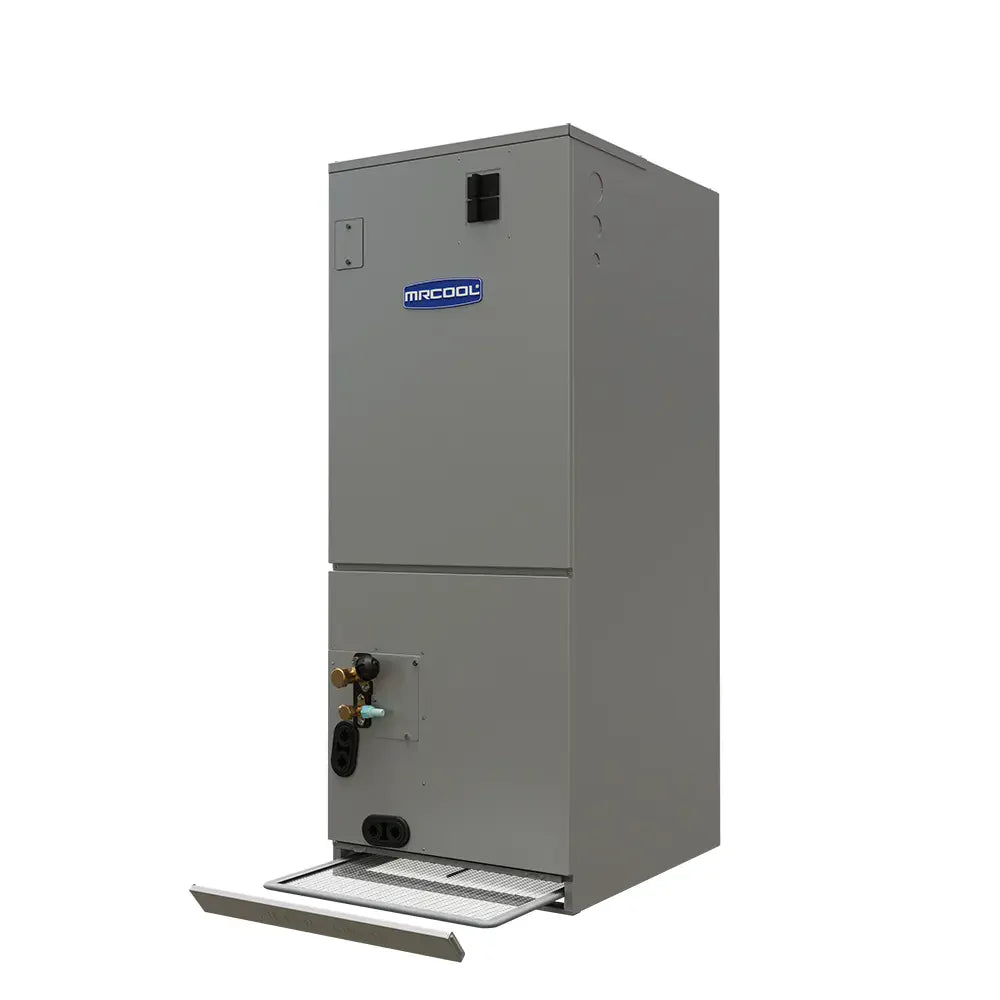

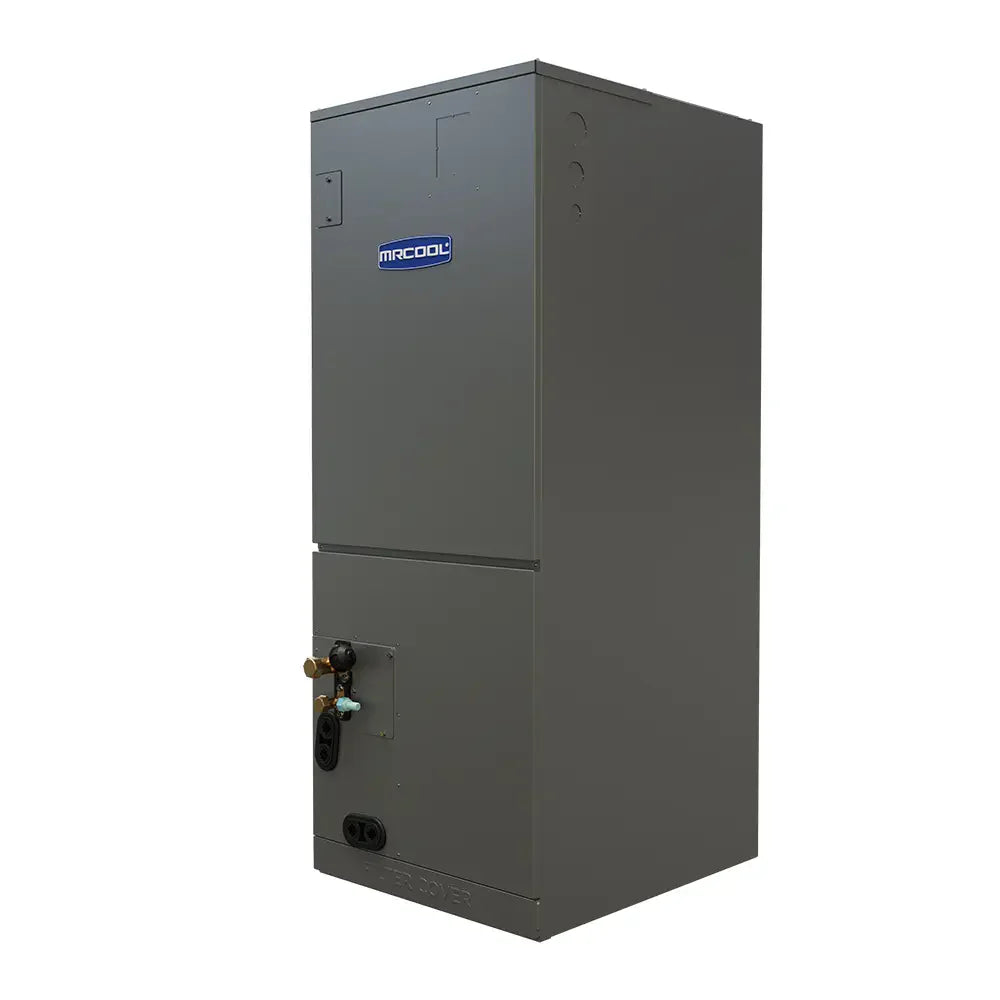

| Ducted indoor unit | 24K MRCOOL Hybridâ„¢ Split System Ducted DIY Air Handler (up to 1,000 sq. ft.) | DIY-24-HP-MUAH-230D25-O |
| Wall mounted indoor unit | 6K MRCOOL DIY Wall Mounted Air Handler (up to 150 sq. ft.) | DIY-06-HP-WMAH-230D25-O |
Best fit
This system is a strong fit when you want ducted comfort for a larger shared area and a separate wall mounted zone for a room that needs its own control. The connected indoor capacity is 30K BTU, paired with a 36K multi-zone condenser for balanced multi-zone operation.
SKU
DIY-MULTI5-36HP230D-O / DIY-24-HP-MUAH-230D25-O / DIY-06-HP-WMAH-230D25-O
Line sets and installation accessories may vary by selected option. Always confirm final equipment sizing and installation requirements for the project before purchase.
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
