MRCOOL DIY Hybrid Central Split System 2-Zone 55k BTU Condenser with 24K Ducted Air Handler and 36K Wall Mounted Air Handler
This MRCOOL DIY Hybrid Central Split System is built for projects where one solution needs to do two jobs: deliver concealed, ducted comfort to a larger central area while adding independent ductless control to a separate room or zone. It pairs a 55K MRCOOL DIY multi-zone condenser with a 24K Hybrid™ Split System Ducted DIY Air Handler and a 36K wall mounted air handler.
The result is a flexible hybrid mini split system that can replace or supplement traditional central HVAC without giving up room-by-room comfort. Use the ducted air handler for a main living area, suite, or grouped room layout, then use the wall mounted air handler for a bedroom, office, addition, bonus room, or any space that benefits from its own temperature control.
Why this system works
- Hybrid comfort: combines central-style ducted air distribution with a dedicated ductless wall unit.
- DIY-friendly installation: compatible with MRCOOL DIY Quick Connect line sets to simplify installation and reduce labor complexity.
- Two-zone control: condition the ducted area and wall-mounted zone independently for better comfort and efficiency.
- Cleaner finished look: the ducted air handler can serve larger areas through ductwork while the wall unit handles the separate zone directly.
- Heat pump performance: provides both cooling and heating from one inverter-driven system.
- Smart control ready: compatible with MRCOOL smart controls for convenient app-based operation.
Included equipment

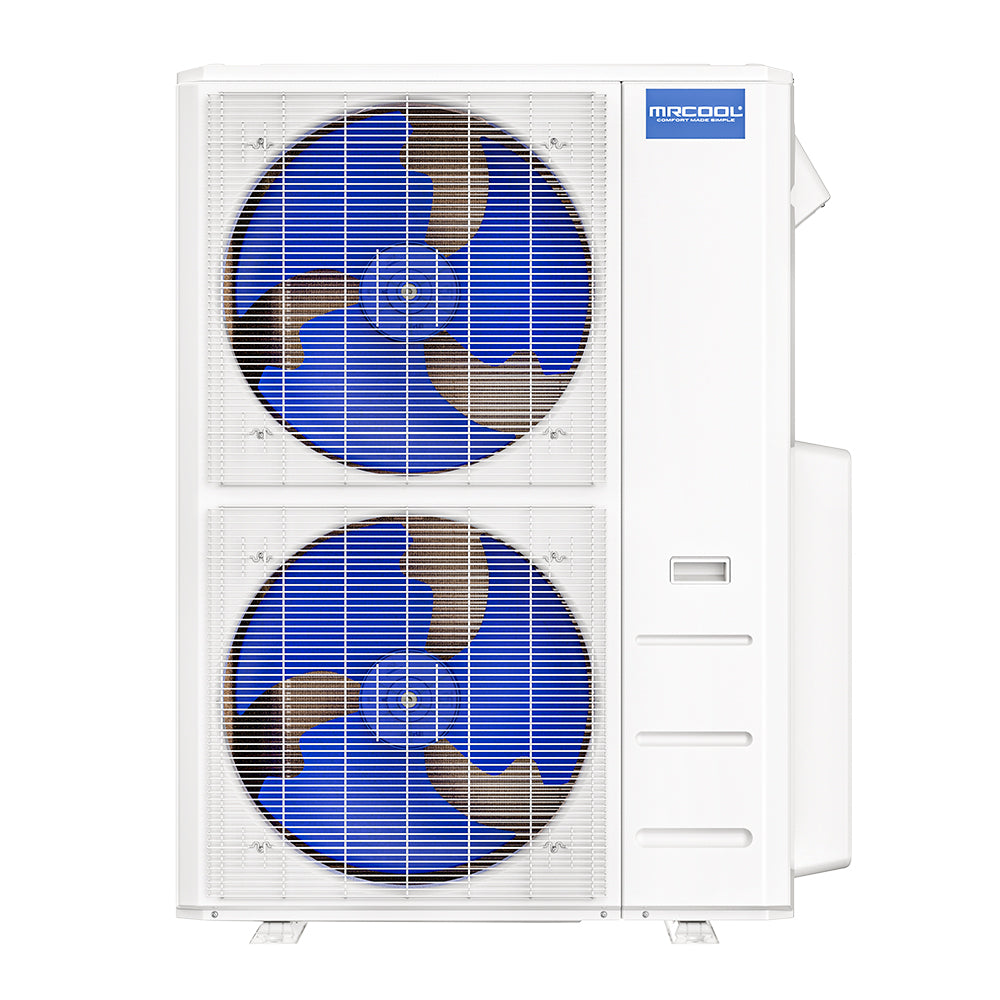

| Outdoor condenser | 55K MRCOOL DIY Multi-Zone Condenser | DIY-MULTI6-55HP230D-O |

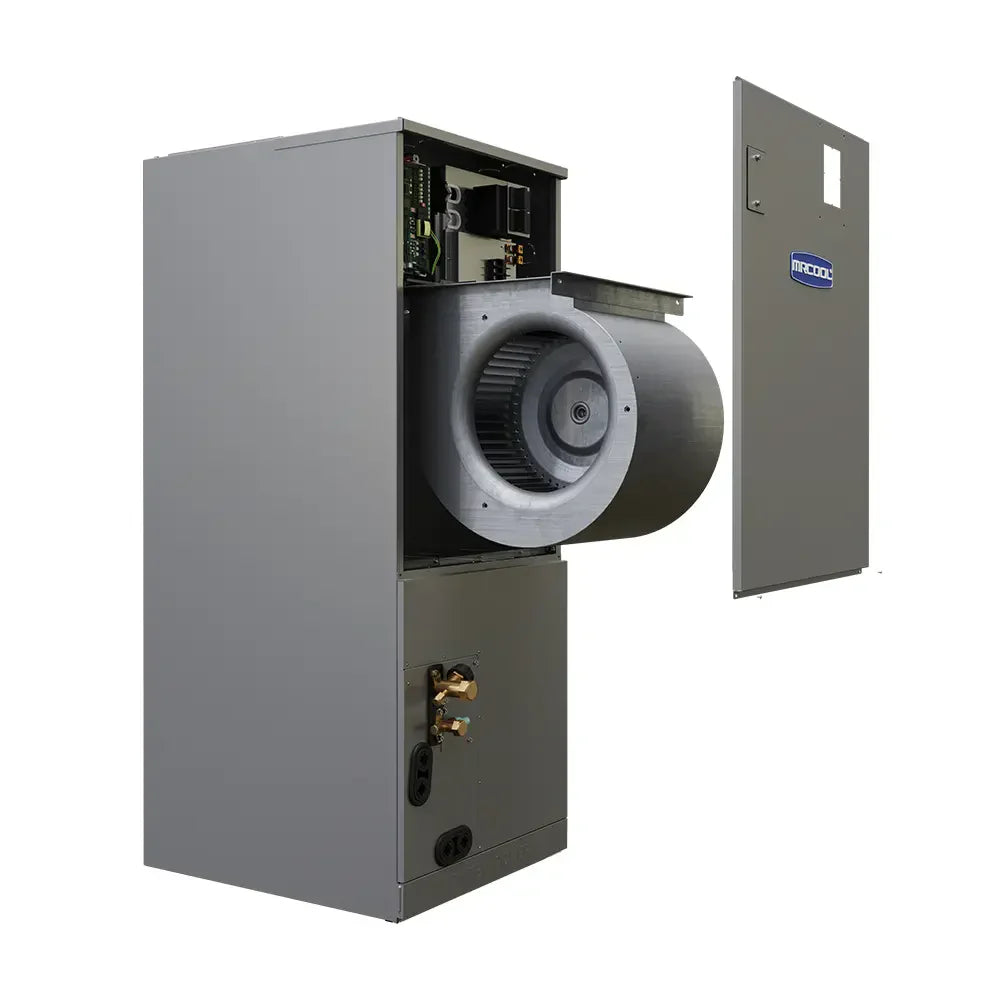

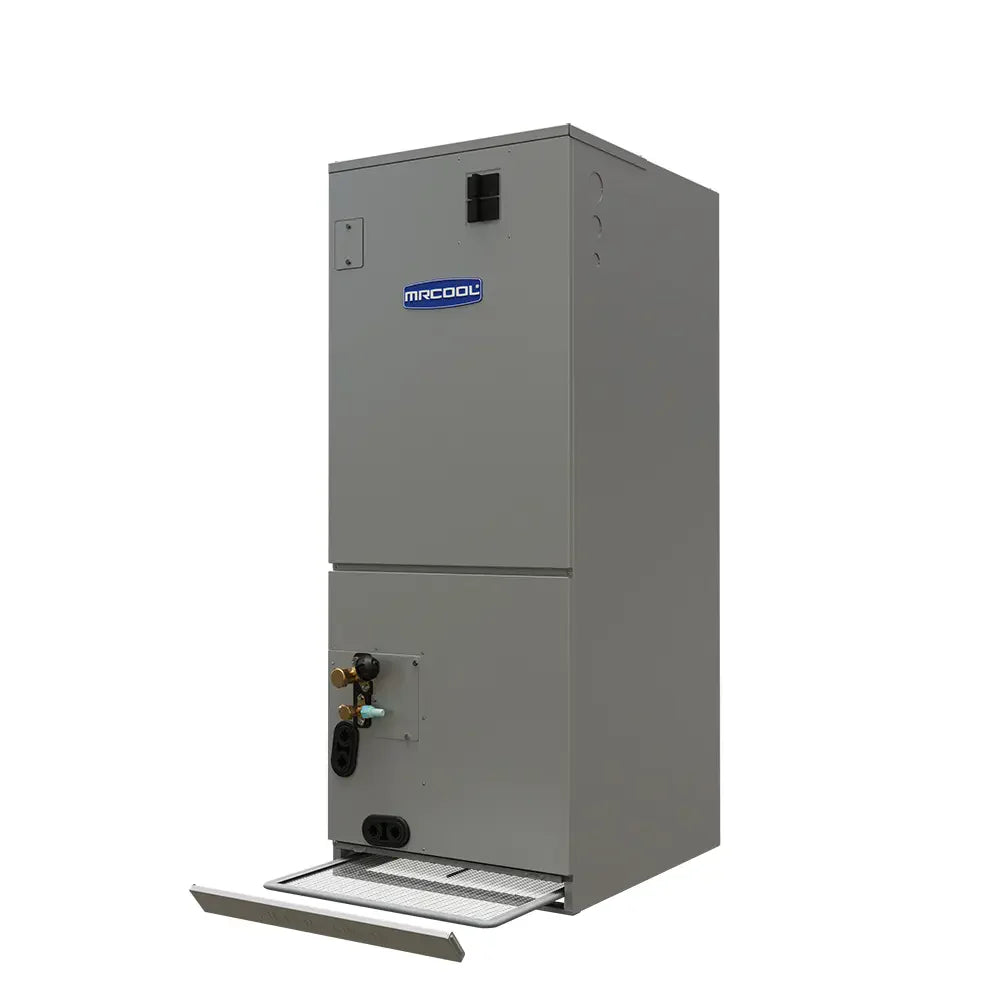

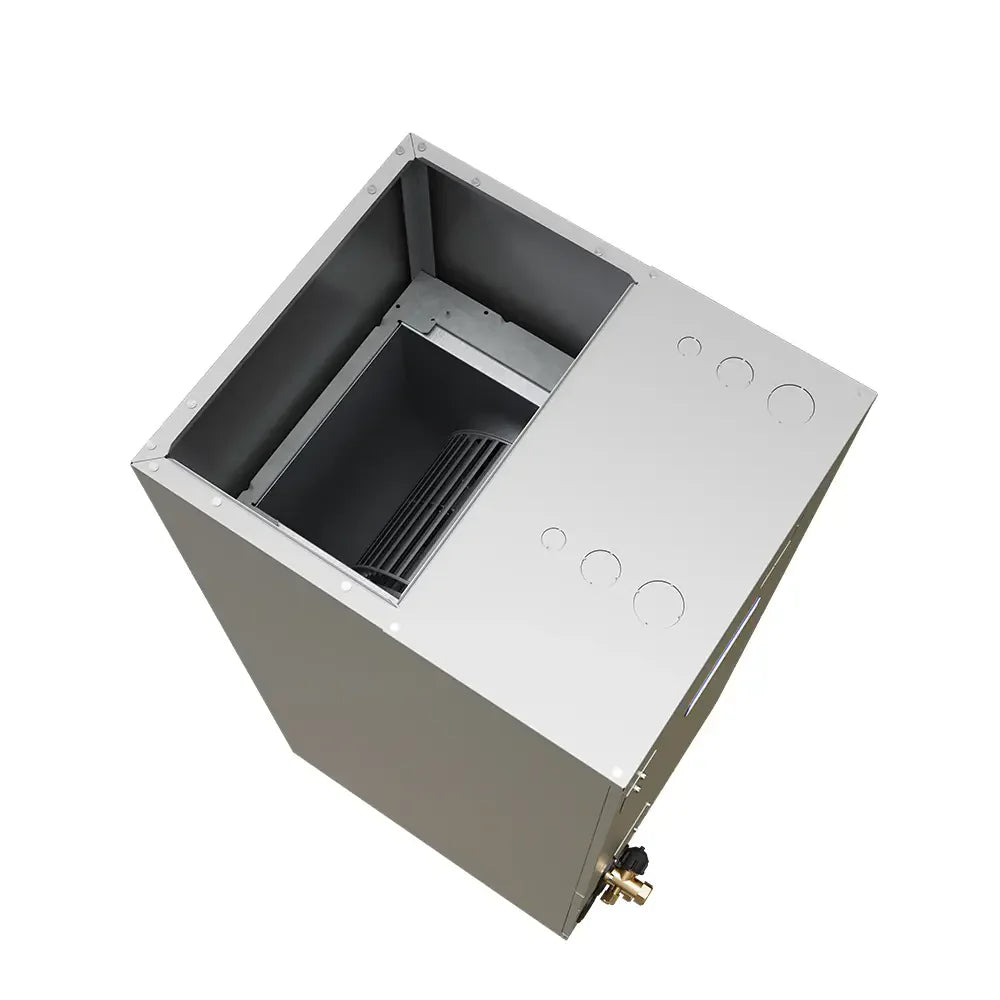

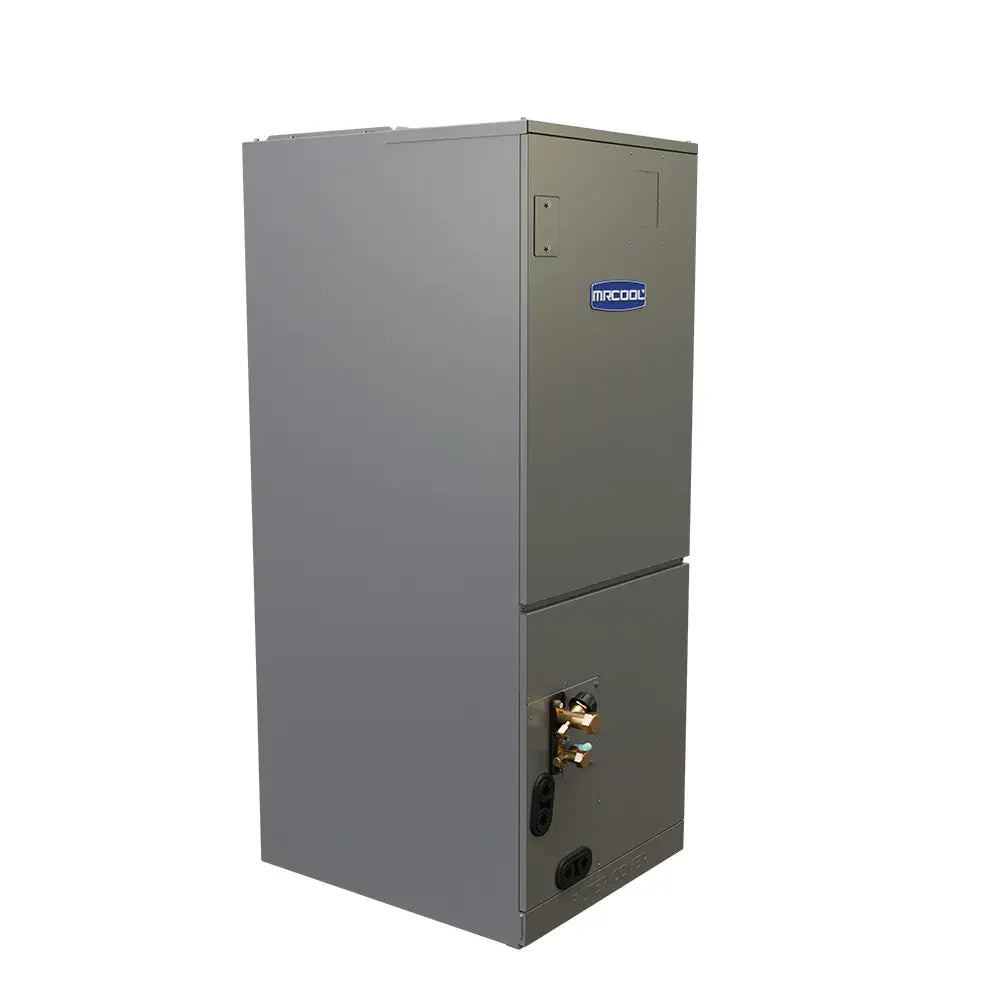

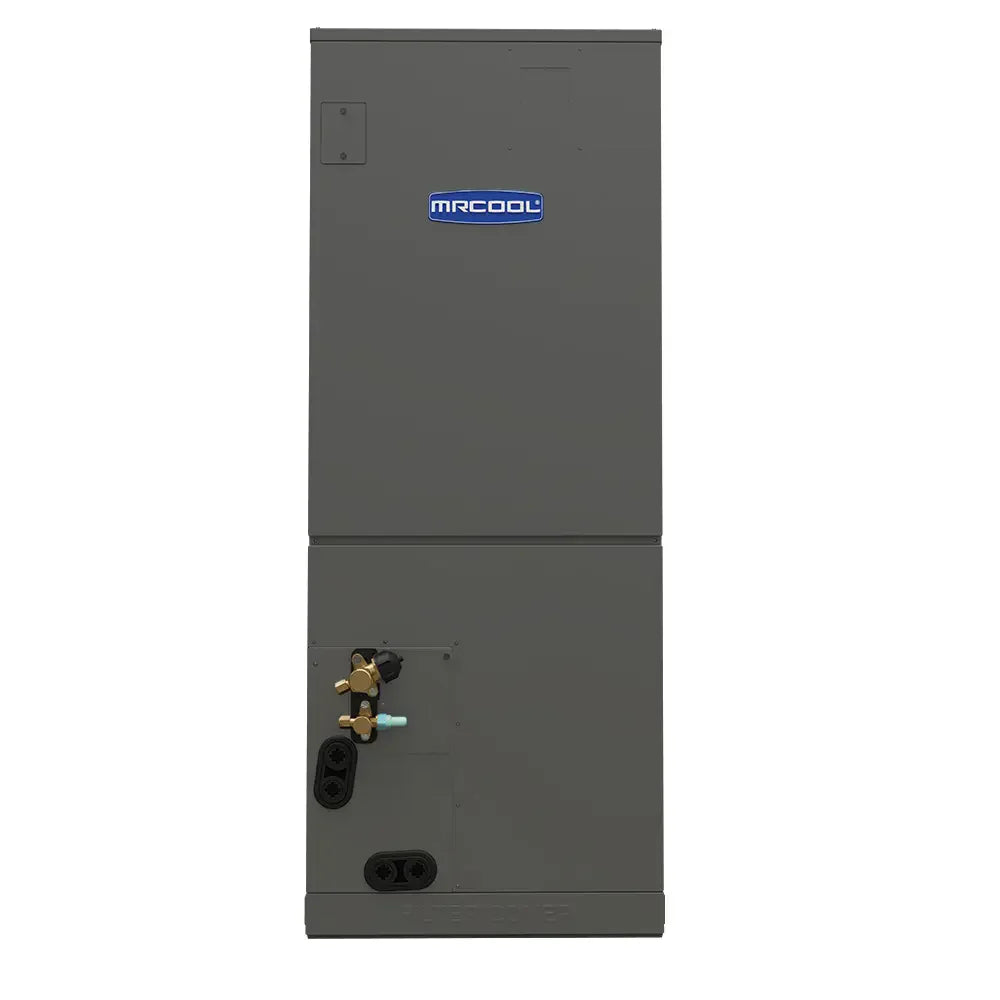

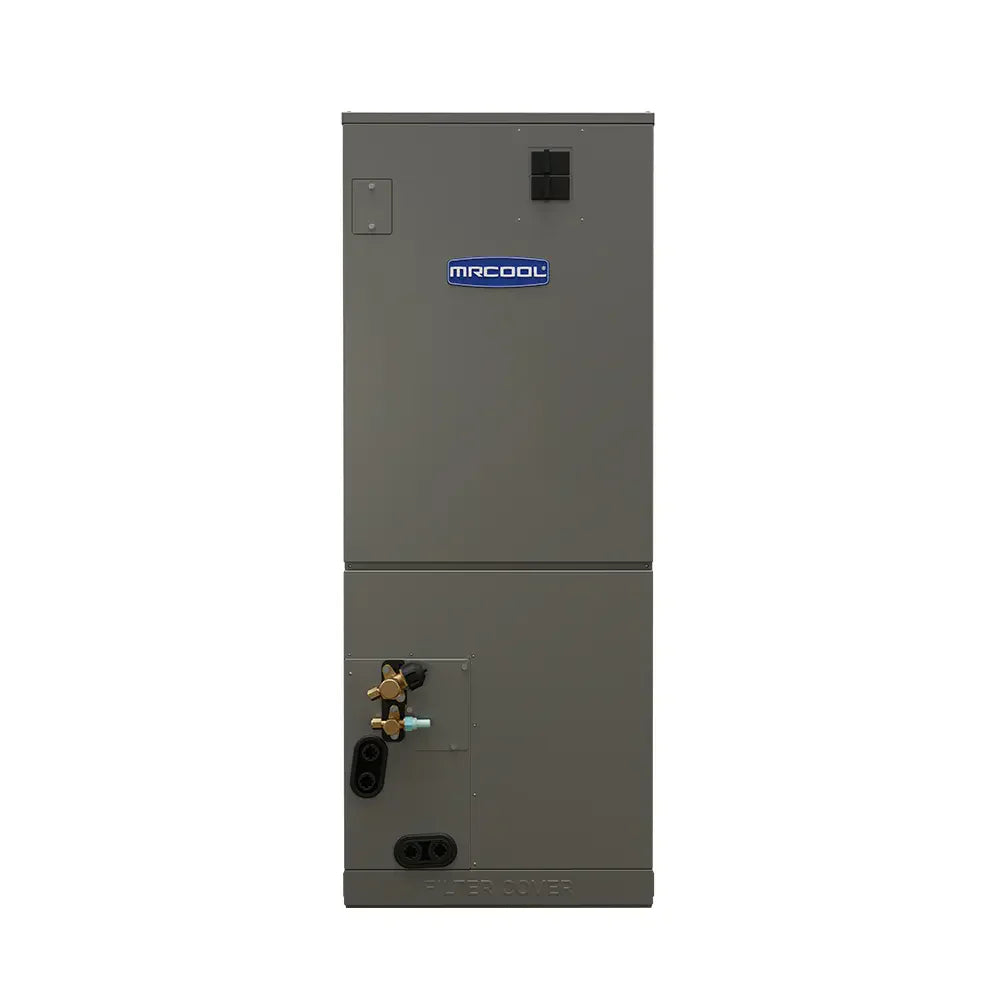

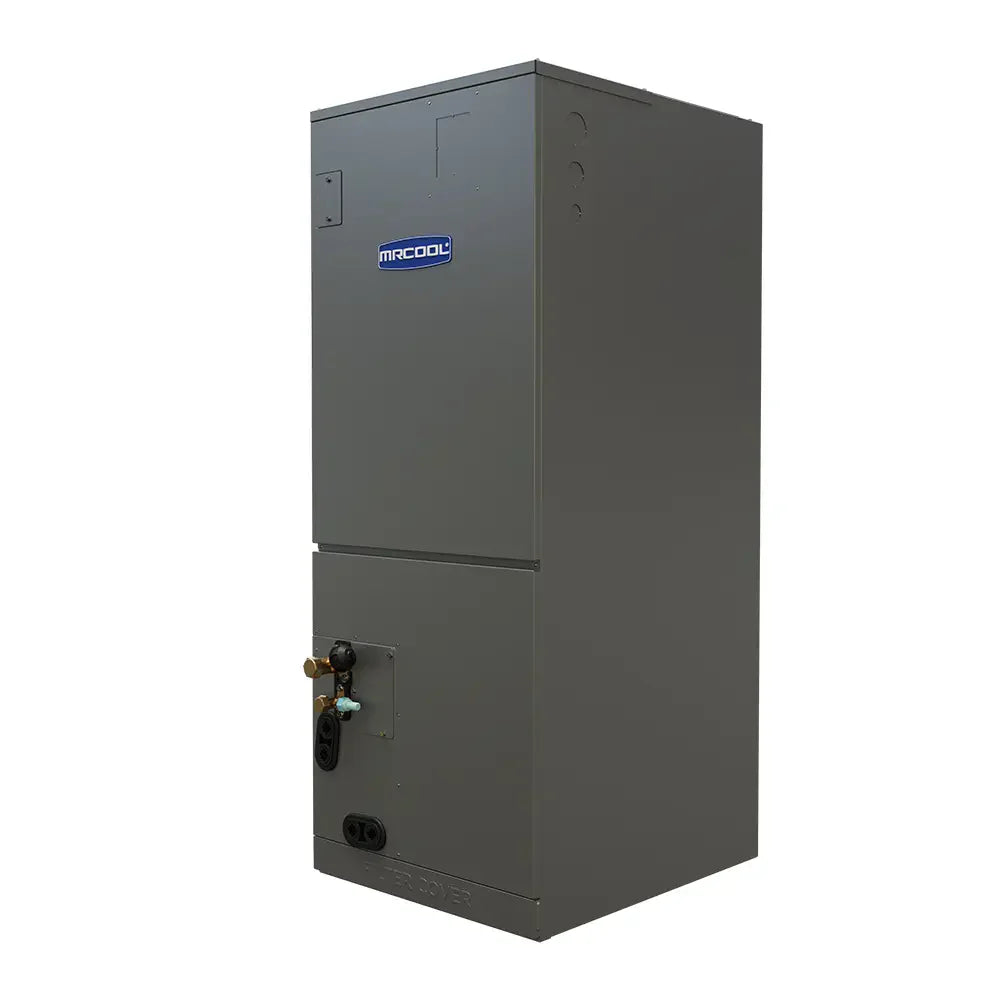

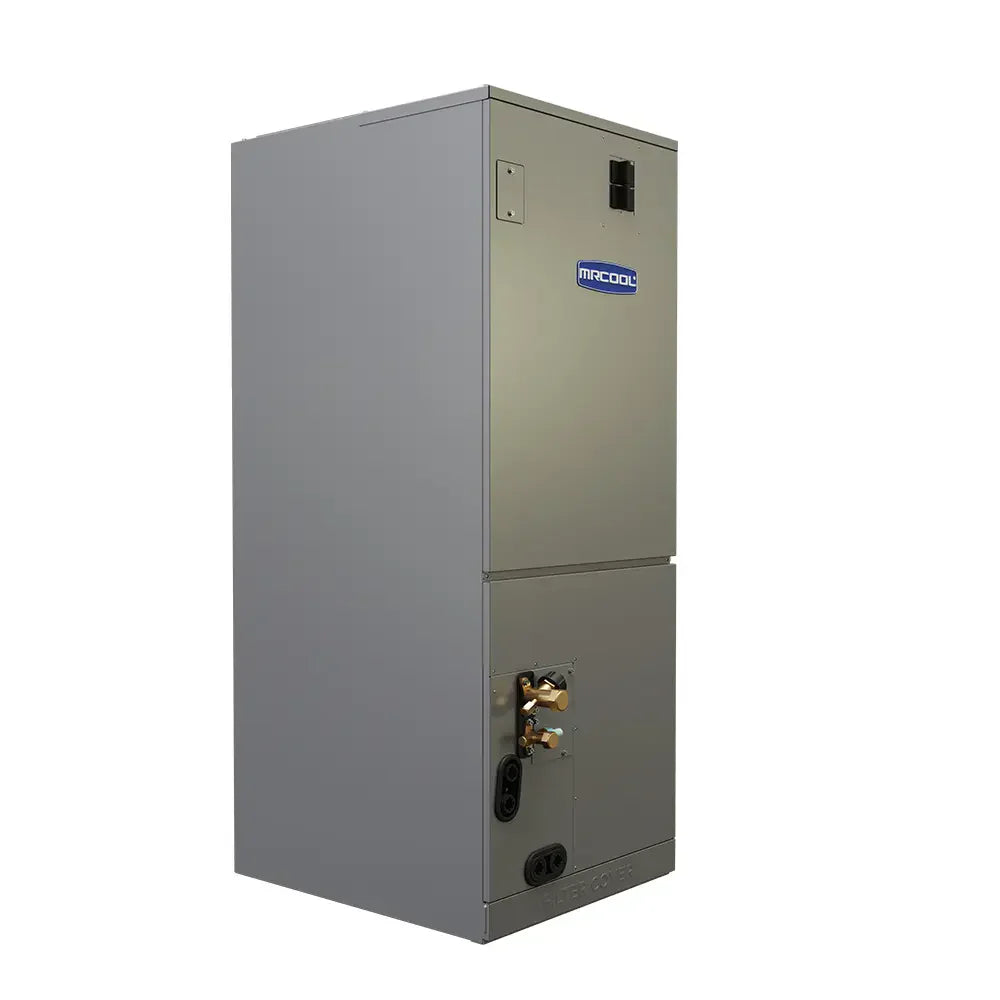

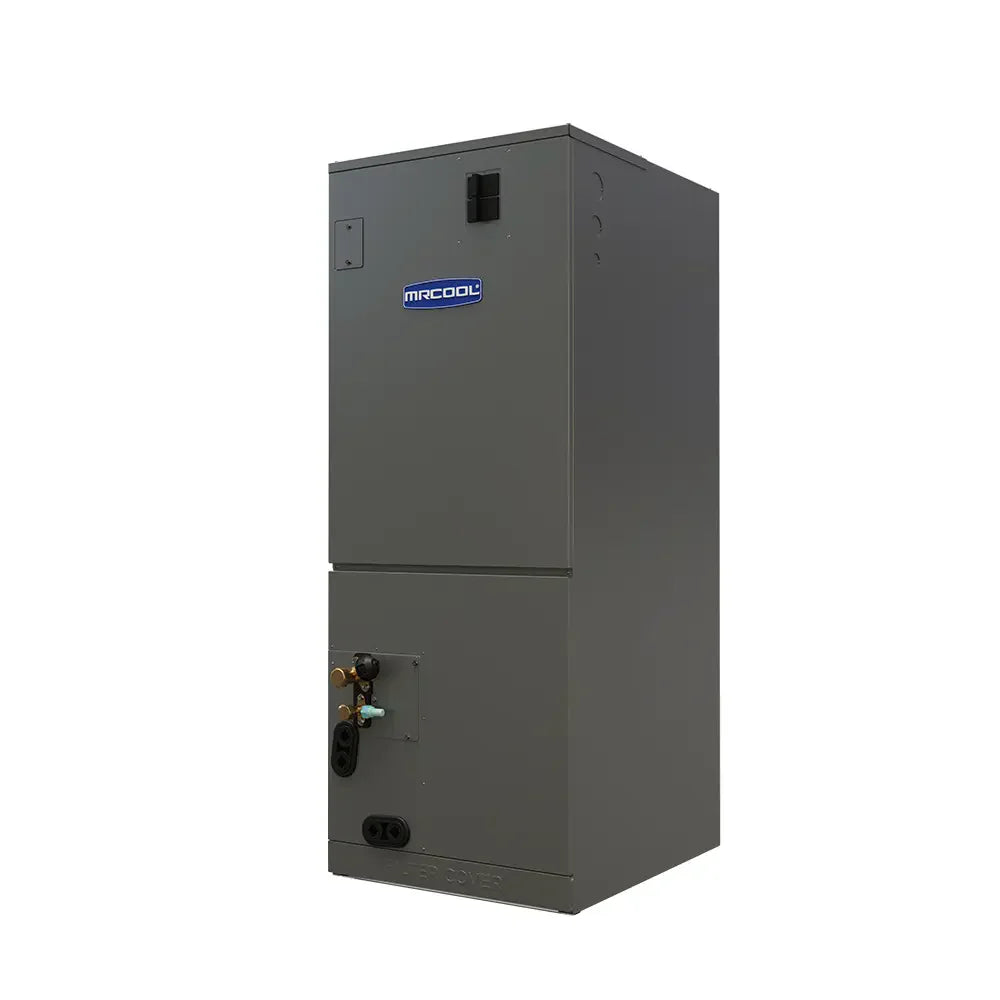

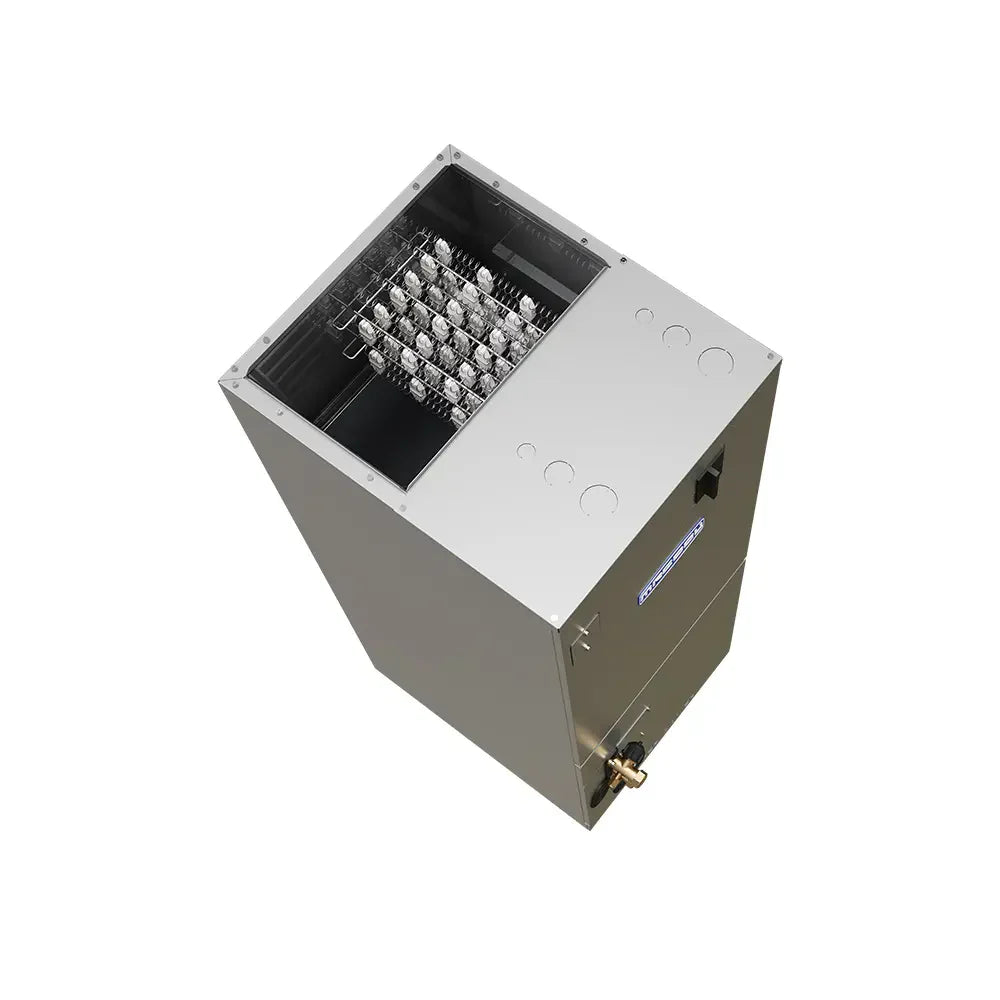

| Ducted indoor unit | 24K MRCOOL Hybrid™ Split System Ducted DIY Air Handler (up to 1,000 sq. ft.) | DIY-24-HP-MUAH-230D25-O |

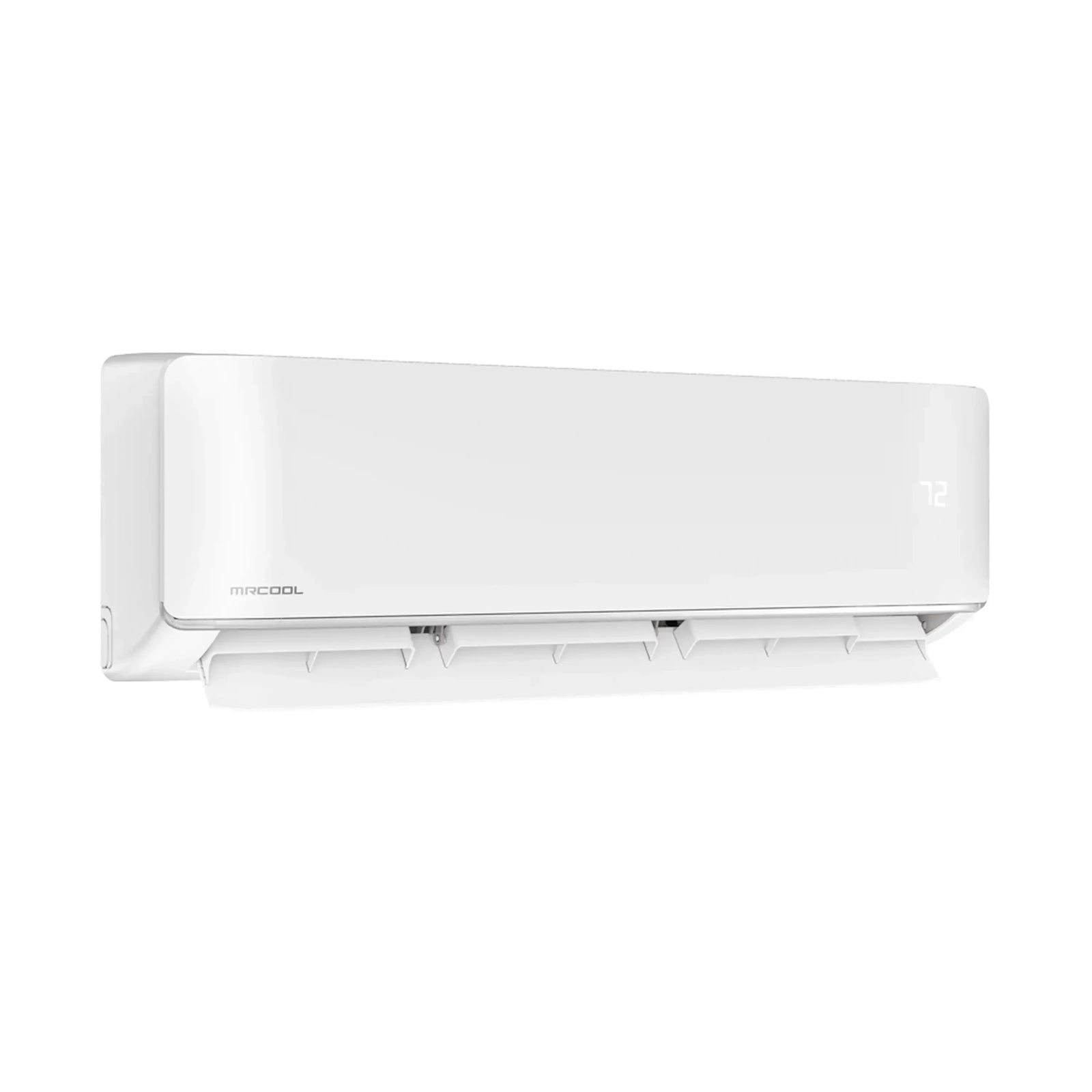

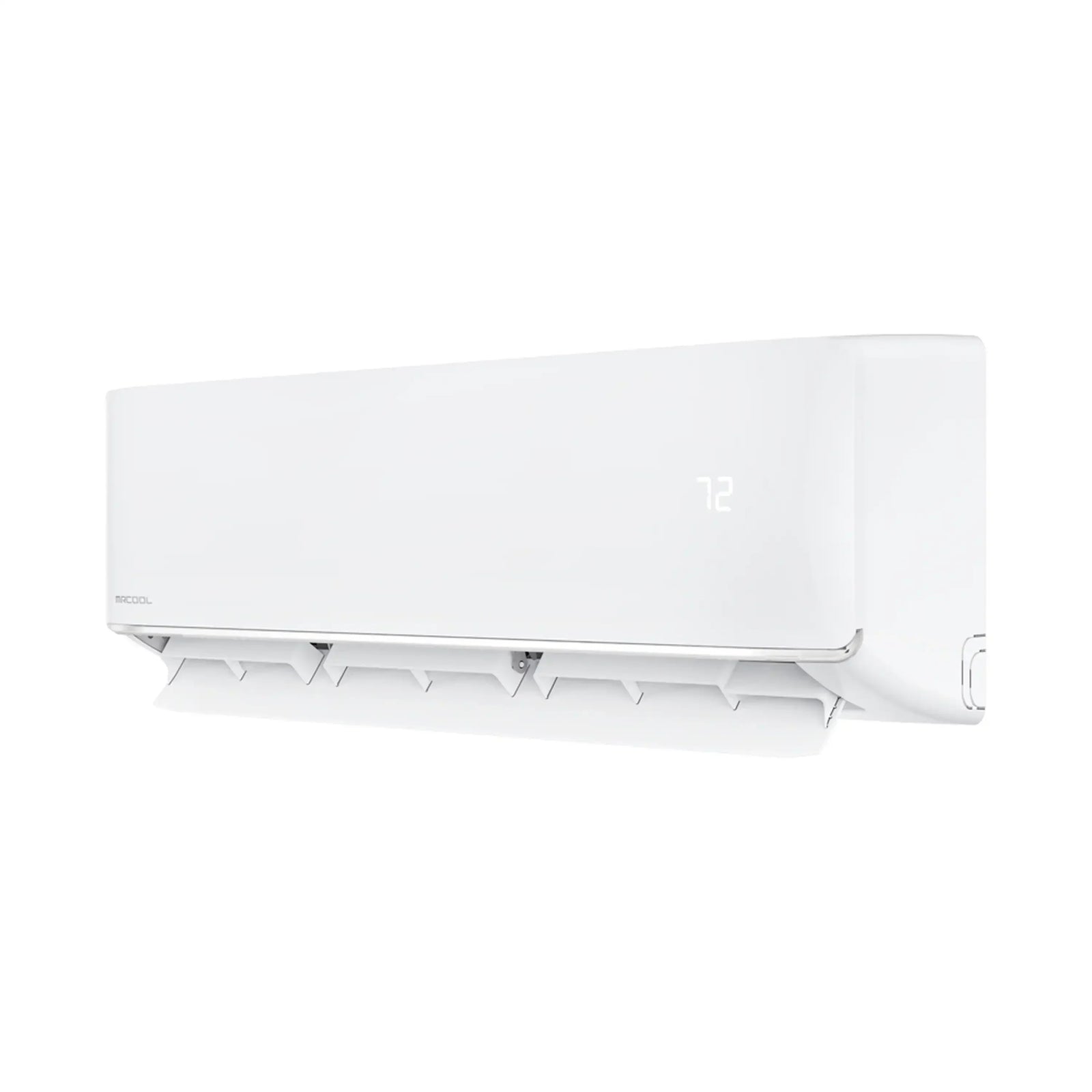

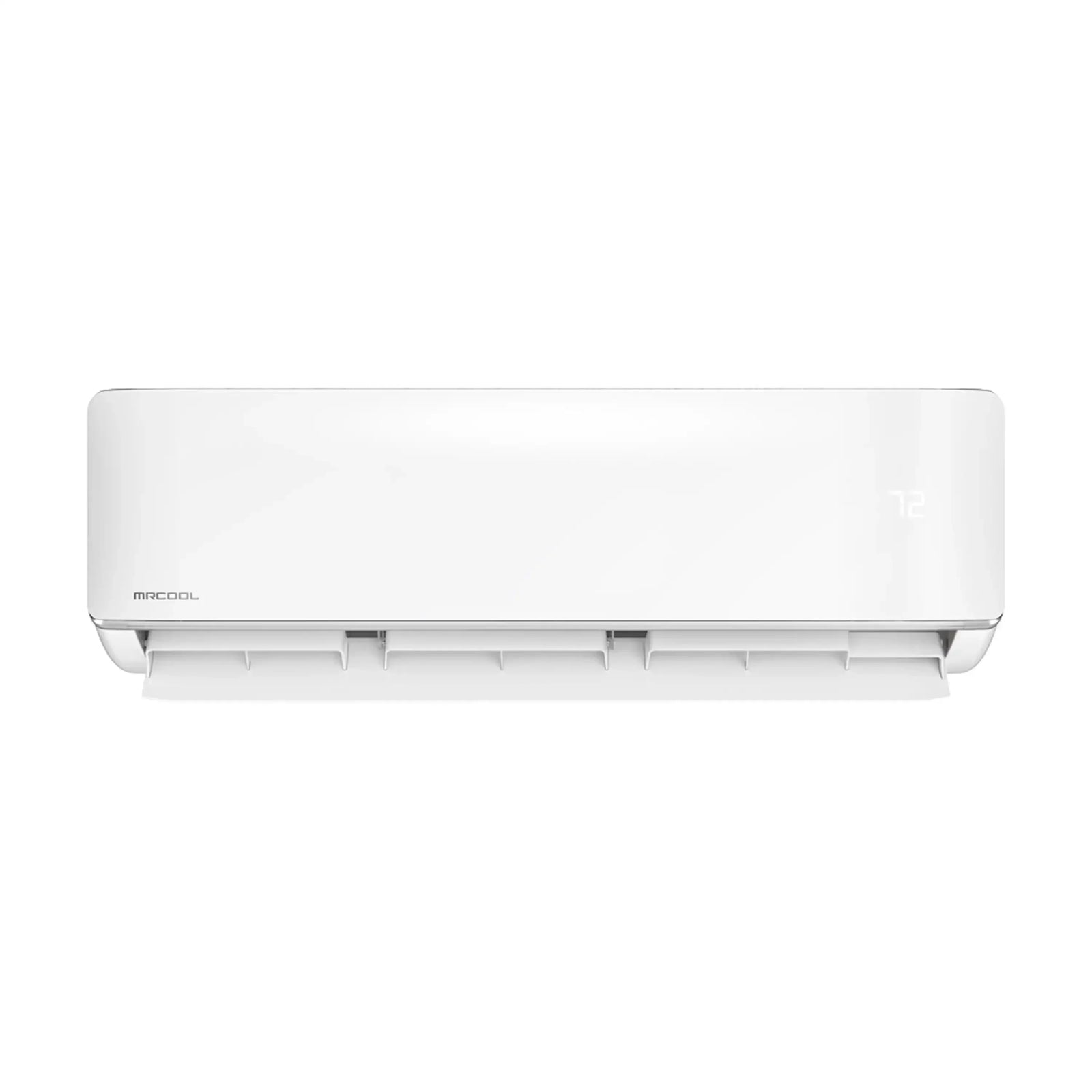

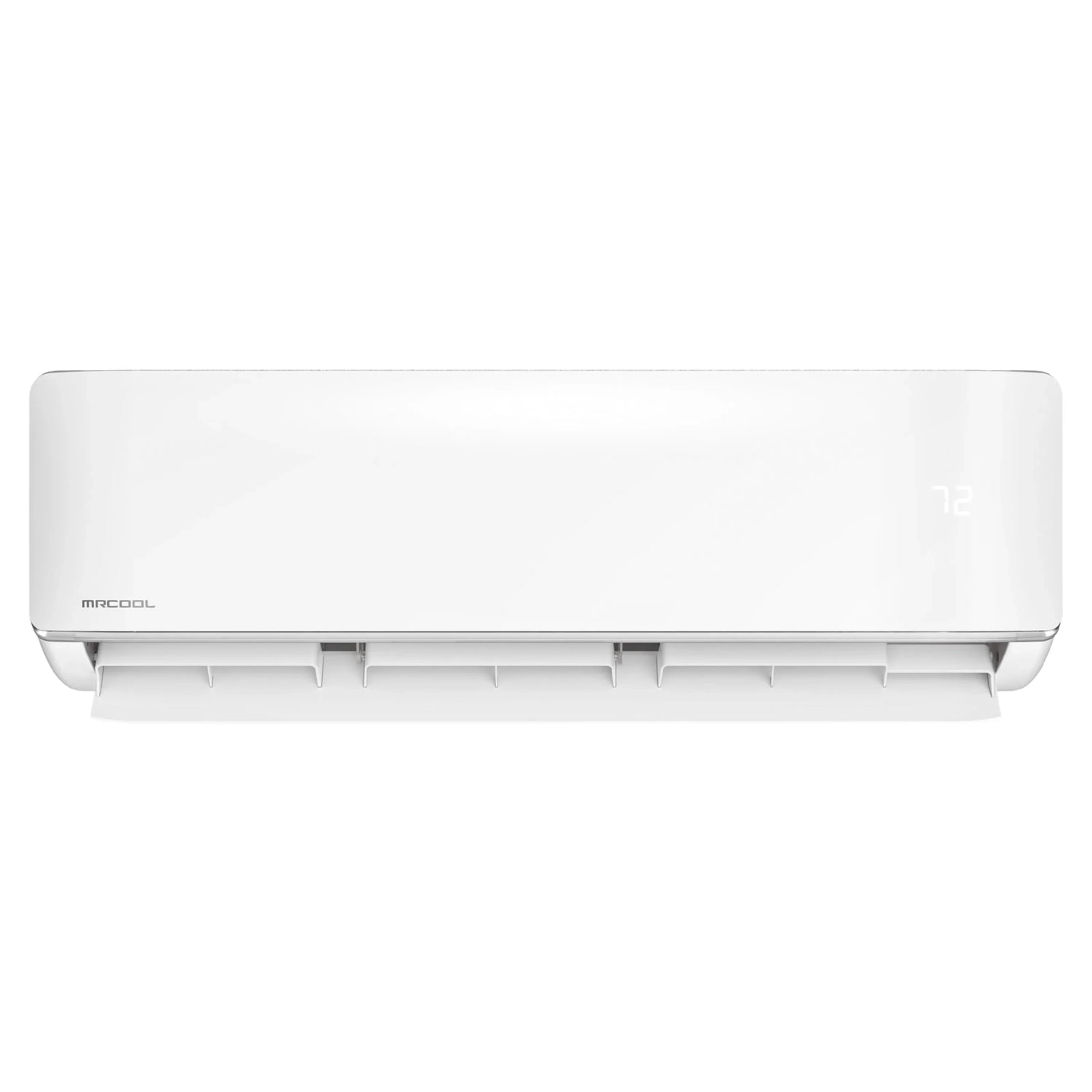

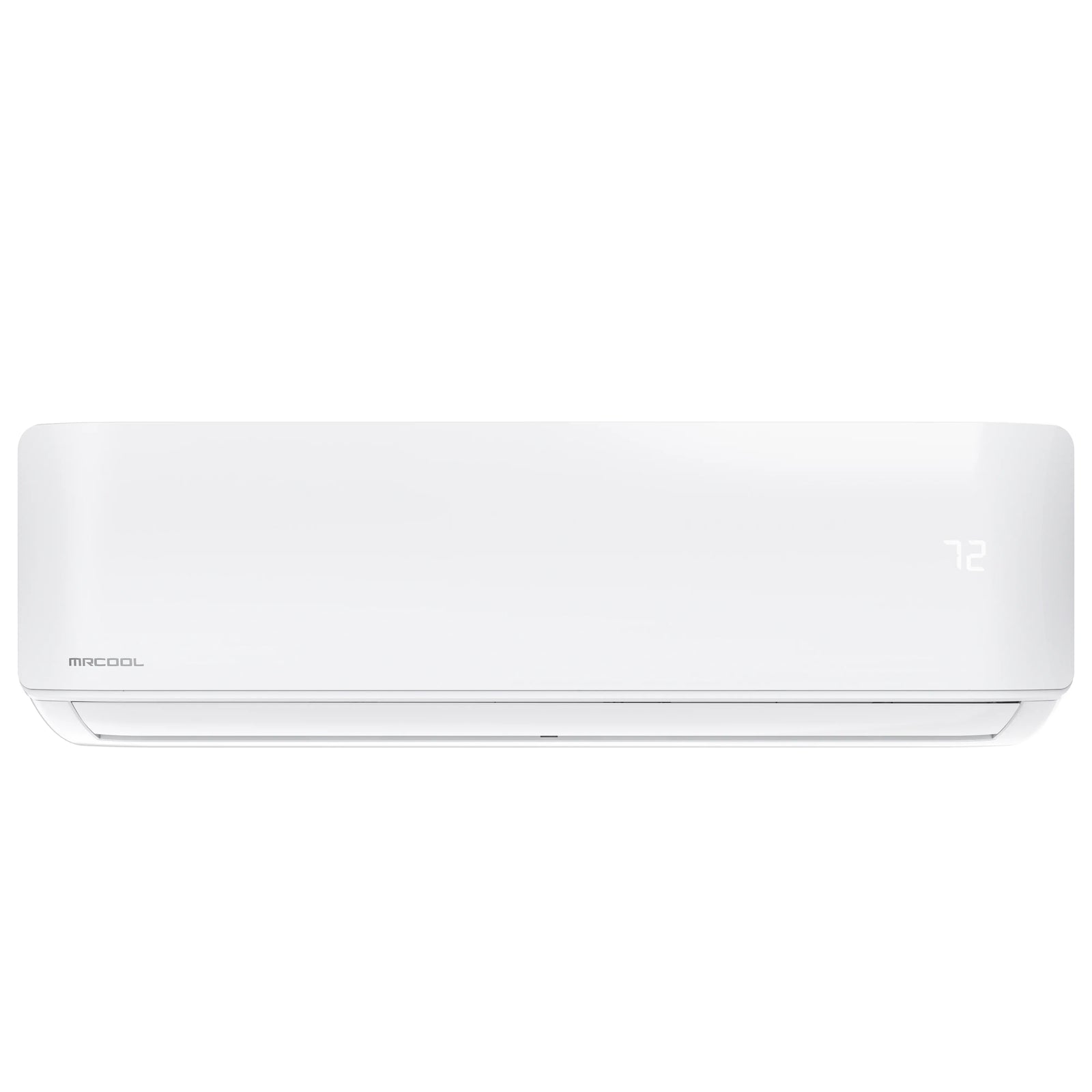

| Wall mounted indoor unit | 36K MRCOOL DIY Wall Mounted Air Handler (up to 1,500 sq. ft.) | DIY-36-HP-WMAH-230D25-O |
Best fit
This system is a strong fit when you want ducted comfort for a larger shared area and a separate wall mounted zone for a room that needs its own control. The connected indoor capacity is 60K BTU, paired with a 55K multi-zone condenser for balanced multi-zone operation.
SKU
DIY-MULTI6-55HP230D-O / DIY-24-HP-MUAH-230D25-O / DIY-36-HP-WMAH-230D25-O
Line sets and installation accessories may vary by selected option. Always confirm final equipment sizing and installation requirements for the project before purchase.
Manuals & Documents
Multi-Zone Installation & User Manual
Hybrid Air Handler Installation & User Manual
Hybrid Air Handler Service Manual
Smart Controller Accessory Manual
Outdoor Condenser Specifications
| Specification | Details |
|---|---|
| Model | DIY-MULTI6-55HP230D-O |
| Maximum zones | 6 |
| Cooling capacity | 47,000 BTU/h |
| Heating capacity | 55,000 BTU/h |
| Condenser SEER2 | 22.0 |
| EER2 | 12.0 |
| HSPF2-4 | 10.6 |
| Maximum coverage area | Up to 2,290 sq. ft. |
| Power supply | 208-230V, 60 Hz, 1 phase |
| Minimum circuit ampacity | 43 A |
| Maximum fuse / breaker | 45 A |
| Refrigerant | R-454B |
| Outdoor dimensions (W x D x H) | 37.48 x 16.34 x 52.48 in. |
| Outdoor net weight | 245.81 lb. |
Hybrid Ducted Air Handler Specifications
| Specification | Details |
|---|---|
| Model | DIY-24-HP-MUAH-230D25-O |
| Nominal capacity | 24,000 BTU/h |
| Maximum coverage area | Up to 1,000 sq. ft. |
| Power supply | 115/208/230V, 60 Hz, 1 phase |
| Minimum circuit ampacity | 4 A |
| Maximum fuse / breaker | 15 A |
| Indoor dimensions (W x D x H) | 17.52 x 21.02 x 45.00 in. |
| Indoor net weight | 104.72 lb. |
| Indoor airflow | 629.8-824.0 CFM |
| Indoor sound range | 29-44 dB(A) |
| Line set size | 3/8 in. liquid x 5/8 in. gas |
| Installation positions | Upflow, downflow, horizontal left or right |
| Controls | MRCOOL Smart Wi-Fi Thermostat included |
| Refrigerant compatibility | R-454B |
Wall Mounted Air Handler Specifications
| Specification | Details |
|---|---|
| Model | DIY-36-HP-WMAH-230D25-O |
| Nominal capacity | 36,000 BTU/h |
| Maximum coverage area | Up to 1,550 sq. ft. |
| Power supply | 208/230V, 60 Hz, 1 phase |
| Mount type | Wall mounted |
| Indoor dimensions (W x D x H) | 49.57 x 11.10 x 14.25 in. |
| Indoor net weight | 48.72 lb. |
| Filter | Reusable |
| Controls | Remote, SmartHVAC app, Alexa and Google Assistant |
| Refrigerant compatibility | R-454B |
| Oscillation | Yes |
| Quiet mode | Yes |
| Fan-only mode | Yes |
| Remote control included | Yes |
Coverage estimates assume ideal conditions. Indoor-unit ratings describe the individual components; when both zones operate simultaneously, total system output is limited by the outdoor condenser. Final equipment sizing should be based on the building load and the installation manuals.
