Product overview
MRCOOL VersaPro 48,000 BTU 4 Ton 16 SEER2 Central Ducted Heat Pump System
Introducing the new MRCOOL VersaPro 48,000 BTU 4 Ton Central Ducted Heat Pump System, a variable speed 48K unit boasting an impressive SEER2 of 16 and HSPF4 of 8.7. With a DC inverter, this advanced yet affordable unit guarantees excellent operation and reduced utility costs, making it an exceptional upgrade option. Installation is simplified thanks to the unit’s compatibility with the No Vac® Quick Connect® Line Sets and coupler kits, fast and straightforward setup for professional HVAC technicians. Precharged with eco-friendly R-454B refrigerant, this line set eliminates the need for vacuuming and ensures a seamless connection. This unit features a robust build and finish utilizing painted galvanized steel, ensuring longevity. Additionally, the condenser has a compact, side-discharge design and self-diagnostic capabilities simplify maintenance efforts. Moreover, the 10-year parts and compressor warranty offers added peace of mind and provides hassle-free coverage in the event of unexpected issues.
The MRCOOL VersaPro 48K presents an exceptional and cost-effective option for maintaining year-round comfort in your home efficiently, quietly, and effectively. With its ability to cover an average of 2,000 square feet of space and boasting a SEER2 rating of 16, this heating and cooling system serves as a dependable upgrade from older units. Constructed with durable painted galvanized steel, this air handler ensures long-term performance and reliability. Its easily accessible removable filter and self-diagnostics panel simplify maintenance tasks by facilitating quick identification of error codes. Installation versatility is a key feature of the 4 Ton MRCOOL® VersaPro Central Ducted System, allowing for positioning in various configurations such as upflow, downflow, and horizontal orientations. Additionally, an optional heat kit is available for enhanced functionality. Furthermore, the inclusion of a wired thermostat offers convenient and reliable temperature control in any space. Investing in the 4 Ton MRCOOL® VersaPro Central Ducted System comes with the added assurance of a 10-year parts and compressor warranty provided by MRCOOL®, offering comprehensive coverage and enhancing ease of ownership.
Condenser Specifications:
|
BRAND NAME |
MRCOOL |
|
SERIES |
VersaPro® Central Ducted Condenser |
|
MODEL |
MVP-48-HP-C-230A00-O |
|
GTIN |
00840255586429 |
|
UPC |
840255586429 |
|
UNIT TYPE |
Split System Heat Pump |
|
EQUIPMENT TYPE |
Condenser |
|
SHORT DESCRIPTION |
4 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser |
|
LONG DESCRIPTION |
The 4 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser provides dependable, energy-efficient heating and cooling throughout the year. Its variable-speed 48K BTU capacity delivers 16 SEER2 and 8.5 HSPF4 performance. Paired with the VersaPro® Central Ducted Air Handler, DC inverter technology supports quiet operation and optimized energy use. The condenser uses R-454B refrigerant and a durable painted galvanized steel cabinet. Its compact side-discharge design supports flexible installation, while built-in self-diagnostics simplify maintenance. An included MRCOOL® Smart Thermostat offers convenient control. A 10-year parts and compressor warranty protects the system. |
|
SEER2 |
16 |
|
EER2 |
10 |
|
HSPF-4 |
8.5 |
|
HSPF-5 |
7.2 |
|
CFM |
3037.1 |
|
TONNAGE |
4 |
|
COOLING CAPACITY (BTU) |
48000 |
|
HEATING CAPACITY (BTU) |
48000 |
|
VOLTAGE (V) |
208-230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
40 |
|
MIN CIRCUIT AMPACITY (A) |
36 |
|
COLOR |
Gray |
|
REFRIGERANT TYPE |
R454B |
|
REFRIGERANT VOLUME (OZ) |
134.04 |
|
DECIBEL RATING (DBA) |
65 |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
3/4 |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
ETL CERTIFIED |
Yes |
|
ENERGY STAR CERTIFIED |
No |
|
AHRI CERTIFIED |
Yes |
|
BASE PARTS WARRANTY |
10 Years |
|
BASE COMPRESSOR WARRANTY |
10 Years |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
NET DEPTH (IN) |
16.34 |
|
NET HEIGHT (IN) |
38.39 |
|
NET WIDTH (IN) |
38.58 |
|
NET WEIGHT (LBS) |
192.9 |
|
GROSS DEPTH (IN) |
19.68 |
|
GROSS HEIGHT (IN) |
42.52 |
|
GROSS WIDTH (IN) |
45.08 |
|
GROSS WEIGHT (LBS) |
224.21 |

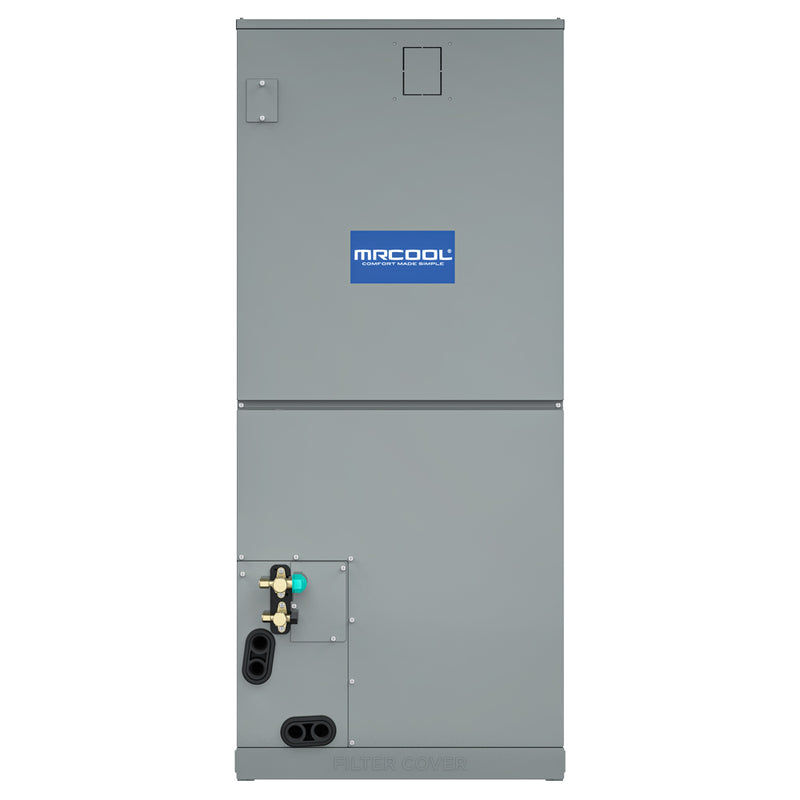

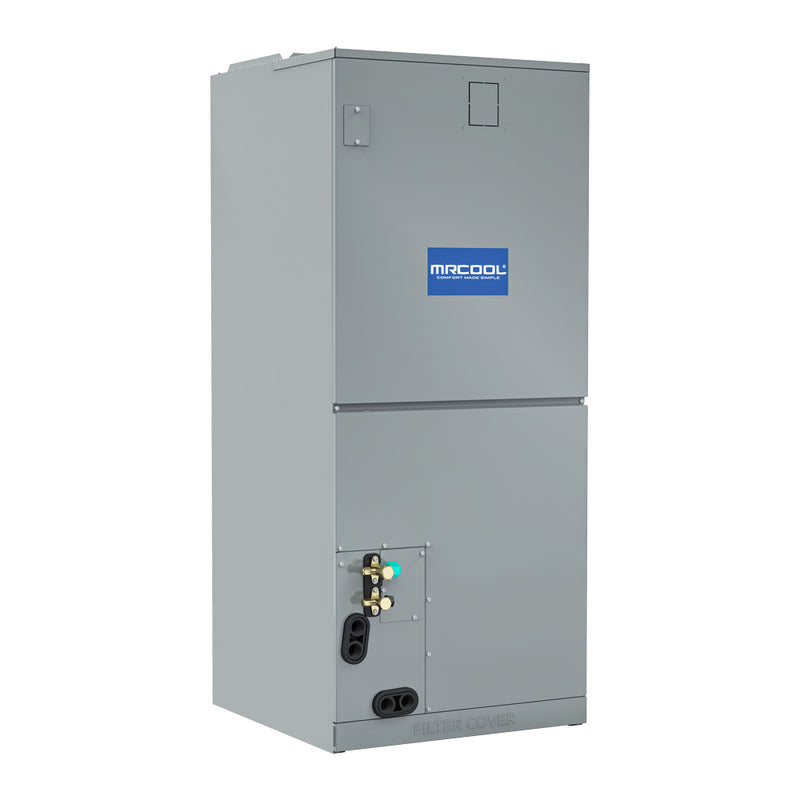

Air Handler Specifications:
|
BRAND NAME |
MRCOOL |
|
SERIES |
VersaPro® Central Ducted Air Handler |
|
MODEL |
MVP-48-HP-MUAH-230A00-O |
|
GTIN |
00840255586481 |
|
UPC |
840255586481 |
|
UNIT TYPE |
Split System Heat Pump |
|
EQUIPMENT TYPE |
Air Handler |
|
SHORT DESCRIPTION |
4 Ton MRCOOL® VersaPro® Central Ducted Air Handler |
|
LONG DESCRIPTION |
The 4 Ton MRCOOL® VersaPro® Central Ducted Air Handler provides efficient, reliable comfort for spaces up to 2,000 square feet. Durable painted galvanized steel construction and integrated self-diagnostics support long service life and straightforward maintenance. Flexible multi-position installation includes upflow, downflow, horizontal-left, and horizontal-right configurations. The air handler uses R-454B refrigerant, accepts optional auxiliary heat kits, and is compatible with the Central Ducted Hyper Heat Condenser. The included MRCOOL® Smart Thermostat and SmartHVAC app compatibility make temperature control convenient. A 10-year warranty adds long-term protection. |
|
CFM |
1600.99/1471.50/1283.15/1094.80 |
|
TONNAGE |
4 |
|
VOLTAGE (V) |
115/208-230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
15 |
|
MIN CIRCUIT AMPACITY (A) |
14.5/11.0 |
|
COLOR |
Gray |
|
DECIBEL RATING LOW (DBA) |
44 |
|
DECIBEL RATING HIGH (DBA) |
53 |
|
MAX LINESET LENGTH (FT) |
246 ft |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
3/4 |
|
FILTER TYPE |
Replaceable |
|
FILTER SIZE |
23x20x1 |
|
AUXILIARY HEATER INCLUDED |
No |
|
AUXILIARY HEATER AVAILABLE |
Yes |
|
AUXILIARY HEATER SIZES |
8kW/10kW/15kW/20kW |
|
ADJUSTABLE THERMOSTAT |
Yes |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
ETL CERTIFIED |
Yes |
|
ENERGY STAR CERTIFIED |
No |
|
AHRI CERTIFIED |
Yes |
|
BASE PARTS WARRANTY |
10 Years |
|
BASE COMPRESSOR WARRANTY |
10 Years |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
NET DEPTH (IN) |
21.02 |
|
NET HEIGHT (IN) |
52.99 |
|
NET WIDTH (IN) |
24.49 |
|
NET WEIGHT (LBS) |
162.92 |
|
GROSS DEPTH (IN) |
27.95 |
|
GROSS HEIGHT (IN) |
56.5 |
|
GROSS WIDTH (IN) |
26.77 |
|
GROSS WEIGHT (LBS) |
190.92 |
