Product overview
Summary

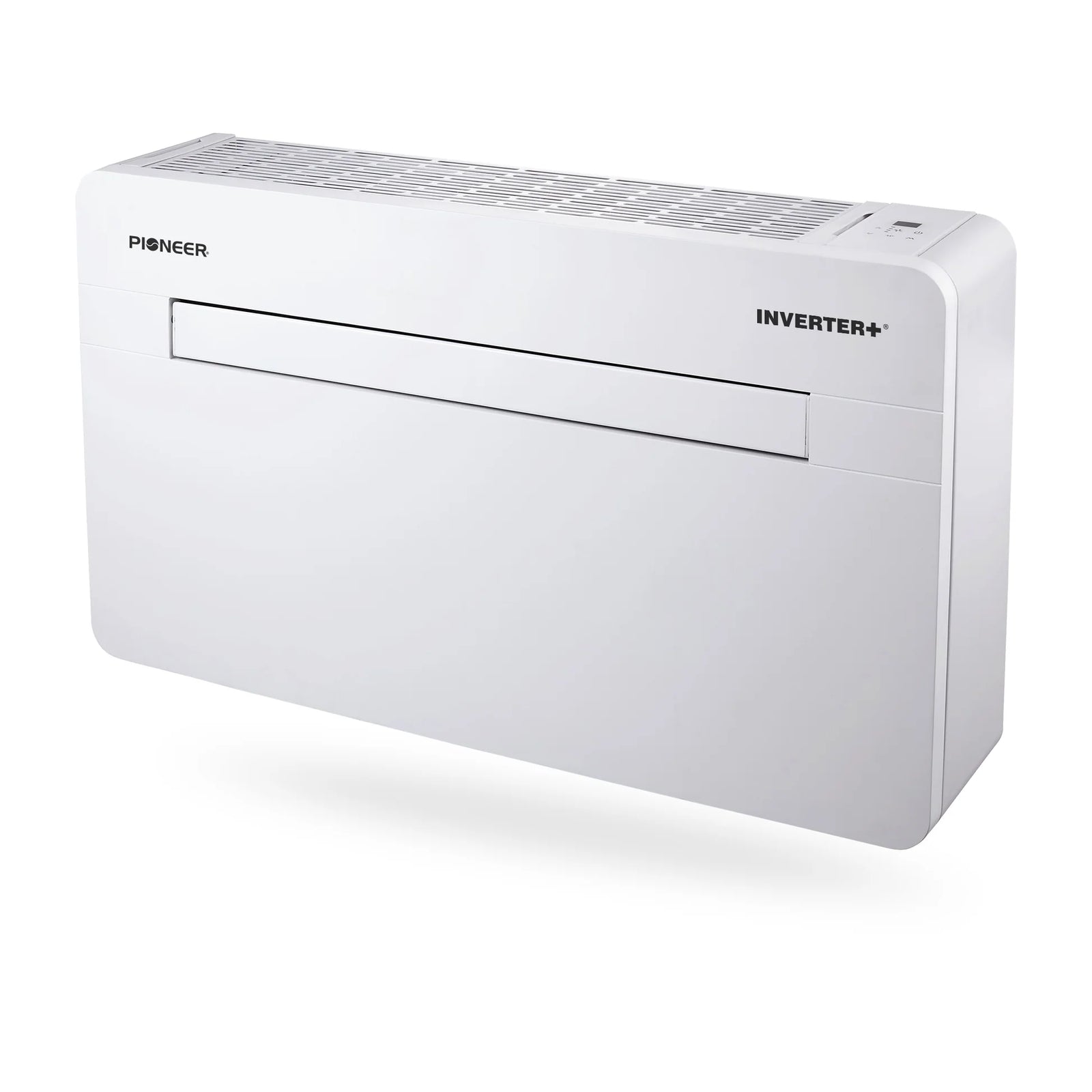

- Inverter-Driven Pioneer® All-In-One Packaged Console Heat Pump System
- Cooling capacity: 11,800 BTU/H
- Heating capacity: 10,900 BTU/H
- Electric Heat capacity: 10,236 BTU/H
- Voltage: 208/230V, 60Hz, 1Ph
- Factory-Precharged with Environmentally Friendly R-32 Refrigerant

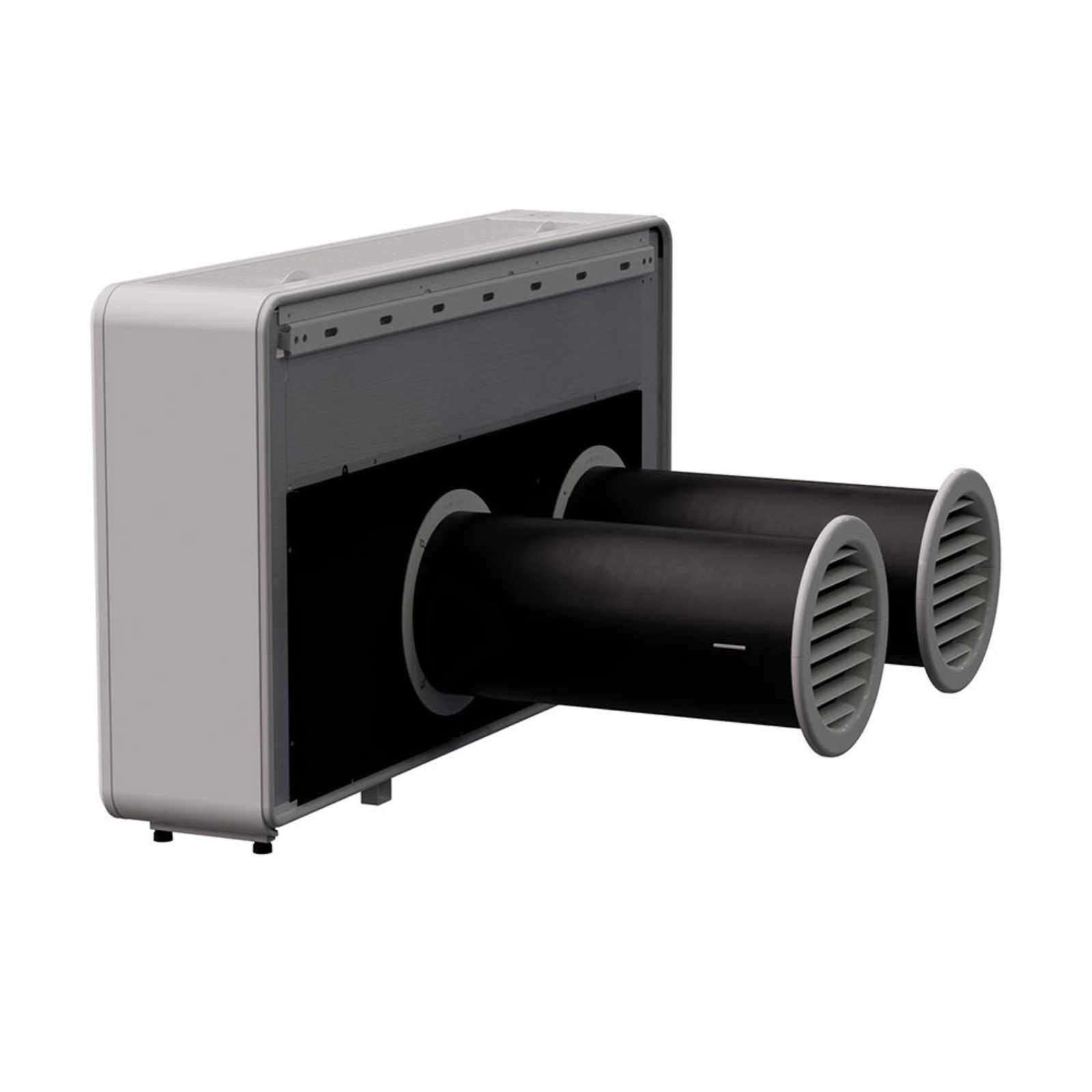

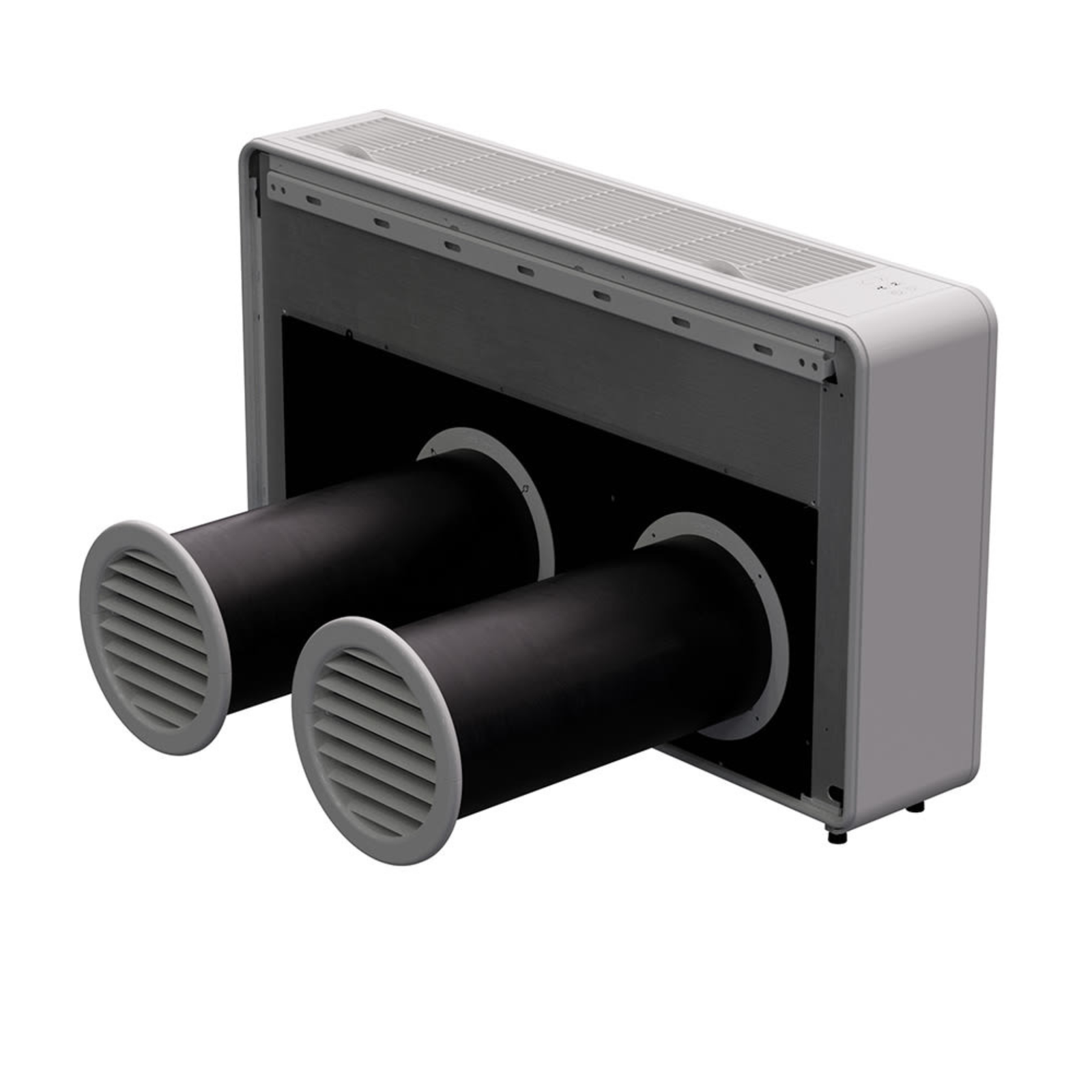

- Monoblock-style design with no outdoor unit required
Features
- Heat Pump with Cooling, Heating, Dry, Auto and Fan Modes
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
- Functional Remote with:
- SLEEP Mode, for Energy-Conservation
- Timer On/Off Control
Technical Information & Performance
- Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Rated Capacity: 11,800 BTU/h
- Heating Rated Capacity: 10,900 BTU/h
-
Electric Heat Rated Capacity: 10,236 BTU/h
- Refrigerant Type: R-32
-
Refrigerant Charge: 22.9 oz (650 g)
-
Rated Power (Cooling): 1,209 W
- Rated Power (Heating): 947 W
-
Rated Power (Electric Heater): 3,000 W
- Rated Current (Cooling): 6.1 A
- Rated Current (Heating): 4.8 A
-
Rated Current (Electric Heater): 13.6 A
-
Airflow: 330 CFM
- Sound Level: 48 / 45 / 42 dB(A)
-
Temperature Setting Range (Remote Control): 64-86°F (18-30°C)
-
Cooling Mode Operating Range (Indoor): 63-90°F (17-32°C)
- Cooling Mode Operating Range (Outdoor): 63-109°F (17-43°C)
- Heating Mode Operating Range (Indoor): 28-81°F (-2-27°C)
- Heating Mode Operating Range (Outdoor): 28-75°F (-2-24°C)
- Dimensions (WDH): 39"-1/2 x 7"-5/8 x 22"-3/4 Inches
- Weight: 117.0 lbs (53.1 kg)
