Pioneer 18,000 BTU 1.5-Ton Quantum Ultra 24 SEER2 Energy-Star 2 Zone Heat Pump 230V

Pioneer 18,000 BTU 1.5-Ton Quantum Ultra 24 SEER2 Energy-Star 2 Zone Heat Pump 230V

Pioneer brand multi split heat pump system, complete set. System components include: one multi zone outdoor unit, matching multiple wall mount indoor units, piping and accessory kits and remote controllers. Pioneer Quantum Ultra multi split systems are available in 5 versions; for 2, 3, 4, and 5 zones.

• Ultra-high efficiency inverter++ ductless multi split dual (2) zone heat pump system
• (x2) inside unit cooling capacity: 9,000 BTU/H nominal capacity, condensing system 18,000 BTU/H (Range: 5,100 minimum - 18,700 maximum) with 24 SEER/13.0 EER efficiency
• Heating capacity: 20,000 BTU/H nominal (range 4,900 minimum - 23,000 maximum) with 10 HSPF/3.5 COP efficiency
• Voltage: 208 - 230-Volt, 60 hertz, 1 phase (standard household 2 line power, l1-l2-g)
• Energy-Star Certified and Wi-Fi Enabled
• Complete system set including: indoor (fan coil) section, outdoor (condenser) section, wireless remote controller with wi-fi, insulated flared line set with other installation accessories
• Unsurpassed support hotline covering installation, use, troubleshooting, warranty and parts issues
• Ultra low ambient system can heat with high capacity at -13°F ambient outdoor temperatures
• Pre-charged with eco-friendly R454-B refrigerant to support total combined attached lineset lengths up to 50 ft long
• Pioneer is the best choice for pros and homeowners with the highest ratings for consumer satisfaction
• Certified by: ETL, AHRI, DOE for safety, performance and efficiency
• Built with the latest technologies using pulse width modulation driven DC inverter compressor and variable speed DC inverter fan motors for high performance and low power consumption

What's Included:

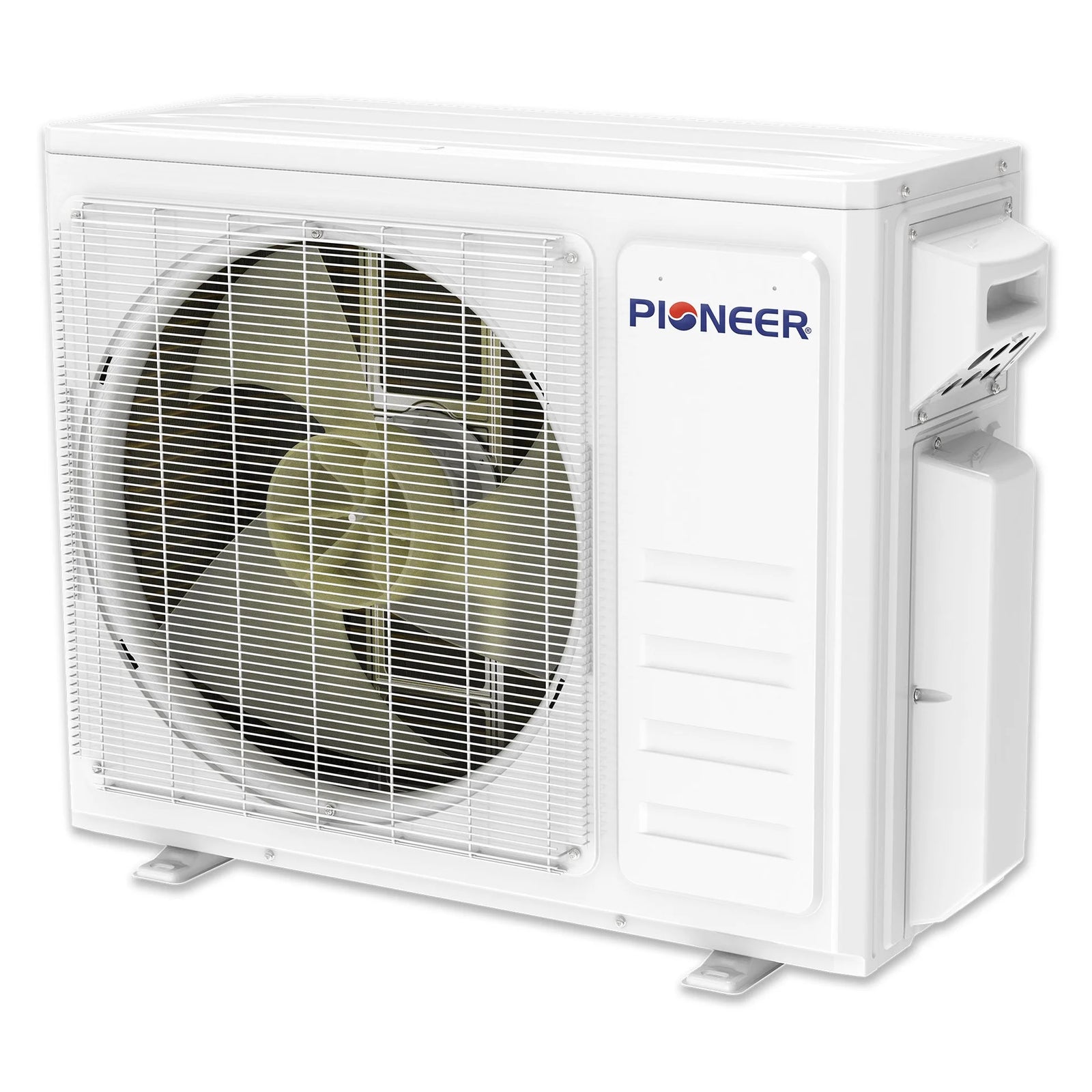

• 1 x Pioneer® 18,000 BTU Circuit Quantum Ultra Series 24 SEER2 Dual Zone Outdoor Air Conditioner Heat Pump 230V

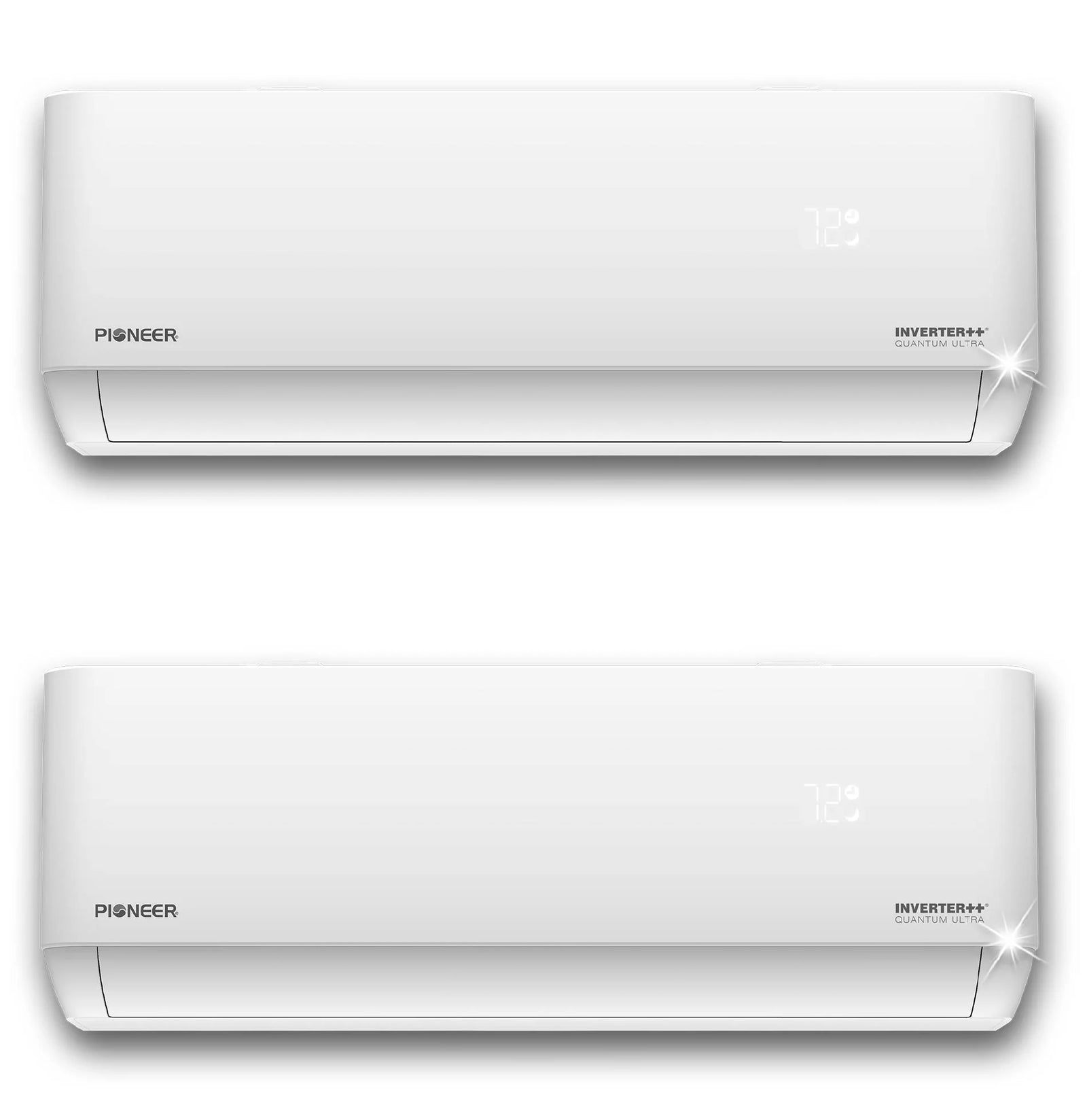

• 2 x Pioneer® Multi Zone 9,000 BTU Quantum Ultra Wall-Mounted Air Handlers

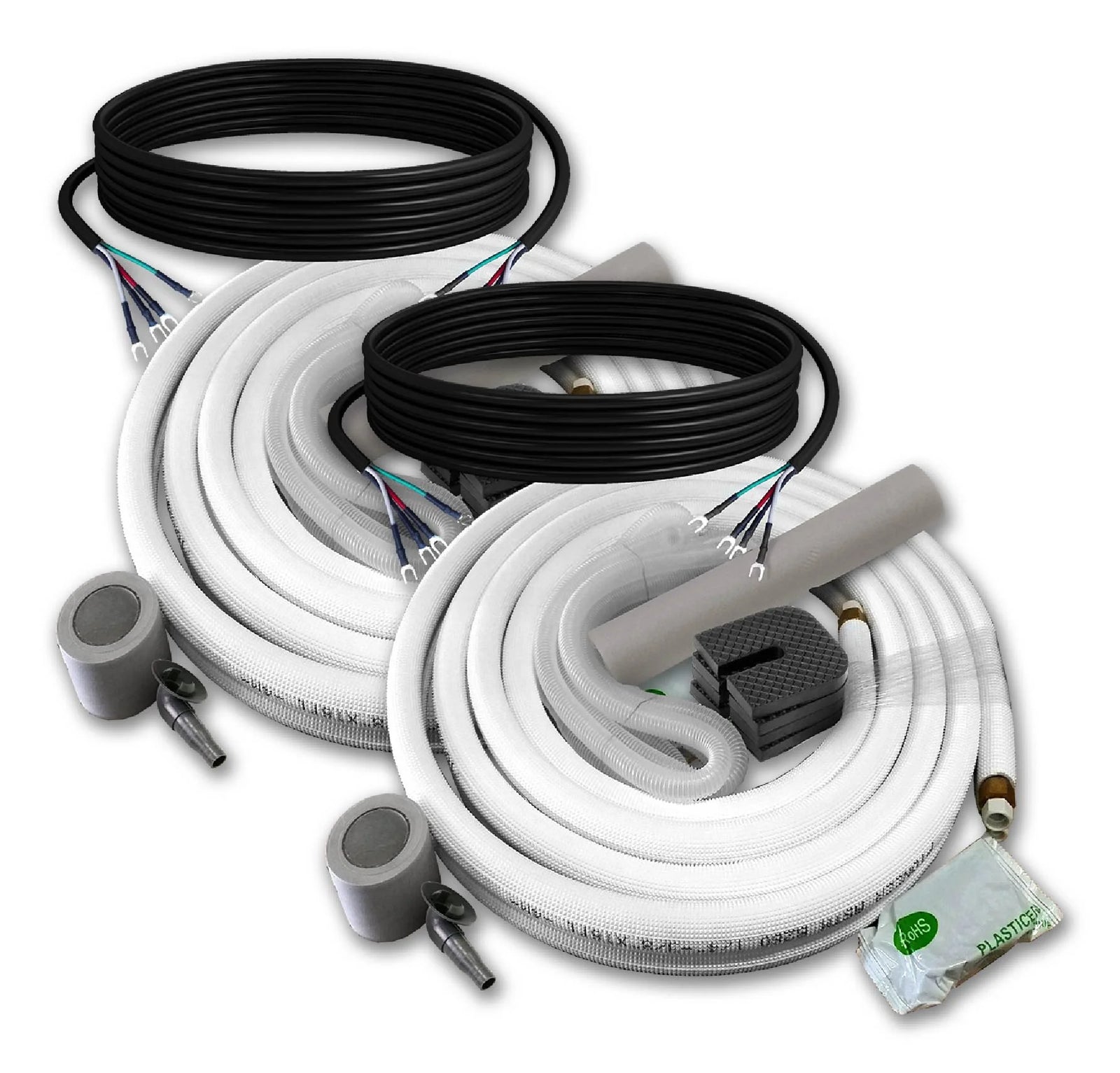

• 2 x EZFlex Flexible Pipes (Choose your length)

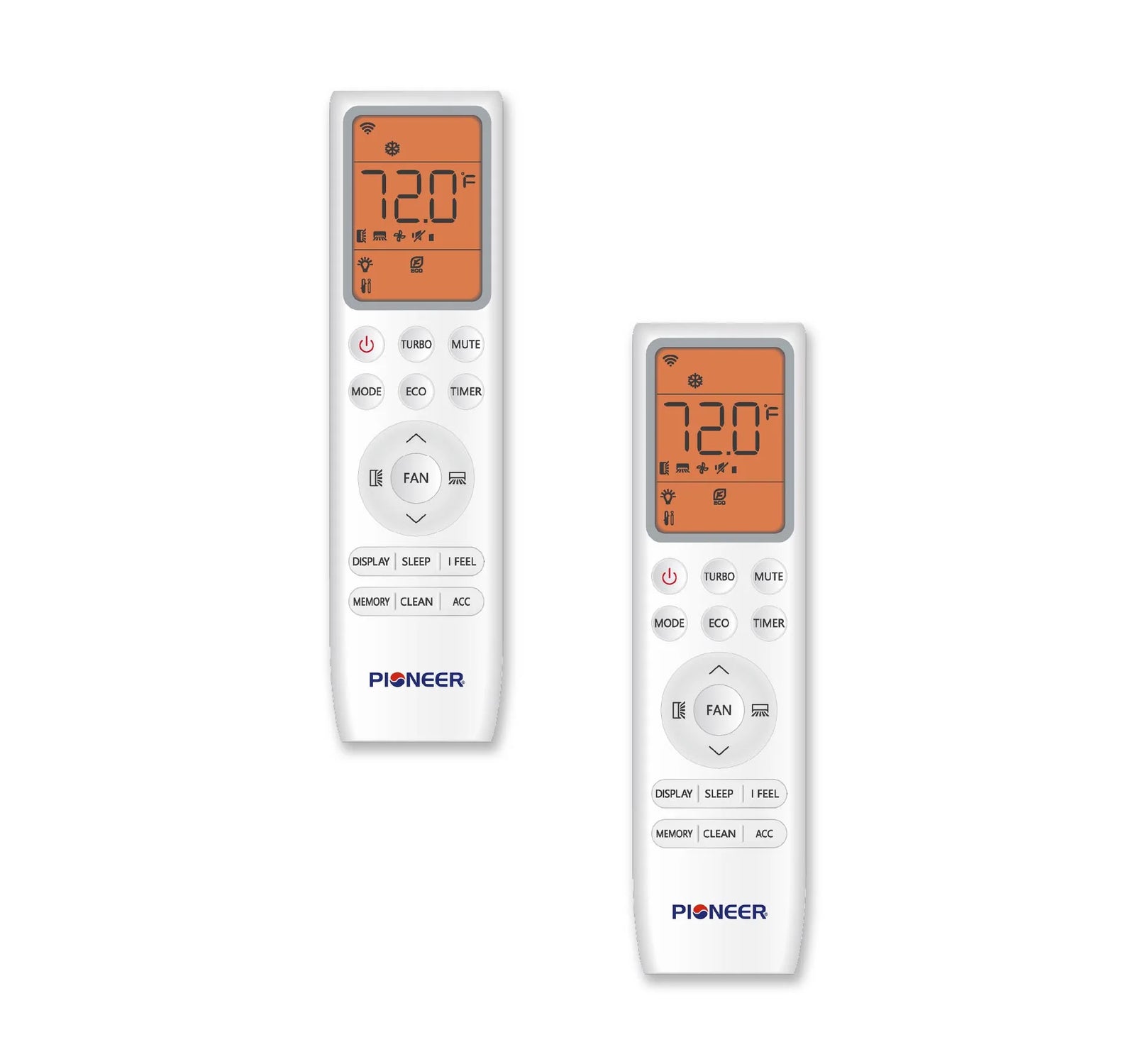

• 2 x Remote Controllers

System Manuals:

• Technical Brochure
• Submittal Sheet
• Installation Manual (Multi-Split Addendum)
• Service Manual
• AHRI Certificate
• Energy Guide
