Product overview
Summary

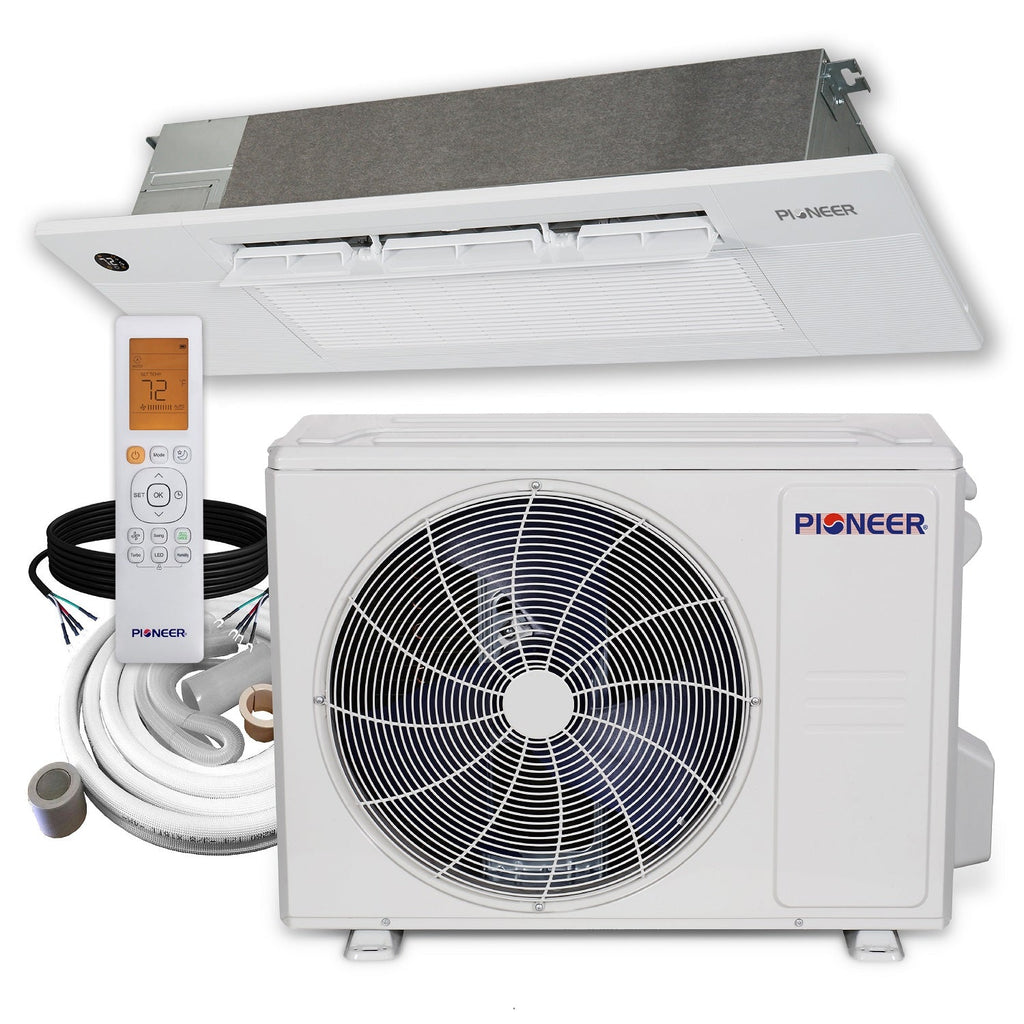

- High Efficiency Quantum Ultra Single-Way Ceiling Recessed Cassette Split Heat Pump System
- Cooling capacity: 18,000 BTU/H with 22.2 SEER2 / 12.5 EER2 efficiency
- Heating capacity: 18,000 BTU/H with 12.2 HSPF2 / 3.3 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- Single-Way Ceiling Recessed Cassette Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Standard Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

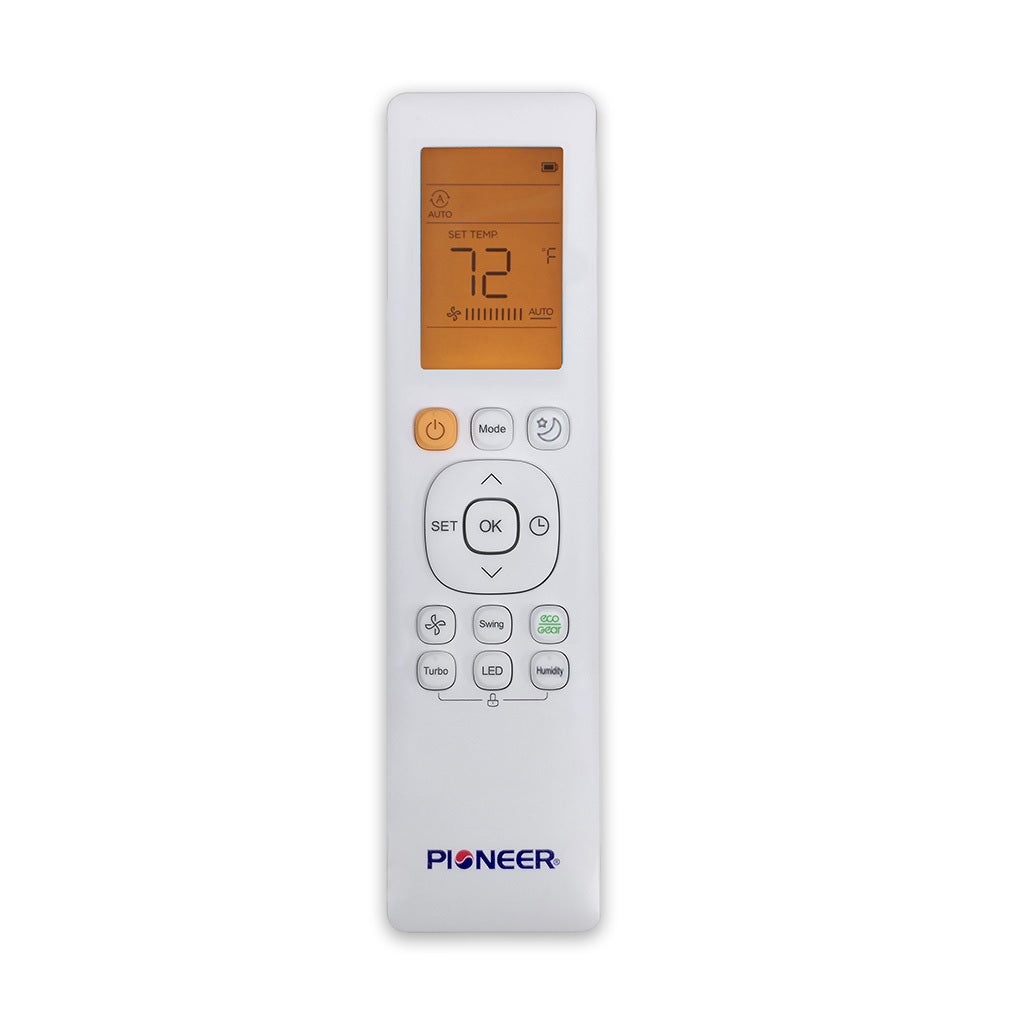

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Information & Performance
-
System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 18,000 BTU/h
- Cooling Capacity Range: 4,000~18,800 BTU/h
- Cooling SEER2: 22.2 BTU/W.h
- Cooling EER2: 12.5 BTU/W.h
- Heating Rated Capacity: 18,000 BTU/h
- Heating Capacity Range: 7,600~22,800 BTU/h
- Heating HSPF2 (Region IV/V): 12.2 / 8.6 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.3 / 2.24 W/W
- Refrigerant Type: R454b
- Recommended Room Size: 500~750 sq ft
- Minimum Room Size: 54 sq ft
- Piping Diameter: 1/2" (Gas) / 1/4" (Liquid)
- AHRI Reference: 218010988
-
Indoor Unit
- Part Number: CK018GMSILDFHG
- Air Flow (Turbo/Hi/Med/Lo/Mute): 400 / 352 / 300 / 258 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 48 / 44 / 41 / 30 / 24 dB(A)
- Product Dimensions (WDH): 50"-3/8 x 13"-1/4 x 10" Inches
- Carton Dimensions (WDH): 57"-5/8 x 22"-1/2 x 22"-5/8 Inches
- Net / Gross Weight: 45.5 / 83.0 lbs
-

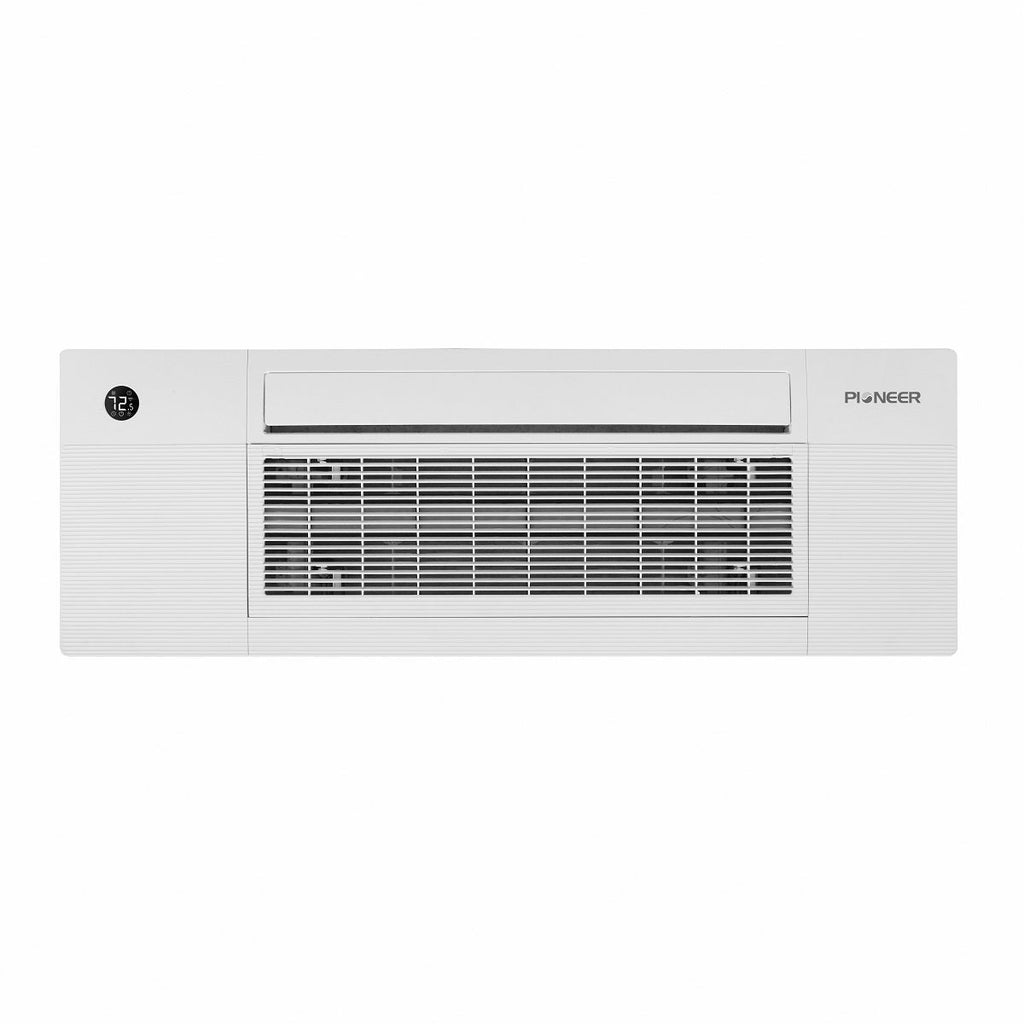

Decorative Panel
- Part Number: ---
- Product Dimensions (WDH): 25"-5/8 x 25"-5/8 x 2"-3/8 Inches
- Carton Dimensions (WDH): Packed with the indoor unit inside same carton
- Net / Gross Weight: 15.0 / N/A lbs
-

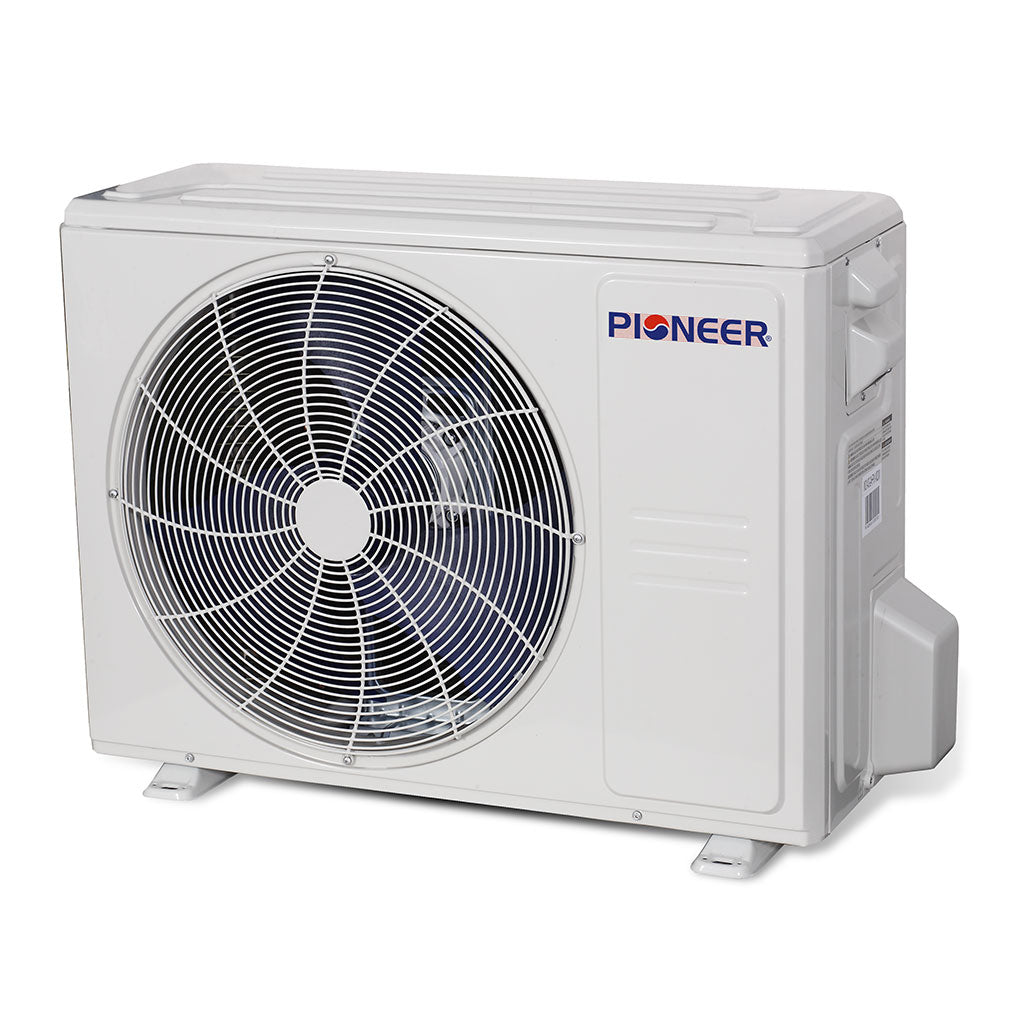

Outdoor Unit
- Part Number: YN018GMSI24RPG
- Breaker Needed: 20A (double-pole)
- Sound Level: 58 dB(A)
- Net Dimensions (WDH): 35" x 13"-1/2 x 26"-1/2 Inches
- Carton Dimensions (WDH): 39"-1/4 x 15"-5/8 x 29"-1/8 Inches
- Net / Gross Weight: 92.6 / 100.3 lbs
Dimension Chart
