Product overview
Summary
- High Efficiency Quantum Ultra Floor/Ceiling/Low-Wall Ductless Split Heat Pump System
- Cooling capacity: 48,000 BTU/H with 19.8 SEER2 / 9.5 EER2 efficiency
- Heating capacity: 50,000 BTU/H with 12.0 HSPF2 / 2.82 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- Floor/Ceiling/Low-Wall Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

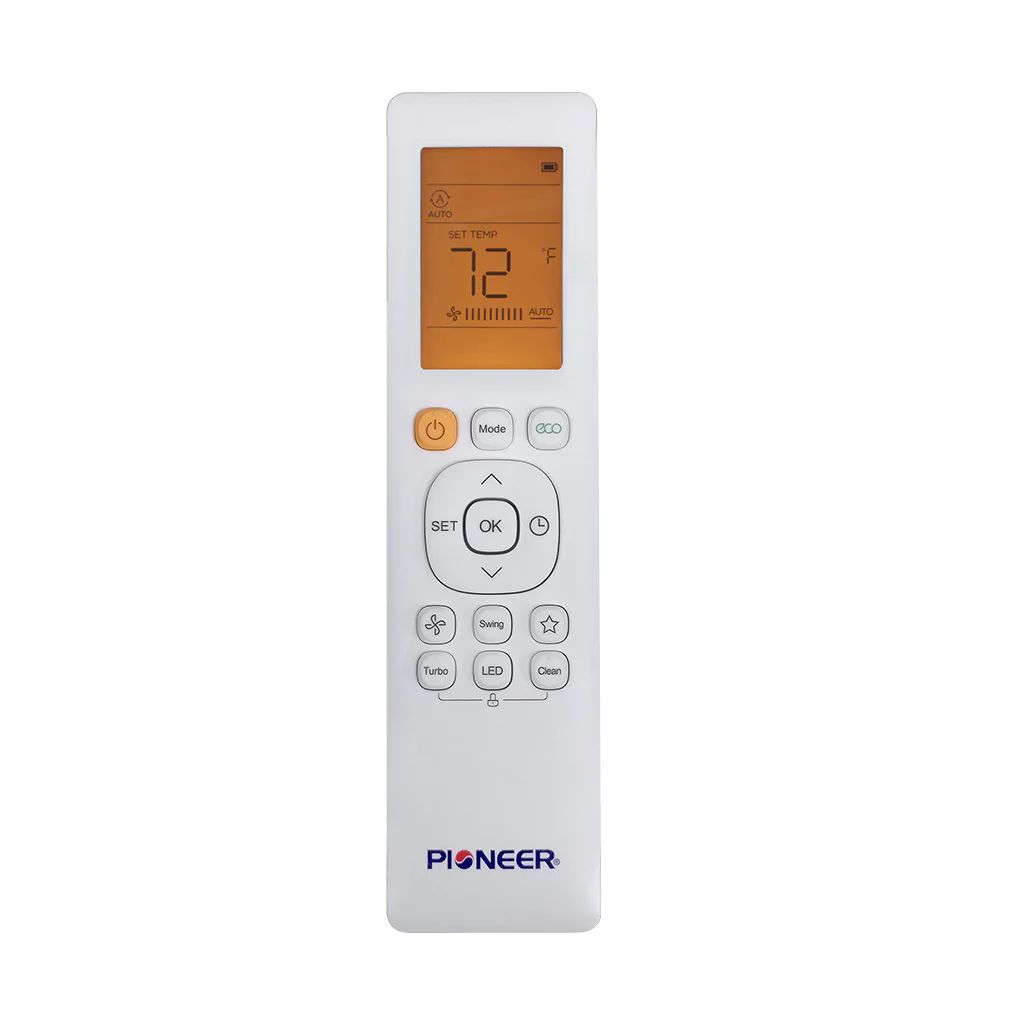

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- FOLLOW ME, to Detect and Adjust to Local Temperature
Technical Information & Performance
-
System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 48,000 BTU/h
- Cooling Capacity Range: 10,100~50,000 BTU/h
- Cooling SEER2: 19.9 BTU/W.h
- Cooling EER2: 9.5 BTU/W.h
- Heating Rated Capacity: 50,000 BTU/h
- Heating Capacity Range: 15,800~59,100 BTU/h
- Heating HSPF2 (Region IV/V): 12.0 / 7.8 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 2.82 / 1.95 W/W
- Refrigerant Type: R454b
- Recommended Room Size: 1,400~1,800 sq ft
- Minimum Room Size (Ceiling Suspended): 143 sq ft
- Minimum Room Size (Floor/Low Wall): 700 sq ft
- Piping Diameter: 3/4" (Gas) / 3/8" (Liquid)
- AHRI Reference: 218010996
-

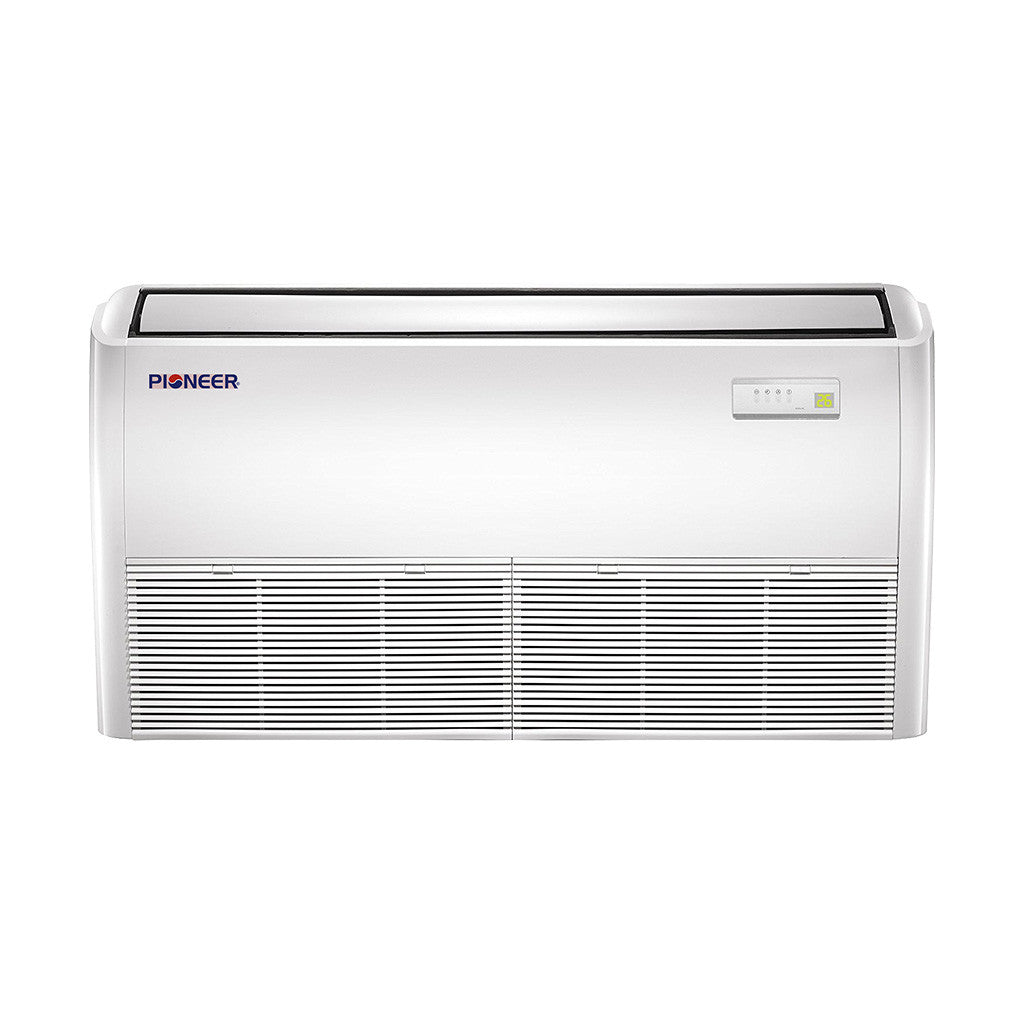

Indoor Unit
- Part Number: UB048GMSILDFHG
- Air Flow (Turbo/Hi/Med/Lo/Mute): 1,354 / 1,236 / 1,083 / 800 / 665 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 55 / 53 / 49 / 39 / 34 dB(A)
- Product Dimensions (WDH): 65" x 26"-5/8 x 9"-1/4 Inches
- Carton Dimensions (WDH): 68"-3/8 x 30" x 12"-1/4 Inches
- Net / Gross Weight: 89.0 / 105.0 lbs
-

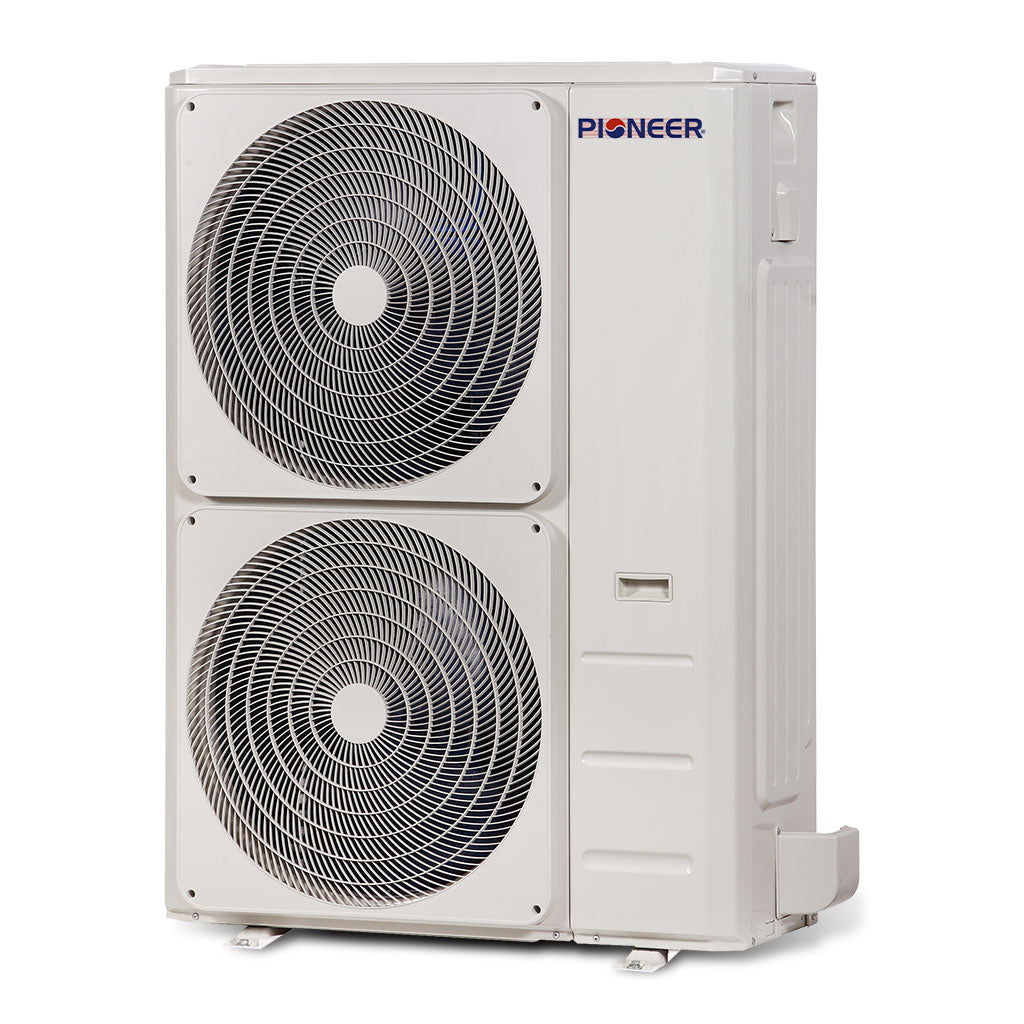

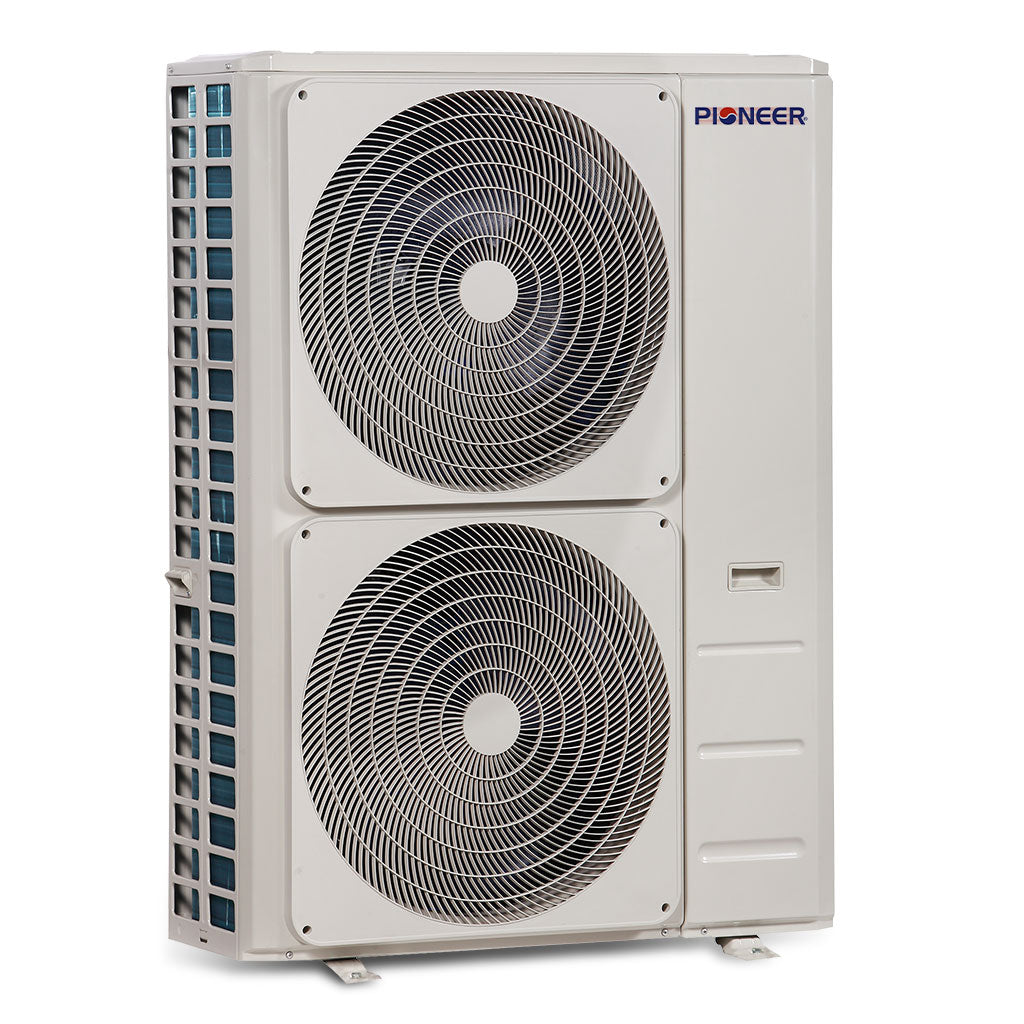

Outdoor Unit
- Part Number: YN048GMSI20RUG
- Breaker Needed: 45A (double-pole)
- Sound Level: 64 dB(A)
- Net Dimensions (WDH): 37"-1/2 x 16"-3/8 x 52"-1/2 Inches
- Carton Dimensions (WDH): 43"-1/8 x 19"-1/2 x 57"-1/2 Inches
- Net / Gross Weight: 208.8 / 237.5 lbs
