Product overview

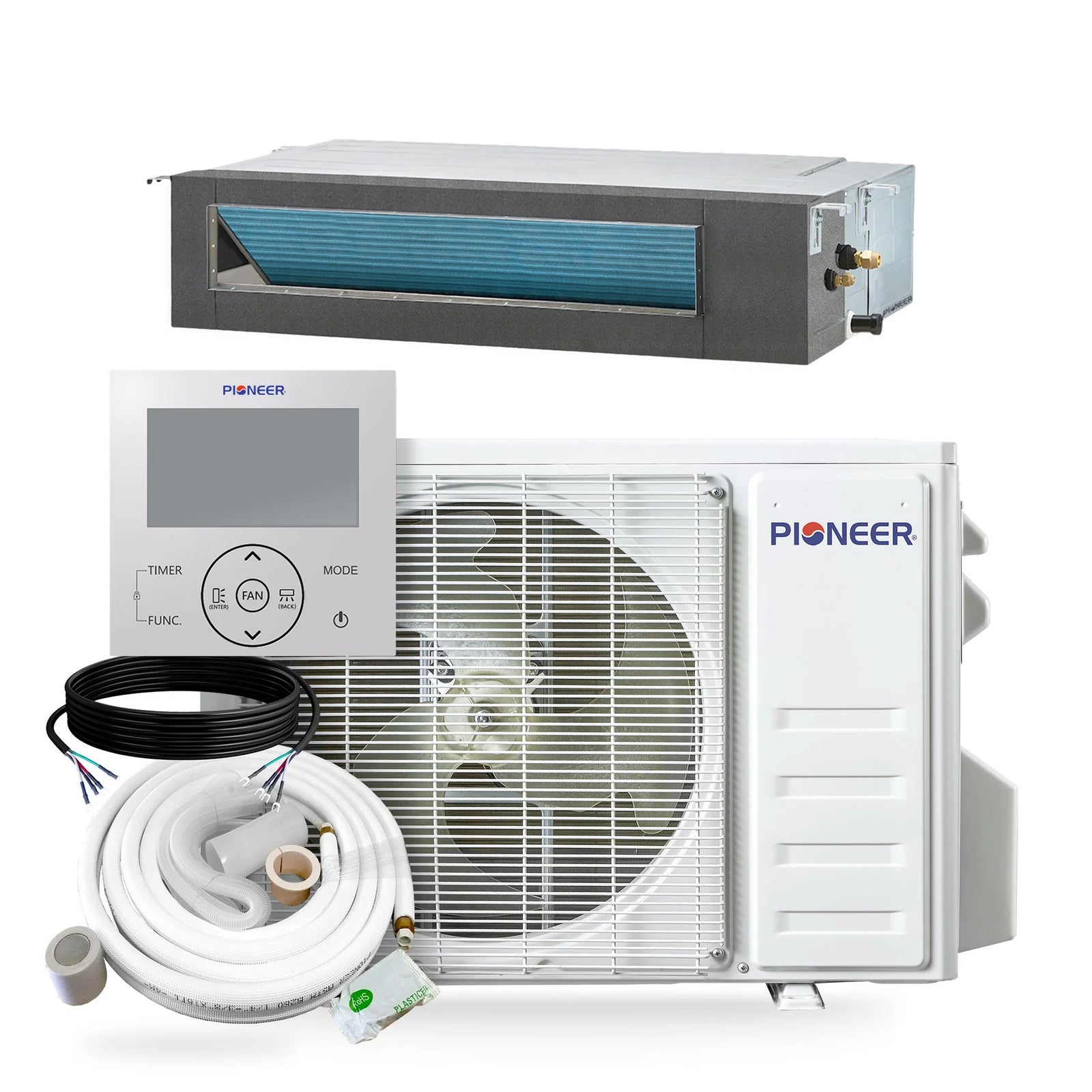

Pioneer® Quantum Ultra™ 9,000 BTU 20.5 SEER2 230V Ceiling Concealed Ducted Mini-Split Air Conditioner Inverter Heat Pump Full Set
Pioneer® concealed duct mini split systems provide hidden heating and cooling for multiple rooms through a single ducted unit. Ideal for separated zones like master suites, one system can condition sub-areas with uniform comfort. Available in six capacities, including ceiling-concealed and slim duct models, these systems suit zones of all sizes.

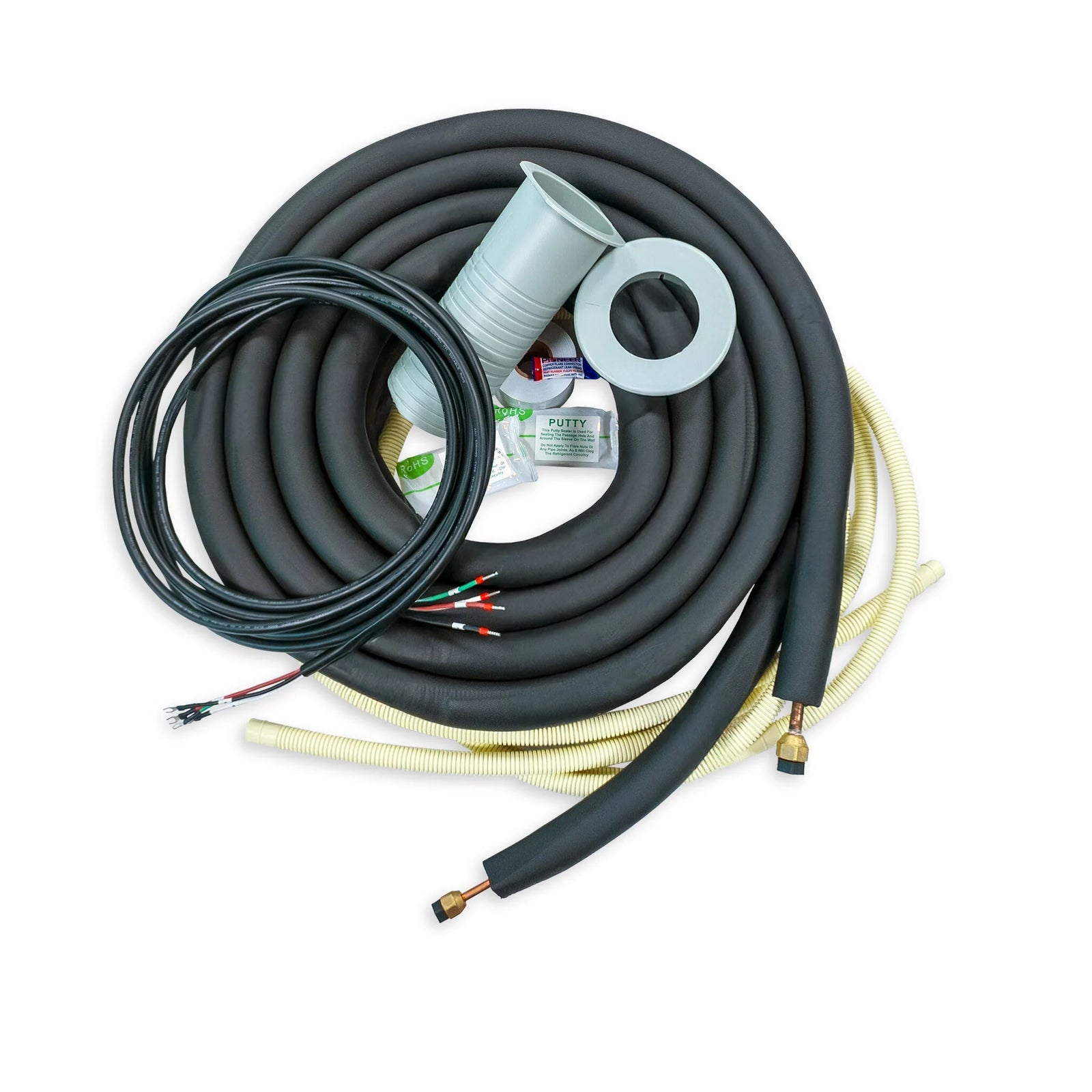

What's Included in Your Purchase:
- Indoor Unit
- Outdoor Unit

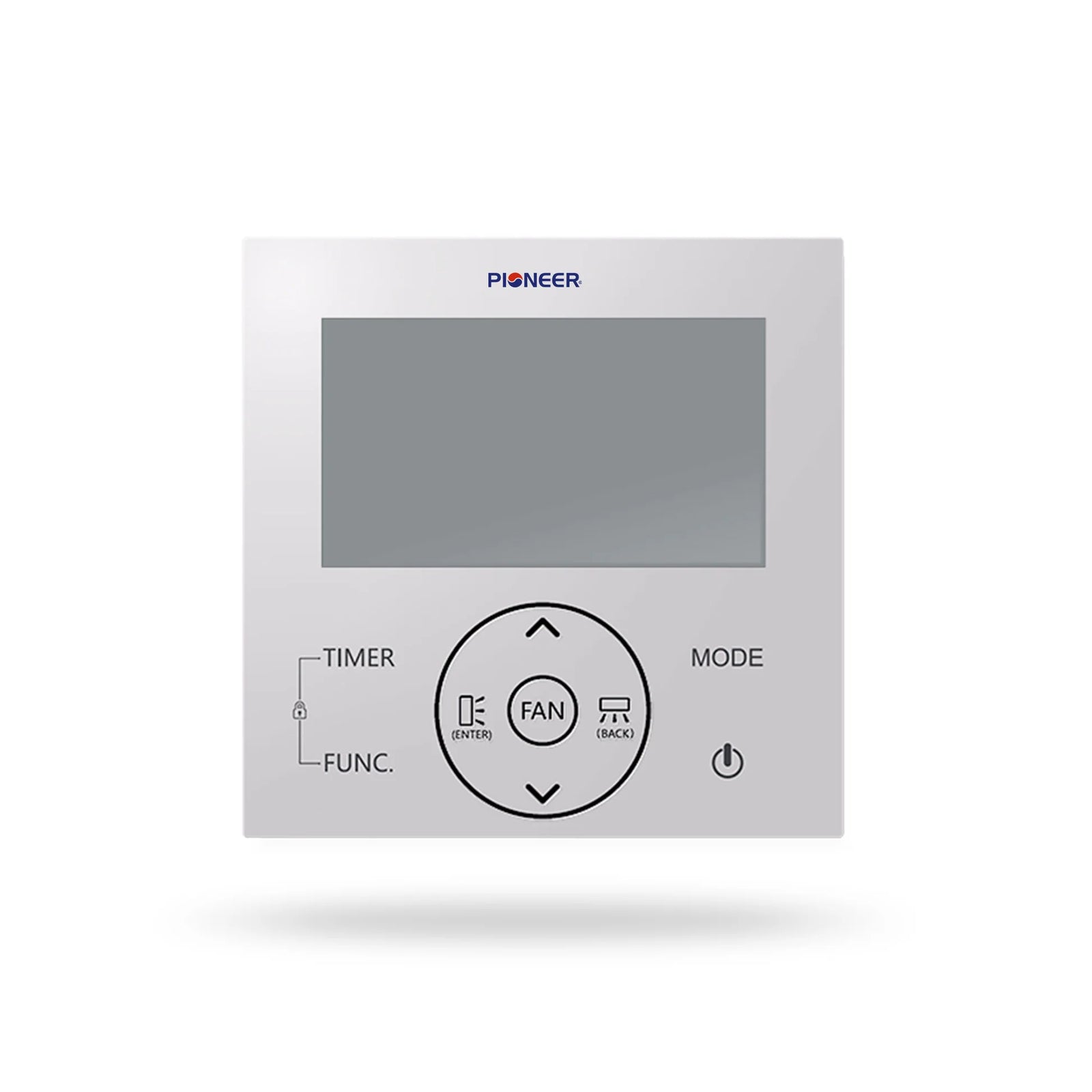

- Wire Remote Control

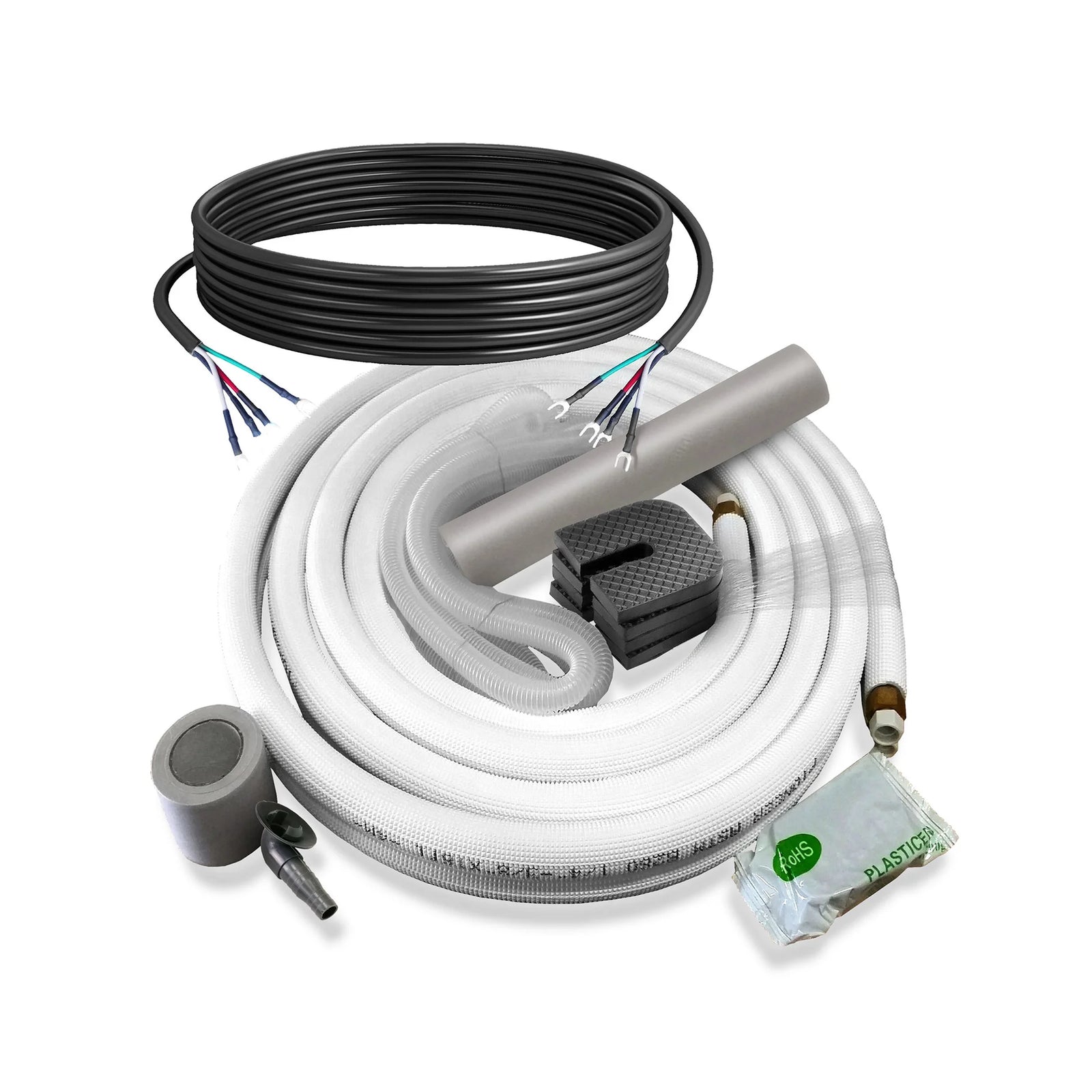

- Customizable Length Copper Lines
- Customizable Length Electrical Wire
- 10 Ft. Drain for indoor/outdoor
- Wall Passage Sleeve
- Putty for Wall Hole
- Leak Guard Sealer
- Wrapping Tape
- Installation Manual
- User’s Manual
Summary:
- High Efficiency Quantum Ultra Ceiling Concealed Ducted Split Heat Pump System
- Cooling capacity: 9,500 BTU/H with 20.5 SEER2 / 12.5 EER2 efficiency
- Heating capacity: 9,500 BTU/H with 9.5 HSPF2 / 3.5 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph

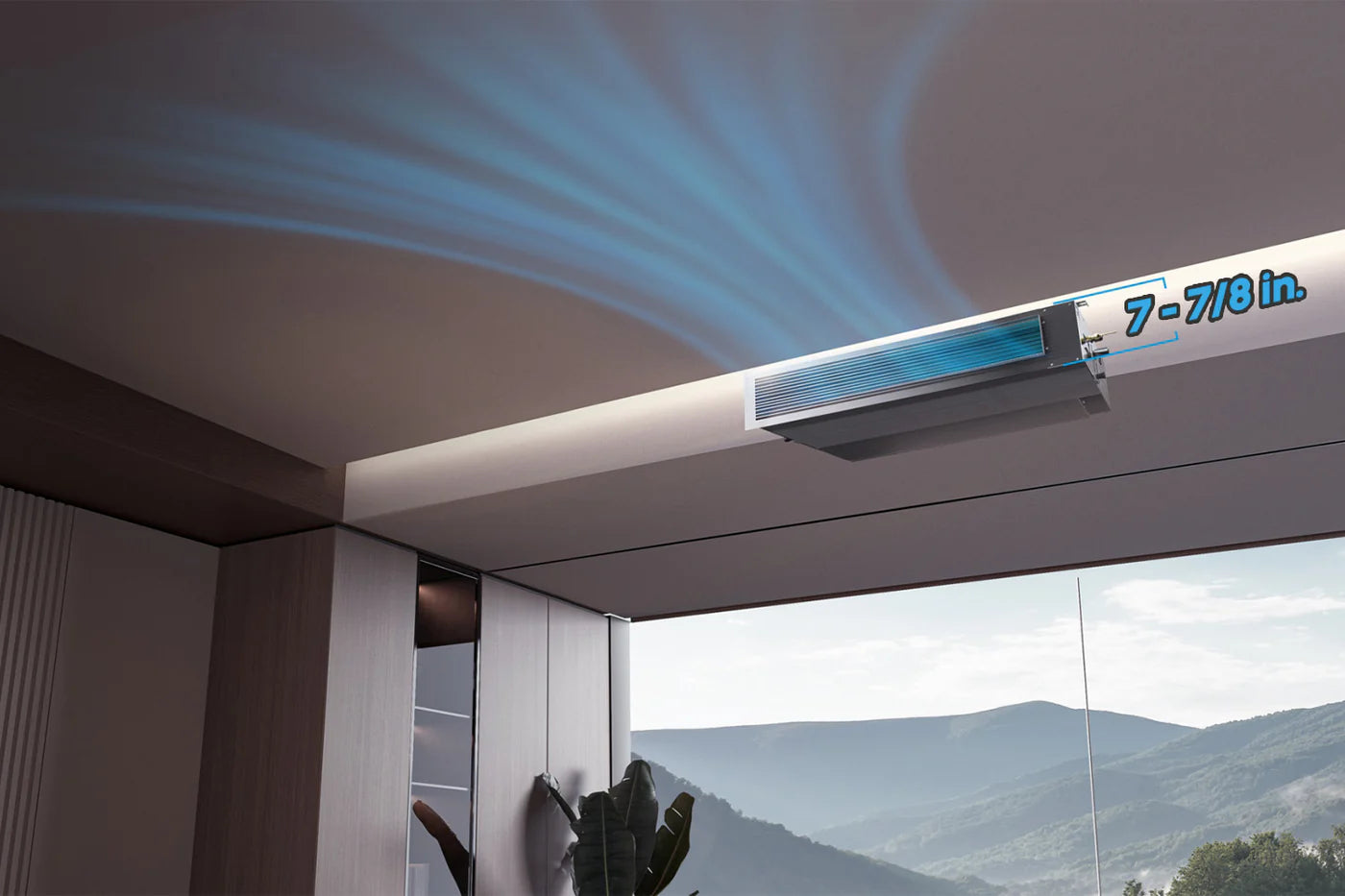

- Ceiling Concealed Mounted Ducted Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Features:
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers
- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Specifications:
Power Supply: 208~230V, 60Hz, 1Ph
Cooling Rated Capacity: 9,500 BTU/h
Cooling Capacity Range: 2,000~10,400 BTU/h
Cooling SEER2: 20.5 BTU/W.h
Cooling EER2: 12.5 BTU/W.h
Heating Rated Capacity: 9,500 BTU/h
Heating Capacity Range: 2,500~12,300 BTU/h
Heating HSPF2 (Region IV): 9.5 / 8.5 BTU/W.h
Heating C.O.P.2 (47°F/5°F): 3.5 / 1.9 W/W
Refrigerant Type: R454b
Suitable Area: 250~350 Sq.F
AHRI Reference: 217048762
Indoor Unit
Part Number: RT009GLSILCFHG
Air Flow (Turbo/Hi/Med/Lo/Mute): 335/305/276/182/182 CFM
Sound Level (Turbo/Hi/Med/Lo/Mute): 43/41/39 dB(A)
Product Dimensions (WDH): 27"-1/2 x 19"-1/4 x 7"-7/8 Inches
Carton Dimensions (WDH): 35"-1/2 x 21"-7/8 x 9"-7/8 Inches
Net / Gross Weight: 33.1 / 40.8 lbs.

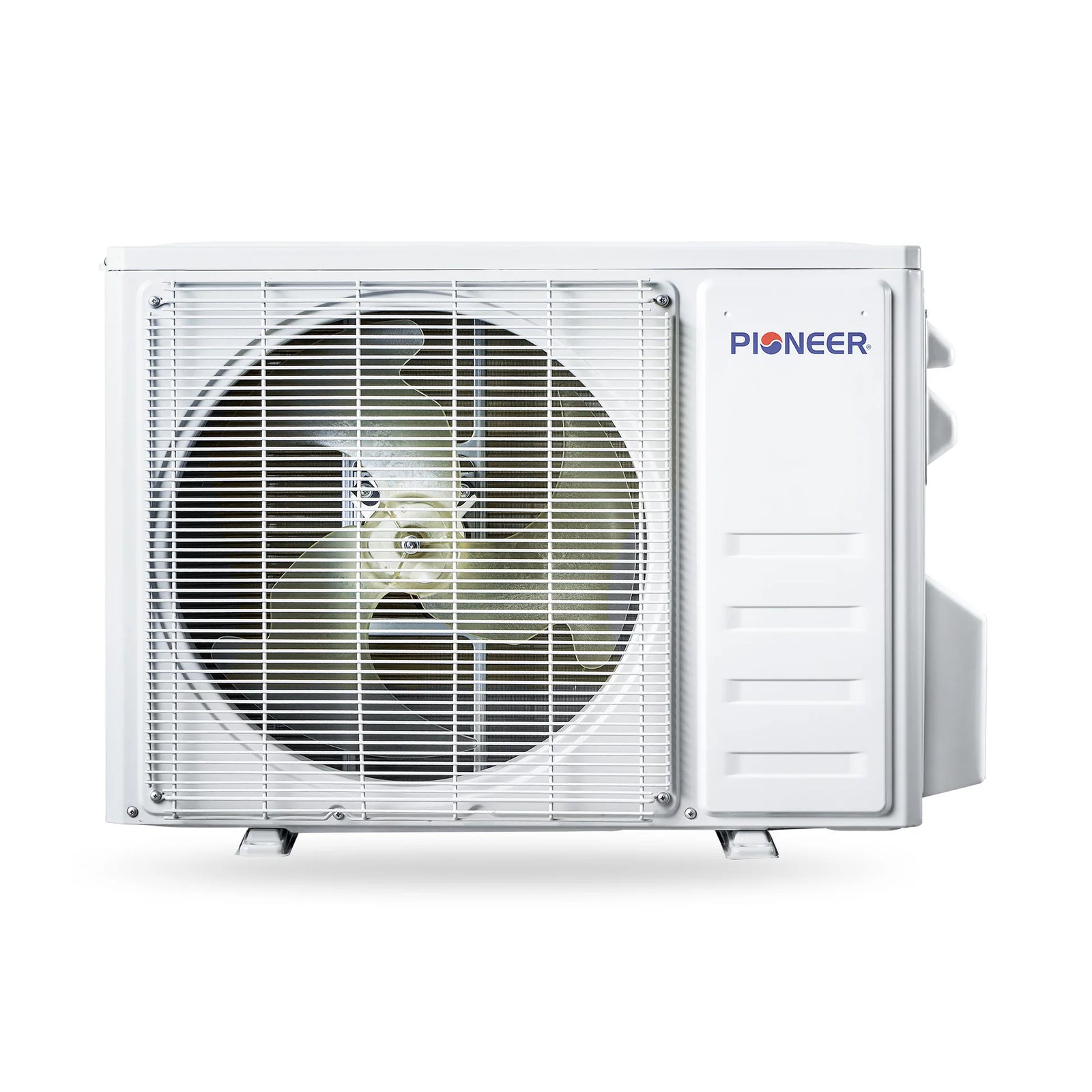

Outdoor Unit
Part Number: YN009GLSI24RPG
Breaker Needed: 15A (double-pole)
Sound Level: 50 dB(A)
Net Dimensions (WDH): 31"-7/8 x 12" x 21"-5/8 Inches
Carton Dimensions (WDH): 32"-7/8 x 13" x 22"-5/8 Inches
Net / Gross Weight: 52.7 / 57.1 lbs.
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
Ask AI
Ask AI about this product
Ask our AI product assistant about sizing, compatibility, electrical needs, accessories, shipping, warranty, and install planning.
At a glance
Tech specs
| Condenser capacity | 9,000 |
|---|---|
| Indoor unit(s) | 9K |
| Coverage area | 400 Sq Ft. |
| Zones / rooms | 1 Zone |
| Efficiency | 18 SEER2 |
| Power | 230 Volt |
| Line set | Custom |
| Mount type | Wall |
| Installation | Professional Installation |
| Brand | Pioneer |
Sizing in doubt? Our HVAC experts confirm capacity for your rooms before you order — free. Ask us about utility rebates for high-efficiency heat pumps in your area.
