Stealth 24,000 BTU 21 SEER Solar Ready Single Zone Wall Mount Mini Split System w/ 16ft Line Set - R32 - 230V

Stealth 24,000 BTU 21 SEER Solar Ready Single Zone Wall Mount Mini Split System w/ 16ft Line Set - R32 - 230V

The Stealth Solar-Ready Hybrid 24,000 BTU mini-split is designed for powerful, energy-efficient climate control while supporting both grid and direct solar inputs. It seamlessly switches between AC and DC, allowing professional installers to offer solar-integrated comfort without compromising performance.

Note this unit is Solar Ready, but does not require use of Solar for Operation. Solar Panels Not Included.

Solar-Ready, Grid-Optional Operation:

• Hybrid AC/DC input (208–240 VAC & 90–380 VDC) accepts solar power and grid power simultaneously
• Automatically prioritizes solar input during daylight hours
• MC4-compatible solar terminals—connect PV array directly to the outdoor unit
• Built-in AC power limiter (adjustable up to 2250 W AC) controls grid usage
• Recommended solar input between 1600–2400 W allows daytime off-grid capability

High-Efficiency Heating & Cooling:

• 24,000 BTU cooling and 26,000 BTU heating capacity
• SEER2 rating of 21 / HSPF2 rating of 9.6 for excellent seasonal efficiency
• COP of 11.82 Btu/W under optimal conditions
• Operates in outdoor temperatures from 5°F to 131°F(14 °F to 136 °F)
• Eco-friendly R32 refrigerant with reduced environmental impact

Installer-Focused Design:

• Includes pre-vacuumed 16.4 ft refrigerant line set, ready for professional connection
• Quick-connect MC4 solar inputs simplify PV integration
• Compact outdoor unit (approx. 132 lb) accommodates versatile mounting
• Indoor unit designed for whisper-quiet operation (39–50 dB(A)) with modern styling
• Maximum line-set length: 82 ft; elevation difference: up to 32 ft

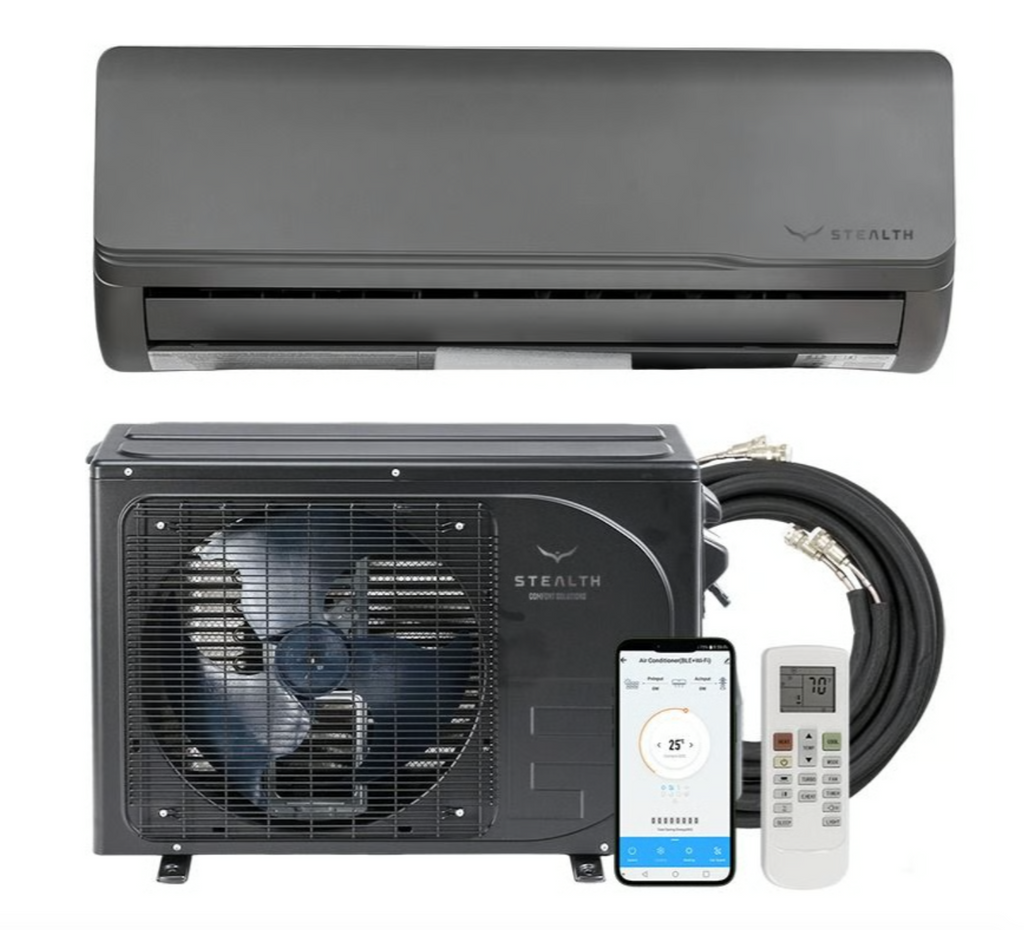

What’s Included:

• Indoor air handler
• Outdoor condenser unit
• 16.4 ft refrigerant line set and interconnect wiring
• Wall mounting bracket and accessory kit
• WiFi Ready
• LCD remote control

Warranty:

• 6-Year Limited Warranty on compressor and 4-Year on parts with Online Registration

Ideal For:

• Residential or light-commercial spaces up to ~1,350 sq ft
• Properties integrating solar PV to offset grid usage
• Installations prioritizing energy efficiency and flexible power sourcing

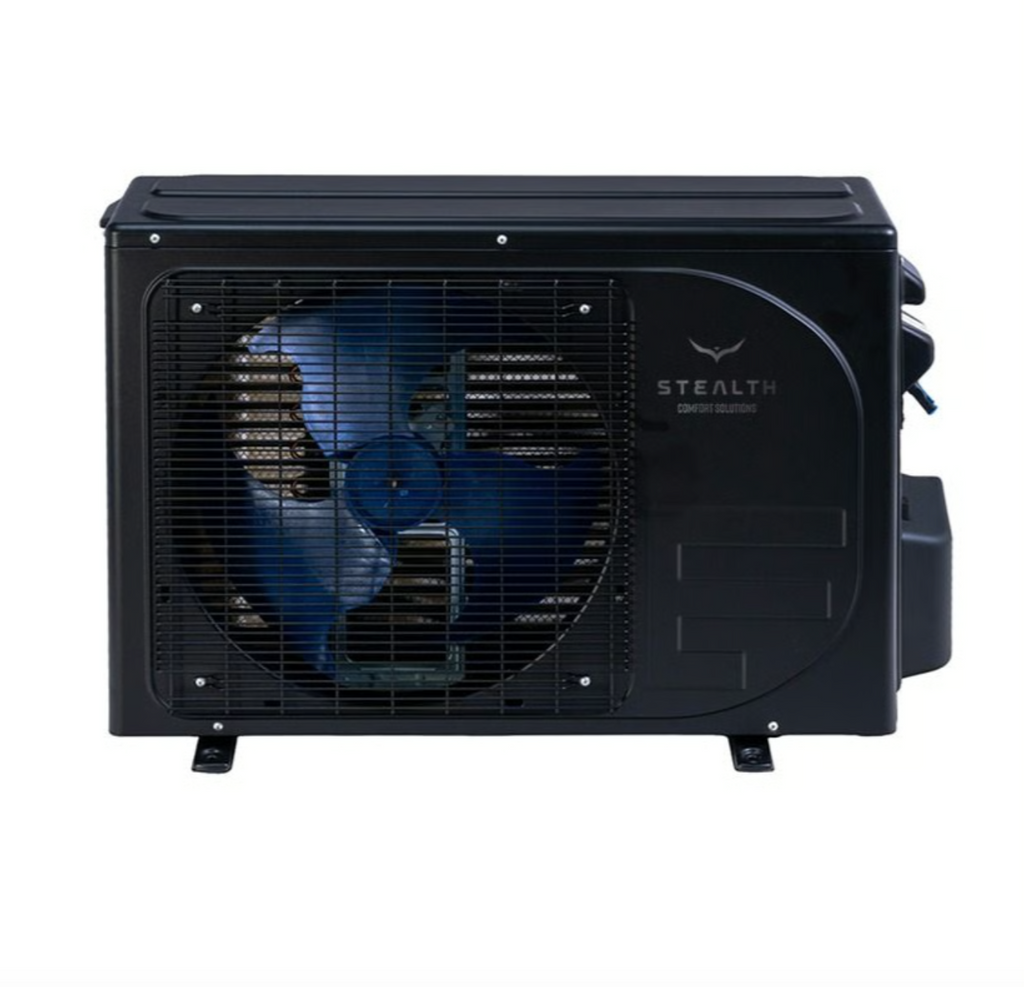

Condenser Specs:

Feature	Spec
SKU	S-24Z-ACDC230
Weight	114.640000
AHRI Certificate Number	208650754
Manufacturer	Stealth
Product Features	WiFi, Solar Ready
Additional Information	Heat Pump
Additional Information	Maximum Line Set Length: 98'
Additional Information	Minimum Line Set Length: 10'
Additional Information	Drain: 5/8"
HSPF	10
Cooling BTU	24,000
Heating BTU	24,000
Maximum CFM	1940 CFM
Decibel Level (dBA)	58 dB(A)
Energy Star	Yes
Refrigerant	R32
SEER	18-20
EER	11.7
Compressor Type	Rotary
Liquid Line	1/4"
Suction Line	1/2"
Electrical	208-230V 1 Phase 60 Hz
Electric Phase Filter	Single Phase
Max Breaker Size	20 Amps
Min. Breaker Size	16.33 Amps
BTU/Tonnage	24,000 BTU/2 Ton
Mini Split Type	Wall Mounted
Min/Max Outdoor Temp for Heating	5F - 86F
Min/Max Outdoor Temp for Cooling	32F - 131F
Zone Compatibility	Single Zone

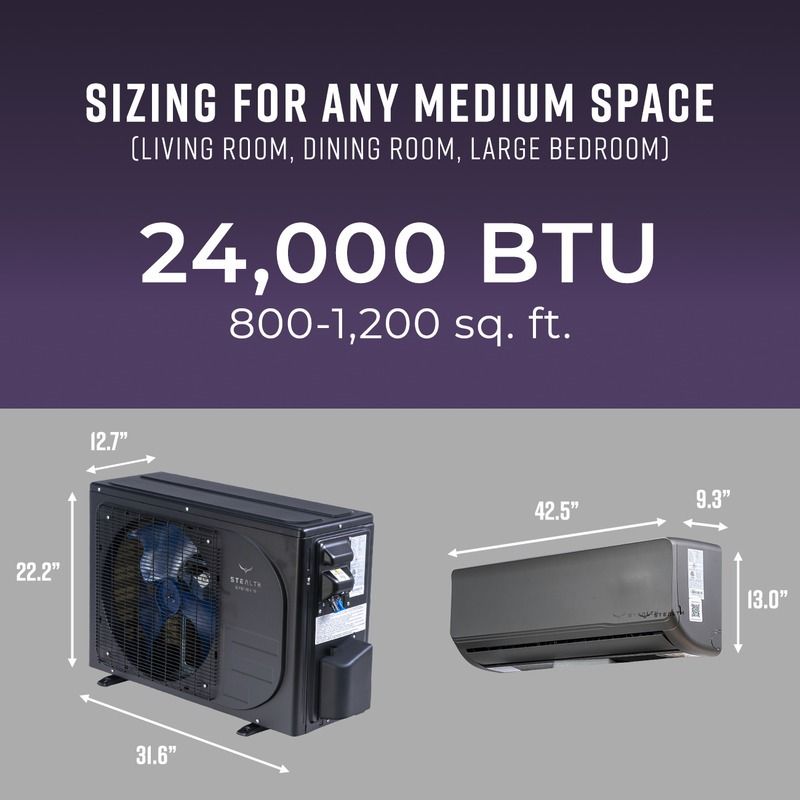

Height	27.56"
Width	35.43"
Depth	13.27"
Warranty	6 year compressor, 4 year parts with online registration

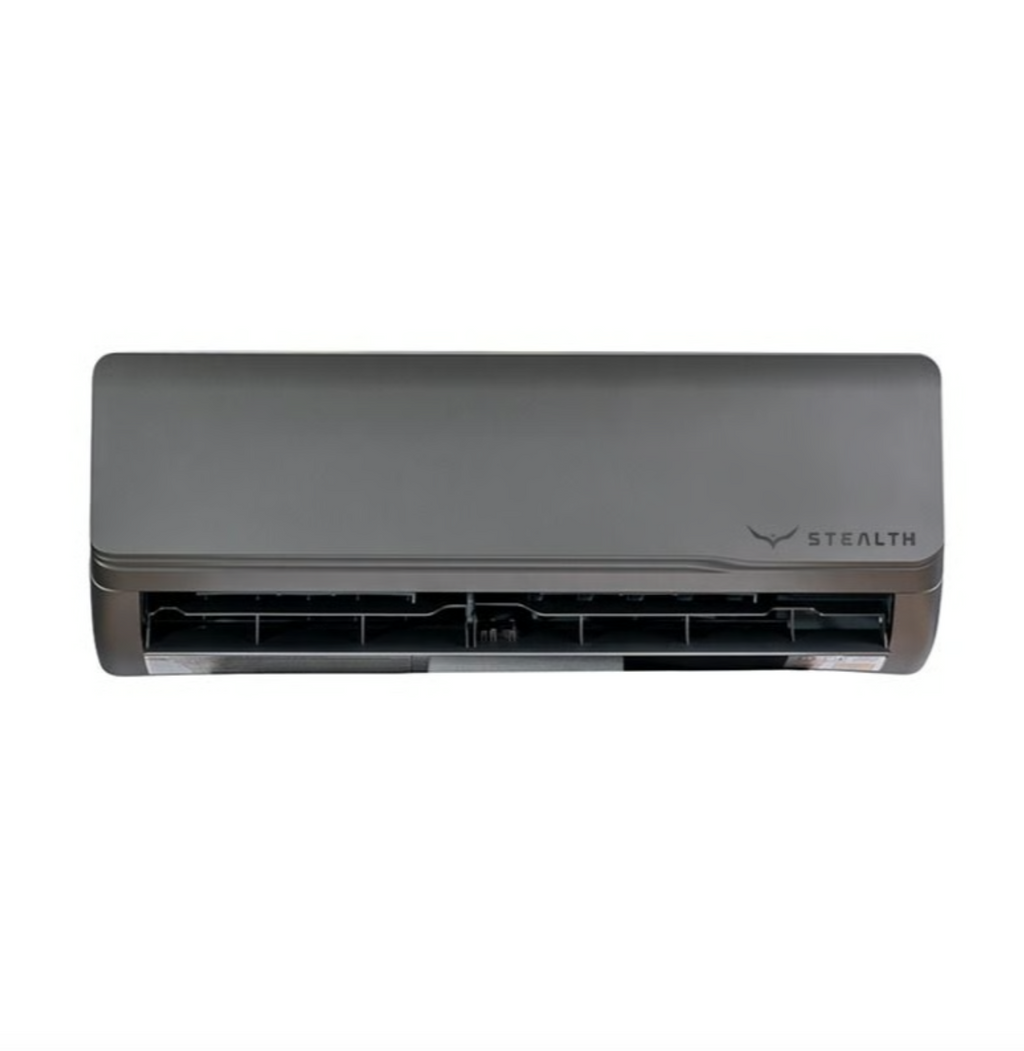

Air Handler Specs:

Feature	Spec
SKU	S-24W-ACDC230
Weight	38.580000
Manufacturer	Stealth
Controller	Wireless Included
Product Features	WiFi, Solar Ready
Additional Information	Drain: 5/8"
Cooling BTU	24,000
Heating BTU	24,000
Maximum CFM	430-700 CFM
Decibel Level (dBA)	Indoor Unit: 39-50 dB(A)
Refrigerant	R32
SEER	18-20
EER	11.7
Liquid Line	1/4"
Suction Line	1/2"
Electrical	208-230V 1 Phase 60Hz
Electric Phase Filter	Single Phase
BTU/Tonnage	24,000 BTU/2 Ton
Mini Split Type	Wall Mounted
Zone Compatibility	Single Zone
Height	12.99"
Width	42.51"
Depth	9.33"
Warranty	6 year compressor, 4 year parts with online registration
