Product overview

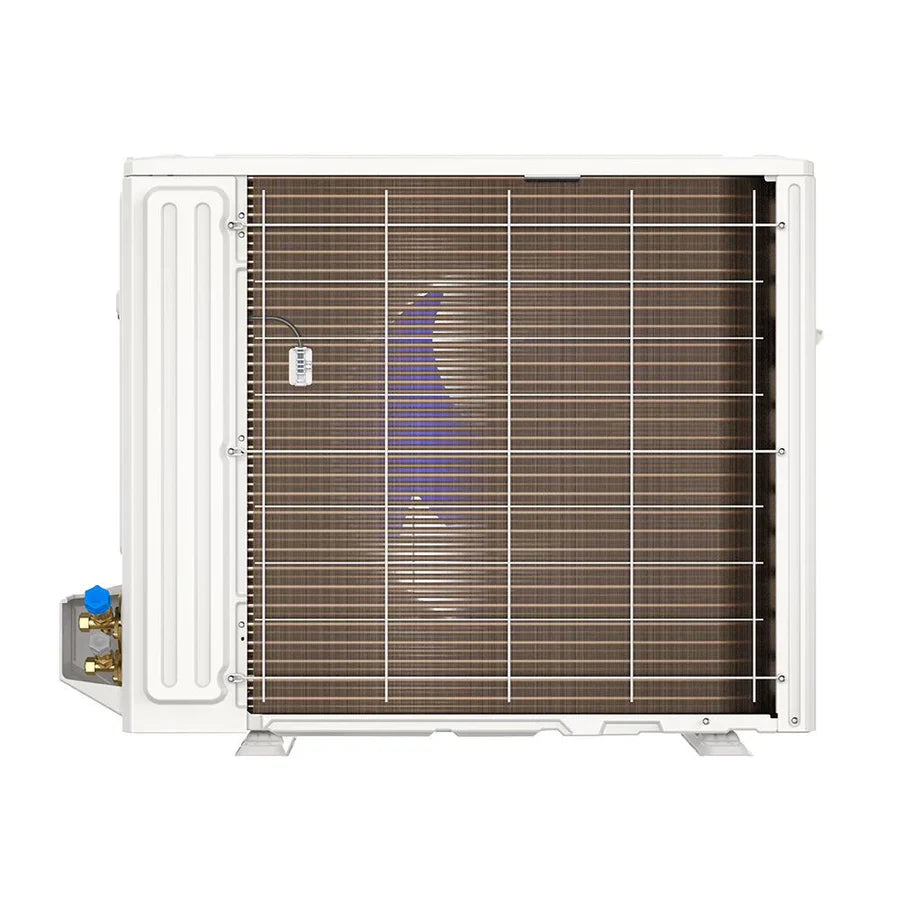

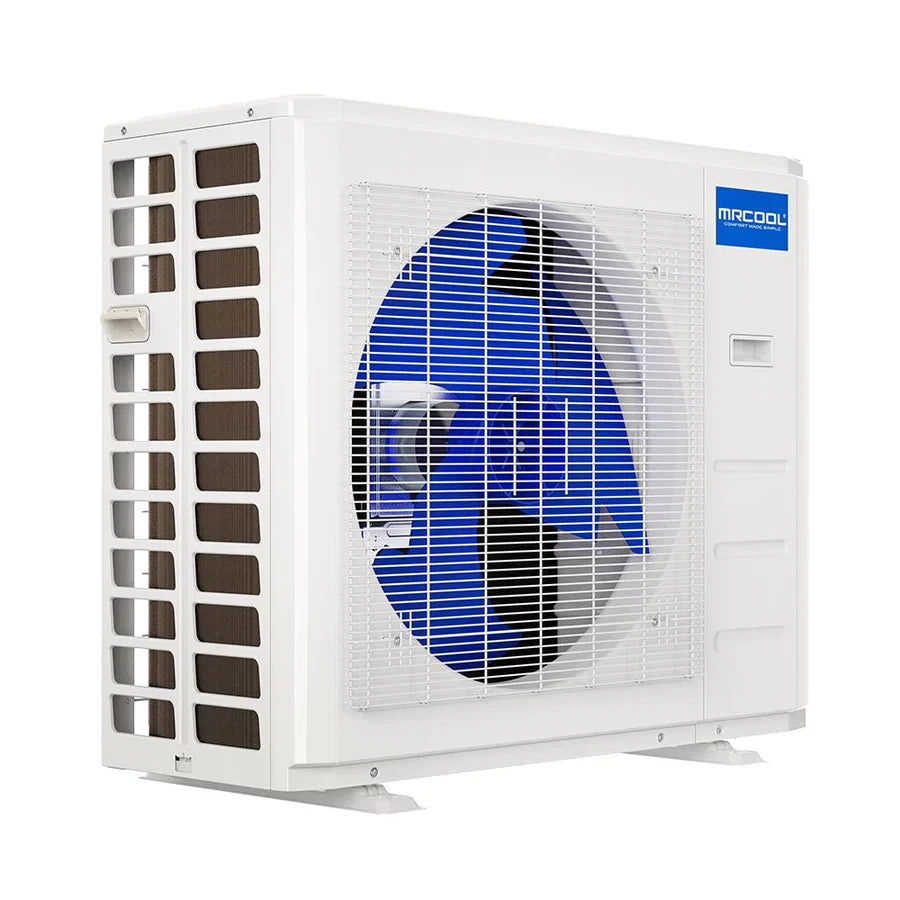

MRCOOL DIY 12K BTU 5th Gen Ductless Mini Split Condenser - 115V
The 5th Generation MRCOOL DIY 12k BTU 23.5 SEER Ductless Heat Pump Single Zone Mini Split Condenser makes home climate control easier than ever. Designed for effortless installation, this system requires no special tools or professional experience and is ideal for spaces between 350-500 sq. ft. With a pre-charged 25-foot QuickConnect® line set filled with R-454B refrigerant, setup is simple and eliminates the need for vacuuming. The included DIYPRO® cable enhances durability, replacing traditional electrical conduit to protect against weather, animals, and yardwork damage. Controlling your comfort is seamless with multiple options, including the included remote, the SmartHVAC app for Apple and Android devices, or hands-free commands via Amazon Alexa and Google Assistant. Additionally, the Gold Fin Condenser provides exceptional corrosion resistance, making it a great choice for coastal environments. Equipped with a variety of features, this system enhances efficiency and comfort.
The Timer function helps manage energy use, while Auto mode maintains your desired temperature without constant adjustments. After a power outage, the system automatically resumes previous settings, and the anti-mildew function reduces condensation buildup in the air handler. Built for longevity, the 5th Generation MRCOOL® DIY® Mini Split offers an industry-leading warranty, including a limited lifetime warranty, plus a 7-year compressor and 5-year parts warranty. Combining advanced technology, user-friendly operation, and long-term reliability, this system is designed for hassle-free home comfort.
Product Specifications:
| BRAND NAME | MRCOOL |
| SERIES | DIY 5th gen Single-Zone Mini-splits |
| MODEL | DIY-12-HP-C-115D25-O |
| GTIN | 840255586955 |
| UPC | 840255586955 |
| SHORT DESCRIPTION | MRCOOL® 12k DIY 5th Generation Mini-Split Condenser 115v |
| SEER2 | 23.5 |
| EER2 | 12.5 |
| HSPF2-4 | 10.2 |
| HSPF2-5 | 7.6 |
| TONNAGE | 1 |
| COOLING CAPACITY (BTU) | 12000 |
| HEATING CAPACITY (BTU) | 12000 |
| VOLTAGE (V) | 115 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 20 |
| MIN CIRCUIT AMPACITY (A) | 18 |
| COLOR | White |
| ZONE CAPACITY | 1 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 30.34 |
| DECIBEL RATING (DBA) | 54 |
| INVERTER | DC |
| LINE SET LENGTH | 25 |
| MAX LINESET LENGTH (FT) | 82 |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE | 3/8 |
| COMPRESSOR MOTOR TYPE | Rotary |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | No |
| FAN ONLY OPTION | Yes |
| QUIET MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| UL LISTED | Yes |
| ETL LISTED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY | Extended Limited Lifetime* |
| BASE PARTS WARRANTY | 5 |
| BASE COMPRESSOR WARRANTY | 7 |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 11.93 |
| NET HEIGHT (IN) | 21.85 |
| NET WIDTH (IN) | 30.12 |
| NET WEIGHT (LBS) | 83.11 |
| GROSS DEPTH (IN) | 16.54 |
| GROSS HEIGHT (IN) | 27.56 |
| GROSS WIDTH (IN) | 36.22 |
| GROSS WEIGHT (LBS) | 65.48 |
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
Ask AI
Ask AI about this product
Ask our AI product assistant about sizing, compatibility, electrical needs, accessories, shipping, warranty, and install planning.
At a glance
Tech specs
| Condenser capacity | 12K BTU |
|---|---|
| Zones / rooms | 1 Zone |
| Mount type | Wall |
| Installation | DIY |
| Brand | MRCOOL |
Sizing in doubt? Our HVAC experts confirm capacity for your rooms before you order — free. Ask us about utility rebates for high-efficiency heat pumps in your area.
Complete Your System
See it done
Watch the full DIY install
Every step, start to finish — most homeowners wrap a single zone in a weekend.
