Product overview

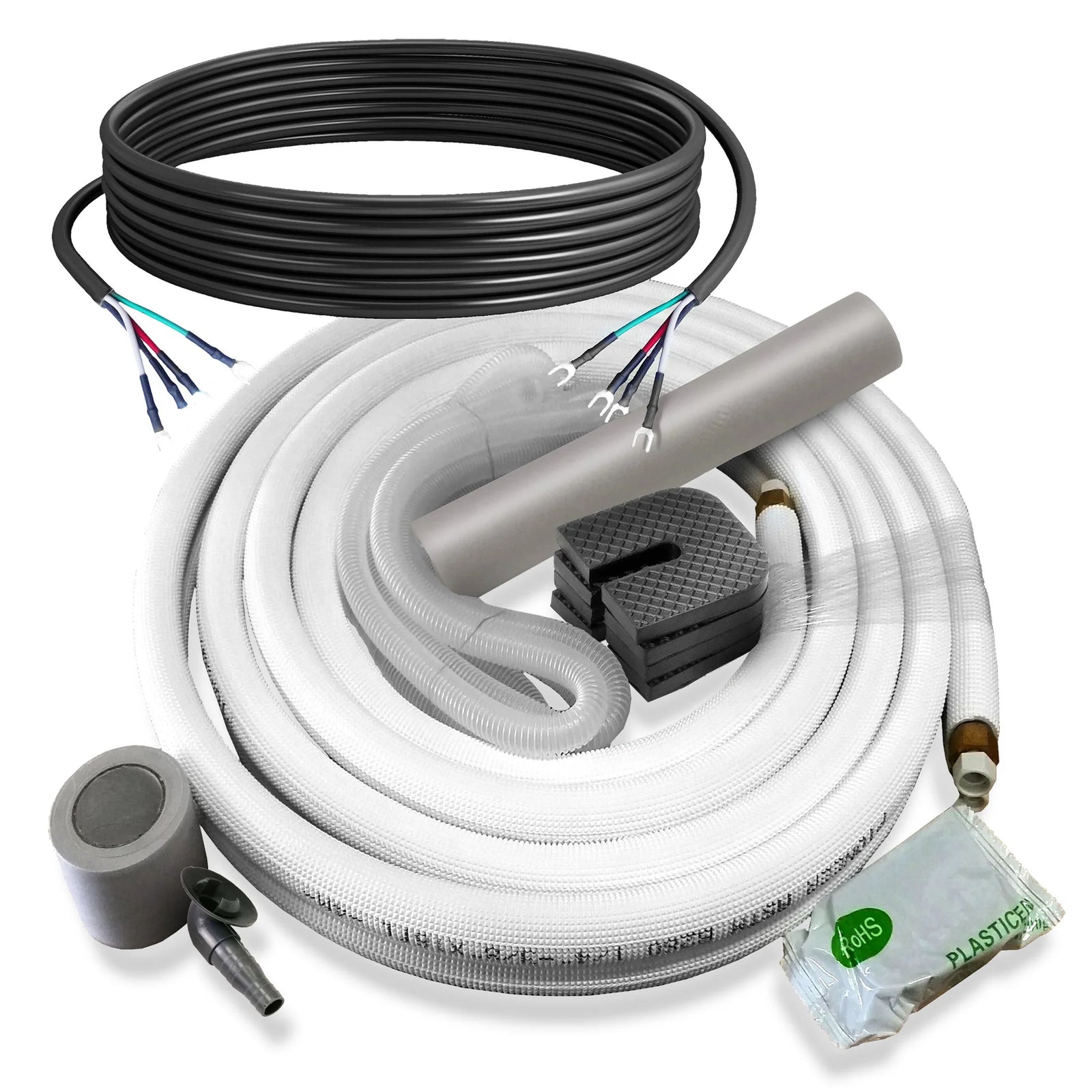

Pioneer® Diamante Pro™ 12,000 BTU 20 SEER2 High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit - 115V
Summary:
- High Efficiency Diamante Pro™ Ductless Mini Split Heat Pump System
- Cooling capacity: 12,000 BTU/H with 20.0 SEER2 / 10.5 EER2 efficiency
- Heating capacity: 12,000 BTU/H with 9.5 HSPF2 / 3.41 COP2 efficiency
- Voltage: 110/120V, 60Hz, 1Ph
- High Wall-Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Low Ambient Range Operation (As low as -4°F in Heating / As high as 122°F in Cooling)
Features:
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

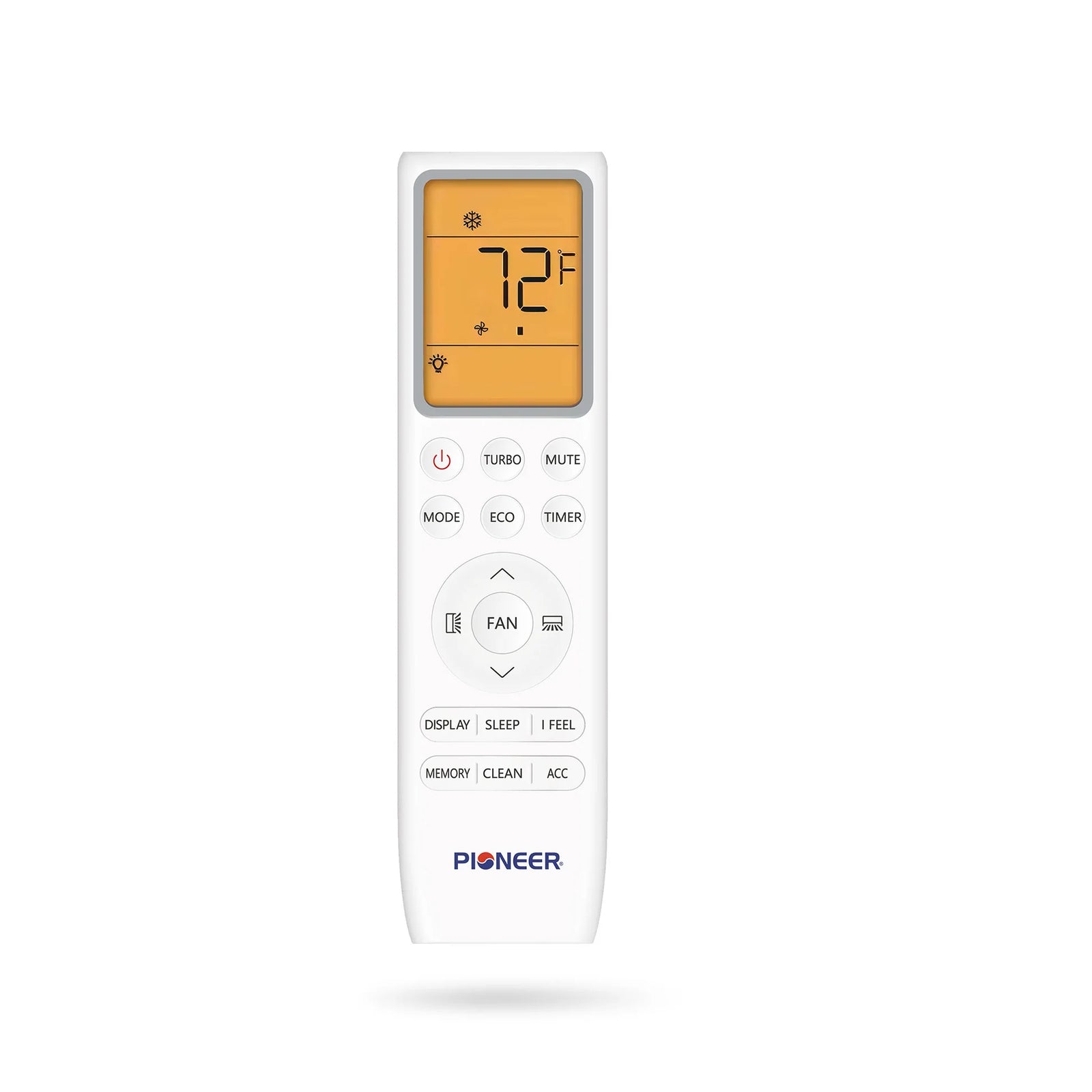

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Specifications:
- Power Supply: 110~120V, 60Hz, 1Ph
- Cooling Rated Capacity: 12,000 BTU/h
- Cooling Capacity Range: 3,400~13,000 BTU/h
- Cooling SEER2: 20.0 BTU/W.h
- Cooling EER2: 10.5 BTU/W.h
- Heating Rated Capacity: 12,000 BTU/h
- Heating Capacity Range: 3,400~13,900 BTU/h
- Heating HSPF2 (Region IV/V): 9.5 / 8.3 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.41 / 1.8 W/W
- Refrigerant Type: R454b
- Recommended Room Size: 350~500 sq ft
- Minimum Room Size: 34 sq ft
- Minimum Installation Height: 6 ft
- Piping Diameter:1/4 x 3/8"
- AHRI Reference: 217048742

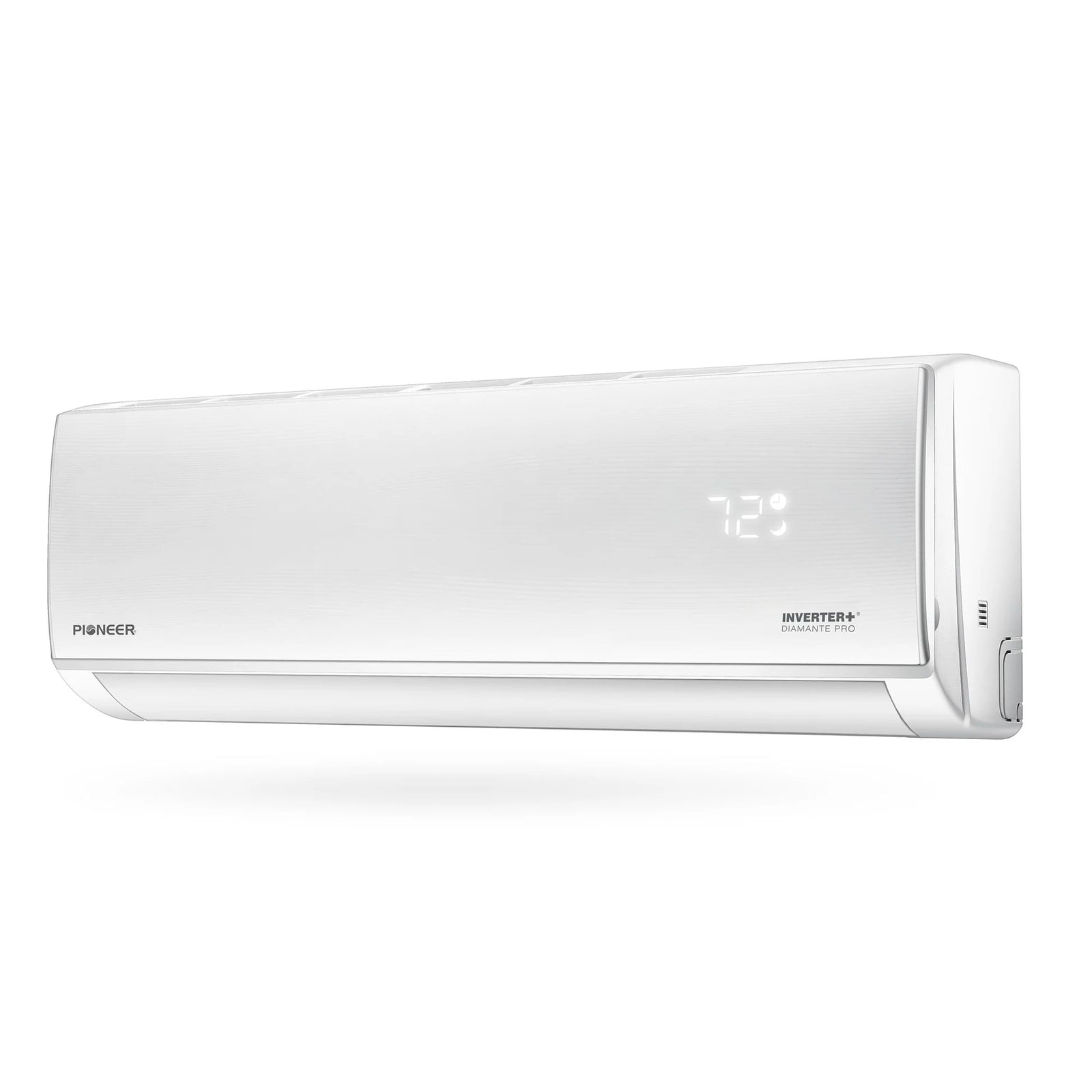

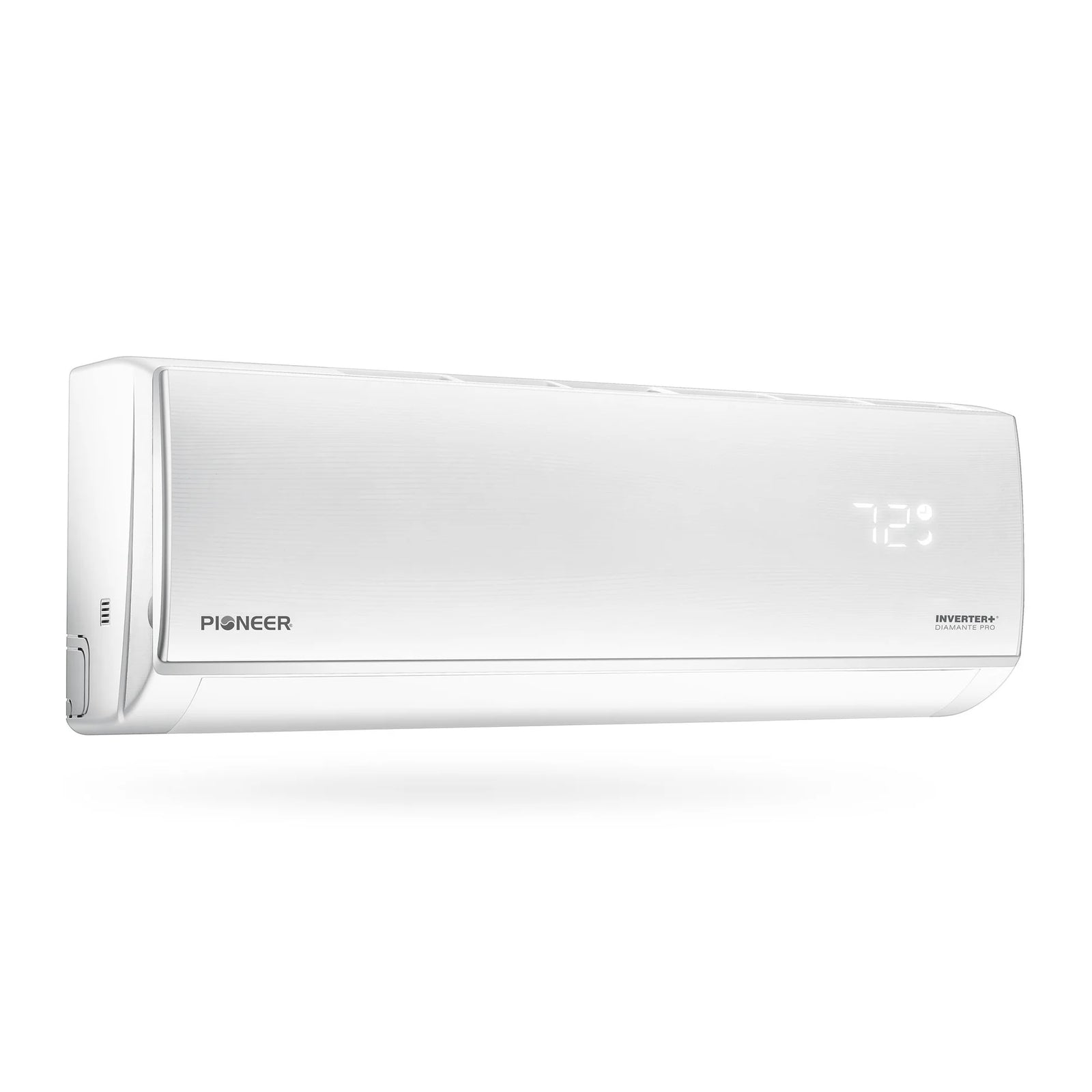

Indoor Unit:
- Part Number: WT012ALSI20HLF
- Air Flow (Turbo/Hi/Med/Lo/Mute): 342 / 270 / 235 / 200 / 152 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 45 / 42 / 35 / 30 / 28 dB(A)
- Product Dimensions (WDH): 31"-7/8 x 8" x 11"-1/2 Inches
- Carton Dimensions (WDH): 34"-7/8 x 10"-3/4 x 14"-3/8 Inches
- Net / Gross Weight: 19.8 / 26.5 lbs.

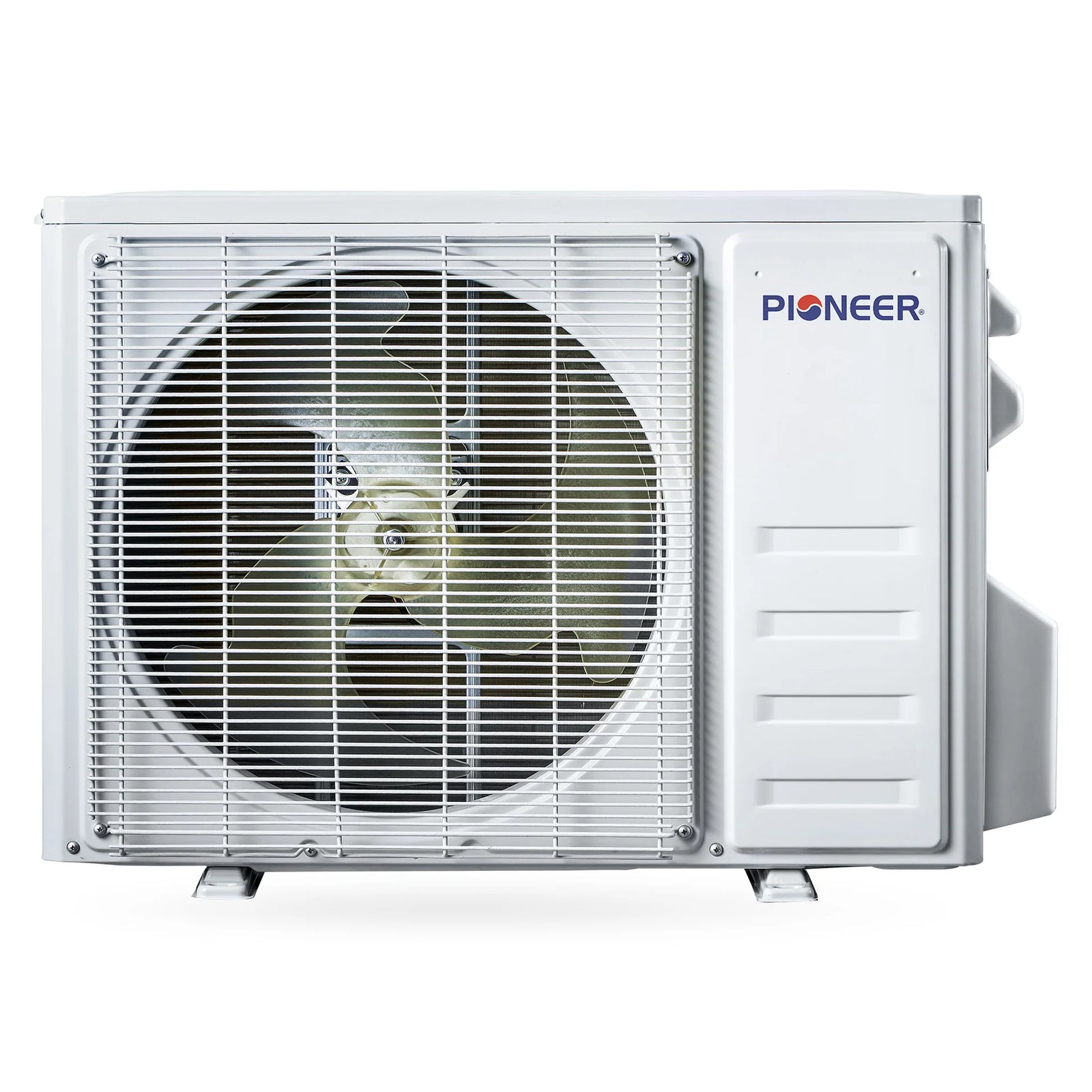

Outdoor Unit:
- Part Number: YN012ALSI20RPF
- Breaker Needed: 20A (single-pole)
- Sound Level: 55 dB(A)
- Net Dimensions (WDH): 31" x 11"-1/2 x 19"-3/8 Inches
- Carton Dimensions (WDH): 33" x 13"-3/8 x 22"-3/4 Inches
- Net / Gross Weight: 55.1 / 66.1 lbs
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
Ask AI
Ask AI about this product
Ask our AI product assistant about sizing, compatibility, electrical needs, accessories, shipping, warranty, and install planning.
At a glance
Tech specs
| Condenser capacity | 12,000 |
|---|---|
| Indoor unit(s) | 12K |
| Coverage area | 600 Sq Ft. |
| Zones / rooms | 1 Zone |
| Power | 115 Volt |
| Line set | Custom |
| Mount type | Wall |
| Installation | Professional Installation |
| Brand | Pioneer |
Sizing in doubt? Our HVAC experts confirm capacity for your rooms before you order — free. Ask us about utility rebates for high-efficiency heat pumps in your area.
