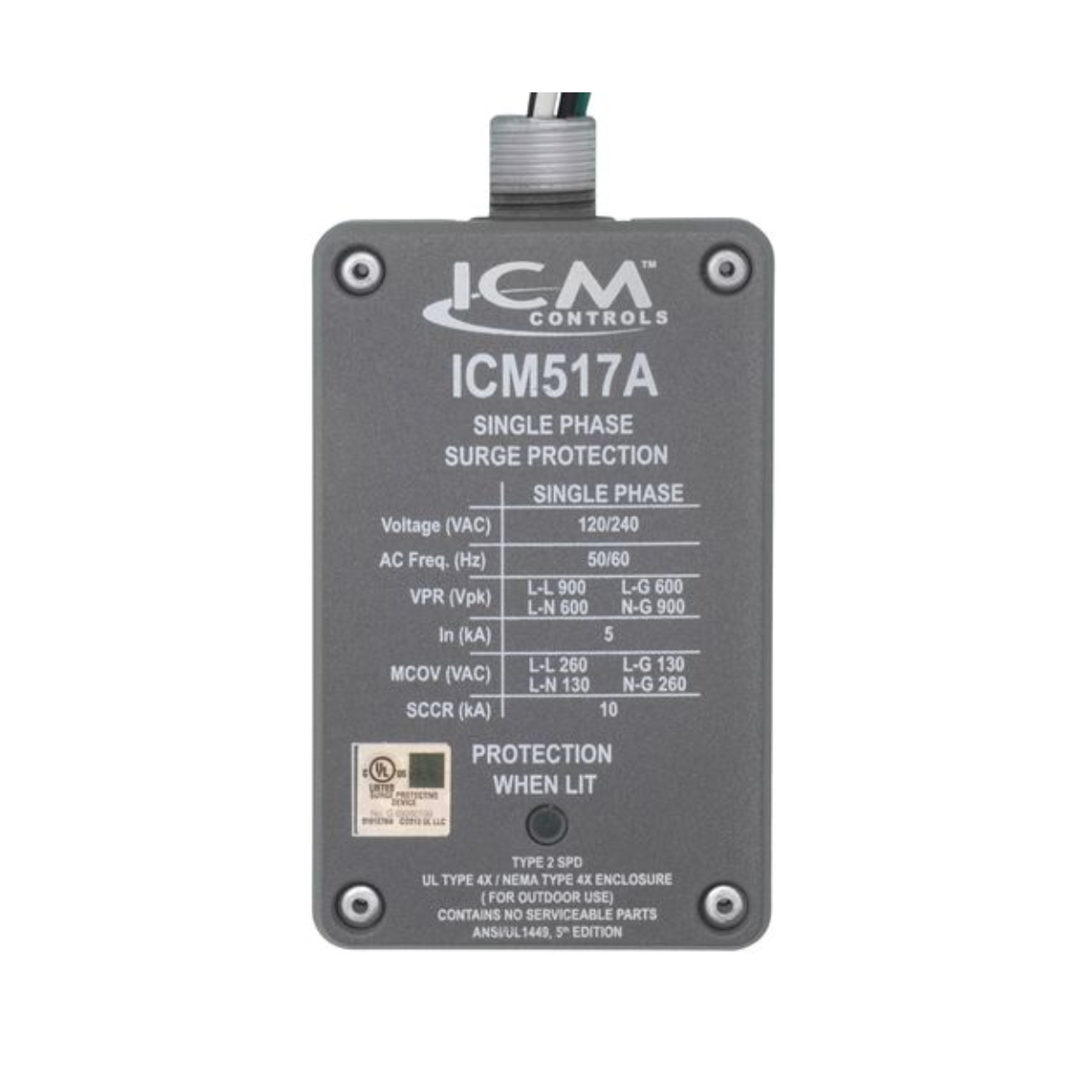

ICM Controls Single Phase Surge Protector

The ICM517A is a rugged, NEMA Type 4X enclosed Type 2 Surge Protective Device (SPD) engineered to safeguard your valuable single-phase equipment. By actively dissipating momentary voltage spikes and transient power surges, it ensures the longevity and safe operation of air conditioning systems, refrigeration units, motors, appliances, and sensitive electronics.

Building on a Legacy of Trust The new ICM517A takes the tried-and-true performance of the industry-favorite ICM517 and elevates it to a new standard of durability. With hundreds of thousands of legacy units successfully installed in the field, we kept the reliable performance professionals trust and housed it in a significantly more robust, cast-aluminum enclosure.

Key Features & Benefits

• Heavy-Duty Construction: Features a robust cast-aluminum enclosure and a redesigned rivet-sealed molded case with an internal gasket to withstand major surge events.

• Weather & Corrosion Resistant: NEMA Type 4X rated for versatile indoor or outdoor installation. Features a UL-rated powder coating for superior corrosion resistance and outperforms standard ABS plastics in prolonged UV exposure.

• Space-Saving Design: A thinner, more compact profile than previous generations makes installation easier in tight spaces.

• Up-to-Date Compliance: Fully updated to meet the latest edition of UL safety standards.

• Made in America: Proudly manufactured in the USA.

• Peace of Mind: Backed by a limited lifetime product warranty and up to a 3-year, $25,000 connected equipment warranty.

Technical Specifications

• Service Voltage: 120/240 Volt, Single-Phase

• Maximum Surge Current: 100,000 Amps

• Maximum Energy Dissipation: 1,020 Joules

• AC Protection Modes: L-L, L-N, L-G, N-G

• Diagnostics: High-visibility green LED light confirms active surge suppression

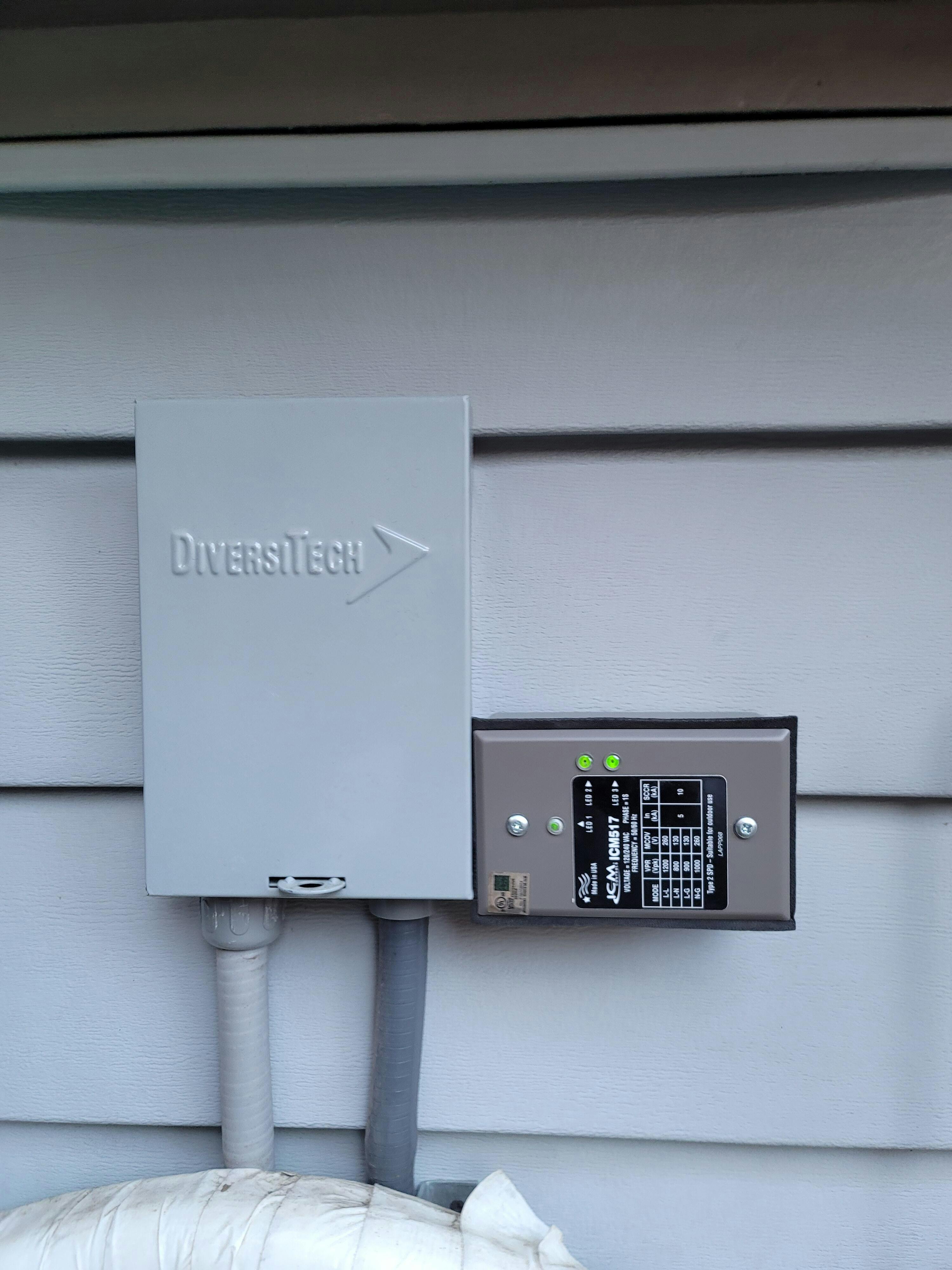

• Installation Point: Electrical panel or electrical disconnect

• Conduit Connection: 3/4”

Ideal Applications

Protects residential and commercial equipment against surges caused by lightning strikes, as well as voltage fluctuations from air conditioners, generators, and large motors.

• Air Conditioners & HVAC Systems

• Refrigeration Systems

• Electric Motors

• Household Appliances

• Sensitive Electronics
