Product overview

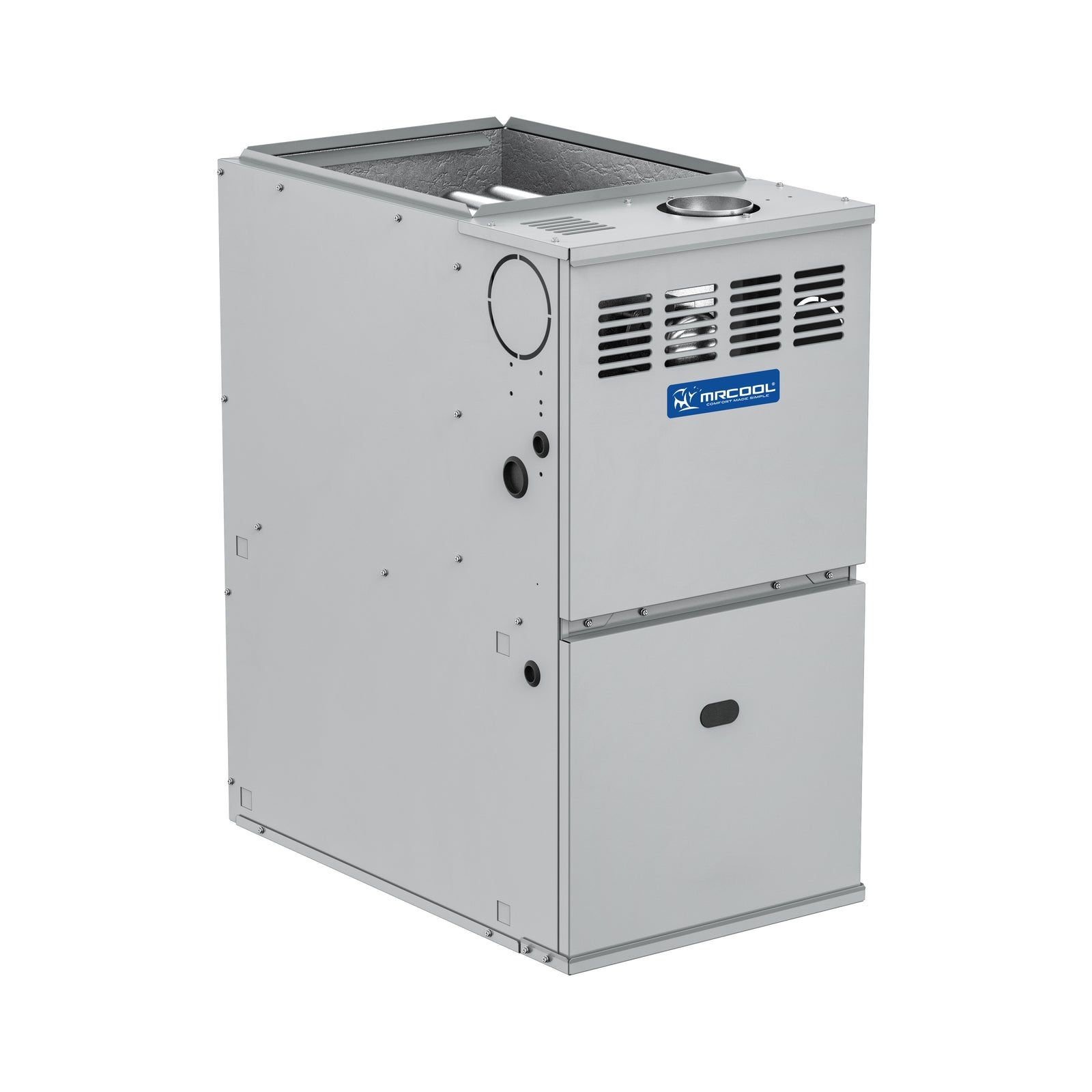

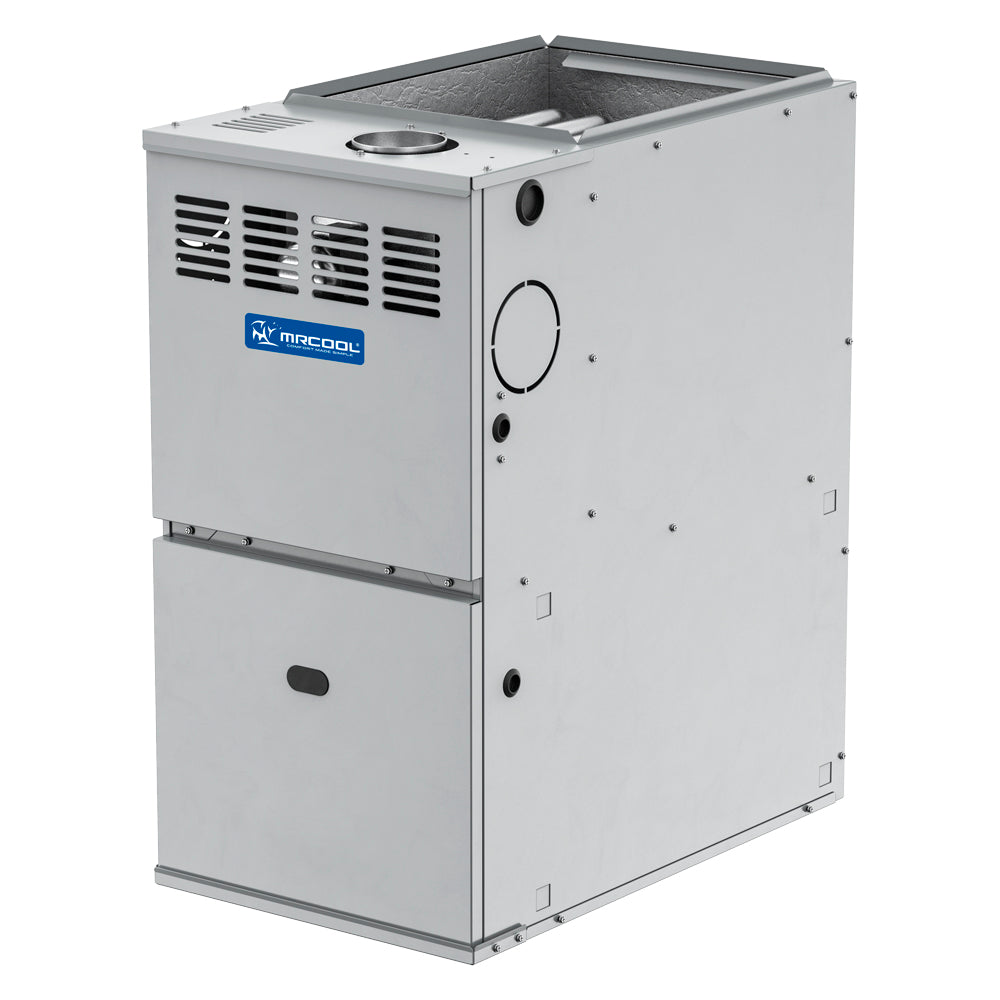

MRCOOL 40,000 BTU 80% AFUE Variable Speed VersaPro Gas Furnace - Multiposition - 14.5" Cabinet
Introducing the MRCOOL® VersaPro® 40K BTU 80% AFUE Gas Furnace, designed to keep your home warm and comfortable throughout the winter. With an 80% AFUE rating, this high-efficiency furnace ensures that most of the fuel consumed is converted into heat, providing cost-effective and reliable warmth while helping to reduce energy expenses.
Built for durability and performance, the VersaPro® features a powerful ECM blower motor, which enhances airflow efficiency, allows for easy speed adjustments, and contributes to lower utility costs. Its compact design ensures flexible installation, making it an ideal choice for homes with limited space. Whether for upflow, downflow, or horizontal applications, this furnace offers multi-position installation for maximum adaptability. Additionally, it features convenient left or right gas and electric service connections, and with an optional LP conversion kit, it can easily switch from natural gas to propane.
This furnace is compatible with a wide range of 24V thermostats, allowing for seamless control. For added peace of mind, it comes with a 10-year parts warranty and a lifetime heat exchanger warranty when registered within 90 days of installation. Even without registration, it includes a 5-year parts warranty and a 20-year heat exchanger warranty, ensuring long-term reliability and home comfort.
Features:
- Durable Build & Finish
- Multi-Position Application
- Two-Stage DC motor
- Quiet Operation
- Superior Performance
- Durable Build & Finish
- Optional LP Kit
- Multi-Position Application
- 80% AFUE
- Two Stage
- Energy Efficient
- Compatible with R454b Refrigerant
Specifications:
| BRAND NAME | MRCOOL |
| SERIES |
Versapro R-454B 80% AFUE Gas Furnace
|
| MODEL | MGA80SE040A3C |
| GTIN | 840255588584 |
| UPC | 840255588584 |
| UNIT TYPE | Gas Furnace |
| CONFIGURATION | Multi-Position |
| SHORT DESCRIPTION |
80% AFUE 40K BTU Upflow/Horizontal/Downflow Single-Stage DC Motor VersaPro Natural Gas Furnace with A Cabinet
|
| AFUE | 80 |
| CFM | 1150 |
| FUEL TYPE | Natural/Propane Gas |
| BTU INPUT | 40000 |
| BTU OUTPUT | 32000 |
| VOLTAGE (V) | 115 |
| PHASE | 1 |
| CYCLE | 60 |
| STAGE | Single |
| MAX FUSE BREAKER (A) | 15 |
| MIN CIRCUIT AMPACITY (A) | 8 |
| FULL LOAD | 8A |
| NUMBER OF SPEEDS | 5 |
| NUMBER OF BURNERS | 3 |
| GAS CONNECTION SIZE | 3/4in |
| BLOWER MOTOR TYPE | ECM |
| BLOWER MOTOR HP | 1/2 |
| BLOWER MOTOR SPEEDS | 5 |
| BLOWER MOTOR RPM | 1050 |
| HEAT EXCHANGER TYPE | Aluminized tubular steel |
| IGNITION TYPE | Hot Surface |
| LP KIT INCLUDED | Yes |
| LP KIT AVAILABLE | Yes |
| UL LISTED | Yes |
| ETL LISTED | Yes |
| REGISTERED PARTS WARRANTY | 10 Years |
| BASE PARTS WARRANTY | 5 Years |
| REGISTERED HEAT EXCHANGER WARRANTY | Lifetime* |
| BASE HEAT EXCHANGER WARRANTY | 20 Years |
| CONTAINS ELECTRONICS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 28.5 |
| NET HEIGHT (IN) | 33.75 |
| NET WIDTH (IN) | 14.5 |
| NET WEIGHT (LBS) | 108 |
| GROSS DEPTH (IN) | 31.02 |
| GROSS HEIGHT (IN) | 41 |
| GROSS WIDTH (IN) | 17 |
| GROSS WEIGHT (LBS) | 132 |
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
