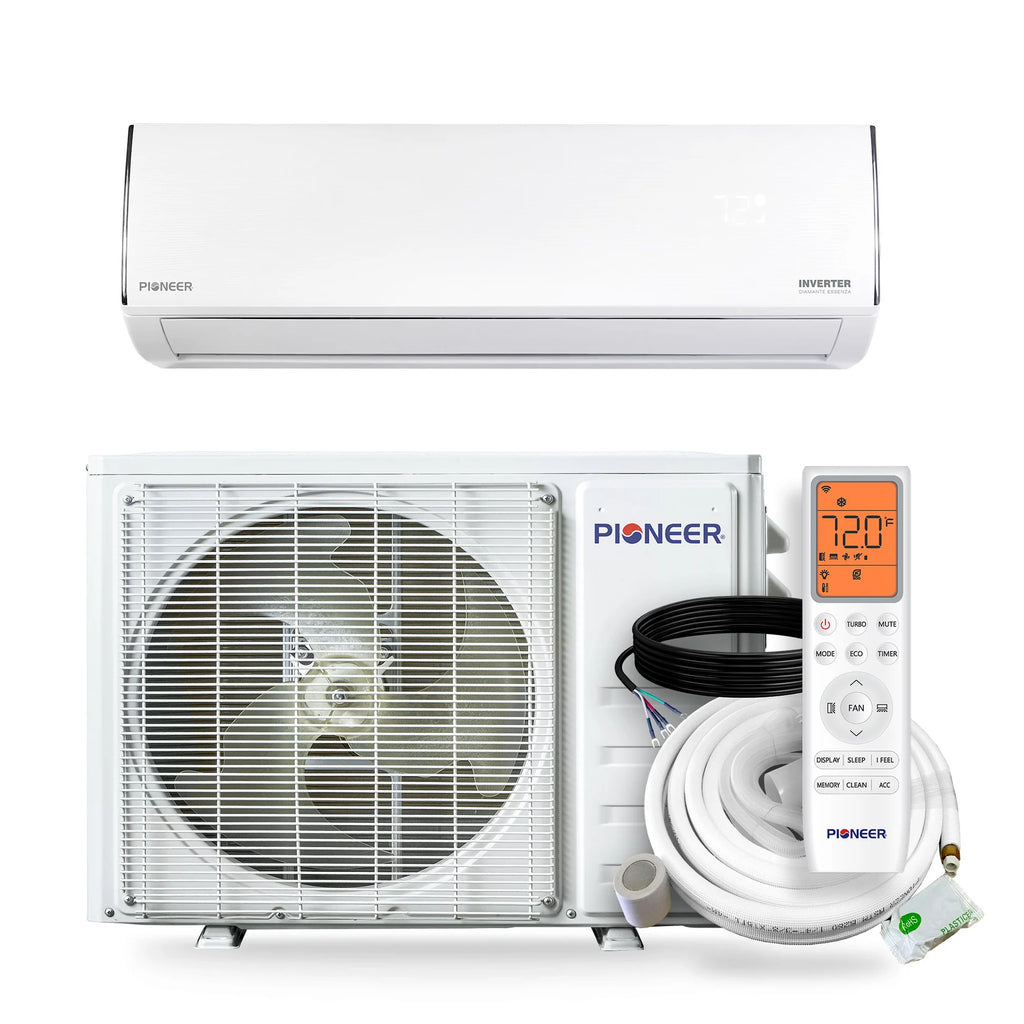

Pioneer® Diamante Essenza™ 35,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit

Pioneer® Diamante Essenza™ 35,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit

Our Pioneer® ductless mini split wall-mounted air conditioners and heat pumps come with a convenient remote controller conveys cooling, heating, dehumidification, and ventilation requests to the wall-mount ductless mini split system, while automatic air-sweeping louvers, automatically varying air flow, and capacity adjustments keep the zone at the ultimate comfort level.

• Standard Efficiency Diamante Essenza Ductless Mini Split Heat Pump System
• Cooling capacity: 35,000 BTU/H with 17 SEER2 / 9.5 EER2 efficiency
• Heating capacity: 35,400 BTU/H with 8.5 HSPF2 / 3.2 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• High Wall-Mounted Ductless Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R-32 Refrigerant
• Standard Ambient Range Operation (As low as 5°F in Heating / As high as 122°F in Cooling)

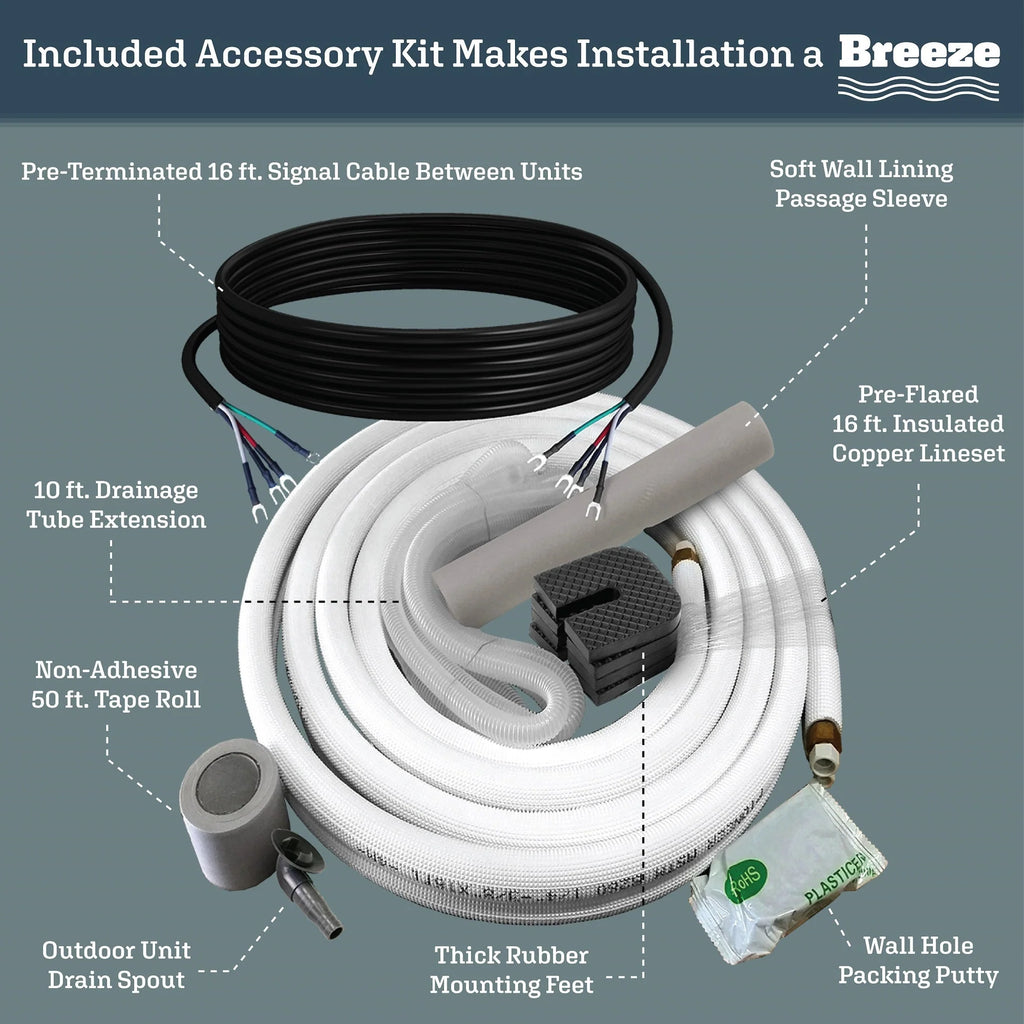

What's Included in Your Purchase

• Indoor Unit
• Outdoor Unit
• Wireless Remote Control
• Remote Control Wall Holder
• Remote Control Batteries
• 16 Ft. Copper Lines
• 16 Ft. Electrical Wire
• 10 Ft. Drain for indoor/outdoor
• Wall Passage Sleeve
• Putty for Wall Hole
• Leak Guard Sealer
• Wrapping Tape
• Installation Manual
• User’s Manual

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

• Up to 5 years Warranty for Parts
• Up to 5 years Warranty for Compressor

Specifications

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Rated Capacity: 35,000 BTU/h
• Cooling Capacity Range: 7,500~36,000 BTU/h
• Cooling SEER2: 17.0 BTU/W.h
• Cooling EER2: 9.5 BTU/W.h
• Heating Rated Capacity: 35,400 BTU/h
• Heating Capacity Range: 7,500~36,000 BTU/h
• Heating HSPF2 (Region IV): 8.5 / 7.5 BTU/W.h
• Heating C.O.P.2 (47°F/5°F): 3.2 / 1.8 W/W
• Refrigerant Type: R-32
• Suitable Area: 800~1350 Sq.F
• AHRI Reference: 217048738

Manuals & Documents

• Technical Brochure
• User & Installation Manual
• Service Manual
• Disassembly Manual
• Exploded Parts Diagram

IMPORTANT
The outdoor unit is factory pre-charged with R32 Refrigerant, accommodating refrigerant line lengths of up to 25 ft. per circuit. If using a lineset that exceeds this length, additional refrigerant will need to be charged into the system during installation. This model can only be purchased with the 16' lineset option.
