Description

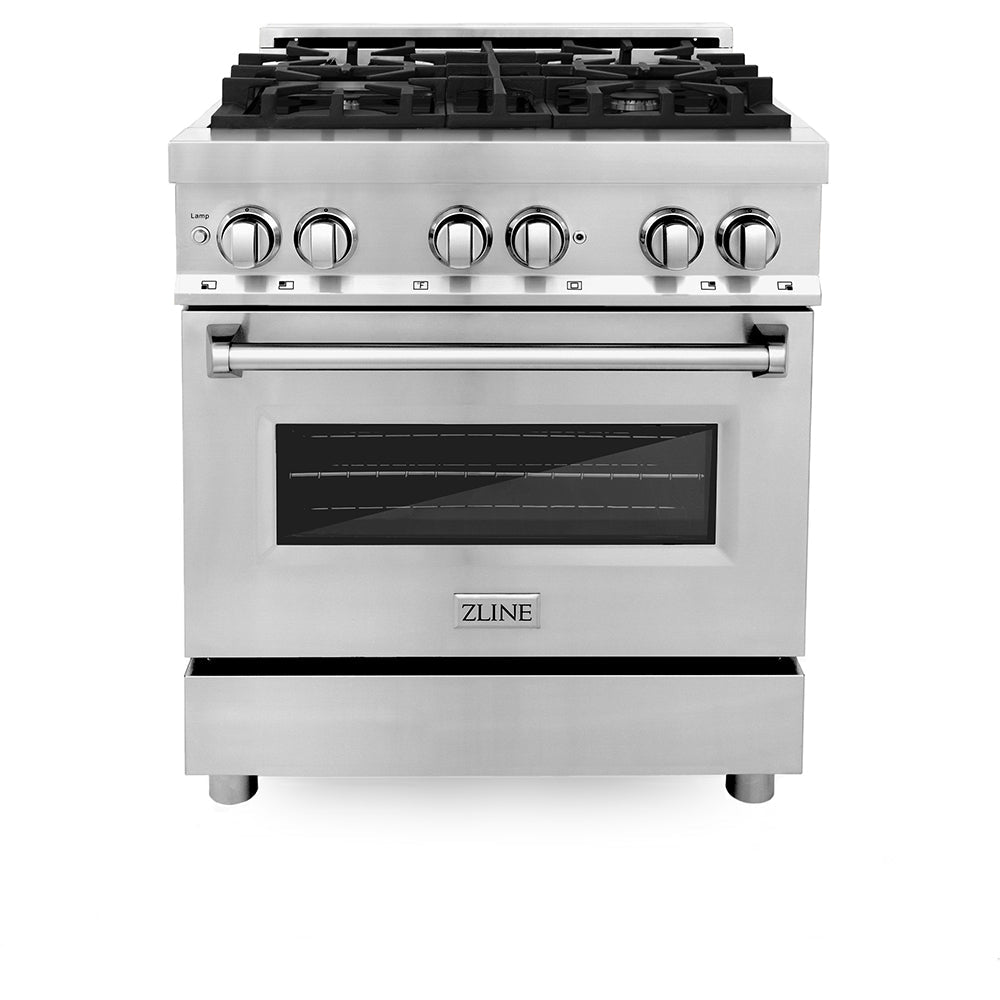

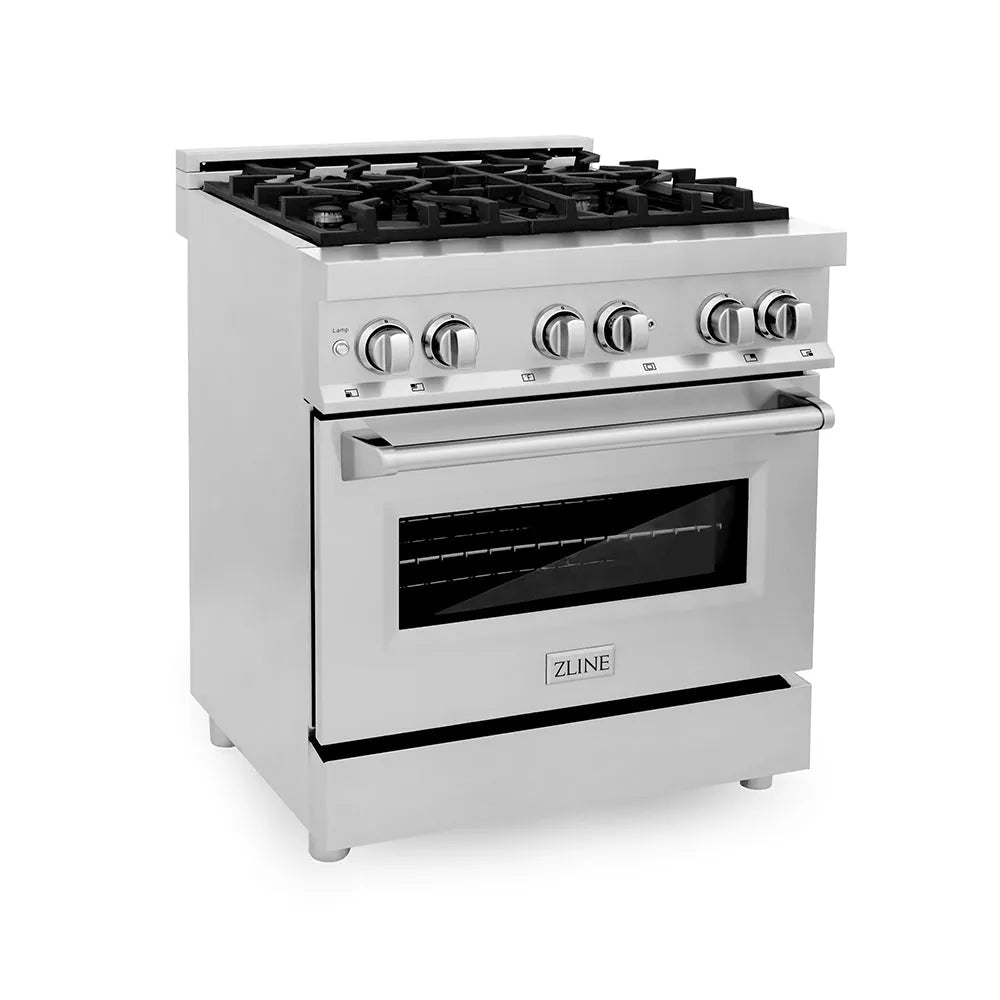

ZLINE's Legacy RA30 pairs a 4-burner gas cooktop with a 4.0 cu. ft. electric convection oven in a 30-inch freestanding range built from 304 stainless steel.
Italian-made sealed burners run from a gentle simmer up to 18,000 BTU, and the wide Landscape oven window lets you check on dishes without opening the door. Model RA30.
Key features
- 30-inch freestanding dual fuel range in stainless steel
- 4 Italian-made sealed gas burners, 45,000 BTU total

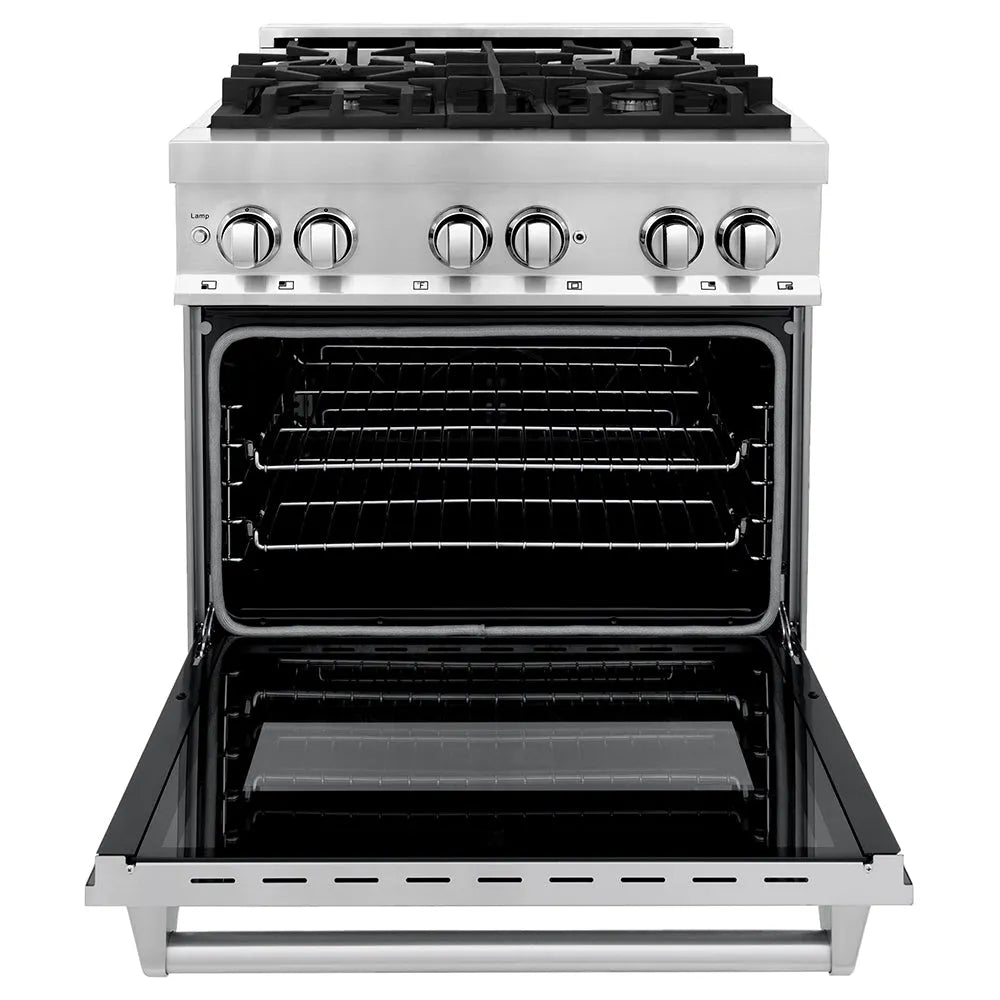

- 4.0 cu. ft. electric convection oven fits pans up to 23 in. wide
- Triple-layer oven glass and aluminum mesh door seal hold heat in

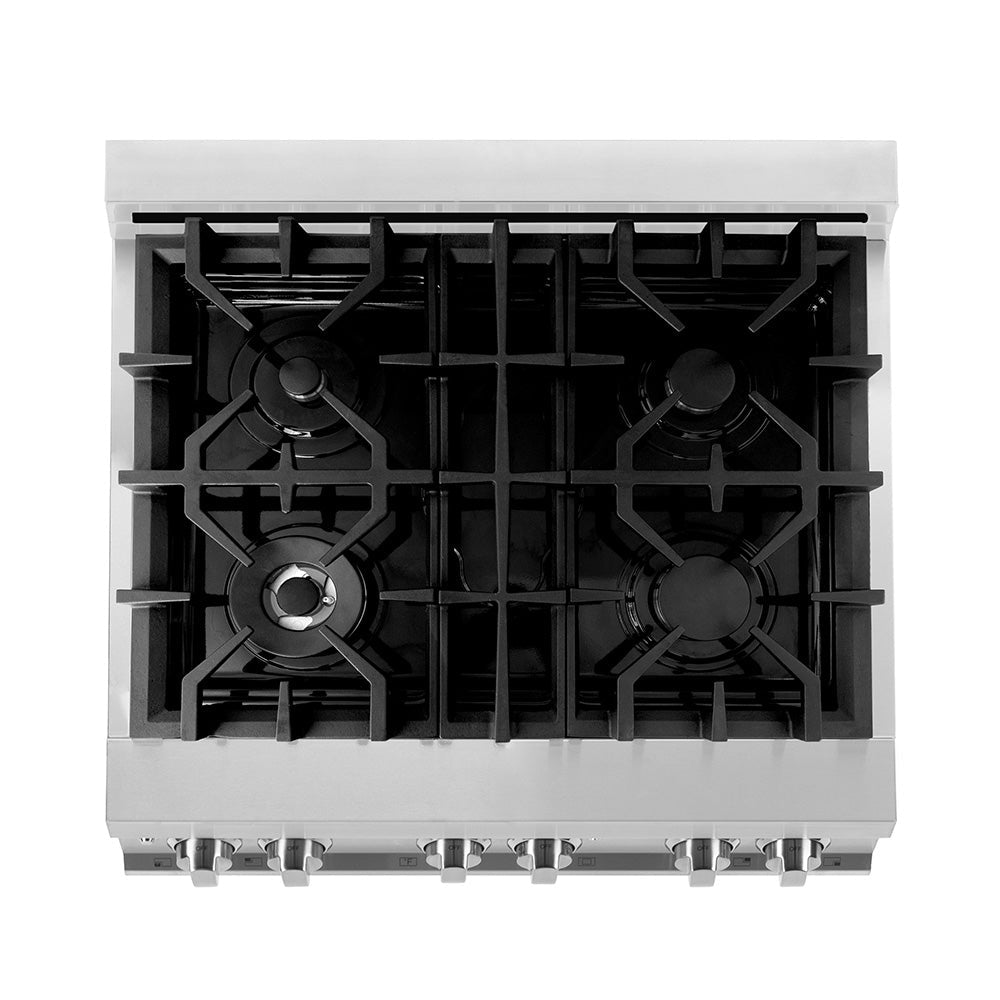

- Cast iron grates over a one-piece porcelain cooktop
- Adjustable legs set the height from 36 to 38.5 in.
- StayPut door hinges and 2 ball-bearing oven racks
- LP conversion kit included
Specifications
| Brand | ZLINE |
|---|---|
| Series | Legacy |
| Model / MPN | RA30 |
| UPC | 817299023470 |
| Type | Freestanding dual fuel range |
| Width | 30 inches |

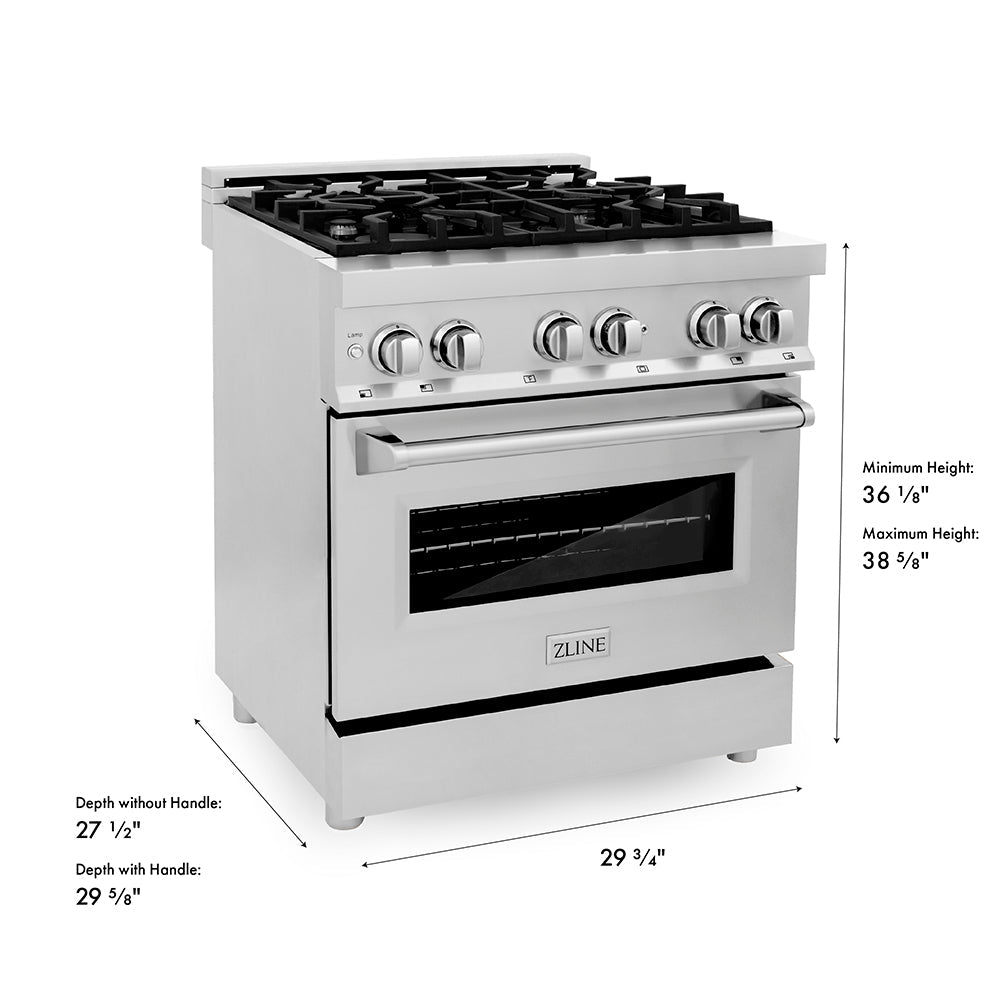

| Dimensions | 29.75 in. W x 27.5 in. D x 36.125 in. H |
| Cooktop | 4 sealed gas burners: 18,000 / 12,500 / 10,000 / 4,500 BTU (45,000 BTU total) |
| Oven capacity | 4.0 cu. ft. |
| Oven | Electric convection, manual clean |
| Oven interior | 24.875 in. W x 17.75 in. D x 16 in. H |
| Fuel | Dual fuel: natural gas cooktop (LP kit included), electric oven |
| Electrical | 240V, 60 Hz; NEMA 14-50 (4-wire) |
| Weight | 230 lb |
| Finish | Stainless steel |
| Certification | CSA listed |
| Warranty | 1-year parts and service; limited lifetime warranty on burners (manufacturer) |
What's included
- Dual fuel range
- 2 ball-bearing oven racks
- LP conversion kit
Authorized ZLINE dealer. Ships from ZLINE's U.S. warehouses to the contiguous 48 states. Inspect the range at delivery and note any damage on the delivery receipt before signing.
Professional installation is required. A licensed technician should complete gas and electrical connections and any LP conversion, and confirm clearances and local code before use.
