Description

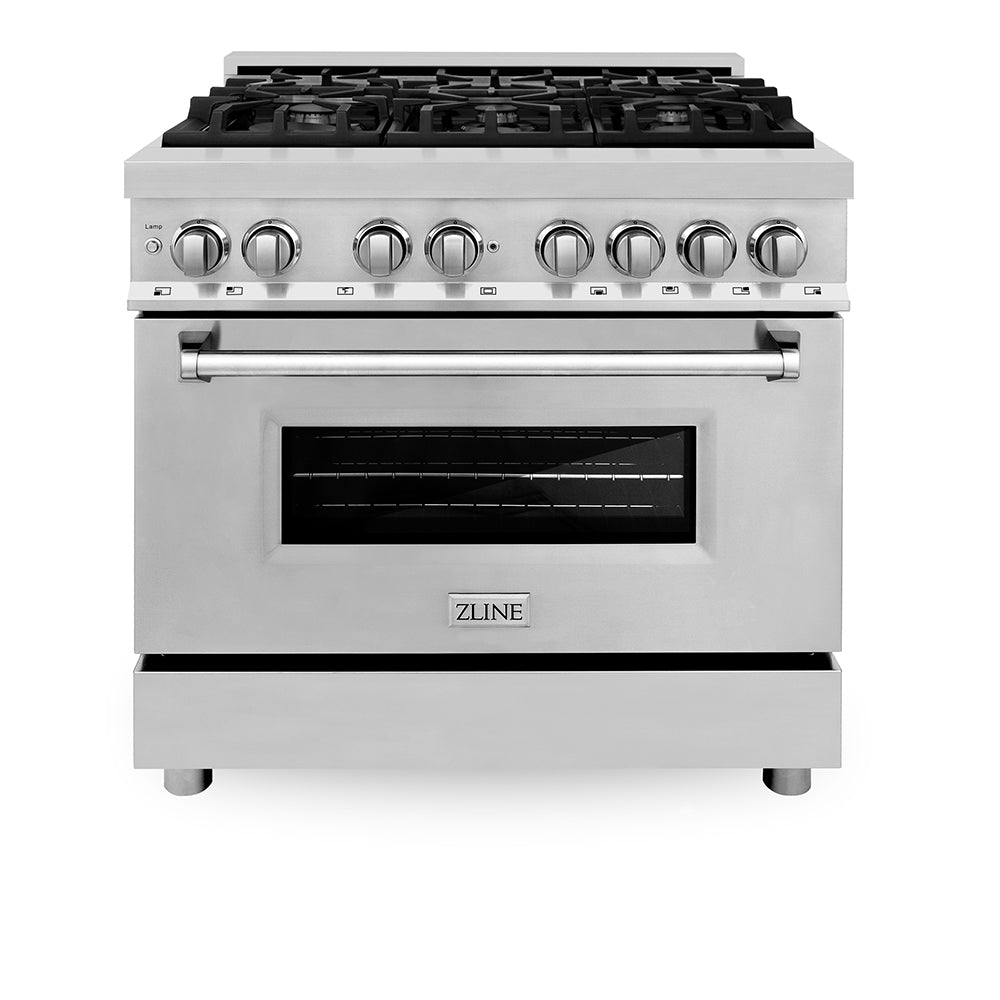

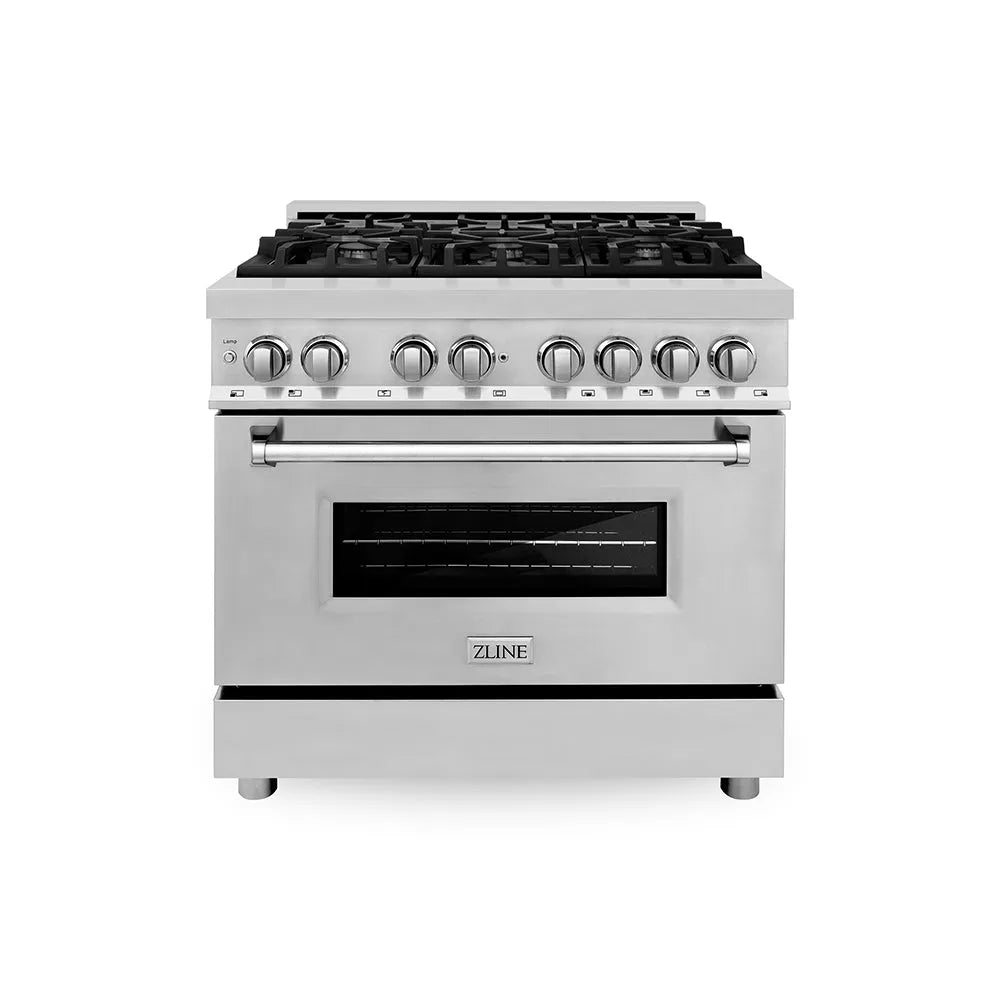

ZLINE's Legacy RA36 pairs a 6-burner gas cooktop with a 4.6 cu. ft. electric convection oven in a 36-inch freestanding range built from 304 stainless steel.
Italian-made sealed burners run from a gentle simmer up to 18,000 BTU, and the wide Landscape oven window lets you check on dishes without opening the door. Model RA36.
Key features
- 36-inch freestanding dual fuel range in stainless steel
- 6 Italian-made sealed gas burners, 67,500 BTU total
- 4.6 cu. ft. electric convection oven fits pans up to 27 in. wide
- Triple-layer oven glass and aluminum mesh door seal hold heat in
- Cast iron grates over a one-piece porcelain cooktop
- Adjustable legs set the height from 36 to 38.5 in.

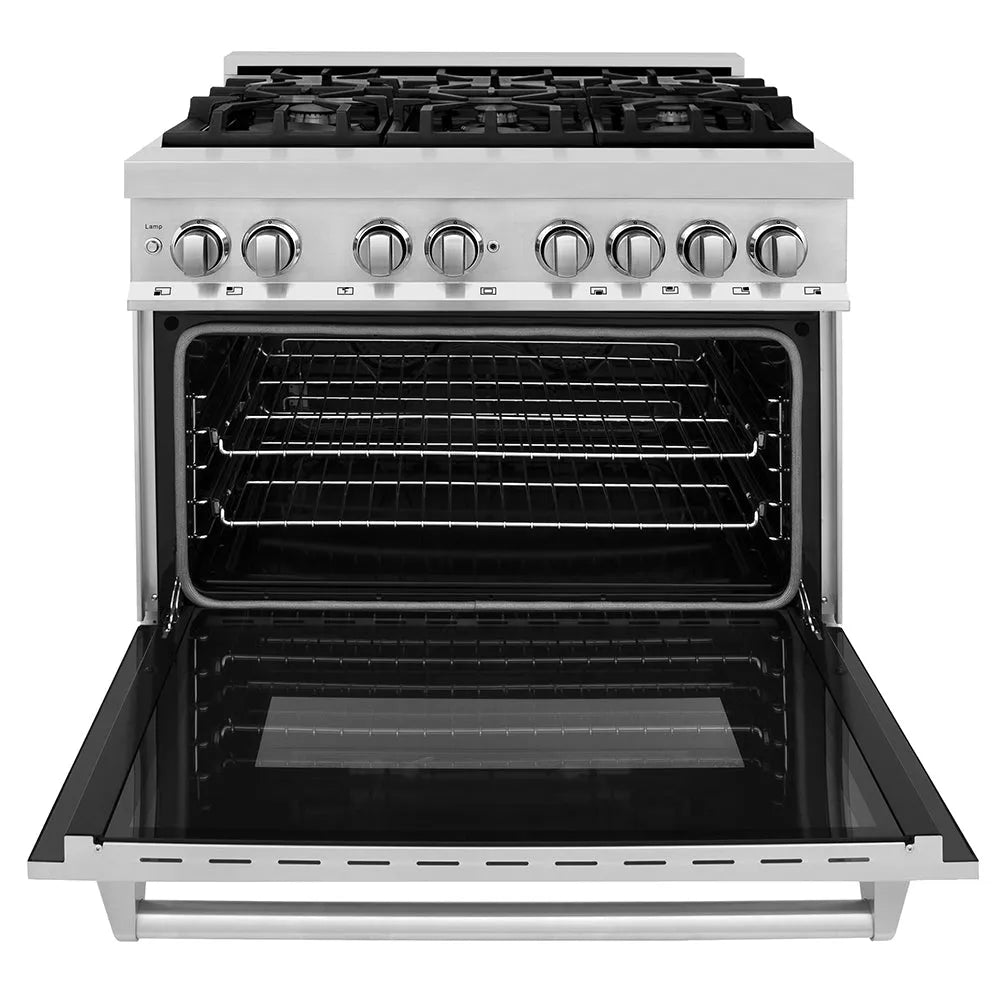

- StayPut door hinges and 2 ball-bearing oven racks
- LP conversion kit included
Specifications
| Brand | ZLINE |
|---|---|
| Series | Legacy |
| Model / MPN | RA36 |
| UPC | 817299023487 |
| Type | Dual Fuel Range |
| Width | 36 inches |

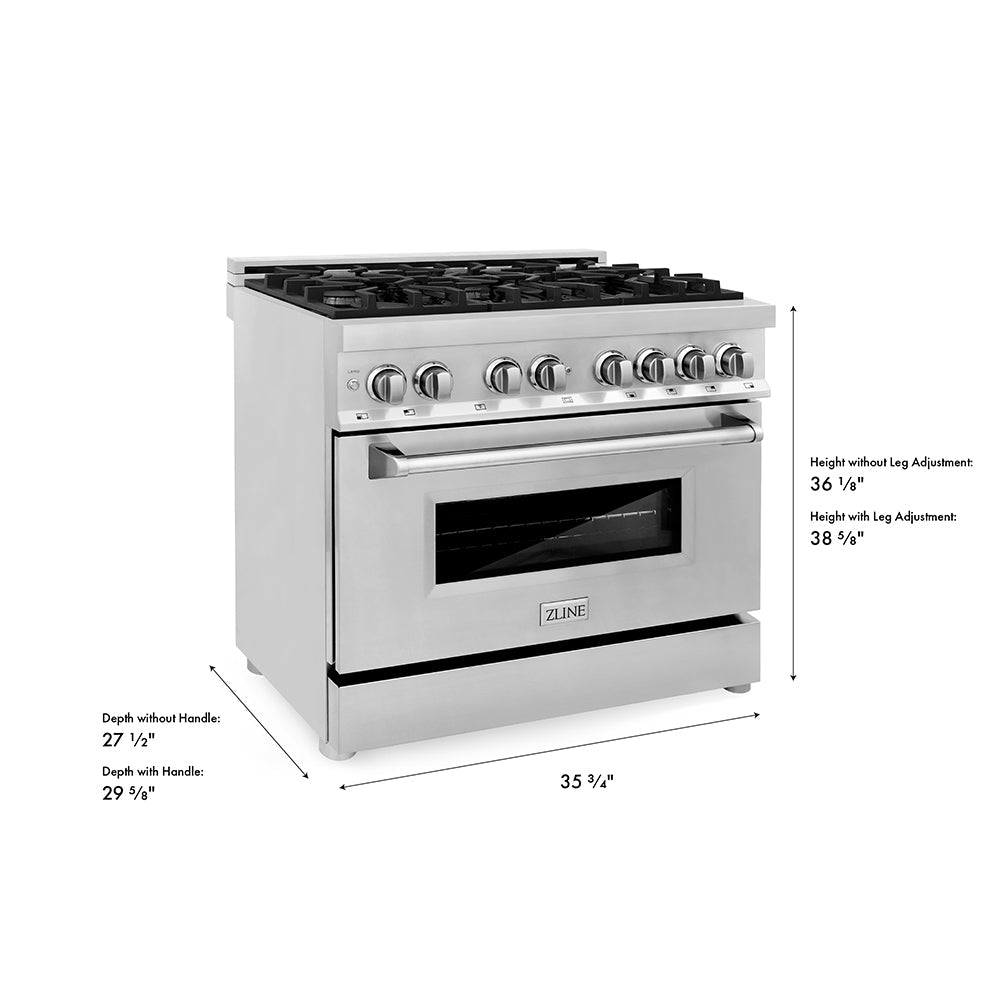

| Dimensions | 35.75 in. W x 27.5 in. D x 36.125 in. H |
| Oven Interior Dimensions | 24.875 in. W x 17.75 in. D x 16 in. H |
| Depth with Door Open 90° | 41.8 in. |
| Finish | Stainless Steel |
| Back Left Burner | 12,500 BTU |
| Back Middle Burner | 10,000 BTU |
| Back Right Burner | 4,500 BTU |
| Front Left Burner | 18,000 BTU |
| Front Middle Burner | 10,000 BTU |
| Front Right Burner | 12,500 BTU |
| Total BTUs | 67,500 |
| Cooktop Features | (6) Burners with Porcelain Cook Top with electronic spark ignition for all burners |
| Control Type | Manual Front Control |
| Oven Capacity | 4.6 cu. ft. |
| Weight | 253 lb |
| Fuel Type | Convection Electric Oven, Gas Cooktop |
| Oven Features | Manual Clean, Convection Electric, 4.6 cu. ft. deep oven, Triple Glass Window, Dual Lighting, Professional Aluminum Mesh Seal |
| Voltage | 240V |
| Frequency | 60 Hz |
| Amps | 15A |
| Convection Fan | Yes |
| Certifications | CSA Listed |
| Warranty | 1 year parts and service, limited lifetime warranty on burners |
What's included
- Dual fuel range
- 2 ball-bearing oven racks
- LP conversion kit
Authorized ZLINE dealer. Ships from ZLINE's U.S. warehouses to the contiguous 48 states. Inspect the range at delivery and note any damage on the delivery receipt before signing.
Professional installation is required. A licensed technician should complete gas and electrical connections and any LP conversion, and confirm clearances and local code before use.
