ACiQ 1 Ton 18.7 SEER2 High Efficiency Central Heat Pump | Inverter - R454B & ACiQ 1 Ton Central Ducted Air Handler -

---

Overview

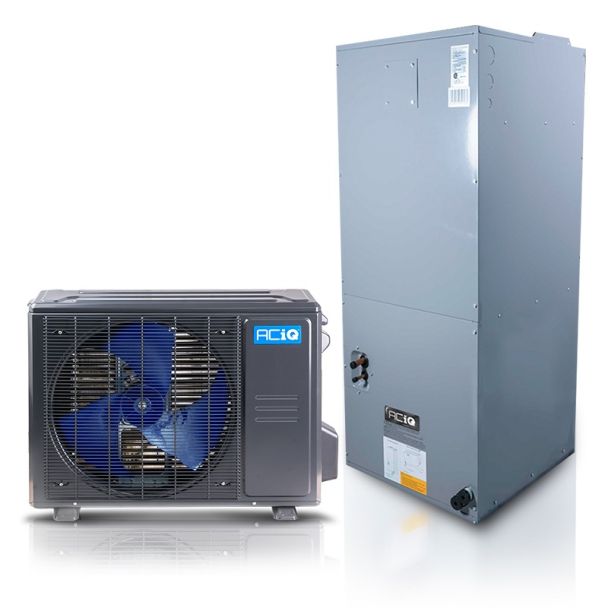

ACiQ's High-Efficiency 1 Ton Heat Pump System, featuring the ACIQ-12-EHPD inverter condenser and ACIQ-12-AHD air handler, offers the perfect balance of smart inverter technology and seamless integration with your existing ductwork.

How is it different from a traditional heat pump?

• Variable BTU Inverter: Automatically adjusts output to match demand.
• Smart system with soft startups: Maximizes efficiency and reduces energy waste.
• Sized for heating: Allows you to size for heat without worrying about short cycling in cooling mode.
• Rated for efficient heating: Operates down to 5°F outdoor temperatures.

---

Quick Facts

• Variable output based on demand: Up to 12,000 BTU for heating and cooling
• Refrigerant: R454B
• Inverter heat pump system for ducted applications
• Efficient cooling from -13°F to 122°F outdoor temperatures
• Reliable heating from -13°F to 75°F outdoor temperatures
• Durable gold fin condenser coil coating for longevity
• Quiet operation, even under high workloads
• 1 Ton, 18.7 SEER2

---

Included in Your Order:

ACiQ 1 Ton Inverter Condenser – Model: ACIQ-12-EHPD

ACiQ 1 Ton Central Ducted Air Handler – Model: ACIQ-12-AHD

Installation Kit (sold separately; includes refrigerant lineset, communication cable, mounting hardware)

Compatible with any 24 V thermostat

Installation Manual

Service Manual

Owner's Manual

---

Key Features:

• Inverter Technology for Variable Speed Operation
• Learning Condenser with Advanced Sensors
• Adaptive Sizing for Optimal Cooling & Heating
• Variable Speed DC Blower in Air Handler
• Multi-Positional Air Handler (Upflow/Downflow/Horizontal)
• Compatible with Any 24 V Thermostat
• Durable Gold Fin Coil Coating
• Quiet Operation (34 dBA condenser, up to 44 dBA air handler)
• Soft Start Technology
• Self-Diagnostic Control Board with Fault Code Display
• Optional Supplemental Electric Heat Kit Available

---

Technical Specifications

ACIQ-12-EHPD (Condenser)

Specification	Details
Model Number	ACIQ-12-EHPD
Cooling BTU	12,000 BTU
Heating BTU	13,000 BTU
SEER2	18.7
HSPF2	9.1
Refrigerant	R454B
Compressor Type	Variable Inverter Twin Rotary
Electrical	208/230 V, 1-Phase, 60 Hz
Max Breaker Size	20 Amps
Min Breaker Size	16 Amps
Operating Temp (Cooling)	-13°F to 122°F
Operating Temp (Heating)	-13°F to 75°F
Liquid Valve Size	3/8″
Suction Valve Size	3/4″
Refrigerant Charge	25′
Weight	83.77 lbs

ACIQ-12-AHD (Air Handler)

Specification	Details
Model Number	ACIQ-12-AHD
Airflow	Up to 618 CFM
Decibel Level	Up to 44 dBA
Refrigerant	R454B
Configuration	Multi-Positional (Upflow/Downflow/Horizontal)
Electrical	208/230 V, 1-Phase, 60 Hz
Max Breaker Size	15 Amps
Min Breaker Size	4 – 5.5 Amps
Dimensions (HxWxD)	45″ x 17.5″ x 21″
Weight	126.76 lbs

---

Warranty Information

• 12 Years Compressor Limited Warranty (with online registration)
• 7 Years Parts Limited Warranty (with online registration)

---

Manuals & Downloads

• EHPD Installation Manual
• EHPD Service Manual
• EHPD Heating/Cooling Performance
• AHD Installation Manual
• AHD Owner's Manual
• 1 Ton EHPD / AHD Submittal

Please note: The air handler must be installed with a compatible condenser and installation equipment. Optional electric heat kit available separately.

---
