ACiQ 1.5 Ton 18.8 SEER2 High Efficiency Central Heat Pump | Inverter - R454B & ACiQ 1.5 Ton Central Ducted Air Handler - R454B
Overview
The ACiQ 1.5 Ton Heat Pump System combines cutting-edge inverter technology with robust build quality to deliver year-round comfort and exceptional energy savings. At its heart is the ACIQ-18-EHPD inverter condenser, which continuously adjusts compressor speed to precisely match heating or cooling demand, eliminating short-cycling and minimizing energy waste. Paired with the ACIQ-18-AHD multi-positional air handler—capable of upflow, downflow, or horizontal installation—this system seamlessly integrates into your existing ductwork for uniform temperature control throughout your home.
Unlike traditional fixed-speed heat pumps, this system’s “learning condenser” feature gathers ambient and duct conditions during initial startups and refines its operating curves over time. The result is a self-optimizing unit that delivers reliable performance even in extreme climates, operating efficiently down to –13°F in cooling mode and as low as 5°F in heating mode. With a robust gold-fin coil coating, enhanced sensors, and soft-start circuitry, the ACiQ system not only maximizes comfort but also extends component life and reduces maintenance needs.
Backed by a 12-year compressor warranty and 7-year parts coverage (with online registration), the ACiQ 1.5 Ton system represents a smart investment in long-term reliability and lower utility bills. Whether you’re retrofitting an older home or equipping a new construction, this high-efficiency heat pump delivers whisper-quiet operation (34–55 dBA), flexible installation options, and compatibility with any standard 24 V thermostat—making it an ideal choice for homeowners seeking both performance and peace of mind.
How is it different from a traditional heat pump?
- Variable BTU Inverter: Automatically adjusts output to match demand.
- Smart system with soft startups: Maximizes efficiency and reduces energy waste.
- Sized for heating: Allows you to size for heat without worrying about short cycling in cooling mode.
- Rated for efficient heating: Operates down to 5°F outdoor temperatures.
Quick Facts
- Variable output based on demand: 12,000–18,000 BTU for cooling and heating
- Refrigerant: R454B
- Inverter heat pump system for ducted applications
- Efficient cooling from –13°F to 122°F outdoor temperatures
- Reliable heating from –13°F to 75°F outdoor temperatures
- Durable gold-fin condenser coil coating for longevity
- Quiet operation, even under high workloads (34–55 dBA)
- 1.5 Ton, 18.8 SEER2
Included in Your Order:

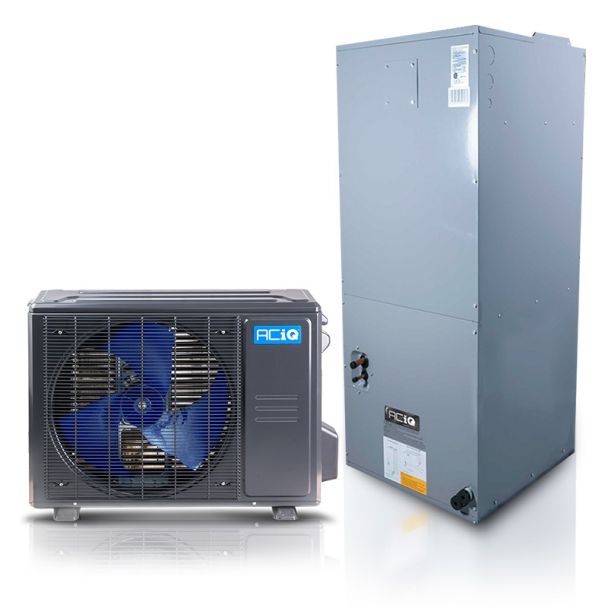

ACiQ 1.5 Ton Inverter Condenser – Model: ACIQ-18-EHPD
ACiQ 1.5 Ton Central Ducted Air Handler – Model: ACIQ-18-AHD
Installation Kit (sold separately; includes refrigerant lineset, communication cable, mounting hardware)
Compatible with any 24 V thermostat
Installation Manual
Owner’s & Service Manuals
Key Features:
- Inverter Technology for Variable Speed Operation
- Learning Condenser with Advanced Sensors
- Adaptive Sizing for Optimal Cooling & Heating
- Variable Speed DC Blower in Air Handler
- Multi-Positional Air Handler (Upflow/Downflow/Horizontal)
- Self-Diagnostic Control Board with Fault Code Display
- Durable Gold-Fin Coil Coating
- Soft-Start Technology
- Quiet Operation (34 dBA condenser; up to 44 dBA air handler)
- Optional Supplemental Electric Heat Kit Available
Technical Specifications
ACIQ-18-EHPD (Condenser)
| Specification | Details |
|---|---|
| Model Number | ACIQ-18-EHPD |
| Cooling BTU | 18,000 BTU |
| Heating BTU | 19,000 BTU |
| SEER2 | 18.8 |
| HSPF2 | 9.1 |
| Refrigerant | R454B |
| Compressor Type | Variable Inverter Twin Rotary |
| Electrical | 208/230 V, 1-Phase, 60 Hz |
| Max Breaker Size | 20 Amps |
| Min Breaker Size | 16 Amps |
| Operating Temp (Cooling) | –13°F to 122°F |
| Operating Temp (Heating) | –13°F to 75°F |
| Liquid Valve Size | 3/8″ |
| Suction Valve Size | 3/4″ |
| Refrigerant Charge | 25′ |
| Weight | 83.77 lbs |
ACIQ-18-AHD (Air Handler)
| Specification | Details |
|---|---|
| Model Number | ACIQ-18-AHD |
| Airflow | Up to 618 CFM |
| Decibel Level | Up to 44 dBA |
| Refrigerant | R454B |
| Configuration | Multi-Positional (Upflow/Downflow/Horizontal) |
| Electrical | 208/230 V, 1-Phase, 60 Hz |
| Max Breaker Size | 15 Amps |
| Min Breaker Size | 4–5.5 Amps |
| Dimensions (HxWxD) | 45″ × 17.5″ × 21″ |
| Weight | 126.76 lbs |
Warranty Information
- 12 Years Compressor Limited Warranty (with online registration)
- 7 Years Parts Limited Warranty (with online registration)
