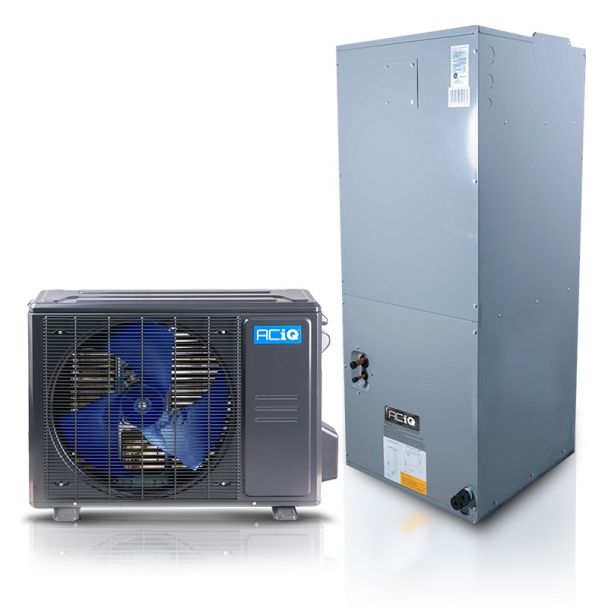

ACiQ 2 Ton (24,000 BTU) 18.1 SEER2 High Efficiency Central Heat Pump | Inverter - R454B & 2 Ton (24,000 BTU) Central Ducted Air Handler - R454B

---

Overview

The ACiQ 2 Ton Heat Pump System combines the advanced ACIQ-24-EHPD inverter condenser and the versatile ACIQ-24-AHD multi-positional air handler for seamless integration with your existing ductwork. This all-electric system continuously adjusts compressor speed to precisely meet heating and cooling demands, eliminating short-cycling and optimizing energy use.

During installation, the “learning condenser” enters a sensor-driven startup mode to gather temperature, duct pressure, and refrigerant data, refining its performance over time for maximum efficiency. Rated to operate from –13 °F in cooling mode and down to 5 °F in heating mode, it delivers consistent comfort in extreme climates.

Backed by a 12-year compressor warranty and 7-year parts coverage (with online registration), this whisper-quiet system (60 dBA outdoor; up to 44 dBA indoor) is an ideal choice for long-term reliability and lower energy bills. Compatible with any 24 V thermostat, it offers flexible installation in upflow, downflow, or horizontal orientations.

---

How is it different from a traditional heat pump?

• Variable BTU inverter: adjusts output from 12,000 – 24,000 BTU to match demand
• Smart soft-start technology: reduces inrush currents and energy waste
• Heating-sized design: size for heat without short-cycling in cooling mode
• Cold-climate rating: efficient heating performance down to 5 °F outdoor

---

Quick Facts

• Output: 12,000 – 24,000 BTU (cooling); 12,000 – 26,000 BTU (heating)
• Refrigerant: R454B
• SEER2: 18.1 HSPF2: 9.7
• Operating range: –13 °F to 122 °F (cooling); –13 °F to 75 °F (heating)
• Durable gold-fin coil coating
• Whisper-quiet operation even at high loads

Use our sizing calculator (HERE) to determine the right capacity for your home.

---

Included in Your Order:

Outdoor Unit: ACIQ-24-EHPD Inverter Condenser (24,000 BTU)

Indoor Unit: ACIQ-24-AHD Central Ducted Air Handler (24,000 BTU)

Installation Kit (sold separately; includes refrigerant lineset, communication cable, mounting hardware)

Compatible with any 24 V thermostat

Installation Manual

Owner’s & Service Manuals

---

Key Features:

• Variable-speed inverter twin-rotary compressor
• Learning condenser with advanced sensor suite
• Multi-positional DC blower air handler
• Soft-start technology for reduced peak demand
• Self-diagnostic control board with fault display
• Quiet operation: 60 dBA (outdoor), up to 44 dBA (indoor)
• Optional electric heat kit available
• Gold-fin coil for corrosion resistance

---

Technical Specifications

ACIQ-24-EHPD (Condenser)

Specification	Details
Model Number	ACIQ-24-EHPD
Rated Cooling BTU	24,000 BTU
Rated Heating BTU	26,000 BTU
SEER2 / HSPF2	18.1 / 9.7
Refrigerant	R454B
Electrical	208/230 V, 1-Phase, 60 Hz
Max Breaker	20 Amps
Min Breaker	19 Amps
Operating Temp (Cooling)	–13 °F to 122 °F
Operating Temp (Heating)	–13 °F to 75 °F
Liquid/Suction Valve	3/8″ / 3/4″
Pre-charge Lineset	25′
Weight	109.13 lbs

ACIQ-24-AHD (Air Handler)

Specification	Details
Model Number	ACIQ-24-AHD
Airflow	Up to 824 CFM
Decibel Level	Up to 44 dBA
Electrical	208/230 V, 1-Phase, 60 Hz
Max Breaker	15 Amps
Min Breaker	4 – 5.5 Amps
Dimensions (HxWxD)	45″ × 17.5″ × 21″
Weight	127.43 lbs
Configuration	Multi-positional
Refrigerant	R454B

---

Warranty Information

• 12 Year Compressor Limited Warranty (online registration required)
• 7 Year Parts Limited Warranty (online registration required)

---

Manuals & Downloads

• EHPD Installation Manual
• EHPD Service Manual
• EHPD Heating/Cooling Performance Chart
• AHD Installation Manual
• AHD Owner’s Manual
• 2 Ton EHPD/AHD Submittal Data Sheet
• 2 Ton HPD/AHD Submittal Data Sheet

Please note: The air handler must be installed with a compatible condenser and installation equipment. Optional electric heat kit available separately.

---
