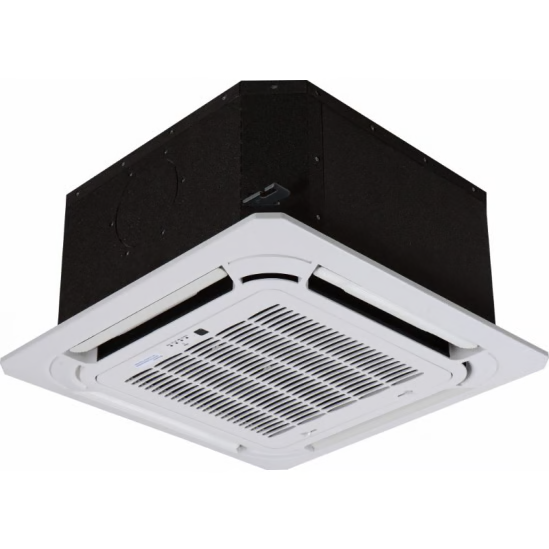

ACiQ 24,000 BTU Ceiling Cassette Mini Split Air Handler (R454B) - ACIQ-24CC-HH-MC

---

Summary

Mini Split systems are great, but what if you don't want the air handler on your wall? The ACiQ 24,000 BTU Ceiling Cassette provides a completely hidden appearance with only the decorative grille visible, offering centralized four-way air distribution for superior comfort. This high-capacity unit delivers whisper-quiet operation (as low as 33.5 dB) while maintaining 20 SEER2 efficiency.

Perfect for medium to large rooms, this ceiling-mounted solution includes a handheld remote control and optional WiFi capability. The factory-installed condensate pump and large-format design provide professional-grade performance in a discreet package.

Key Features:

• Large-Format Ceiling Cassette: 32.68" × 32.68" footprint for powerful coverage
• Four-Way Air Distribution: 360° comfort delivery
• High-Efficiency Operation: 20 SEER2 rating
• Factory-Installed Condensate Pump: 14" lift capacity
• Included Handheld Remote: Full system control
• WiFi Compatible: Optional smart control capability
• R454B Refrigerant: Next-generation, low-GWP solution
• High Airflow Capacity: 765.2 CFM maximum output
• Dry & Fan Modes: Advanced humidity control options

---

Important

Professional installation required for warranty validation. Registration must be completed within 60 days of installation at ACiQ.com. This large-format unit typically requires ceiling framing modifications. Installation materials (line sets, control wire, drain accessories) sold separately. Uses R454B refrigerant.

---

Technical Specifications

Category	Specification	Unit	Value
Power Supply	Rated	V, Ph, Hz	208/230, 1, 60
Capacity	Cooling	Btu/h	24,000
	Heating	Btu/h	24,000
Efficiency	SEER2		20
Air Flow	Maximum	CFM	765.2
Noise Level	Minimum	dB(A)	33.5
Refrigerant	Type		R454B
Connections	Liquid Line / Gas Line	inch	3/8" / 5/8"
Drainage	Pump Lift Capacity	inch	14
Dimensions	Unit (H×W×D)	inch	8.07×32.68×32.68
	Cutout Size	inch	32.09×32.09
	Net Weight	lbs	59.08
Electrical	Breaker Size	A	20
Included Accessories		Handheld remote, decorative grille, installation kit

---

Warranty

• 12 year compressor limited warranty (with online registration)
• 7 year parts limited warranty (with online registration and professional installation)
• 1 year remote control warranty

---

Installation Considerations

• Large-format design (32.68" × 32.68") typically requires ceiling framing modifications
• Requires minimum 8.07" ceiling cavity height
• Factory-installed pump provides 14" lift - additional PVC drainage required
• 3/8" liquid line and 5/8" suction line connections
• Recommended for medium to large rooms (800-1,000 sq/ft depending on climate)
• Central location provides optimal four-way air distribution
• Professional installation mandatory for warranty validation
• Electrical requirements: 208/230V, 20A circuit

---

Performance Features

• Four-way 360° air discharge pattern
• Auto-restart after power interruption
• Sleep mode with gradual temperature adjustment
• Turbo mode for rapid temperature changes
• Self-diagnostic system with error code display
• 24-hour programmable timer
• 4 adjustable fan speeds + auto mode
• Automatic louver positioning
• Intelligent defrost cycle for cold weather operation
• Dry mode for active dehumidification
• Energy-saving ECO mode

---
