ACiQ 4 Ton (48,000 BTU) 16 SEER2 High Efficiency Central Heat Pump | Inverter – R454B & 4 Ton (48,000 BTU) Central Ducted Air Handler – R454B
Overview

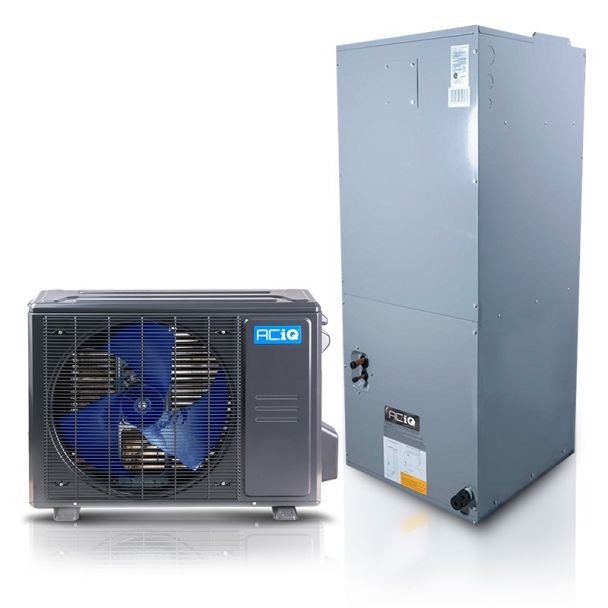

ACiQ's High-Efficiency 4 Ton Heat Pump System pairs the robust ACIQ-48-EHPD inverter condenser with the versatile ACIQ-48-AHD multi-positional air handler to deliver precise, efficient heating and cooling through your existing ductwork. Variable-speed inverter technology lets the compressor modulate its output between 12,000 and 48,000 BTU to exactly match demand—eliminating short-cycling and cutting energy waste.
On first startup, the “learning condenser” enters sensor-driven mode to collect indoor/outdoor temperatures, duct pressures, and refrigerant data, then optimizes future operation for maximum efficiency. Rated for −13 °F to 122 °F in cooling and down to 5 °F in heating, it maintains quiet, reliable comfort even in extreme climates.
Backed by a 12-year compressor warranty and 7-year parts coverage (online registration required), this whisper-quiet system (65 dBA outdoor, up to 53 dBA indoor) integrates with any 24 V thermostat and can be installed upflow, downflow, or horizontally.
How is it different from a traditional heat pump?
- Variable BTU inverter: automatically adjusts output from 12,000–48,000 BTU
- Smart soft-start: reduces inrush current and energy waste
- Heating-sized design: size for heat without short-cycling in cooling mode
- Cold-climate rating: efficient heating down to 5 °F outdoor
Quick Facts
- Output: 12,000–48,000 BTU (cooling & heating)
- Refrigerant: R454B
- SEER2 / HSPF2: 16 / 8.5
- Operating range: −13 °F to 122 °F (cooling); −13 °F to 75 °F (heating)
- Durable gold-fin coil coating
- Quiet operation under full load
Use our sizing calculator (HERE) to determine the right capacity for your home.
Included in Your Order:
Outdoor Unit: ACIQ-48-EHPD Inverter Condenser (48,000 BTU)
Indoor Unit: ACIQ-48-AHD Central Ducted Air Handler (48,000 BTU)
Installation Kit (optional, sold separately)
Compatible with any 24 V thermostat
Installation Manual
Owner’s & Service Manuals
Key Features:
- Variable-speed inverter twin-rotary compressor
- Learning condenser with advanced sensor suite
- Multi-positional DC-blower air handler
- Soft-start technology for reduced peak demand
- Self-diagnostic control board with fault display
- Quiet operation: 65 dBA outdoor, up to 53 dBA indoor
- Optional electric heat kit available
- Gold-fin coil for corrosion resistance
Technical Specifications
ACIQ-48-EHPD (Condenser)
| Specification | Details |
|---|---|
| Model Number | ACIQ-48-EHPD |
| Rated Cooling BTU | 48,000 |
| Rated Heating BTU | 55,000 |
| SEER2 / HSPF2 | 16 / 8.5 |
| Refrigerant | R454B |
| Electrical | 208/230 V, 1-Phase, 60 Hz |
| Max Breaker | 40 Amps |
| Min Breaker | 36 Amps |
| Operating Temp (Cooling) | –13 °F to 122 °F |
| Operating Temp (Heating) | –13 °F to 75 °F |
| Liquid/Suction Valve | 3/8″ / 3/4″ |
| Weight | 224.21 lbs |
ACIQ-48-AHD (Air Handler)
| Specification | Details |
|---|---|
| Model Number | ACIQ-48-AHD |
| Airflow | Up to 1,601 CFM |
| Decibel Level | Up to 53 dBA |
| Electrical | 208/230 V, 1-Phase, 60 Hz |
| Max Breaker | 15 Amps |
| Min Breaker | 11 / 14.5 Amps |
| Dimensions (HxWxD) | 53″ × 24.5″ × 21″ |
| Weight | 190.92 lbs |
| Configuration | Multi-positional |
| Refrigerant | R454B |
Warranty Information
- 12 Year Compressor Limited Warranty (online registration required)
- 7 Year Parts Limited Warranty (online registration required)
Manuals & Downloads
- EHPD Installation Manual
- EHPD Service Manual
- Nominal Capacity Performance Chart
- AHD Installation Manual
- AHD Owner’s Manual
- 4 Ton EHPD/AHD Submittal Data Sheet
- 4 Ton HPD/AHD Submittal Data Sheet
- View Full Product Details on HVACDirect.com
