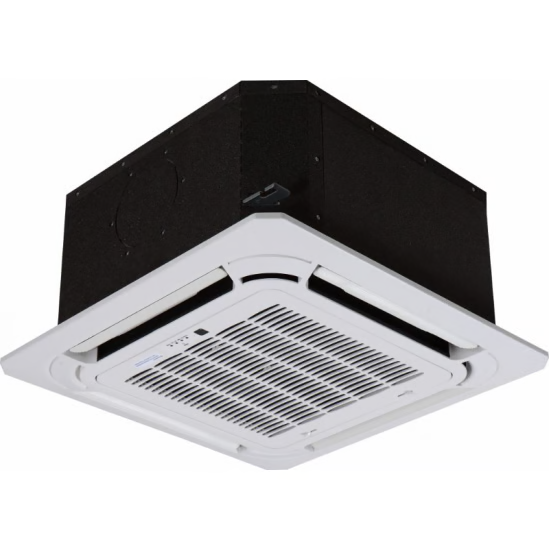

ACiQ 9,000 BTU Ceiling Cassette Mini Split Air Handler (R454B) - ACIQ-09CC-HH-MC

---

Summary

The ACiQ Ceiling Cassette Mini Split Air Handler provides a discreet cooling and heating solution with 9,000 BTU capacity and ultra-quiet operation as low as 24 dB(A). This flush-mounted ceiling unit features four-way airflow for even distribution and comes complete with decorative grille and handheld remote. Perfect for small rooms, it includes a factory-installed condensate pump and uses environmentally-friendly R454B refrigerant.

With WiFi compatibility and multiple operation modes (cooling, heating, dry, and fan), this ceiling cassette delivers efficient comfort while maintaining a clean, unobtrusive appearance. The unit fits between standard 24" on-center joists and includes a 14" lift condensate pump for easy drainage.

---

Key Features:

• Discreet Ceiling Installation: Only the grille remains visible after installation
• Four-Way Air Supply: Consistent coverage throughout the room
• Ultra-Quiet Operation: As low as 24 dB(A) for peaceful environments
• Factory-Installed Condensate Pump: Handles condensation with up to 14" lift
• Handheld Remote Included: Easy temperature and mode control
• WiFi Compatible: Optional smart control capabilities
• R454B Refrigerant: Next-generation, environmentally friendly refrigerant
• Multiple Operation Modes: Cooling, Heating, Dry, and Fan modes
• Decorative Grille Included: Clean, finished appearance

---

Important

Professional installation required for warranty validation. Registration must be completed within 60 days of installation at ACiQ.com. Installation materials (line sets, control wire, drain hose, whip, and disconnect) are not included but available separately. This system uses R454B refrigerant.

---

Installation Considerations

• Ceiling Cavity Required: Needs removal of ceiling material for flush mounting
• Fitting Between Joists: Fits between 24" on-center joists (modification required for 16" on-center)
• Drainage System: Requires PVC drain system after pump's 14" lift capacity
• Refrigerant Connections: 1/4" liquid line and 3/8" suction line
• Electrical Requirements: 208/230V, 1 Phase, 60Hz
• Recommended Space: Ideal for small rooms (size varies by climate)

---

Technical Specifications

Category	Specification	Unit	Value
Power Supply	Rated	V, Ph, Hz	208/230, 1, 60
Capacity	Cooling	Btu/h	9,000
	Heating	Btu/h	9,800
Air Flow	Maximum	CFM	352.94
Noise Level	Minimum	dB(A)	24.0
Refrigerant	Type		R454B
Connections	Liquid Line / Gas Line	inch	1/4" / 3/8"
Drainage	Pump Lift Capacity	inch	14
Dimensions	Unit (H×W×D)	inch	9.65×22.44×22.44
	Grille Size	inch	22.44×22.44
	Net Weight	lbs	41.89

---

Warranty

• 12 year compressor limited warranty (with online registration)
• 7 year parts limited warranty (with online registration and professional installation)

---

Performance Features

• Four-directional airflow for even room coverage
• Auto-restart after power failure
• Sleep mode for quiet nighttime operation
• Self-diagnosis system with error codes
• 24-hour timer function
• Multiple fan speeds
• Intelligent defrost cycle
• Dry mode for dehumidification
• Fan-only mode for air circulation

---

What's Included

• ACiQ Ceiling Cassette Air Handler (ACIQ-09CC-HH-MC)
• Decorative Grille
• Handheld Remote Control
• Installation Manual
• Owner's Manual
• Manufacturer Warranty

---

Manuals & Downloads

• Submittal Data (PDF)
• Installation Manual (PDF)
• Owner's Manual (PDF)
• Remote Control Manual (PDF)
• Service Manual (PDF)
• Warranty Information

---
