ACiQ 9,000 BTU Quiet Comfort Concealed Duct Mini Split Air Handler (R454B) - ACIQ-09CD-HH-MC

---

Summary

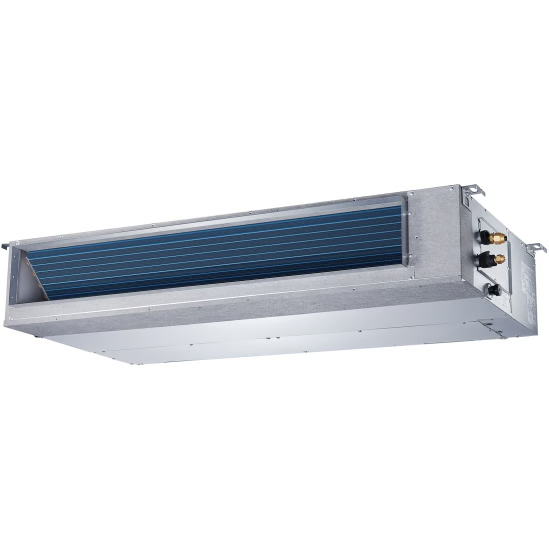

The ACiQ Concealed Duct air handler provides all the advantages of a mini split system without any visible indoor units. This flexible solution can be hidden above ceilings, below floors, in closets, or behind soffits, with conditioned air delivered through standard ductwork to registers in your desired locations. Perfect for new construction or additions, this system offers whisper-quiet operation and efficient 9,000 BTU heating and cooling capacity.

The simple design features return air intake at the rear and conditioned air supply at the front via a nearly silent squirrel cage fan. With support for up to 4 flex duct runs, this unit is ideal for distributing air to multiple small rooms or a master suite while maintaining a clean, unobtrusive appearance.

---

Key Features:

• Completely Concealed Installation: No visible indoor units
• Flexible Placement Options: Install above ceilings, below floors, or in closets
• Ducted Air Distribution: Up to 4 flex duct runs supported
• Whisper-Quiet Operation: As low as 26 dB(A)
• 9,000 BTU Capacity: Ideal for smaller rooms or zones
• Hyper Heat Technology: Efficient heating in cold weather
• Built-In Condensate Pump: Includes factory-installed drainage solution
• Wall-Mounted Thermostat Included: Easy temperature control
• Multiple Operating Modes: Cool, Heat, Dry, and Fan
• R454B Refrigerant: Next-generation, environmentally friendly

---

Important

Professional installation required for warranty validation. Registration must be completed within 60 days of installation at ACiQ.com. Installation requires additional ductwork components (flex duct, registers, plenums) not included. This system uses R454B refrigerant.

---

What's Included

• Concealed Duct Air Handler: ACIQ-09CD-HH-MC
• Wall-Mounted Thermostat
• Installation Manual
• User's Manual
• Remote Controller
• Manufacturer Warranty

---

Technical Specifications

Category	Specification	Unit	Value
Power Supply	Rated	V, Ph, Hz	208/230, 1, 60
Capacity	Cooling	Btu/h	9,000
	Heating	Btu/h	9,000
Air Flow	Maximum	CFM	344.30
Noise Level	Min	dB(A)	26
Refrigerant	Type		R454B
Connections	Liquid Line / Gas Line	inch	1/4" / 3/8"
Drainage	Pump Included		Yes
Dimensions	Unit (H×W×D)	inch	9.65×27.56×29.53
	Net Weight	lbs	64.15
	Breaker Requirements	Size	A	15
Electrical	Phase		Single
System Type	Configuration		Concealed Duct
Zone Compatibility	Type		Multi Zone

---

Warranty

• 12 year compressor limited warranty (with online registration)
• 7 year parts limited warranty (with online registration and professional installation)
• 1 year thermostat/remote warranty

---

Installation Considerations

• Requires professional installation with ductwork components
• Ideal for new construction or major renovations
• Flexible placement options (ceilings, floors, closets, soffits)
• Supports up to 4 flex duct runs for air distribution
• PVC drain system required beyond built-in pump
• 1/4" liquid line and 3/8" suction line connections
• 15A circuit breaker required
• Ductboard or plenum fabrication needed for installation

---

Performance Features

• Multiple operating modes: Cool, Heat, Dry, Fan
• Auto-restart after power failure
• Precise temperature control
• Energy efficient operation
• Self-diagnosis system with error codes
• 24-hour timer function
• Quiet comfort operation

---

Manuals & Downloads

• Submittal (PDF)
• Installation Manual (PDF)
• Service Manual (PDF)
• Owner's Manual (PDF)
• Remote Controller Manual (PDF)
• Warranty Information

---

Safety Information

PROPOSITION 65 WARNING: This product can expose you to chemicals including lead and copper, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
