ACiQ R454B, 60,000 BTU 5 TON 17.5 SEER2 Central Heat Pump Inverter System with Multi-Position Extreme+ Air Handler with Wi-Fi Included – Choose your Installation Kit and Auxiliary Heat Strip Size – ACIQ-60-PAH + ACIQ-60-HPD
Summary
ACiQ’s Extreme+ Series delivers unmatched comfort, efficiency, and climate adaptability. The variable-speed inverter system and smart multi-positional air handler ensure ultra-quiet performance, seamless ductwork compatibility, and effective heating down to -22°F. Featuring 17.5 SEER2 efficiency, Wi-Fi capability, and intelligent operation, it’s ideal for both new installations and upgrades.
Included in Your Order:
ACiQ Extreme+ Air Handler System (60,000 BTU)
Outdoor Unit: 60,000 BTU (1pc) – Model: ACIQ-60-HPD
Indoor Unit: 60,000 BTU (1pc with remote) – Model: ACIQ-60-PAH
Optional Installation Kit (16ft, 25ft, or 50ft options available) Must be selected above.
Optional Auxiliary Heat Strip (5KW to 20KW) Must be selected above.
Wireless Remote Control
Installation Manual
User's Manual
Manufacturer Warranty
Key Features:
- Extreme Heat: 100% heating at 0°F, 80% at -22°F
- Self-adjusting inverter with soft start-up and smart modulation

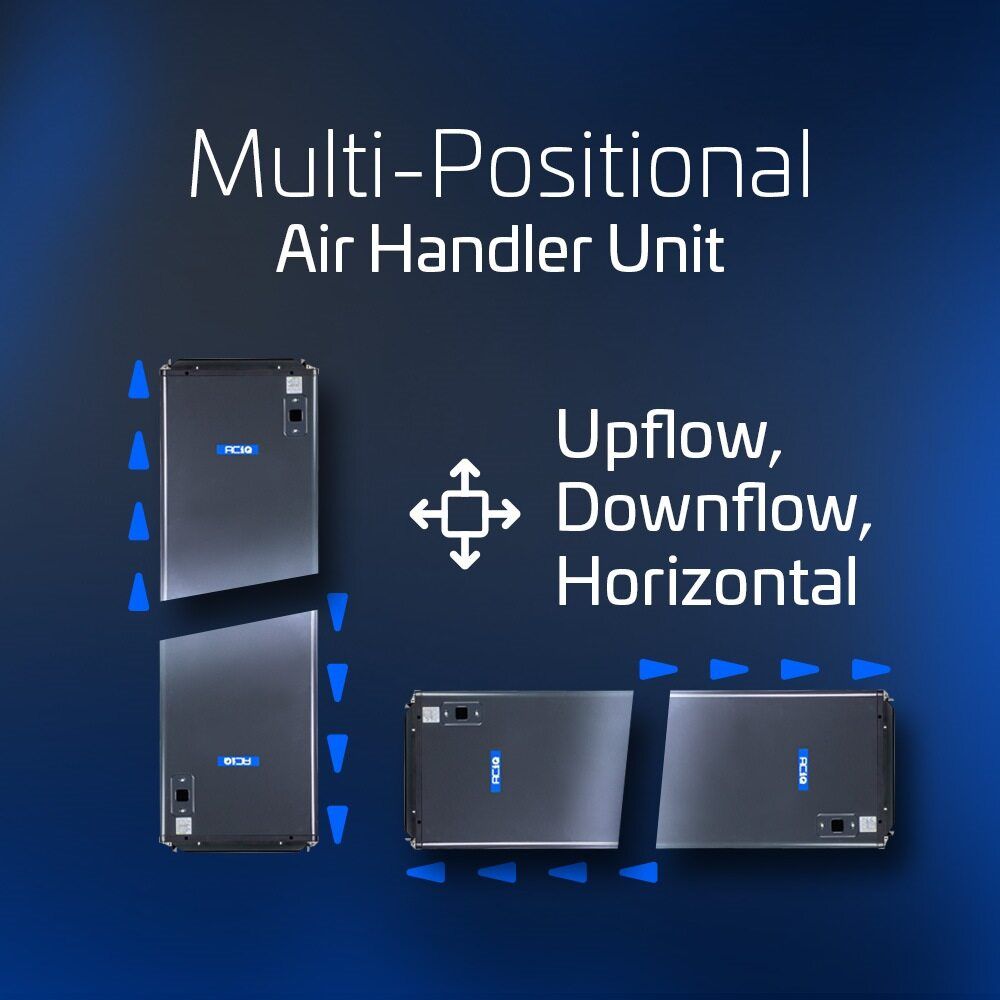

- Multi-position installation: upflow, downflow, or horizontal
- Variable-speed fan motor
- Wi-Fi enabled with "Follow Me" remote
- Low ambient heating and whisper-quiet operation
- Eco, Turbo, and Freeze Protection Modes
- Compatible with 24v thermostats
Important
Must be installed by a licensed HVAC technician to validate warranty. Register within 60 days at aciq.com. Select your desired kit options above. Bundle includes all manuals and essential install parts such as communication wire, copper line sets, and drain line.
Multi-Position Air Handler Compatibility
Extreme+ Series Multi-Position Air Handler Options
| Capacity | Extreme+ Indoor + Outdoor Model |
|---|---|
| 18,000 BTU | ACIQ-18-PAH + ACIQ-18-HPD |
| 24,000 BTU | ACIQ-24-PAH + ACIQ-24-HPD |
| 30,000 BTU | ACIQ-30-PAH + ACIQ-30-HPD |
| 36,000 BTU | ACIQ-36-PAH + ACIQ-36-HPD |
| 48,000 BTU | ACIQ-48-PAH + ACIQ-48-HPD |
| 60,000 BTU | ACIQ-60-PAH + ACIQ-60-HPD |
Warranty
- 12-Year Compressor Warranty
- 7-Year Parts Warranty (licensed installation required)
- 1-Year Remote Control Warranty
Technical Information

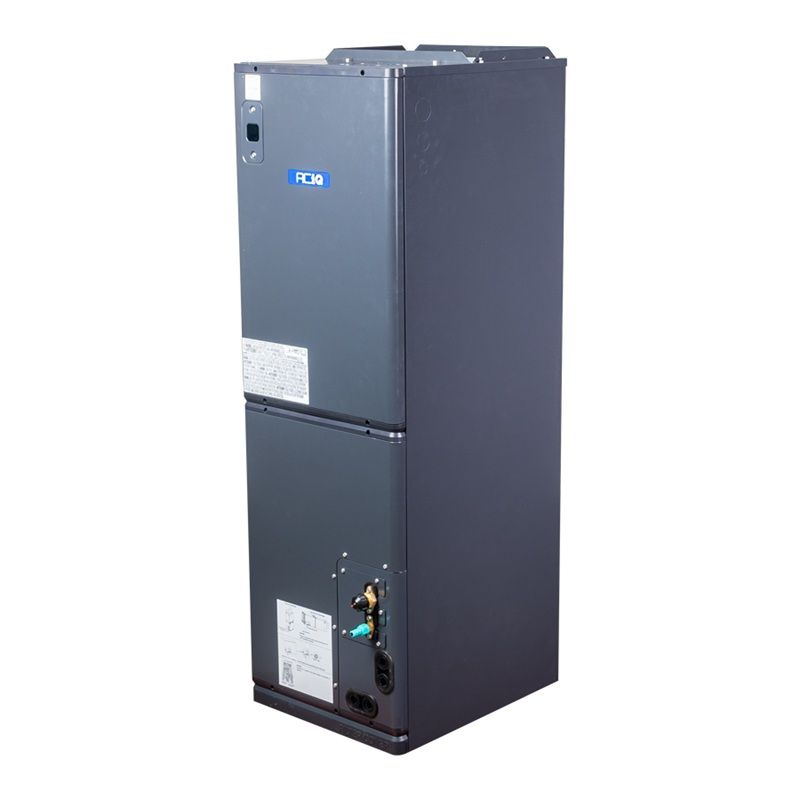

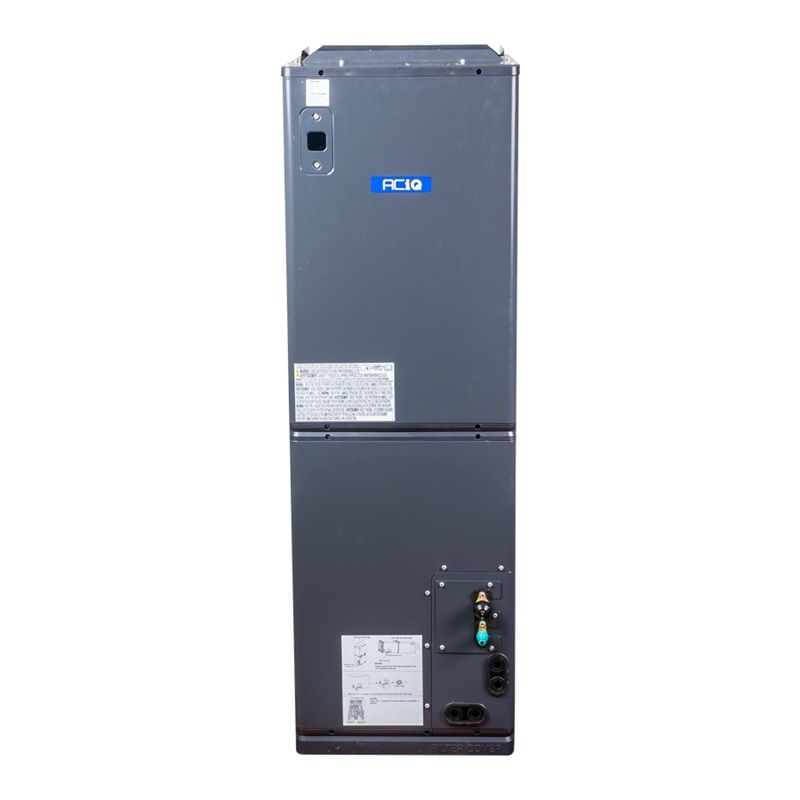

Indoor Unit: ACIQ-60-PAH
- Air Flow: Up to 1801 CFM
- Noise: Up to 60 dBA
- Electric Heat Strip Options: 5kW, 8kW, 10kW, 15kW, 20kW
- Electrical: 208/230V, 1 Phase, 60 Hz
- Breaker: Max 15A / Min 14.5A
- Dimensions (HxWxD): 56" x 24.5" x 21.5"

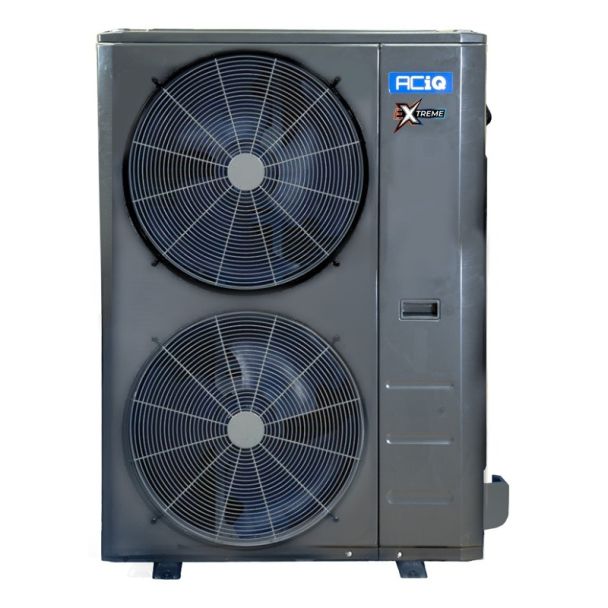

Outdoor Unit: ACIQ-60-HPD
- Cooling Capacity: 55,000 BTU
- Heating Capacity: 59,000 BTU
- SEER2: 16 | HSPF2: 9.0
- Operating Range: -22°F to 122°F
- Sound: 65 dBA
- Refrigerant: R454B, Precharged for 25'

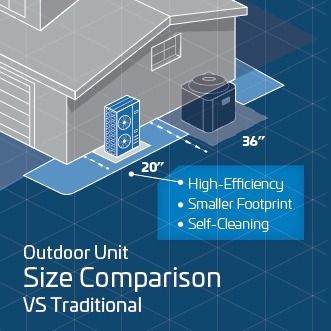

- Dimensions (HxWxD): 58.3" x 37.5" x 16.3"
- Electrical: 208/230V, 1 Phase, 60 Hz
Certifications
- AHRI Certified
- ETL Listed
- Energy Star for Cold Climate
