Product overview
Daikin Aurora 24,000 BTU 21 SEER2 Low Ambient Mini Split Heat Pump System - R32 - 230V
The 24,000 BTU Daikin Aurora 21 SEER2 Single Zone Wall Mount Mini Split Heat Pump System is a high-efficiency, all-season solution for both residential and light commercial applications. This system delivers powerful heating and cooling with advanced inverter technology, a sleek wall-mounted design, and environmentally friendly R-32 refrigerant. Built for extreme climates, the Aurora series provides reliable heating even in freezing temperatures, ensuring year-round comfort and energy savings.
Key Features
- 24,000 BTU Heating & Cooling Capacity Provides powerful temperature control for large rooms and open spaces.
- 21 SEER2 Energy Efficiency Maximizes energy savings while maintaining superior performance.
- Cold Climate Heating Engineered for efficient operation even in freezing outdoor temperatures.
- Advanced Inverter Technology Ensures precise temperature control and optimized energy consumption.
- Eco-Friendly R-32 Refrigerant Reduces environmental impact while improving system efficiency.
- Quiet Operation Low noise levels make it ideal for bedrooms, offices, and commercial spaces.

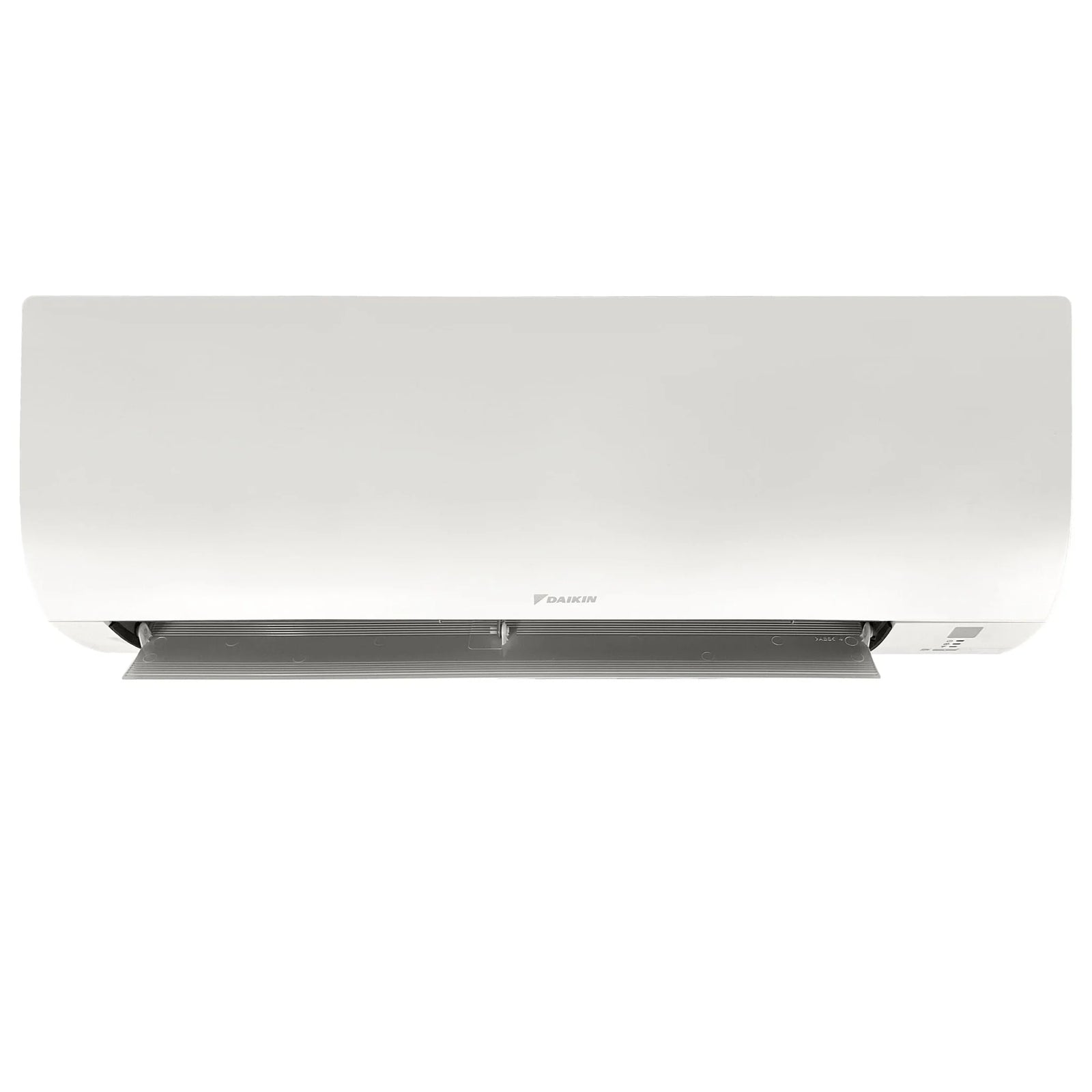

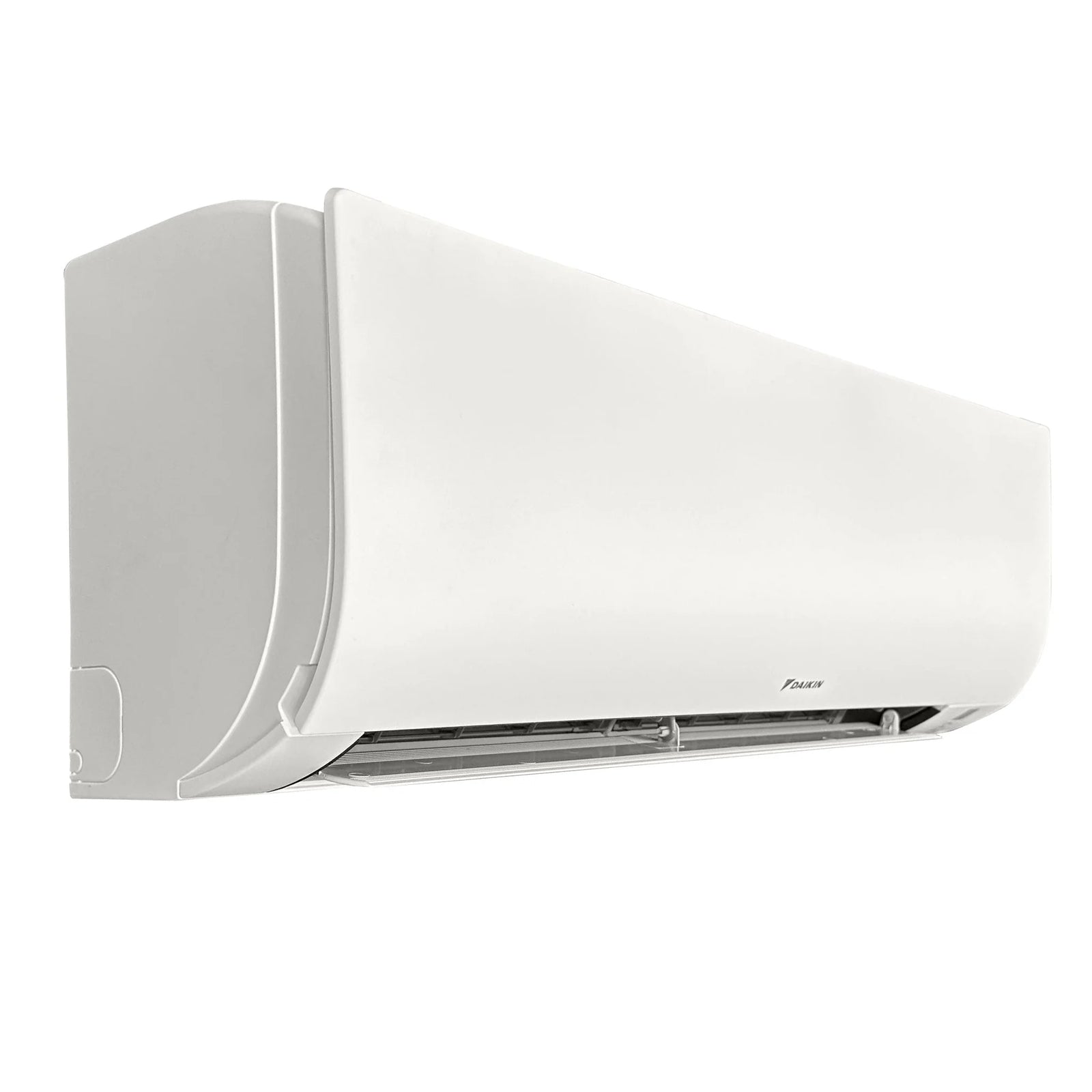

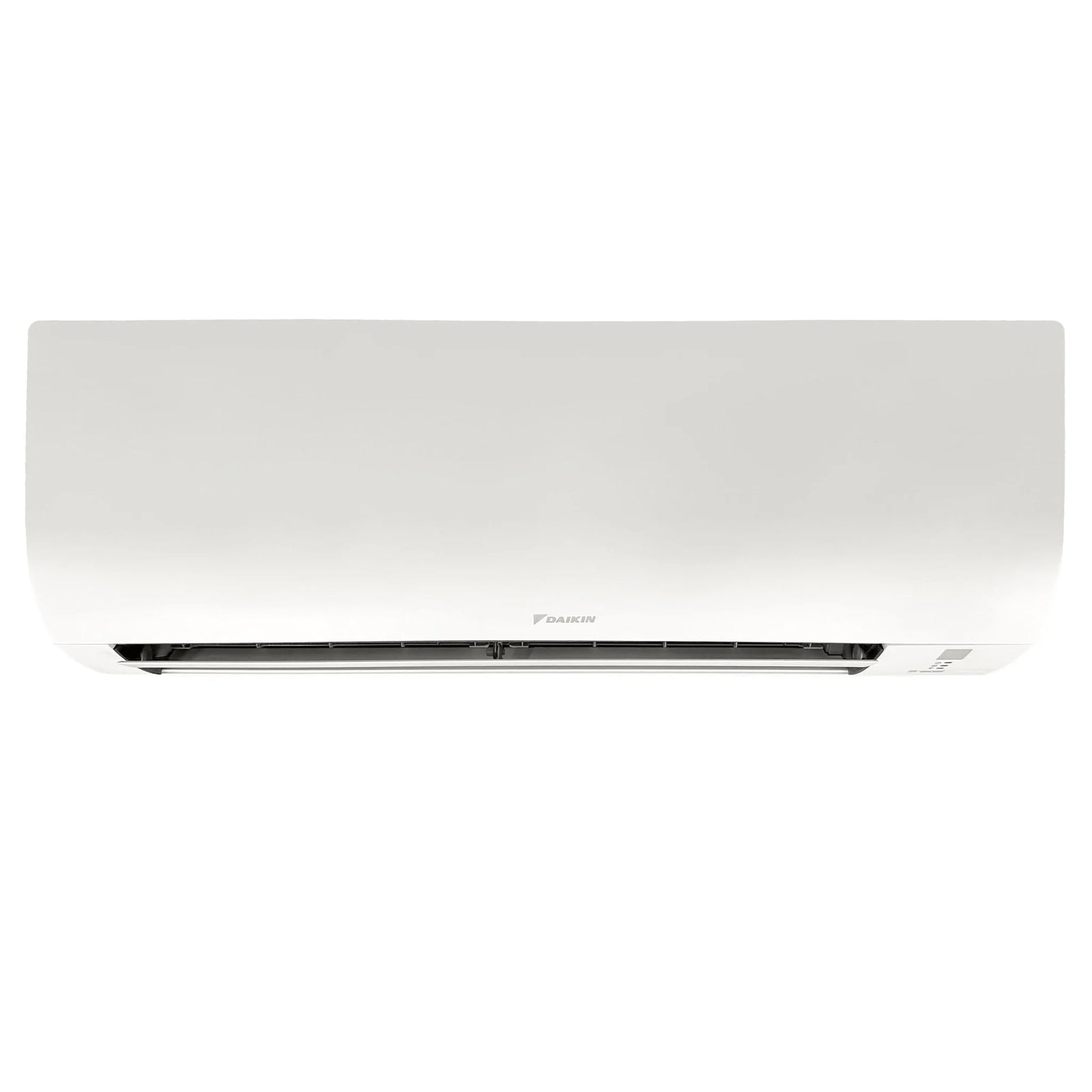

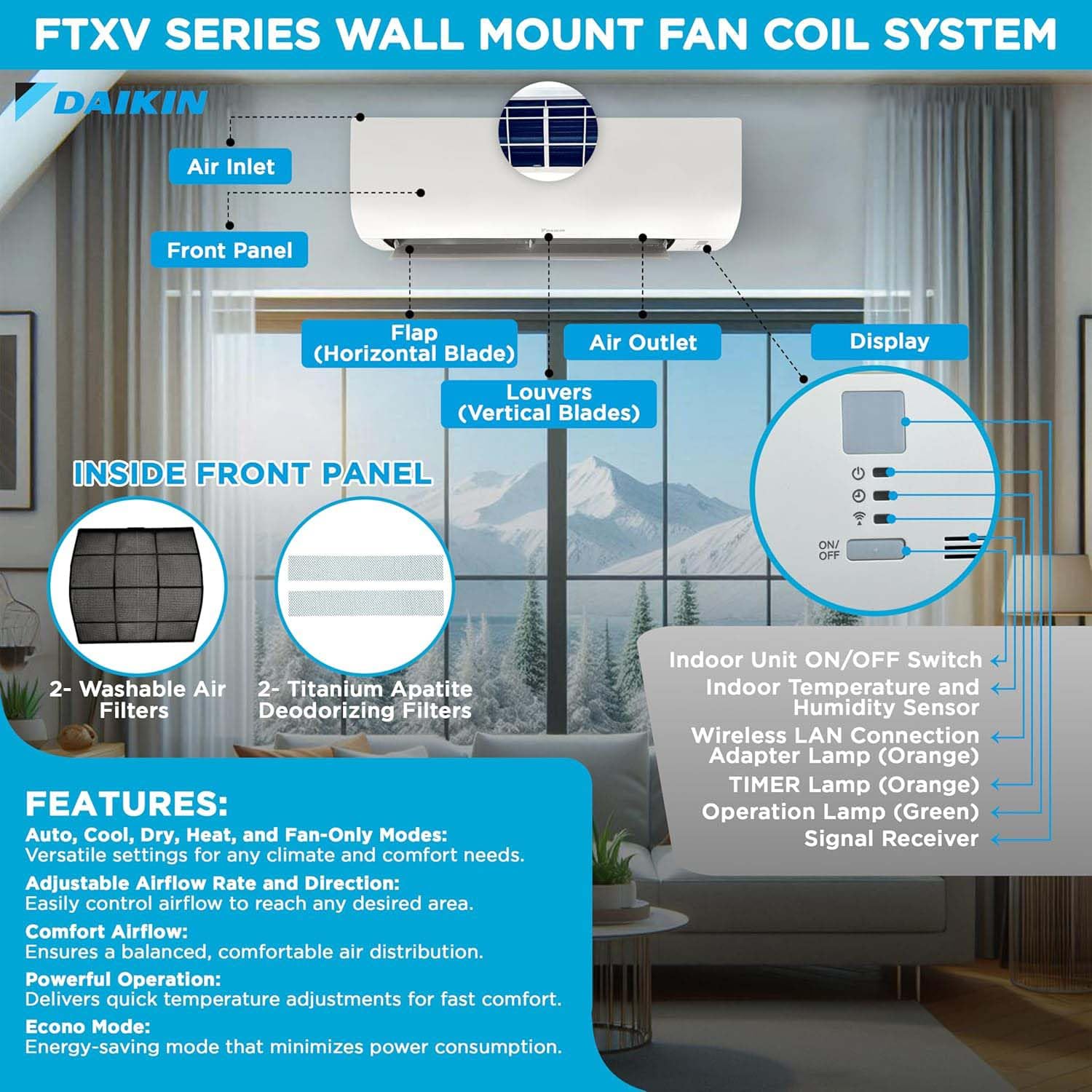

- Wall-Mounted Indoor Unit Space-saving and modern design that complements any interior.
- 230V Power Supply Provides stable and efficient operation for long-term reliability.
Ideal Applications
- Large residential rooms, offices, and commercial spaces requiring efficient heating and cooling.
- Cold climates where reliable heating is needed even in extreme winter conditions.
- Rooms without ductwork where a traditional HVAC system is impractical.
- Garages, basements, sunrooms, and home additions requiring year-round climate control.
- Replacing inefficient window units, portable air conditioners, or outdated heating systems.

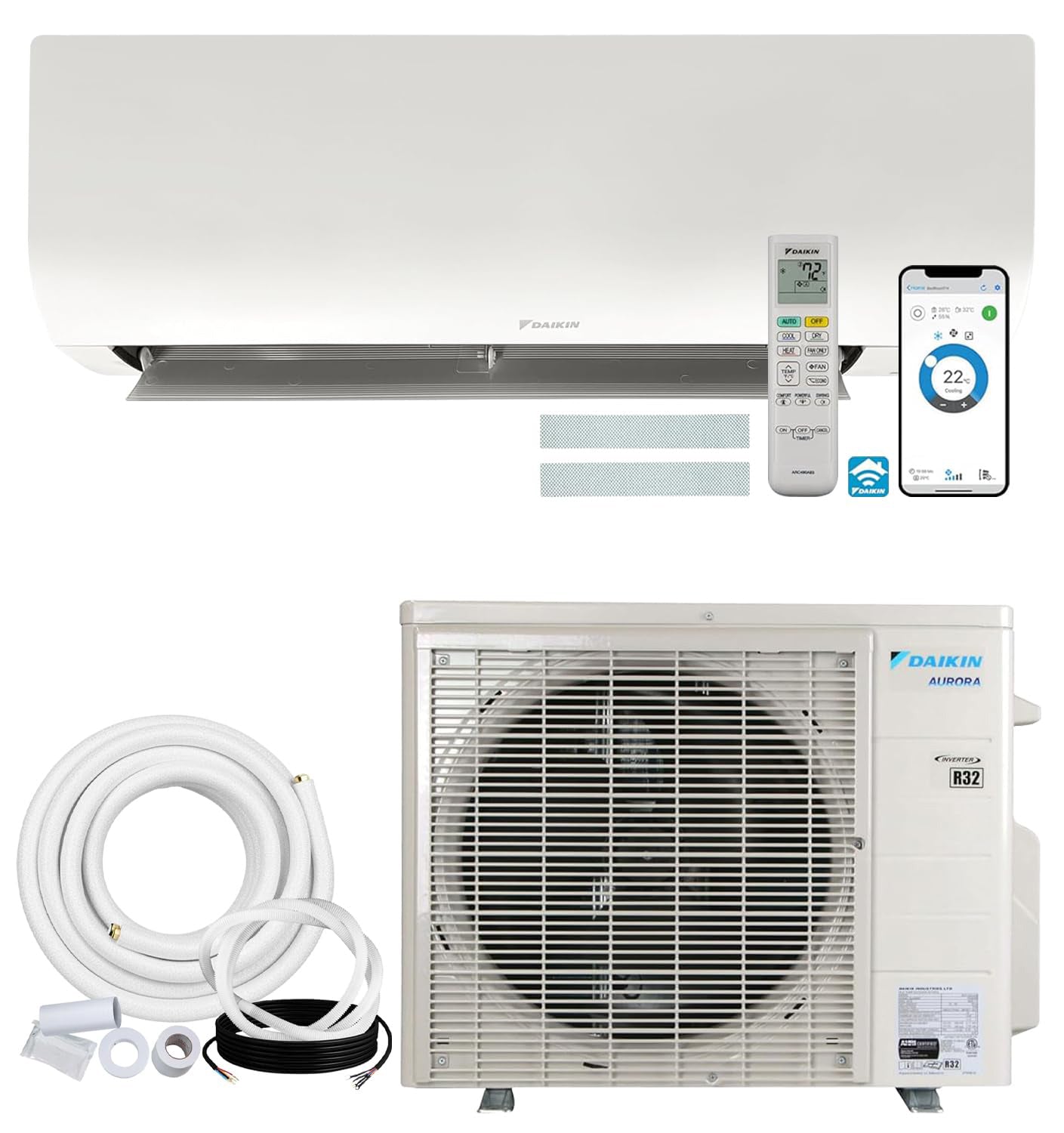

What's Included
- Indoor Wall-Mounted Unit
- Outdoor Condenser Unit

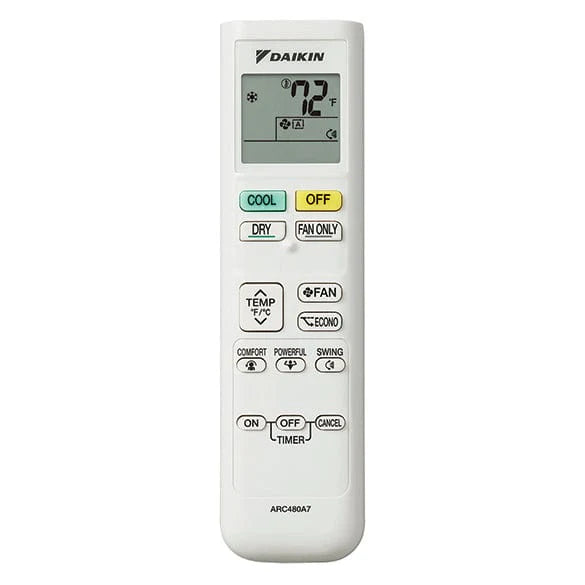

- Wireless Remote Controller
- Installation Kit (line set length varies based on selection)
Warranty
Daikin provides a 12-year limited warranty on parts for registered systems, ensuring peace of mind and long-term reliability.
System Specifications:
| Air Conditioner Type |
Ductless Mini Split Wall Mount
|
| Application Area (Sqft) | 1,500 |
| Cooling Capacity (Btu) | 26,400 / 7,000 |
| Heating Capacity (Btu) | 32,000 / 6,200 |
| SEER2 | 21 |
| HSPF2 | 9.5 |
| EER2 | 12 |
|
Coeficient Of Performance (COP)
|
|
| Power Supply |
208-230 V / 1 Phase / 60 Hz
|
| Refrigerant Type | R-32 |
| Number of Zones (Rooms) | 1 |
| Manufacturer Limited Warranty (Yr) | 12 |
| Wifi Capibility | Yes |
| Minimum Outdoor Temperature for Cooling (F°) | 50 |
| Minimum Outdoor Temperature for Heating (F°) | -13 |
| Certifications |
AHRI Certified / UL Listed
|
Air Handler Specifications:
| Mounting Style | Wall Mounted |
| Airflow Rate (Hi/Mi/Lo) |
629 / 501 / 378 / 335
|
| Sound Level (Hi/Mi/Lo) dB(A) | 52 / 45 / 39 / 34 |
| Liquid Line Size (In) | 1/4 |
| Suction Line Size (In) | 5/8 |
| Drain Line Size (In) | 5/8 |
| Application Area (Sqft) | 1500 |
| Indoor Air Quality Type |

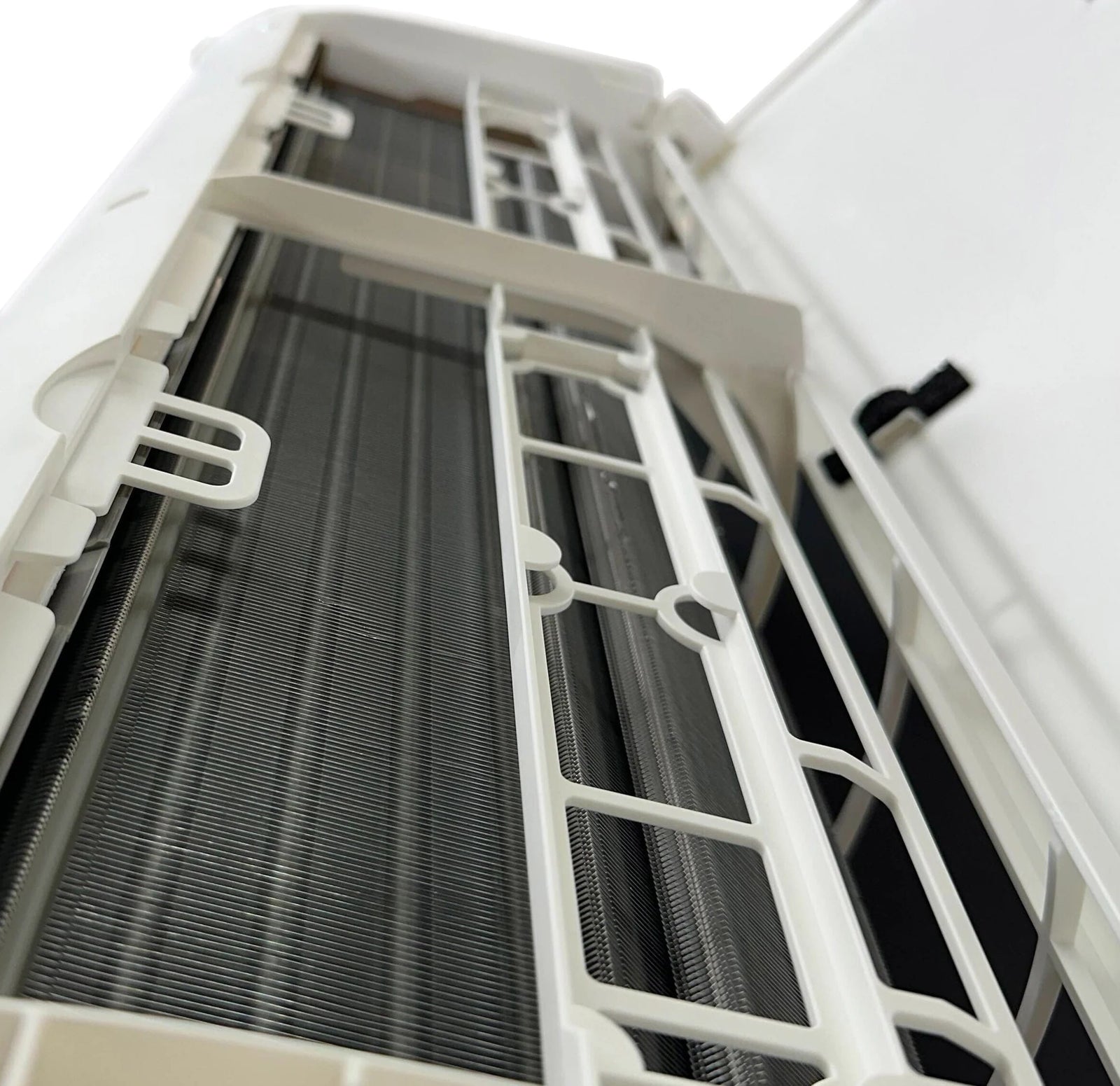

Washable Air Filter
|
| Net/Gross weight (Lb) | 27/37 |
| Width / Depth / Height (In) |
11-5/8 × 39 × 10-3/8
|
| Packaged Width / Depth / Height (In) |
15-3/16 × 43-3/8 × 15-5/16
|

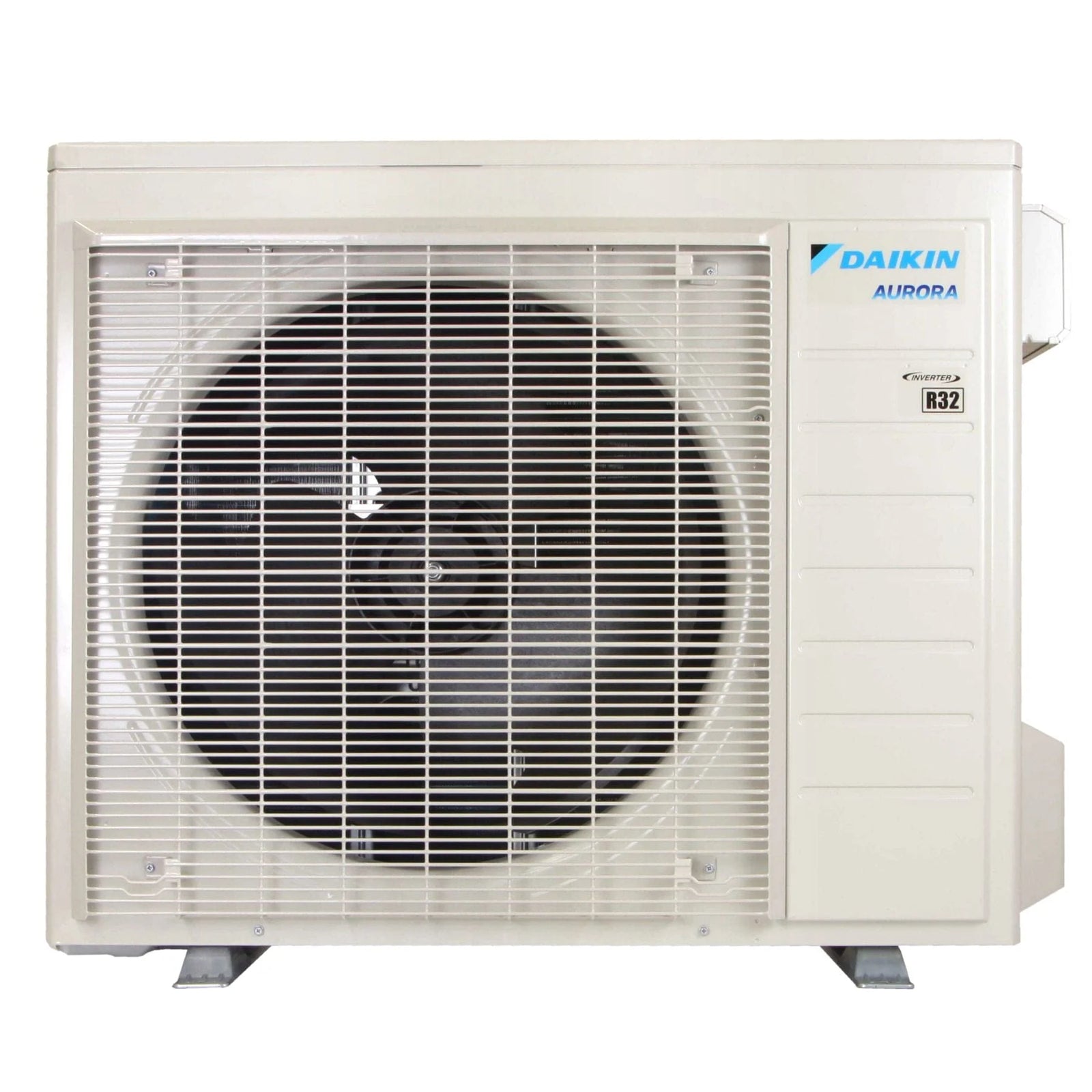

Condenser Specifications:
| Outdoor Model Number | RXT24AVJU9 |
| Nominal Cooling Capacity (BTU) | 24,000 |
| Nominal Heating Capacity (BTU) | 24,000 |
| Sound Pressure (H) (dBA) | 55 |
| Liquid Line Size | 1/4 |
| Suction Line Size | 5/8 |
| Operation Mode | Heat Pump |
| Compressor Type | Inverter |
| Dimensions (Height / Width / Depth) (in) |
29-1/2 x 34-1/4 x 12-5/8
|
| Maximum Indoor Units | 1 |
| Airflow Rate (H) (CFM) | 2,383 |
| Net Weight (lb) | 127 |
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
Ask AI
Ask AI about this product
Ask our AI product assistant about sizing, compatibility, electrical needs, accessories, shipping, warranty, and install planning.
At a glance
Tech specs
| Condenser capacity | 24,000 |
|---|---|
| Indoor unit(s) | 24K |
| Coverage area | 1,150 Sq Ft. |
| Zones / rooms | 1 Zone |
| Efficiency | 21 SEER2 |
| Line set | Custom |
| Mount type | Wall |
| Installation | Professional Installation |
| Brand | Daikin |
Sizing in doubt? Our HVAC experts confirm capacity for your rooms before you order — free. Ask us about utility rebates for high-efficiency heat pumps in your area.
