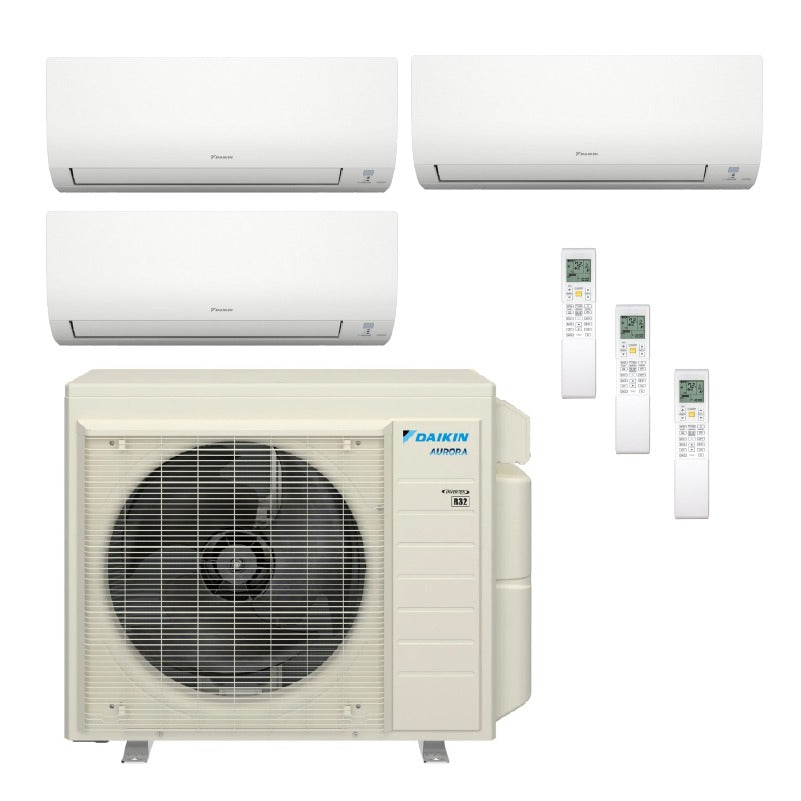

Daikin Aurora 3-Zone Ductless Mini Split AC & Heat Pump 36000 BTU (12K+18K+18K), Wall Mount Units, 230V - R32
The 36,000 BTU 21 SEER2 Three-Zone Mini Split Heat Pump System (12K + 18K + 18K) is a high-efficiency solution designed to provide year-round comfort. Perfect for residential and light commercial applications, this system includes three indoor units, allowing independent climate control in two separate spaces. With advanced inverter technology, a sleek wall-mounted design, and eco-friendly R-32 refrigerant, this system ensures superior energy savings and personalized comfort.
Features:
Multi-Zone comfort: One outdoor unit connects up to five separate fan coils individually controlled
Variable Speed Inverter Compressor
Cooling Range 14° - 115° F
Continuous heating operation as low as -13F° (-25°C)
Quick and easy installation
Precision temperature control for individual rooms
Space-saving design
Quiet operation
Intelligent Defrost mode

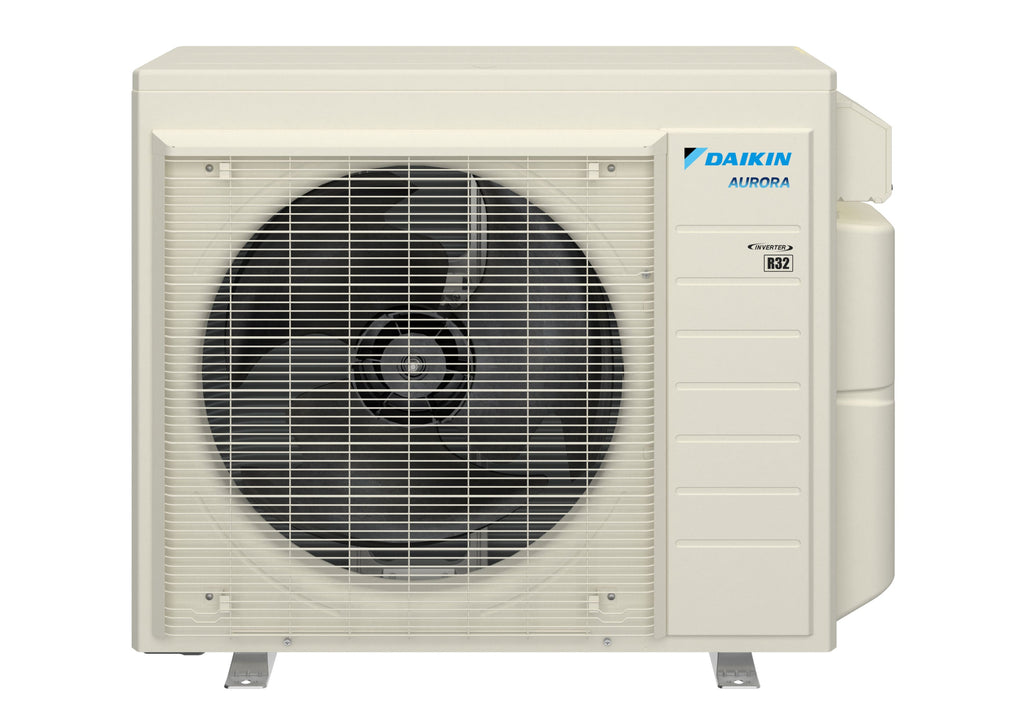

Condenser Specifications:
Sku
3MXM24AVJU9
Manufacturer
Daikin
Product Category
Ductless Mini-Splits
Product Class
Multi-Split Heat Pump
System Family
Multi-Split
Function Category
Heat Pump
Product Type
Equipment
Unit Type
Outdoor
Market Type
Residential-Single Family
Product Family
3MXM_AVJU9
Series Name
MXM
Short Description
Multi Split Heat Pump Outdoor Series Outdoor Multi-Split Heat Pump
Family Description
2.0 Ton 3-Port Heat Pump
Product Description
2.0-Ton R-32, 3-Port Heat Pump, Ductless ODU
Cooling Btu
23,000
Heating Btu
24,000
Seer2
21
Decibel Level (Dba)
52 dBA
Refrigerant
R-32
Compressor Type
Swing
Liquid Line
1/4 in
Suction Line
3/8 in
Electrical
208-230 V | 60 Hz | 1 Ph
Max Breaker Size
25 A
Min. Breaker Size
19.9 A
Tonnage
2
Btu/Tonnage
23,000 BTU/2 Ton
Min/Max Outdoor Temp For Heating
5 °F to 59.9 °F
Min/Max Outdoor Temp For Cooling
14 °F to 114.8 °F
Zone Compatibility
Multi Zone
Height
29-1/2 in
Width
34-1/4 in
Depth
12-5/8 in
Weight
140 lb
Warranty
ALL PARTS - 12 YEARS PARTS

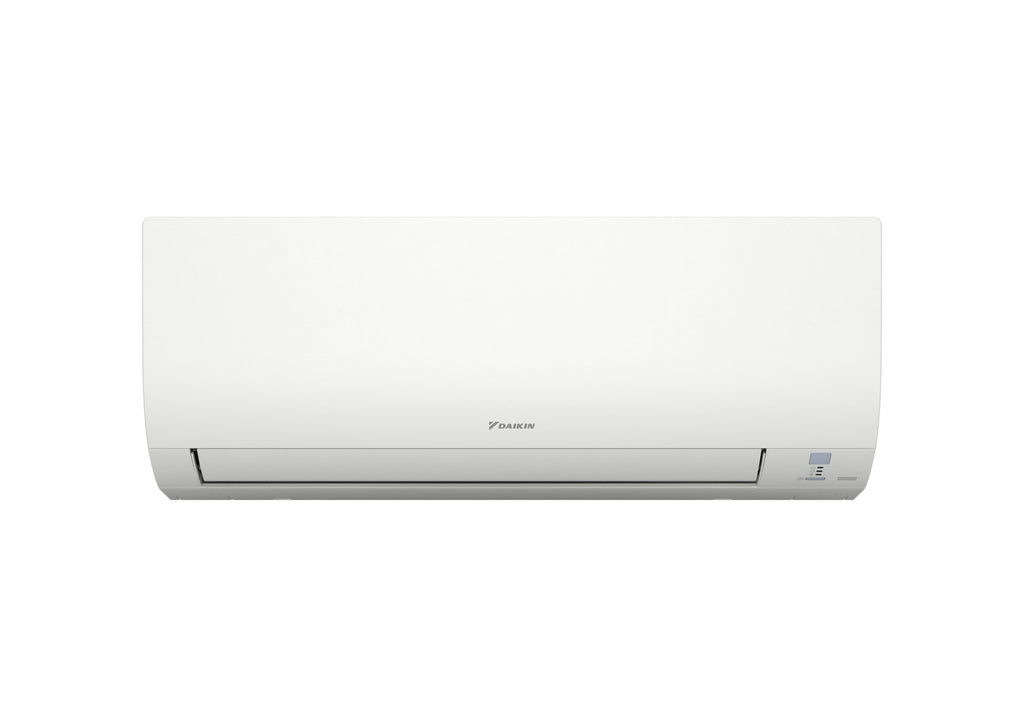

12k Air Handler Specifications:
Sku
FTXV12AVJU9
Manufacturer
Daikin
Product Category
Ductless Mini-Splits
Product Class
Multi-Split Fan Coil
System Family
Multi-Split
Function Category
Cooling Only
Product Type
Equipment
Unit Type
Indoor
Market Type
Residential-Single Family
Product Family
FTXV_AVJU9
Series Name
Multi-Split Fan Coil Indoor
Short Description
Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil
Family Description
R-32 0.75 - 2.0 Ton Wall Mounted Unit
Product Description
1 Ton Wall Mount R-32
Decibel Level (Dba)
45 dBA
Refrigerant
R-32
Liquid Line
1/4 in
Suction Line
3/8 in
Electrical
208-230 V | 60 Hz | 1 Ph
Tonnage
1
Zone Compatibility
Multi Zone
Height
11-1/4 in
Width
30-5/16 in
Depth
8-3/4 in
Weight
19 lb
18k Air handler Specifications:
Sku
FTXV18AVJU9
Manufacturer
Daikin
Product Category
Ductless Mini-Splits
Product Class
Multi-Split Fan Coil
System Family
Multi-Split
Function Category
Cooling Only
Product Type
Equipment
Unit Type
Indoor
Market Type
Residential-Single Family
Product Family
FTXV_AVJU9
Series Name
Multi-Split Fan Coil Indoor
Short Description
Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil
Family Description
R-32 0.75 - 2.0 Ton Wall Mounted Unit
Product Description
1.5 Ton Wall Mount - R-32
Decibel Level (Dba)
48 dBA
Refrigerant
R-32
Liquid Line
1/4 in
Suction Line
1/2 in
Electrical
208-230 V | 60 Hz | 1 Ph
Zone Compatibility
Multi Zone
Height
11-5/8 in
Width
39 in
Depth
10-3/8 in
Weight
27 lb
Need help deciding which mini split system is right for you? We are here to help.
Talk with one of our trusted HVAC and Mini Split professionals today!
We ship FAST so your order arrives within just a few days!
Best Price Guarantee
Our prices are highly competitive so our customers get the best deal possible.
Support from experts
We're available 24/7 to help answer any questions you have.
Secure payments
We are PCI compliant and encrypt all payment data to keep it safe.
Abre en una nueva ventana.
Timothy Webb
The pre-charged lines allowed us to install this heat pump with no special equipment.
The pre-charged lines allowed us to install this heat pump with no special equipment. They seem to be well designed and work as intended. A torque wrench is recommended to make sure that you get these just tight enough.

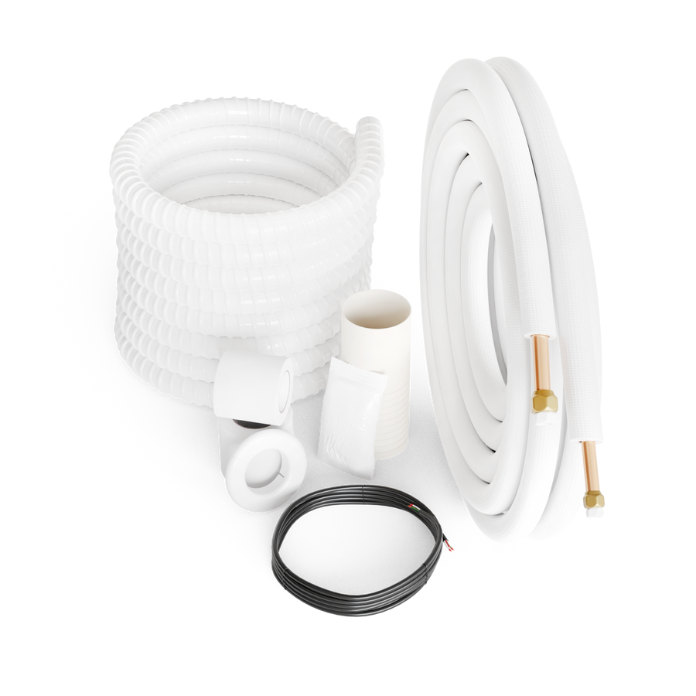

Pre-Charged No-Vac Line Set:
