Daikin Aurora 4-Zones Ductless Mini Split AC & Heat Pump 36,000 BTU (7K + 7K + 15K + 15K), Wall Mount Units,230V- R32
The 36,000 BTU Daikin 20 SEER2 Four-Zone Mini Split Heat Pump System (12K + 12K + 15 + 15) is a high-efficiency, dual-zone solution designed to provide year-round comfort. Perfect for residential and light commercial applications, this system includes two indoor units, allowing independent climate control in two separate spaces. With advanced inverter technology, a sleek wall-mounted design, and eco-friendly R-32 refrigerant, this system ensures superior energy savings and personalized comfort.
This system is also backed by a 12 year parts warranty.
Key Features:
- Exceptional Heating & Cooling Efficiency
- Advanced Technology
- durable & Quiet Design
- Flexible Installation & Operation
- User Friendly Features
Ideal Applications:
- Homes, offices, and commercial spaces needing multi-room heating and cooling.
- Areas without ductwork where a traditional HVAC system is impractical.
- Bedrooms, living rooms, kitchens, or other spaces requiring independent climate control.
- Replacing inefficient window units, portable air conditioners, or outdated heating systems.

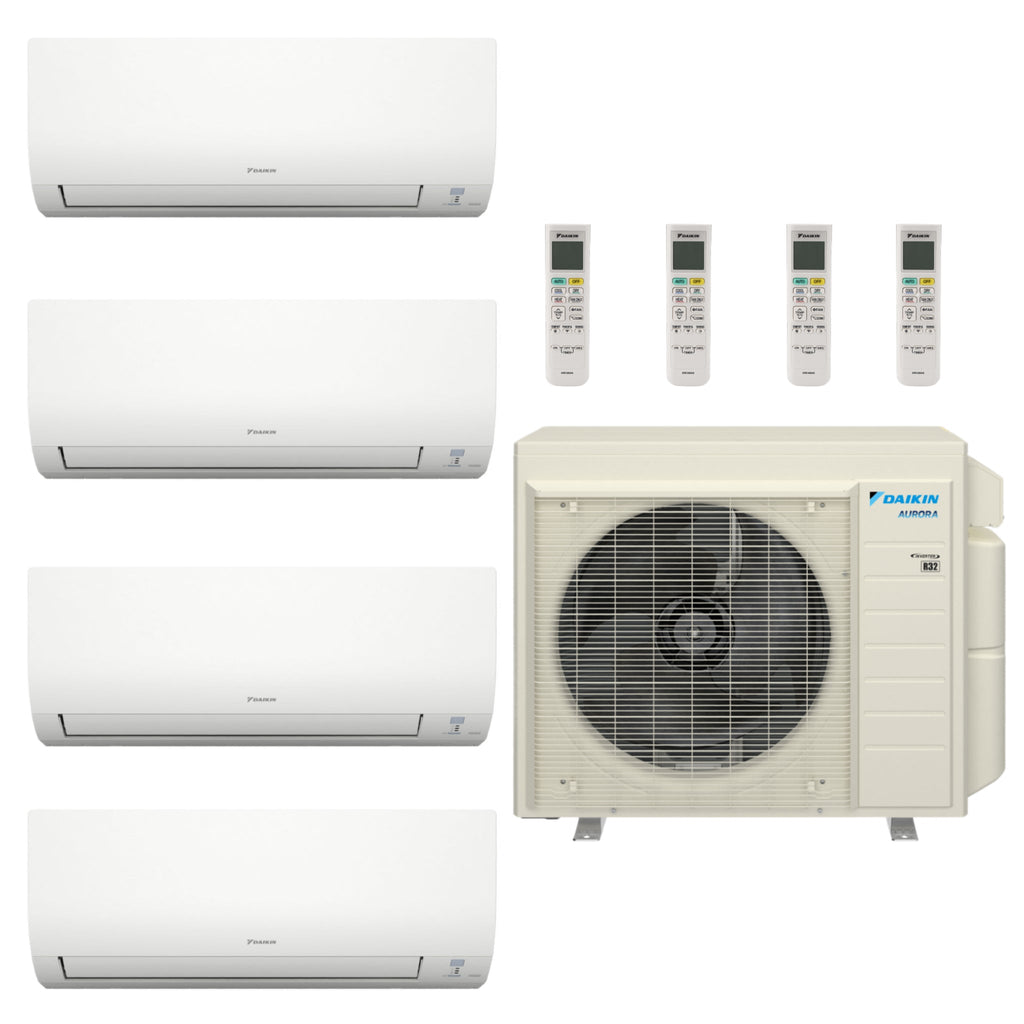

What's Included:
- Two (2) 7,000 and two (2) 15,000 BTU Wall-Mounted Indoor Unit
- Outdoor Condenser Unit

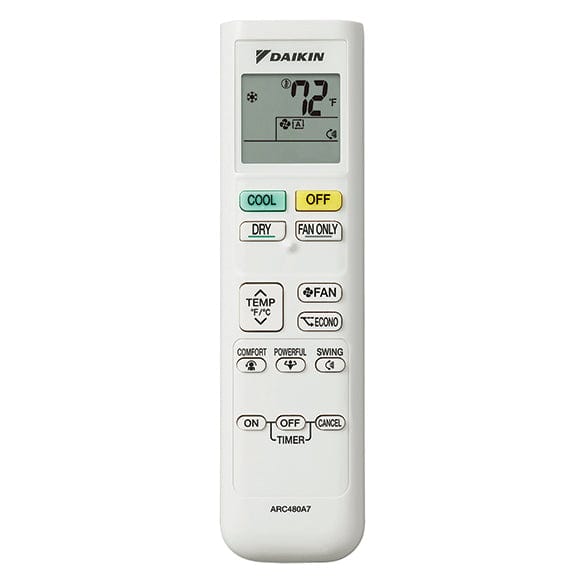

- Four (4) Wireless Remote Controllers
- Wall Mounting Brackets
Optional Accessories:

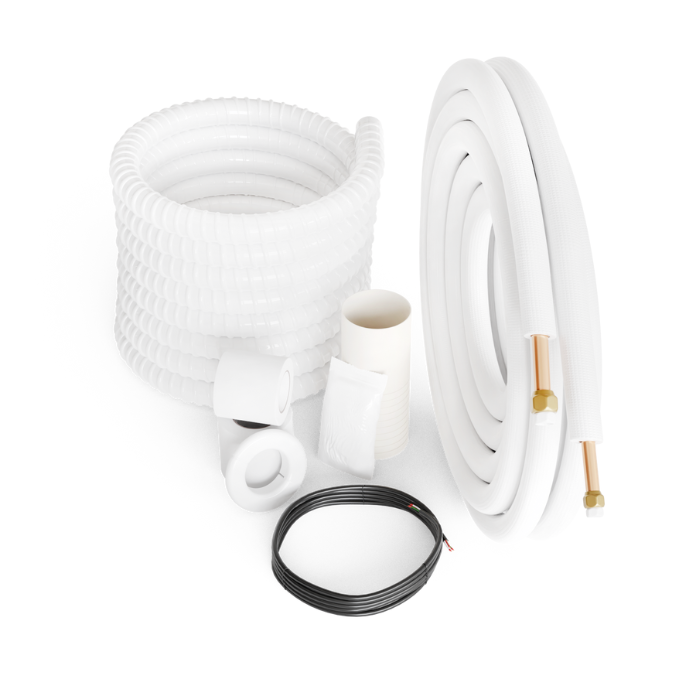

- Refrigerant Line Set (Select Line Set Options)
- Condenser Installation Kit
- Mounting Kit
- Thermostat

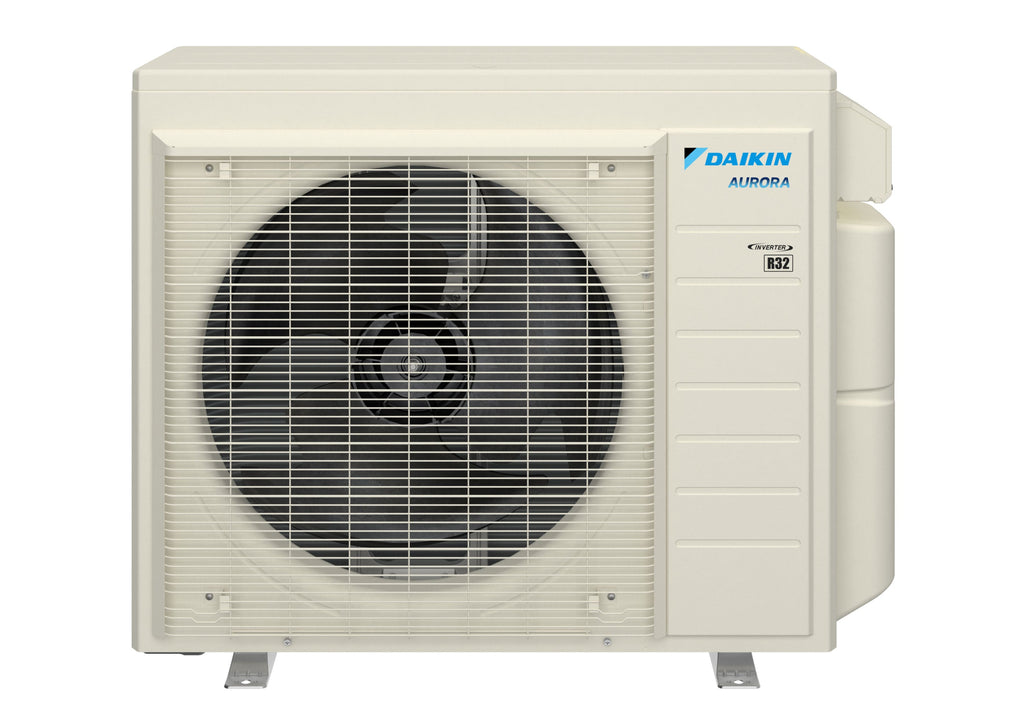

Condenser Specifications:
| Sku |
4MXM36AVJU9 |
| Manufacturer |
Daikin |
| Product Category |
Ductless Mini-Splits |
| Product Class |
Multi-Split Heat Pump |
| System Family |
Multi-Split |
| Function Category |
Heat Pump |
| Product Type |
Equipment |
| Unit Type |
Outdoor |
| Market Type |
Residential-Single Family |
| Product Family |
4MXM_AVJU9 |
| Series Name |
MXM |
| Short Description |
Multi Split Heat Pump Outdoor Series Outdoor Multi-Split Heat Pump |
| Family Description |
3.0 Ton R-32 4-Port Heat Pump |
| Product Description |
3.0-Ton R-32, 4-Port Heat Pump, Ductless ODU |
| Cooling Btu |
34,200 |
| Heating Btu |
34,600 |
| Seer2 |
20 |
| Decibel Level (Dba) |
56 dBA |
| Refrigerant |
R-32 |
| Compressor Type |
Swing |
| Liquid Line |
1/4 in |
| Suction Line |
3/8 in |
| Electrical |
208-230 V | 60 Hz | 1 Ph |
| Max Breaker Size |
25 A |
| Min. Breaker Size |
24.1 A |
| Tonnage |
3 |
| Btu/Tonnage |
34,200 BTU/3 Ton |
| Min/Max Outdoor Temp For Heating |
5 °F to 59.9 °F |
| Min/Max Outdoor Temp For Cooling |
14 °F to 114.8 °F |
| Zone Compatibility |
Multi Zone |
| Height |
29-1/2 in |
| Width |
34-1/4 in |
| Depth |
12-5/8 in |
| Weight |
142 lb |
| Warranty |
ALL PARTS - 12 YEARS PARTS |

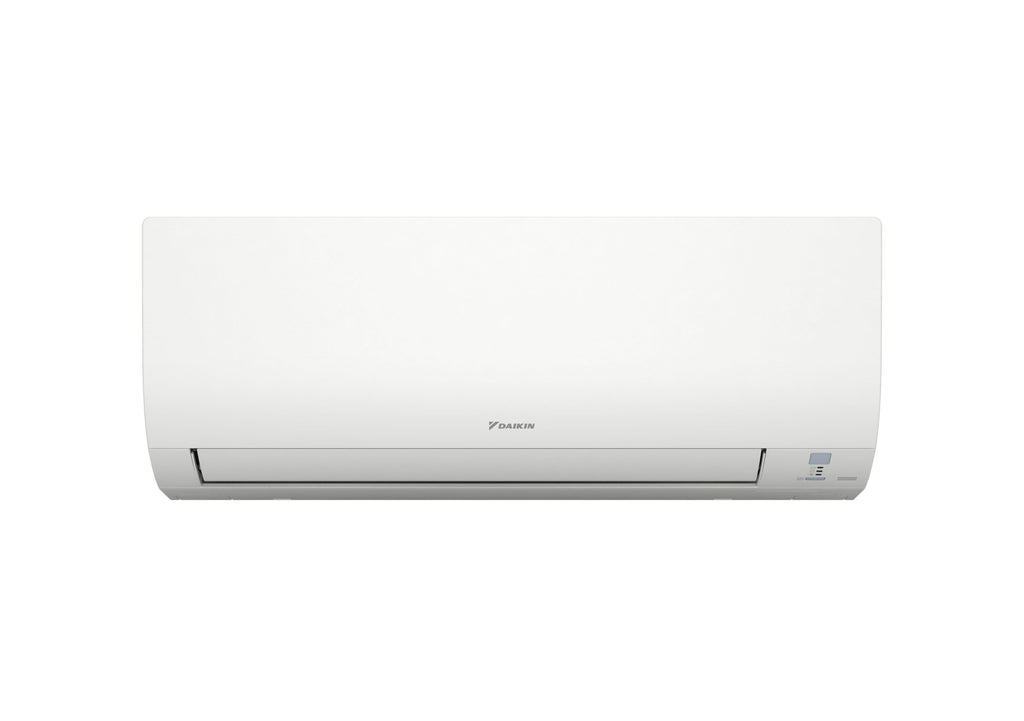

7k Air Handler Specs:
| Sku |
CTXV07AVJU9 |
| Manufacturer |
Daikin |
| Product Category |
Ductless Mini-Splits |
| Product Class |
Multi-Split Fan Coil |
| System Family |
Multi-Split |
| Function Category |
Cooling Only |
| Product Type |
Equipment |
| Unit Type |
Indoor |
| Market Type |
Residential-Single Family |
| Product Family |
CTXV_AVJU9 |
| Series Name |
Multi-Split Fan Coil Indoor R-32 |
| Short Description |
Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil |
| Family Description |
0.5 Ton Wall Mounted Unit |
| Product Description |
1/2 Ton Wall Mounted Unit - R-32 |
| Decibel Level (Dba) |
40 dBA |
| Refrigerant |
R-32 |
| Liquid Line |
1/4 in |
| Suction Line |
3/8 in |
| Electrical |
208-230 V | 60 Hz | 1 Ph |
| Tonnage |
0.5 |
| Zone Compatibility |
Multi Zone |
| Height |
11-1/4 in |
| Width |
30-5/16 in |
| Depth |
8-3/4 in |
| Weight |
19 lb |
| Warranty |
ALL PARTS - 12 YEARS PARTS |
15K Air Handler Specs:
| Sku |
FTXV15AVJU9 |
| Manufacturer |
Daikin |
| Product Category |
Ductless Mini-Splits |
| Product Class |
Multi-Split Fan Coil |
| System Family |
Multi-Split |
| Function Category |
Cooling Only |
| Product Type |
Equipment |
| Unit Type |
Indoor |
| Market Type |
Residential-Single Family |
| Product Family |
FTXV_AVJU9 |
| Series Name |
Multi-Split Fan Coil Indoor |
| Short Description |
Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil |
| Family Description |
R-32 0.75 - 2.0 Ton Wall Mounted Unit |
| Product Description |
1.25 Ton Wall Mount R-32 |
| Decibel Level (Dba) |
45 dBA |
| Refrigerant |
R-32 |
| Liquid Line |
1/4 in |
| Suction Line |
1/2 in |
| Electrical |
208-230 V | 60 Hz | 1 Ph |
| Tonnage |
1.25 |
| Zone Compatibility |
Multi Zone |
| Height |
11-5/8 in |
| Width |
39 in |
| Depth |
10-3/8 in |
| Weight |
27 lb |
| Warranty |
ALL PARTS - 12 YEARS PARTS |
