Product overview

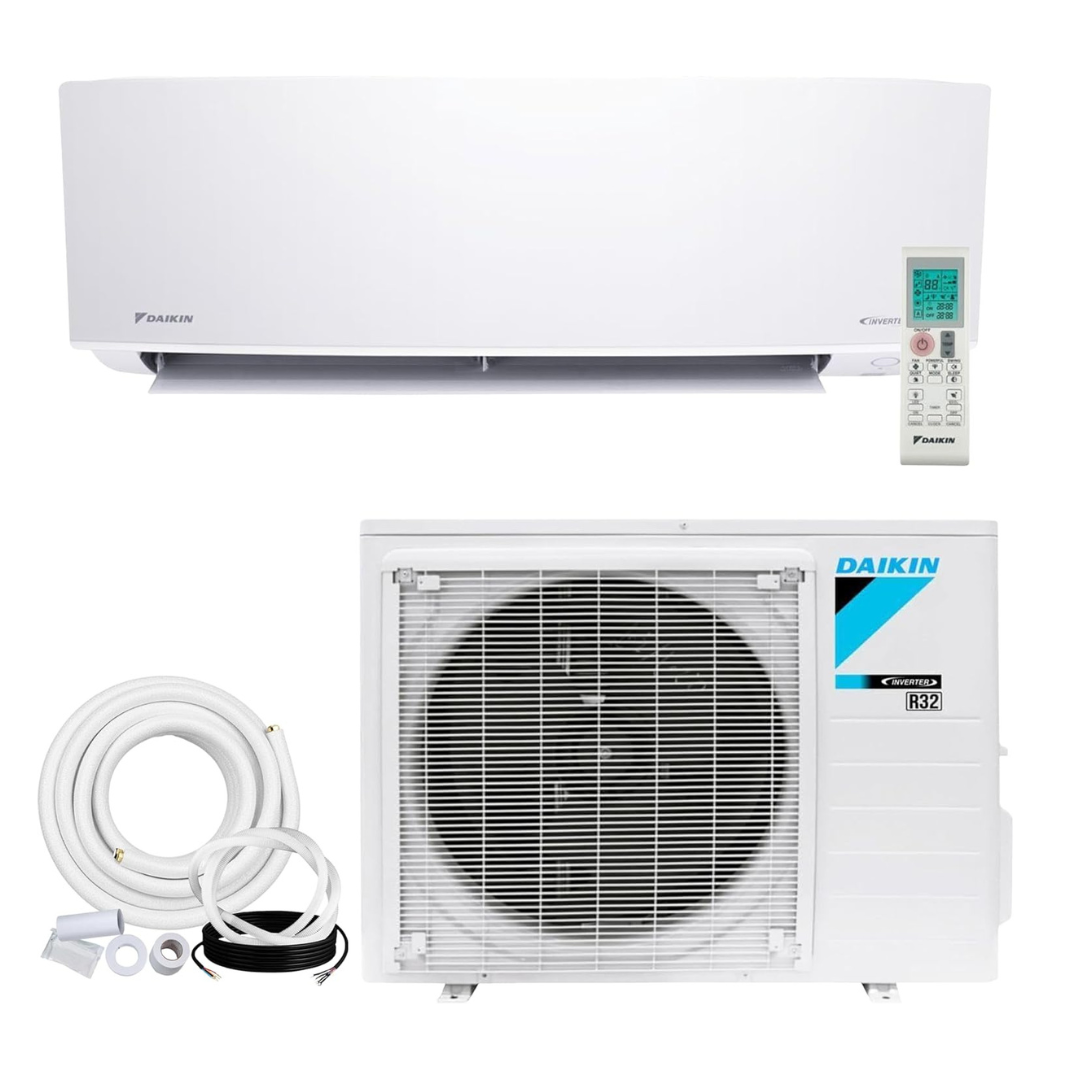

Daikin ENTRA 24,000 BTU 18 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R32 - 230V
The Daikin Entra 24,000 BTU 18 SEER2 Single Zone Wall Mount Mini Split Heat Pump System is an energy-efficient and high-performance solution for heating and cooling larger spaces. Designed for superior comfort and efficiency, this system features advanced inverter technology, quiet operation, and an eco-friendly R-32 refrigerant.
Key Features:
- 24,000 BTU Capacity – Delivers powerful heating and cooling for larger spaces.
- 18 SEER2 Energy Efficiency – Maximizes energy savings while maintaining comfort.
- Advanced Inverter Technology – Provides precise temperature control and optimized performance.
- Cooling and Heating Functionality – Operates in a wide range of outdoor temperatures.
- Quiet Operation – Low noise levels make it ideal for residential and commercial applications.
- Eco-Friendly R-32 Refrigerant – Reduces environmental impact while improving efficiency.
- Wall-Mounted Indoor Unit – Sleek, space-saving design blends seamlessly with any decor.
- 230V Power Supply – Ensures stable and efficient operation.
Ideal Applications:
- Home additions, renovations, and new construction projects.
- Replacing inefficient window or portable air conditioning units.
- Rooms without existing ductwork where traditional HVAC systems are impractical.
- Garages, basements, attics, and sunrooms requiring precise climate control.
What's Included:

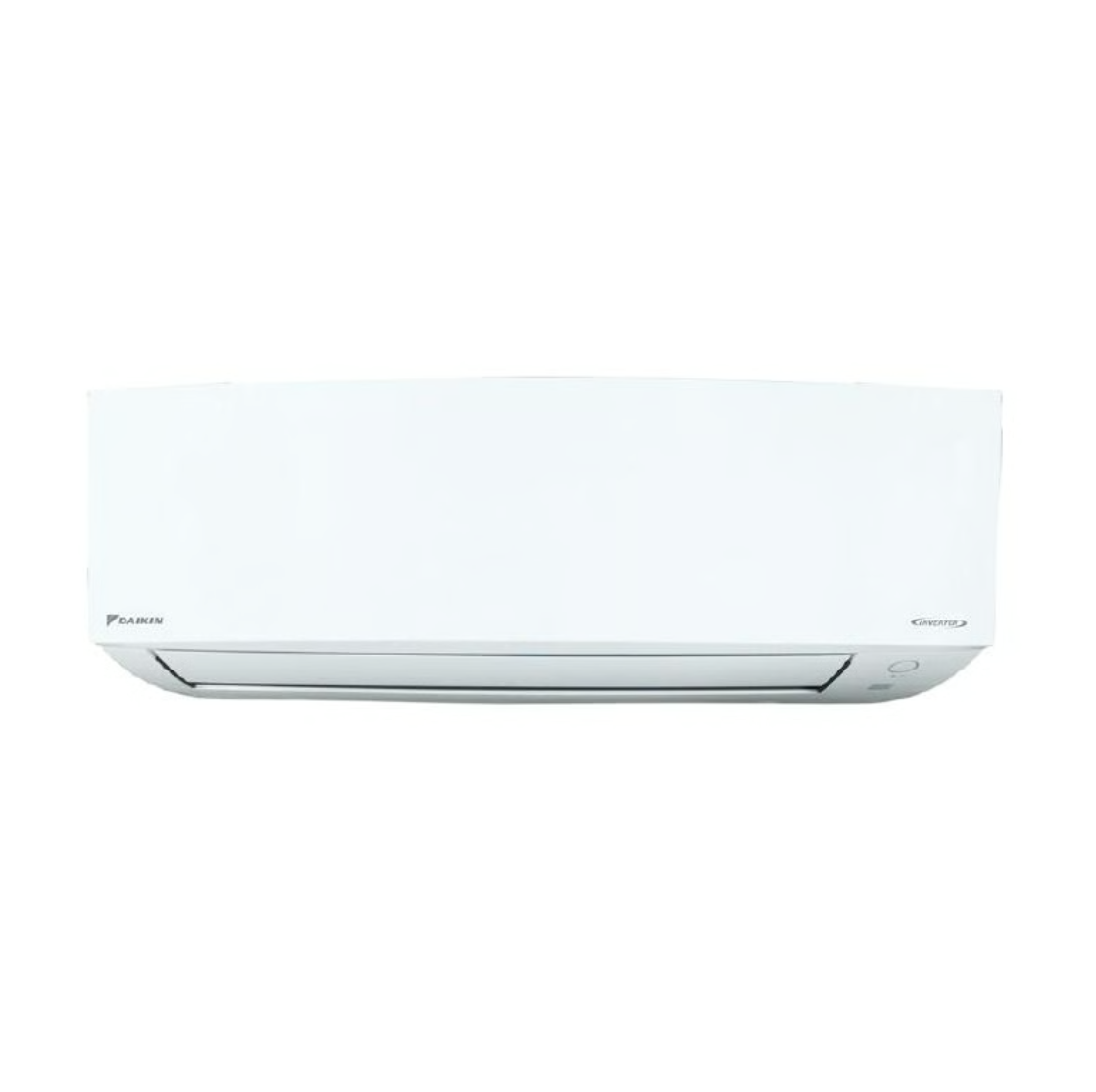

- Indoor Wall-Mounted Unit

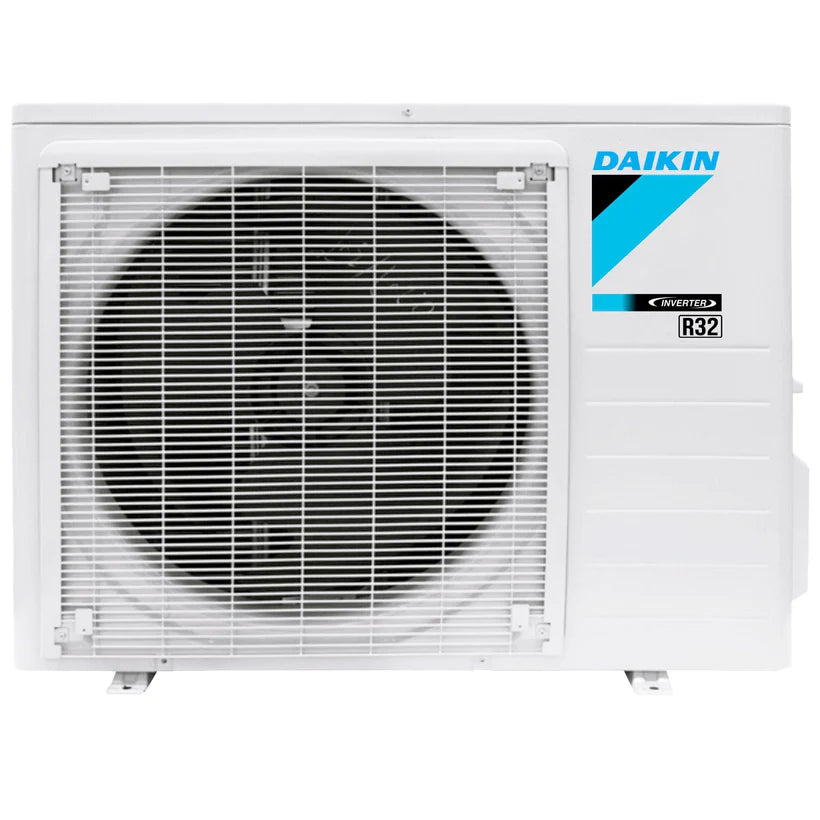

- Outdoor Condenser Unit

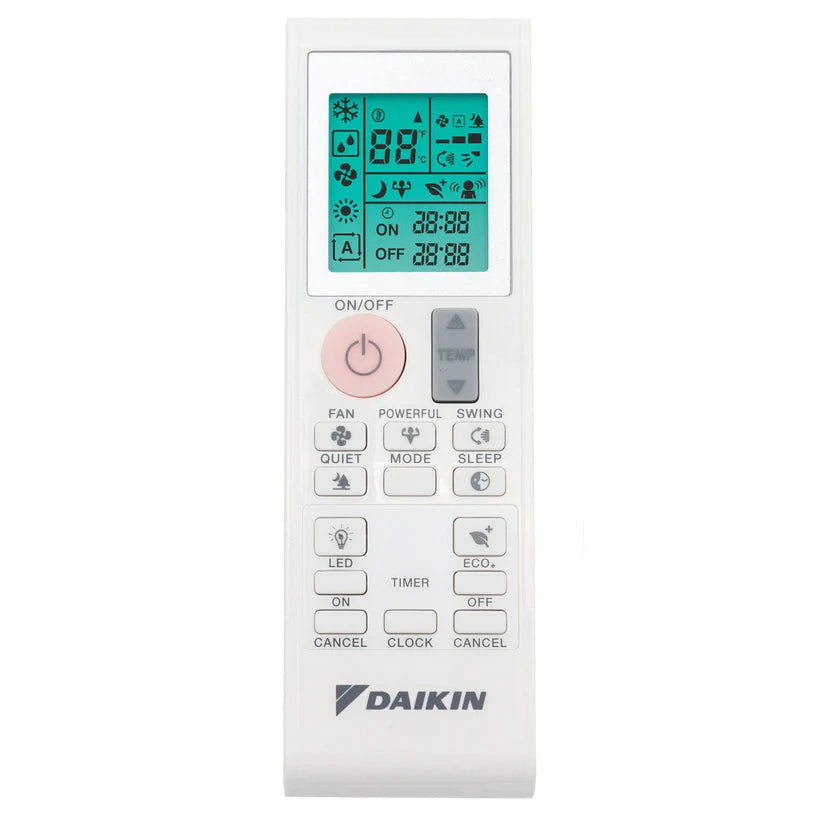

- Wireless Remote Controller
Warranty:
Daikin provides a 12-year limited warranty on parts for registered systems, ensuring long-term reliability and peace of mind.
Condenser Specs:
| SKU | RXC24AXVJU |
|---|---|
| Weight | 101.000000 |
| Manufacturer | Daikin |
| Replaces | RXB24BXVJU |
| Cooling BTU | 22,400 |
| Heating BTU | 23,000 |
| Decibel Level (dBA) | 53 |
| Refrigerant | R32 |
| SEER2 | 18 |
| Compressor Type | Swing |
| Liquid Line | 1/4" |
| Suction Line | 5/8" |
| Electrical | 208-230 V | 60 Hz |1 Phase |
| Max Breaker Size | 20 A |
| Min. Breaker Size | 16.34 A |
| BTU/Tonnage | 24,000 BTU/2 Ton |
| Min/Max Outdoor Temp for Heating | 5°F to 64.4°F |
| Min/Max Outdoor Temp for Cooling | 50°F to 114.8°F |
| Zone Compatibility | Single Zone |
| Height | 27.40" |
| Width | 36.62" |
| Depth | 13.81" |
| Warranty | Limited 10-Year Parts Warranty |
| Safety Information | PROPOSITION 65 WARNING |
Air Handler Specs:
| Feature | Spec |
|---|---|
| SKU | FTXC24AXVJU |
| Weight | 30.500000 |
| Manufacturer | Daikin |
| Replaces | FTXB24BXVJU |
| HSPF2 | 9 |
| Decibel Level (dBA) | 51 |
| Refrigerant | R32 |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 11.68" |
| Width | 39.56" |
| Depth | 11.33" |
| Warranty | Limited 10-Year Parts Warranty |
| Safety Information | PROPOSITION 65 WARNING |
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
Ask AI
Ask AI about this product
Ask our AI product assistant about sizing, compatibility, electrical needs, accessories, shipping, warranty, and install planning.
At a glance
Tech specs
| Condenser capacity | 24,000 |
|---|---|
| Indoor unit(s) | 24K |
| Coverage area | 1,150 Sq Ft. |
| Zones / rooms | 1 Zone |
| Power | 230 Volt |
| Line set | Custom |
| Mount type | Wall |
| Installation | Professional Installation |
| Brand | Daikin |
