Product overview
Daikin ENTRA 9,000 BTU 18 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R32 - 230V

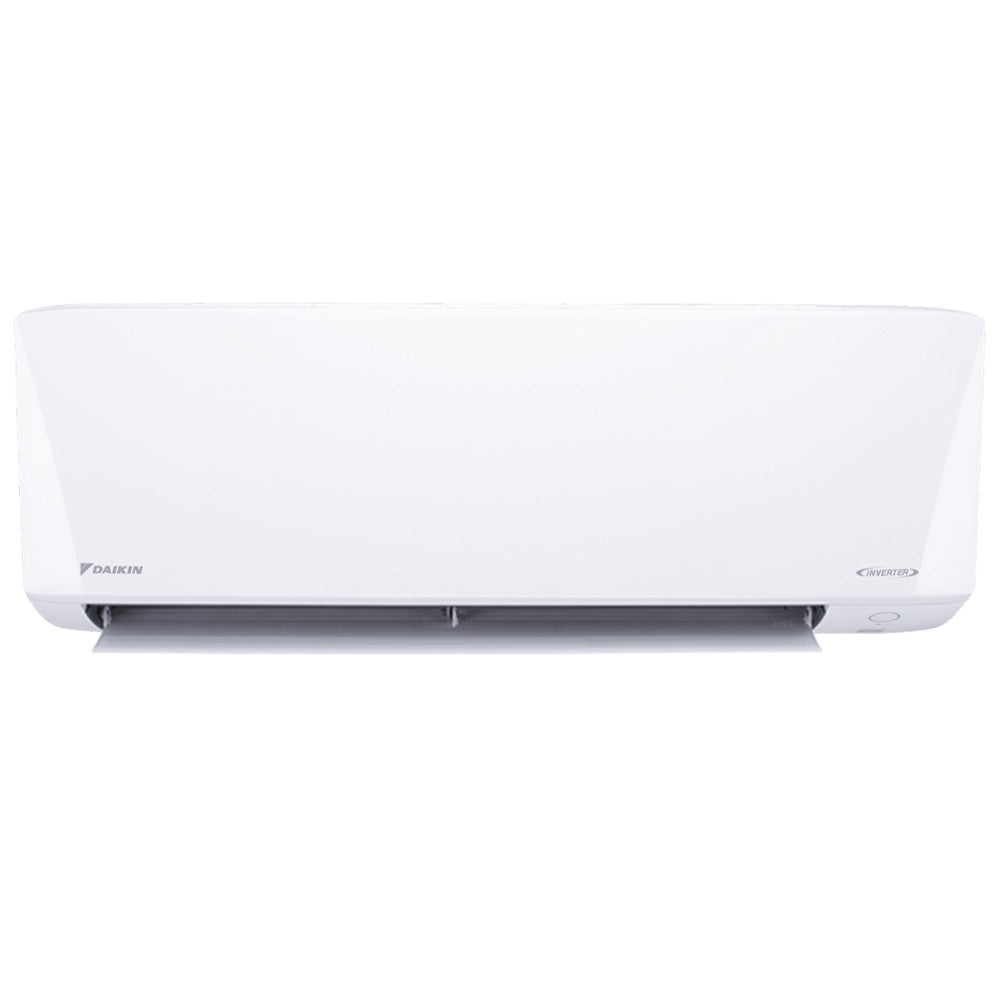

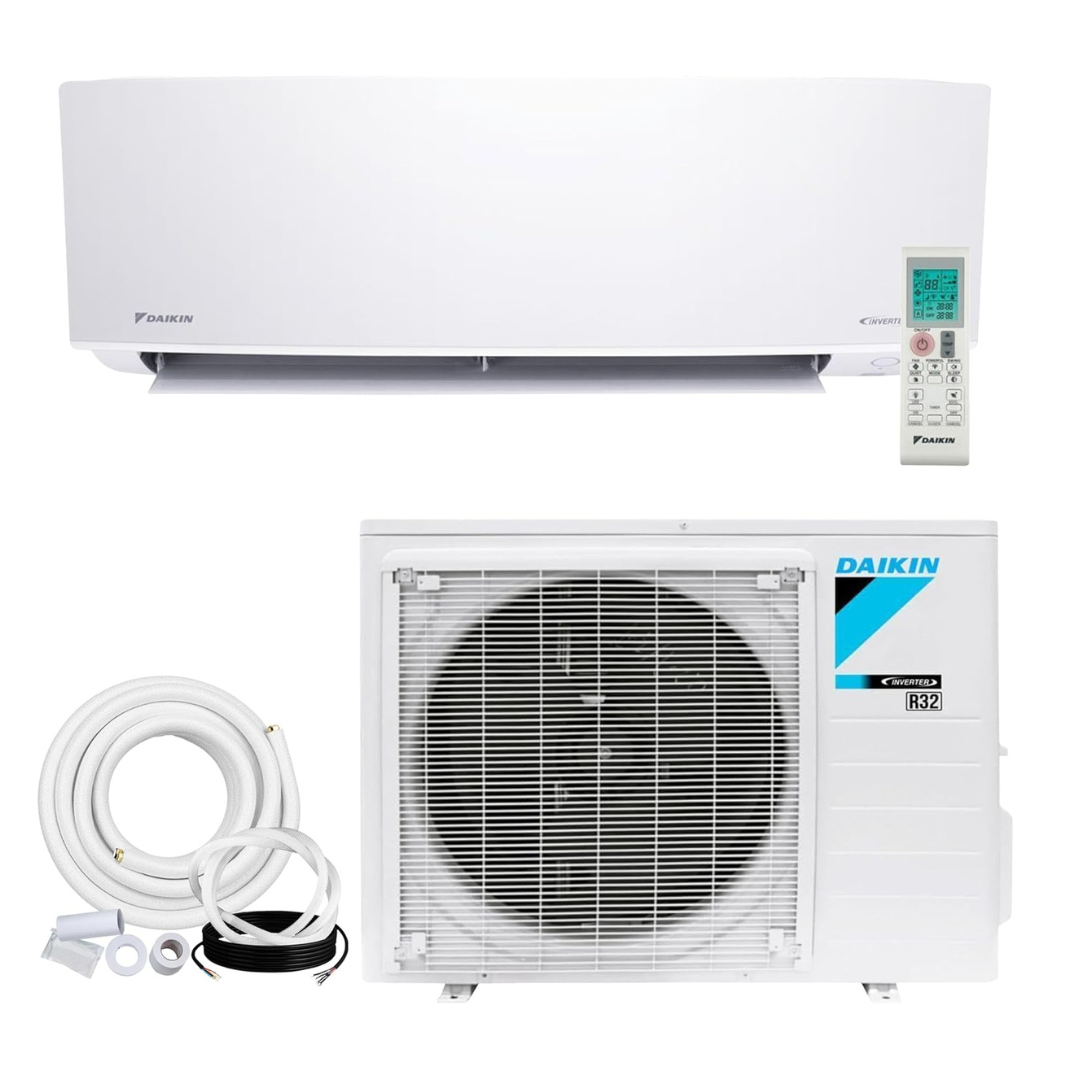

The Daikin Entra Series FTXC09AXVJU (indoor unit) paired with the RXC09AXVJU (outdoor unit) is a high-efficiency 9,000 BTU ductless mini split heat pump system designed to deliver dependable year-round comfort using modern inverter technology and low-GWP R-32 refrigerant. Built for quiet operation, strong performance, and long-term reliability, this system is ideal for bedrooms, offices, bonus rooms, and similar small-to-medium living spaces where precise comfort control is essential.
Key Features & Benefits:
- Energy-Efficient Performance: Designed with an inverter-driven compressor to modulate output smoothly, reducing temperature swings while improving overall system efficiency and comfort.
- Environmentally Conscious: Utilizes R-32 refrigerant, which offers lower environmental impact and improved thermodynamic performance compared to traditional refrigerants.
- Low-Noise Comfort: Indoor unit sound levels fall into the low-20 dB(A) range, creating whisper-quiet operation suitable for bedrooms and home offices. Outdoor unit noise levels remain low for minimal disturbance.
- Reliable Heating & Cooling: Delivers stable cooling performance in high outdoor temperatures and dependable heating when outdoor temperatures drop. Designed to maintain consistent comfort throughout the year.
- Enhanced Indoor Air Quality: Features a titanium apatite air-purifying filter to help trap fine particles and improve the air you breathe.
- User-Friendly Controls: Comes equipped with an easy-to-use wireless remote controller offering multiple comfort modes including ECO+, Powerful Mode, Auto Mode, and precise temperature adjustments.
- Compact Outdoor Unit: The RXC09AXVJU’s compact footprint and Blue Fin anti-corrosion coil protection make it suitable for a wide range of installation environments, including coastal regions.
System Performance:
- Cooling Capacity: 9,000 BTU/h
- Heating Capacity: 9,400 BTU/h
- SEER2: 18.0
- EER2: 11.0
- HSPF2: 9.0
- Refrigerant: R-32
Condenser Specs:
| Feature | Spec |
|---|---|
| SKU | RXC09AXVJU |
| Weight | 60.000000 |
| Manufacturer | Daikin |
| Replaces | RXB09BXVJU |
| Cooling BTU | 9,000 |
| Heating BTU | 9,400 |
| Decibel Level (dBA) | 48 |
| Refrigerant | R32 |
| SEER2 | 18 |
| Compressor Type | Swing |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical | 208-230 V | 60 Hz |1 Phase |
| Max Breaker Size | 15 A |
| Min. Breaker Size | 9.36 A |
| BTU/Tonnage | 9,000 BTU/0.75 Ton |
| Min/Max Outdoor Temp for Heating | 5°F to 64.4°F |
| Min/Max Outdoor Temp for Cooling | 50°F to 114.8°F |
| Zone Compatibility | Single Zone |
| Height | 21.68" |
| Width | 26.5" |
| Depth | 11.18" |
| Warranty | Limited 10-Year Parts Warranty |
| Safety Information | PROPOSITION 65 WARNING |
Air Handler Specs:
| Feature | Spec |
|---|---|
| SKU | FTXC09AXVJU |
| Weight | 19.980000 |
| Manufacturer | Daikin |
| Replaces | FTXB09BXVJU |
| HSPF2 | 9 |
| Decibel Level (dBA) | 43 |
| Refrigerant | R32 |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 11.33" |
| Width | 30.31" |
| Depth | 9.68" |
| Warranty | Limited 10-Year Parts Warranty | Safety Information | PROPOSITION 65 WARNING |
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
Ask AI
Ask AI about this product
Ask our AI product assistant about sizing, compatibility, electrical needs, accessories, shipping, warranty, and install planning.
At a glance
Tech specs
| Condenser capacity | 9,000 |
|---|---|
| Indoor unit(s) | 9K |
| Coverage area | 400 Sq Ft. |
| Zones / rooms | 1 Zone |
| Power | 230 Volt |
| Line set | Custom |
| Mount type | Wall |
| Installation | Professional Installation |
| Brand | Daikin |
Sizing in doubt? Our HVAC experts confirm capacity for your rooms before you order — free. Ask us about utility rebates for high-efficiency heat pumps in your area.
