Daikin Hyper Heat Aurora 40K BTU Five-Zone Ductless Mini Split System (7K + 7K + 9K + 9K + 9K)
Premium five-room comfort from one outdoor unit. This Daikin AURORA MXT package is a professional-grade, cold-climate ductless heat pump system for homeowners who want quiet, efficient heating and cooling in separate rooms without adding ductwork.
This bundle pairs one Daikin 5MXT40AVJU9 R-32 outdoor condenser with two CTXV07AVJU9 7,000 BTU wall-mounted indoor units and three FTXV09AVJU9 9,000 BTU wall-mounted indoor units. It is a strong fit for layouts with two smaller rooms and three medium-size rooms, such as bedrooms, home offices, guest rooms, finished basements, additions, and bonus spaces.
Not sure this is the right zone mix? Confirm your room sizes, installation plan, and line-set lengths before ordering so the system is matched correctly to your home.
At a Glance:
| Best For | Five-room heating and cooling with independent room comfort |
| Outdoor Unit | Daikin 5MXT40AVJU9, 40,000 BTU, R-32, five-port AURORA MXT condenser |
| Indoor Units | 2 x CTXV07AVJU9 7K wall units + 3 x FTXV09AVJU9 9K wall units |
| Efficiency | 20.00 SEER2 / 11.70 EER2 / 9.50 HSPF2 non-ducted ratings |
| Cold-Weather Heating | Heating operation range down to -13F |
| Voltage | 208-230V / 60Hz / 1 Phase |
| Installation Type | Professional HVAC installation recommended |
Why Choose This Daikin 5-Zone System?
- Five-zone comfort: Heat and cool up to five separate spaces from one outdoor condenser, with room-by-room temperature control.
- Cold-climate performance: AURORA Hyper Heat design supports reliable heating in low outdoor temperatures, with rated heating operation down to -13F.
- Efficient inverter operation: The 5MXT40AVJU9 uses an inverter-driven swing compressor to adjust output as conditions change instead of running only at full speed.
- Quiet everyday comfort: The included CTXV/FTXV wall units are rated as low as 24 dB(A) in quiet fan operation.
- Cleaner installation than ductwork: Wall-mounted indoor units are ideal for homes, additions, offices, and finished spaces where extending ducts would be difficult or expensive.
- Smart control ready: Indoor units support wireless remote operation and wireless LAN connection for app-based control where configured.
- Warranty confidence: Daikin offers a 12-Year Parts Limited Warranty when eligible equipment is registered online within 60 days of installation, subject to warranty terms and state/province rules.
What Is Included?

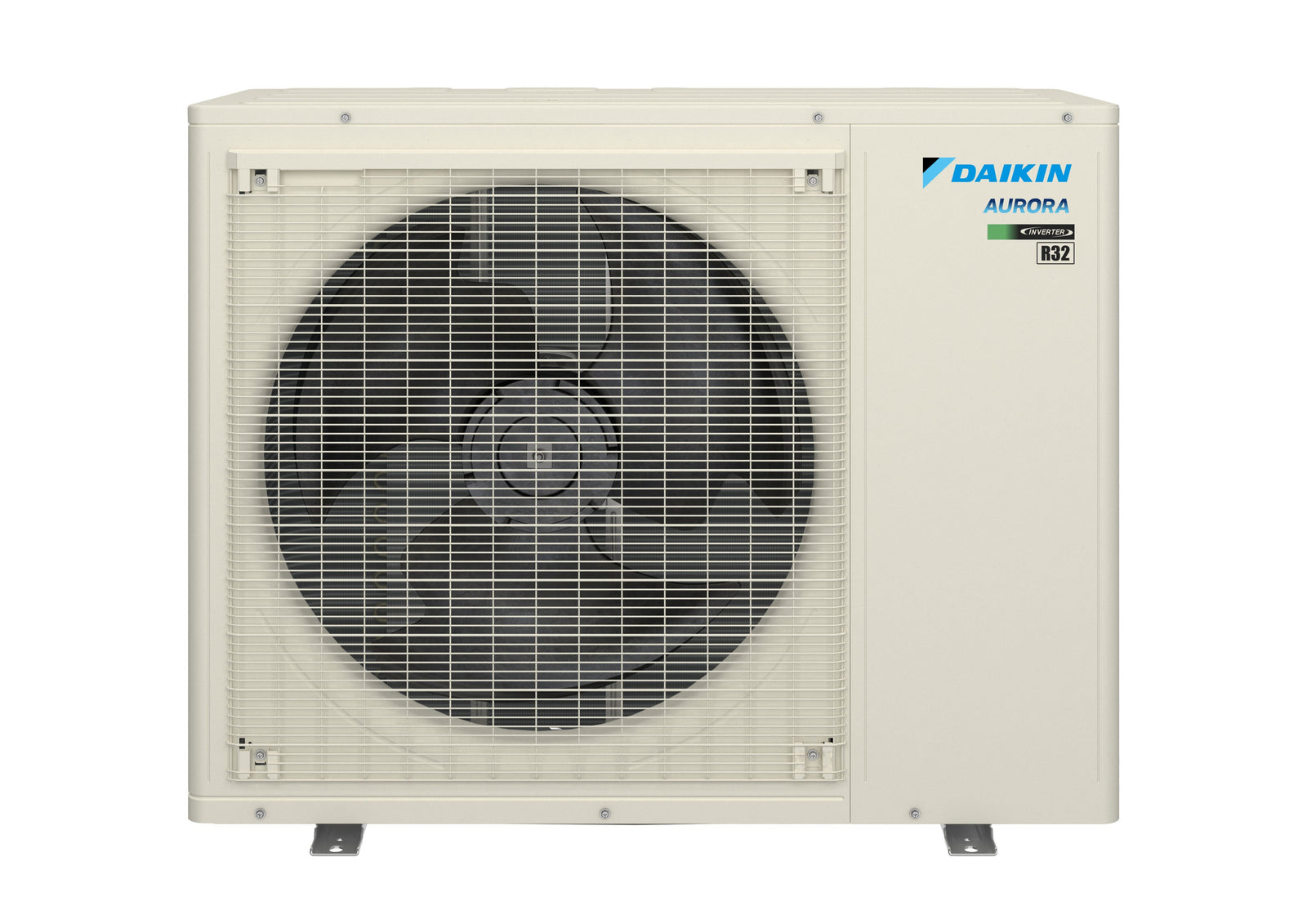

- 1 Daikin 5MXT40AVJU9 40,000 BTU R-32 five-port outdoor heat pump condenser

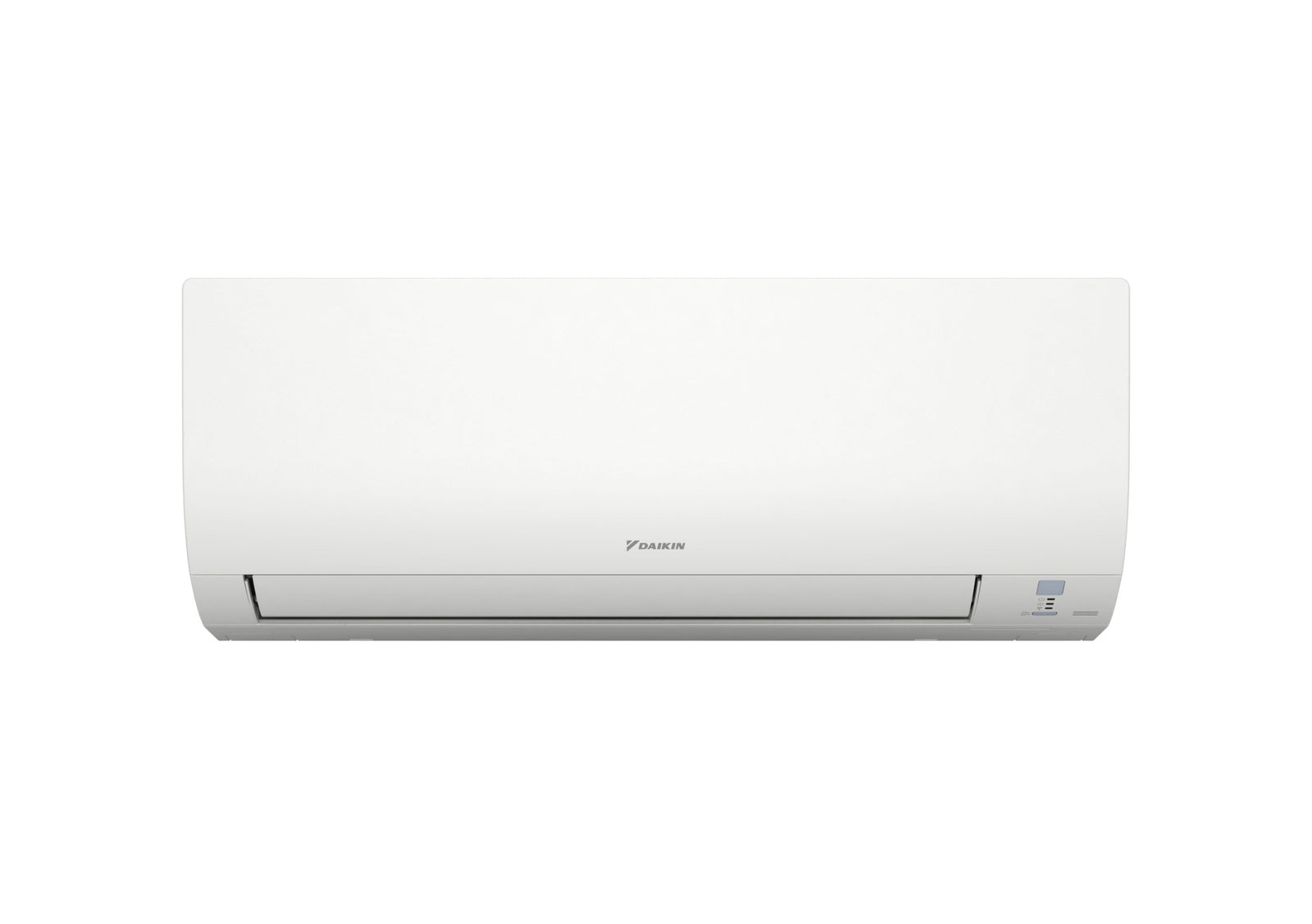

- 2 Daikin CTXV07AVJU9 7,000 BTU wall-mounted indoor units
- 3 Daikin FTXV09AVJU9 9,000 BTU wall-mounted indoor units

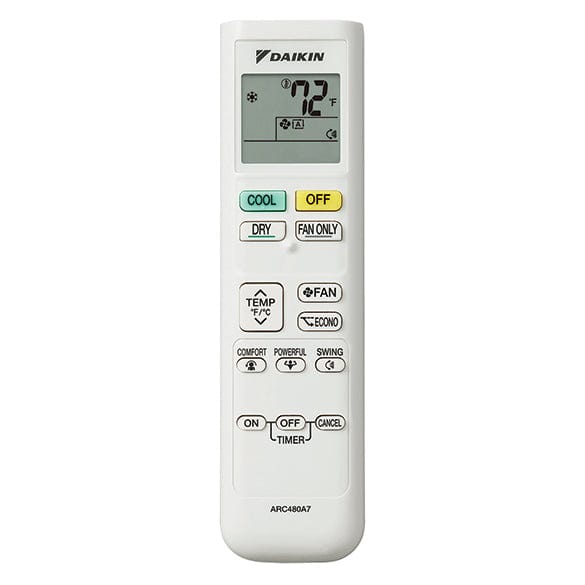

- Wireless remote control capability for the indoor units

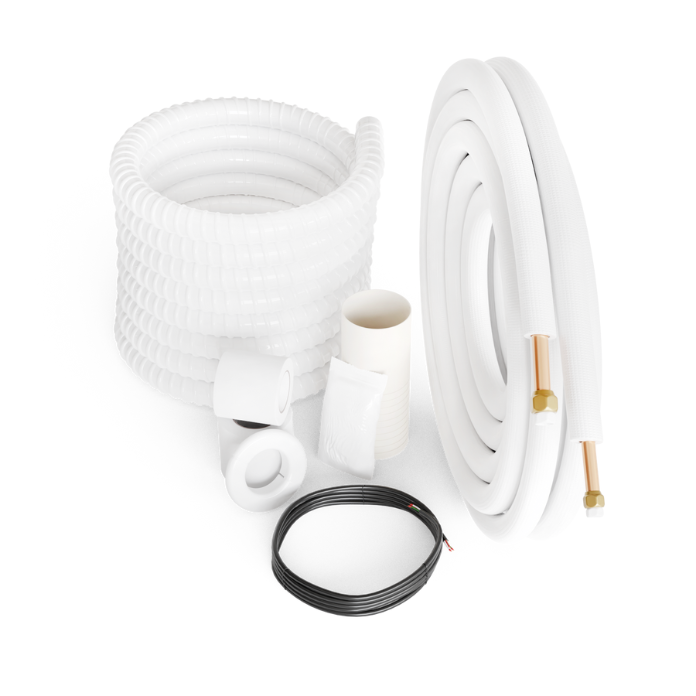

- Package options: No installation, 16FT, 25FT, or 50FT selections
Before You Order:
- Confirm that the 7K + 7K + 9K + 9K + 9K indoor unit mix matches the room sizes and load requirements for your project.
- Have your installer verify line-set lengths, indoor and outdoor placement, condensate routing, electrical requirements, and local code requirements.
- All connected indoor zones can have separate setpoints and fan settings, but the system operates in one overall mode at a time, such as heating or cooling.
- This is not a DIY quick-connect system. Proper refrigerant, electrical, evacuation, startup, and commissioning work should be handled by a qualified HVAC professional.
Installation & Guides:
Daikin AURORA MXT Product Information
Indoor Unit Operation / Installation Manual
Frequently Asked Questions:
Can each room be controlled separately?
Yes. Each indoor unit serves its own zone, so rooms can have different setpoints and fan settings. As with most multi-zone heat pump systems, all zones share the same overall system mode at a given time.
Is this a good choice for cold climates?
Yes. The AURORA MXT outdoor unit is designed for cold-climate heating and has a rated heating operating range down to -13F. Actual delivered capacity depends on outdoor temperature, room load, installation quality, and system sizing.
Do I need a professional installer?
Yes. This is professional HVAC equipment. A qualified installer should handle refrigerant piping, evacuation, electrical work, condensate routing, startup, and warranty registration where applicable.
Which package option should I choose?
Choose the option that matches your installation plan. Your installer should confirm the required line-set lengths before purchase; longer or more complex runs may require additional planning.
Specifications:
| BRAND NAME | Daikin |
| SERIES | AURORA MXT R-32 Multi-Zone |
| SYSTEM TYPE | Ductless mini split heat pump |
| OUTDOOR MODEL | 5MXT40AVJU9 |
| INDOOR MODELS INCLUDED | 2 x CTXV07AVJU9, 3 x FTXV09AVJU9 |
| ZONE CAPACITY | 5 zones |
| CONFIGURATION | 7K + 7K + 9K + 9K + 9K wall-mounted indoor units |
| OUTDOOR UNIT CLASS | 3.3 Ton, 5-port AURORA multi-zone outdoor unit |
| COOLING CAPACITY | 40,000 BTU rated |
| HEATING CAPACITY | 40,000 BTU rated |
| NON-DUCTED EFFICIENCY | 20.00 SEER2 / 11.70 EER2 / 9.50 HSPF2 |
| REFRIGERANT TYPE | R-32 |
| COMPRESSOR | Inverter-driven swing compressor |
| POWER SUPPLY | 208-230V / 60Hz / 1 Phase |
| SYSTEM MCA | 37.9 A |
| SYSTEM MFA | 40.0 A |
| COOLING OPERATING RANGE | 14F to 115F |
| HEATING OPERATING RANGE | -13F to 75F |
| MAX SYSTEM PIPING LENGTH | 262 ft |
| REFRIGERANT PRE-CHARGED PIPE LENGTH | 131.25 ft |
| ADDITIONAL REFRIGERANT CHARGE | 0.22 oz/ft beyond pre-charged pipe length |
| OUTDOOR SOUND LEVEL | 55 dB(A) cooling / 57 dB(A) heating |
| OUTDOOR DIMENSIONS | 34-1/4 in H x 43-5/16 in W x 18-1/8 in D |
| OUTDOOR NET WEIGHT | 219 lb |
| INDOOR UNIT SOUND LEVEL | As low as 24 dB(A) in quiet fan operation |
| WARRANTY | 12-Year Parts Limited Warranty with eligible online registration; terms and restrictions apply |
